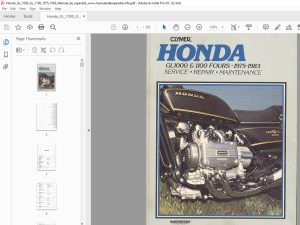

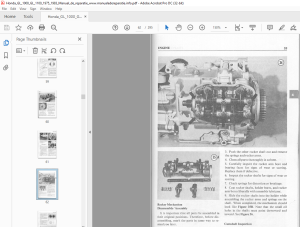

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

1975-1983 Honda Repair Maintenance Manual - PDF DOWNLOAD

GENERAL INFORMATION

• This book provides maintenance and repair information for the Honda GL-1000 and GL-1100 motorcycles as sold in the United States and United Kingdom. Chapters One through Fourteen contain general information on all models and specific information for 1975-1979 models
• . Specific information for 1980 and later models is in the supplement at the end of the book. Read the following service hints to make the work as easy and pleasant as possible. Perform- ing your own work can be an enjoyable and rewarding experience. MANUAL ORGANIZATION This chapter provides general information. and specifications. See Table 1 (found at the end of the chapter).
• It also discusses equipment and tools useful both for preventive main- tenance and troubleshooting. Chapter Two provides methods and sugges- tions for quick and accurate diagnosis and repair of problems. Troubleshooting proce- dures discuss typical symptoms and logical methods to pinpoint the trouble. Chapter Three explains all periodic lubrica- tion and routine maintenance necessary to keep your bike running well.
• Chapter Three also in- cludes recommended tune-up procedures, eliminating the need to constantly consult chap- ters on the various subassemblies. Subsequent chapters describe specific sys- tems such as the engine, transmission, and elec- trical system. Each chapter provides disassem- bly, repair, and assembly procedures in simple step-by-step form. If a repair is impractical for a home mechanic, it is so indicated. It is usually faster and less expensive to take such repairs to a dealer or competent repair shop.
• Specifica- tions concerning a particular system are in- cluded at the end of the appropriate chapter. Some of the procedures in this manual specify special tools. In all cases, the tool is il- lustrated either in actual use or alone. A well- equipped mechanic may find he can substitute similar tools already on hand or can fabricate his own. The terms NOTE, CAUTION, and WARNING have specific meanings in this manual.
• A NOTE pro- vides additional information to make a step or procedure easier or clearer. Disregarding a NOTE could cause inconvenience, but would not cause damage or personal injury. A CAUTION emphasizes areas where equip- ment damage could result. Disregarding a CAU- TION could cause permanent mechanical damage; however, personal injury is unlikely. A WARNING emphasizes areas where personal injury or even death could result from
  negligence. Mechanical damage may also oc- cur. WARNINGS are to be taken seriously. In some cases serious injury or death has resulted from disregarding similar warnings.
• Throughout this manual keep in mind two conventions. "Front" refers to front of the bike. The front of any component such as the engine is the end which faces toward the front of the bike. The left and right side refer to a person sitting on the bike facing forward. For example, the shift lever is on the left side. These rules are simaple, but even experienced me- chanics occasionally become disoriented.

SERVICE HINTS

• Most of the service procedures covered are straightforward and can be performed by any- one reasonably handy with tools. it is sug gested, however, that you consider your own capabilities carefully before attempting any operation involving major disassembly of the engine.
• Some operations, for example, require the use of a press. It would be wiser to have these performed by a shop equipped for such work, rather than to try to do the job yourself with makeshift equipment. Other procedures require precision measurements.
• Unless you have the skills and equipment required, it would be bet- ter to have a qualified repair shop make the measurements for you. Repairs go much faster and easier if your machine is clean before you begin work. There are special cleaners for washing the engine and related parts. Just brush or spray on the clean- ing solution, let it stand, then rinse it away with a garden hose. Clean all oily or greasy parts with cleaning solvent as you remove them.
