2000 Honda XR650Ry Shop Manual - PDF DOWNLOAD

2000 Honda XR650Ry Shop Manual - PDF DOWNLOAD

FILE DETAILS:

2000 Honda XR650Ry Shop Manual - PDF DOWNLOAD

Language :English
Pages :325
Downloadable : Yes
File Type : PDF

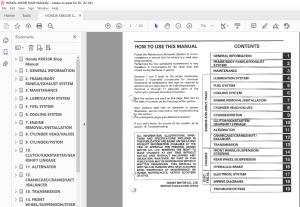

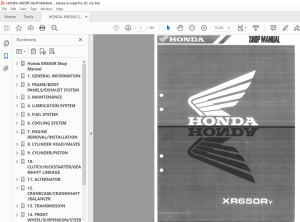

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

2000 Honda XR650Ry Shop Manual - PDF DOWNLOAD

HOW TO USE THIS MANUAL

• Follow the Maintenance Schedule (Section 3) recom­ mendations to ensure that the vehicle is in peak oper­ atingcondition. Pe rming thefirst scheduled maintenance is very impoJltant. It compensates for the initial wear that occurs during the break-in period. Sections 1 and 3 apply to the whole motorcycle.
• Section 2 illustrates procedures for removal/ installation of components that may be required to perform service described in the following sections. Sections 4 through 17 describe parts of the motorcycle, grouped according to location. . l\ ind the section you want on this page, then turn to "ih e table of contents on the first page of the section.
• Most sections start with an assembly or system illustration, service info rmation and troub leshooting )'\or the section. hi e subsequent pages give detailed procedure. If you don't know the source of the trouble, go to section 19, Troubleshooting.

TABLE OF CONTENTS:

2000 Honda XR650Ry Shop Manual - PDF DOWNLOAD

Honda XR650R Shop Manual 1
Contents 2
Important Safety Notice 3
Symbols 4
1 GENERAL INFORMATION 5
General Safety 5
Model Identification 7
Specifications 8
Torque Values 16
Tools 20
Lubrication & Seal Points 22
Cable & Harness Routing 24
Emission Control System 27
2 FRAME/BODY PANELS/EXHAUST SYSTEM 29
Service Information 29
Seat 30
Side Covers 30
Radiator Shroud 30
Front Fender 31
Front Visor 31
Rear Fender/Mud Guard 32
Fuel Tank 33
Sub Frame 33
Exhaust Pipe/Muffler 36
Skid Plate 39
3 MAINTENANCE 41
Service Information 41
Maintenance Schedule 43
Fuel Line 45
Throttle Operation 45
Air Cleaner 46
Spark Plug 47
Valve Clearance 48
Engine Oil 50
Engine Oil Filter 52
Decompressor System 53
Engine Idle Speed 53
Radiator Coolant 54
Cooling System 54
Drive Chain/Sprocket 55
Drive Chain Sliders 58
Brake Fluid 59
Brake Pad Wear 60
Brake System 60
Brake Light Switch 61
Headlight Aim 61
Clutch System 61
Side Stand 62
Suspension 62
Spark Arrester 64
Nuts, Bolts, Fasteners 64
Wheels/Tires 65
Steering Head Bearings 65
4 LUBRICATION SYSTEM 66
Service Information 67
Oil Strainer Screen Cleaning 68
Oil Pump 69
Check Valve 73
Oil Pipe 73
5 FUEL SYSTEM 76
Service Information 77
Air Cleaner Housing 80
Crankcase Breather 80
Carburetor Removal 81
Carburetor Disassembly 81
Carburetor Assembly 85
Carburetor Installation 90
Pilot Screw Adjustment 91
6 COOLING SYSTEM 92
Service Information 93
System Testing 95
Coolant 96
Thermostat 98
Radiator 100
Water Pump 102
Radiator Reserve Tank 104
7 ENGINE REMOVAL/INSTALLATION 106
Service Information 107
Drive Sprocket Removal 108
Engine Removal 109
Engine Installation 111
Drive Sprocket Installation 114
8 CYLINDER HEAD/VALVES 116
Service Information 117
Cylinder Compression 120
Cylinder Head Cover Removal 120
Cylinder Head Cover Disassembly 122
Camshaft Removal 123
Cylinder Head Removal 126
Cylinder Head Disassembly 127
Valve Guide Replacement 129
Valve Seat Inspection And Refacing 130
Cylinder Head Assembly 133
Cylinder Head Installation 135
Camshaft Installation 135
Cylinder Head Cover Assembly 138
Cylinder Head Cover Installation 139
9 CYLINDER/PISTON 142
Service Information 143
Cylinder Removal 145
Piston Removal 146
Piston Installation 149
Cylinder Installation 151
10 CLUTCH/KICKSTARTER/GEARSHIFT LINKAGE 152
Service Information 153
Clutch 155
Right Crankcase Cover Removal 163
Primary Drive Gear 165
Kickstarter 167
Gearshift Cam 172
Right Crankcase Cover Installation 172
11 ALTERNATOR 174
Service Information 175
Left Crankcase Cover Removal 176
Flywheel Removal 177
Flywheel Installation 178
Left Crankcase Cover Installation 178
12 CRANKCASE/CRANKSHAFT/BALANCER 180
Service Information 181
Crankcase Separation 183
Crankshaft/Balancer Removal 185
Crankcase Bearing Replacement 187
Crankshaft/Balancer Installation 192
Crankcase Assembly 194
13 TRANSMISSION 198
Service Information 199
Transmission Removal/Disassembly 201
Transmission Inspection 202
Transmission Assembly/Installation 204
14 FRONT WHEEL/SUSPENSION/STEERING 208
Service Information 209
Front Wheel 212
Fork 217
Handlebar 229
Steering Stem 233
15 REAR WHEEL/SUSPENSION 238
Service Information 239
Rear Wheel 242
Shock Absorber 247
Shock Linkage 262
Swingarm 267
16 HYDRAULIC BRAKE 274
Service Information 275
Brake Fluid Replacement/Air Bleeding 277
Brake Pad/Disc 279
Front Master Cylinder 281
Rear Master Cylinder 283
Front Brake Caliper 286
Rear Brake Caliper 289
Brake Pedal 293
17 ELECTRICAL SYSTEM 296
Service Information 297
Ignition System Inspection 301
Ignition Timing 304
ICM (Ignition Control Mudule) 305
Ignition Ciol 305
Alternator 305
AC Regulator 306
Regulator/Rectifier 306
Headlight 308
Tail/Brake Light 308
Turn Signal Light 309
Speedometer 309
Handlebar Switches 310
Engine Stop Switch 311
Front Brake Light Switch 311
Rear Brake Light Switch 311
Horn 311
Turn Signal Relay 312
18 WIRING DIAGRAMS 313
19 TROUBLESHOOTING 319
Engine Does Not Start Or Is Hard To Start 319
Engine Lacks Power 320
Poor Performance At Low And Idle Speed 321
Poor Performace At High Speed 322
Poor Handling 322
INDEX 323
