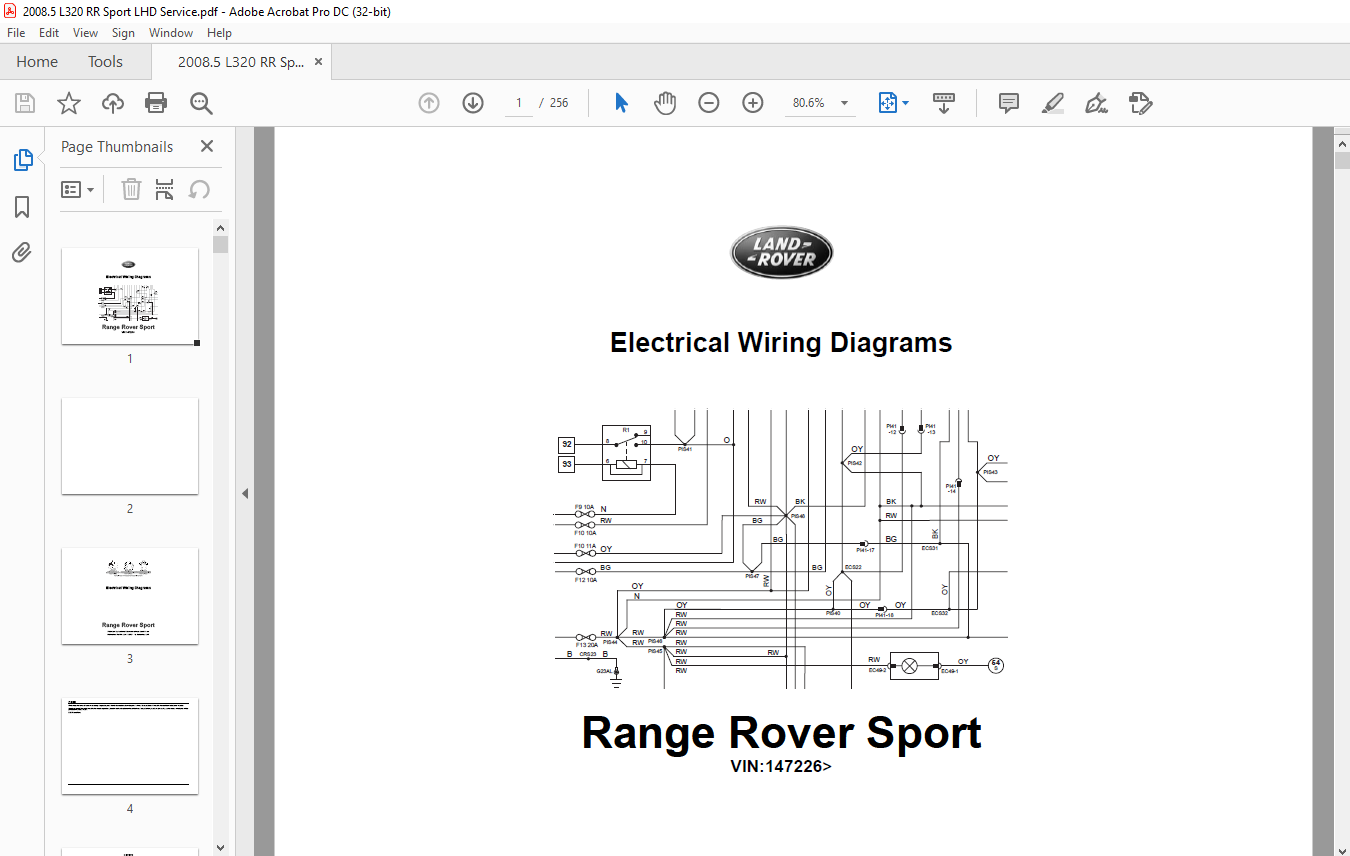

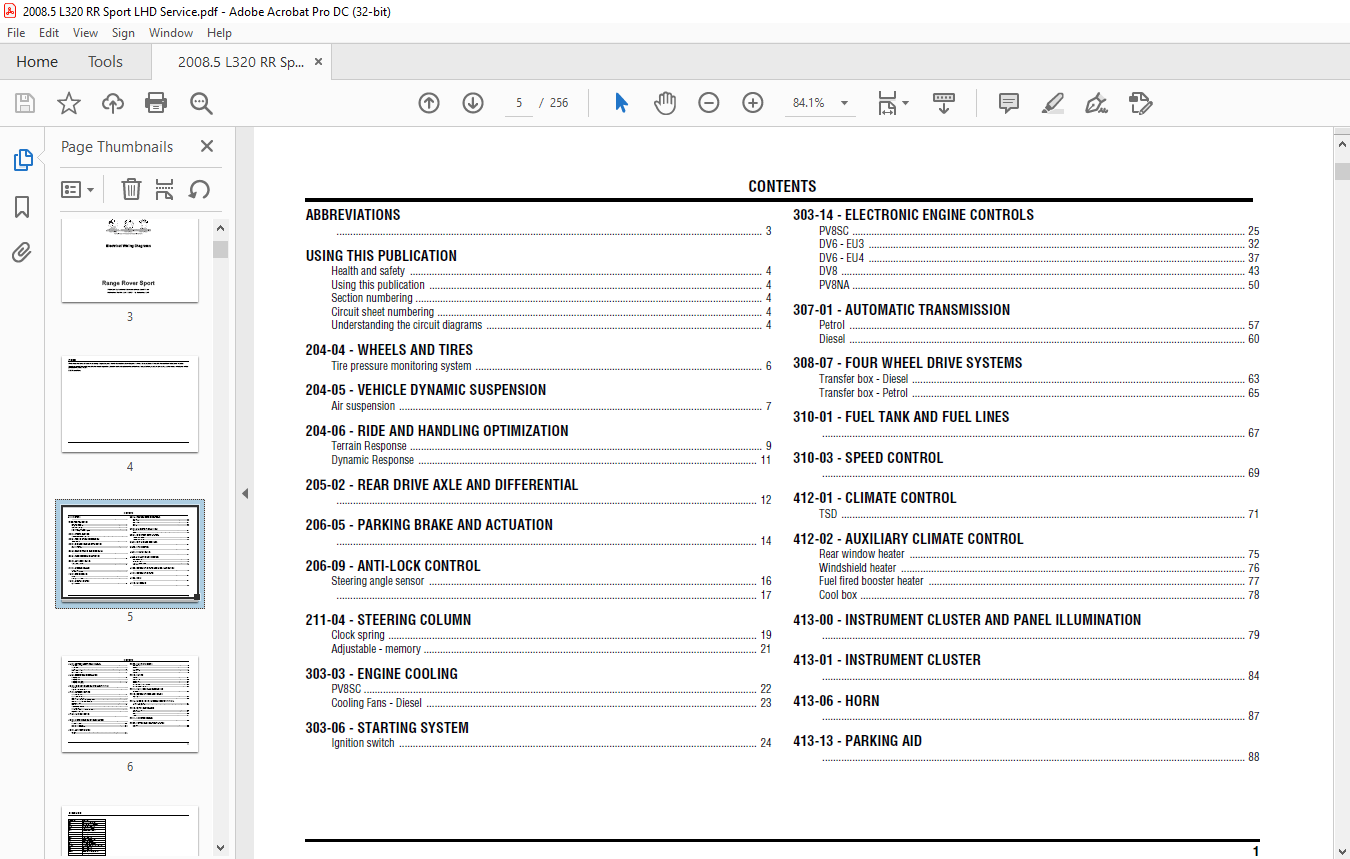

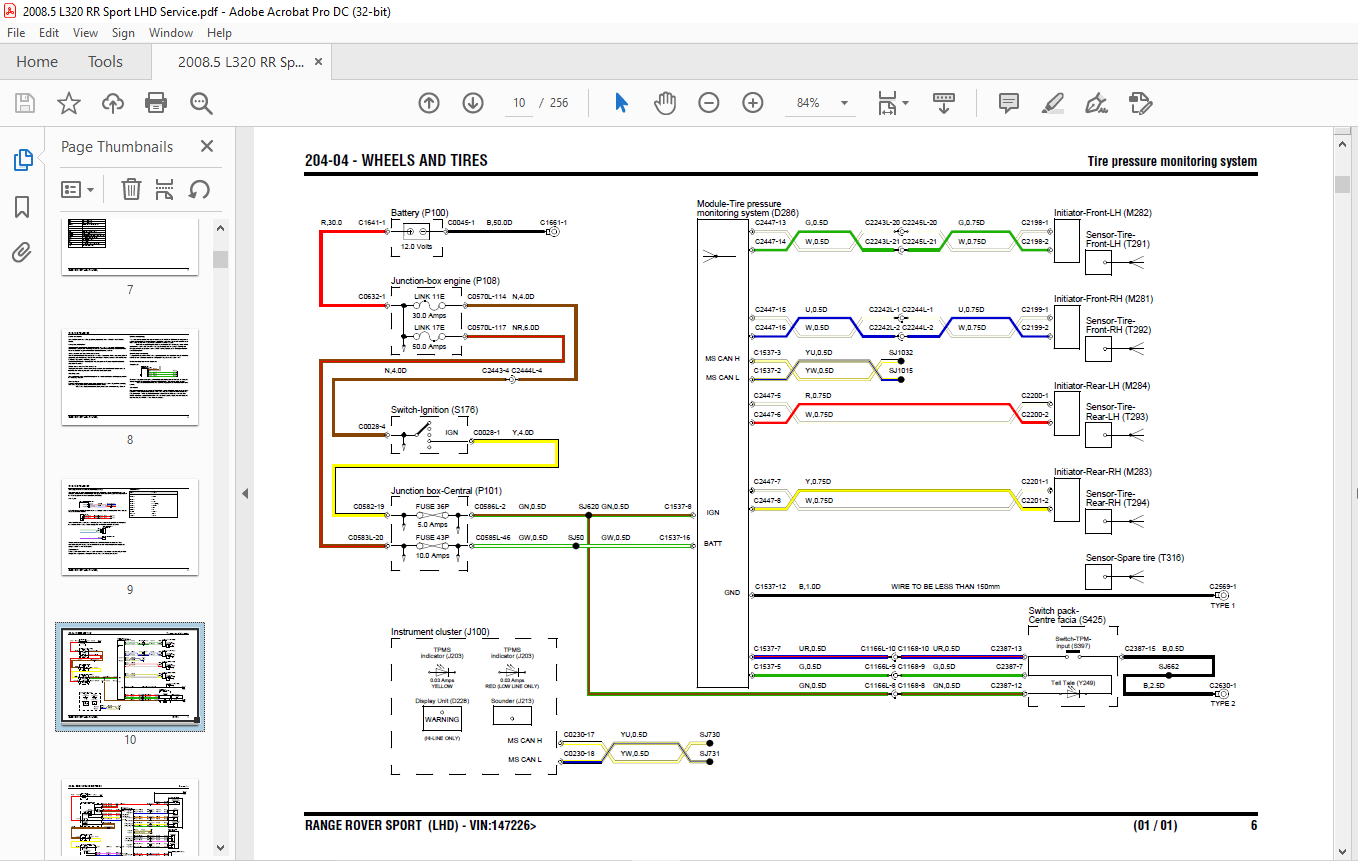

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

2007 Land Rover L320 Range Rover Sport Electrical Circuit Diagrams Manual- PDF DOWNLOAD

PREFACE

While every effort is made to ensure accuracy, design changes to the vehicle may be made in the period between the completion of this publication and the introduction of vehicles. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form, electronic, mechanical, recording or other means without prior written permission from Land Rover.

USING THIS PUBLICATION
 Health and safety
Always follow health and safety guidelines, specifically those detailed in the Workshop
Manual.
Using this publication
The information provided in this publication is for use only by competent, qualified autoelectricians.
Good product knowledge is assumed, as well as the ability to access and use
recommended test equipment and other reference material provided.
Test equipment and other reference material
The information in this publication should be used in conjunction with the recommended test
equipment; refer to Workshop Manual. Other reference material includes: Technical Service
Bulletins (TSB) and the Workshop Manual.
The Electrical Reference Library (ERL) may also prove useful since it provides detailed
connector information.
Battery disconnection and reconnection
It is imperative that any information relating to battery disconnection and reconnection is
followed; refer to the appropriate sections in the Workshop Manual.
Fault Diagnosis
Always use the recommended test equipment for correct and reliable fault diagnosis, refer to
the Workshop Manual.
Harness Repair
Repairs should only be undertaken for connectors where a Service Repair Kit is available;
refer to the appropriate Electrical Reference Library (ERL).

TABLE OF CONTENTS:

2007 Land Rover L320 Range Rover Sport Electrical Circuit Diagrams Manual- PDF DOWNLOAD

RANGE ROVER SPORT - LHD - VIN:147226>.................  1
	TITLE PAGE........................................  3
	PREFACE...........................................  4
	CONTENTS..........................................  5
	ABBREVIATIONS.....................................  7
	USING THIS PUBLICATION............................  8
204-04 - WHEELS AND TIRES............................. 10
	Tire pressure monitoring system................... 10
204-05 - VEHICLE DYNAMIC SUSPENSION................... 11
	Air suspension.................................... 11
204-06 - RIDE AND HANDLING OPTIMIZATION............... 13
	Terrain Response.................................. 13
	Dynamic Response.................................. 15
205-02 - REAR DRIVE AXLE AND DIFFERENTIAL............. 16
206-05 - PARKING BRAKE AND ACTUATION.................. 18
206-09 - ANTI-LOCK CONTROL............................ 20
	Steering angle sensor............................. 20
211-04 - STEERING COLUMN.............................. 23
	Clock spring...................................... 23
	Adjustable - memory............................... 25
303-03 - ENGINE COOLING............................... 26
	PV8SC............................................. 26
	Cooling Fans - Diesel............................. 27
303-06 - STARTING SYSTEM.............................. 28
	Ignition switch................................... 28
303-14 - ELECTRONIC ENGINE CONTROLS................... 29
	PV8SC............................................. 29
	DV6 - EU3......................................... 36
	DV6 - EU4......................................... 41
	DV8............................................... 47
	PV8NA............................................. 54
307-01 - AUTOMATIC TRANSMISSION....................... 61
	Petrol............................................ 61
	Diesel............................................ 64
308-07 - FOUR WHEEL DRIVE SYSTEMS..................... 67
	Transfer box - Diesel............................. 67
	Transfer box - Petrol............................. 69
310-01 - FUEL TANK AND FUEL LINES..................... 71
310-03 - SPEED CONTROL................................ 73
412-01 - CLIMATE CONTROL.............................. 75
	TSD............................................... 75
412-02 - AUXILIARY CLIMATE CONTROL.................... 79
	Rear window heater................................ 79
	Windshield heater................................. 80
	Fuel fired booster heater......................... 81
	Cool box.......................................... 82
413-00 - INSTRUMENT CLUSTER AND PANEL ILLUMINATION.... 83
413-01 - INSTRUMENT CLUSTER........................... 88
413-06 - HORN......................................... 91
413-13 - PARKING AID.................................. 92
414-01 - BATTERY, MOUNTING AND CABLES................. 95
	Ground distribution............................... 95
	Transit relay.....................................107
	Splices...........................................108
	Central junction box..............................132
	Battery junction box..............................141
414-02 - GENERATOR AND REGULATOR......................148
	Charging - PV8....................................148
	Charging - DV8....................................149
	Charging - DV6 (EU4)..............................150
	Charging - DV6 (EU3)..............................151
415-00 - INFORMATION AND ENTERTAINMENT SYSTEM.........152
	Low line..........................................152
	High line - Harman Kardon.........................160
417-01 - EXTERIOR LIGHTING............................171
	Trailer socket - NAS..............................171
	Lighting control switch...........................173
	Headlamps - cornering.............................174
	Headlamps - adaptive front lighting system........175
	Headlamps - high intensity discharge..............177
	Fog lamps - NAS...................................180
	Headlamps.........................................181
	Stop and reverse lamps............................184
	Trailer socket....................................185
	Turn signal indicators and hazard flashers........187
	Fog lamps - non NAS...............................189
417-02 - INTERIOR LIGHTING............................190
418-00 - MODULE COMMUNICATIONS NETWORK................193
	MOST..............................................193
	Diagnostic socket.................................208
	CAN bus - high speed..............................209
	CAN bus - medium speed............................213
419-01 - ANTI-THEFT SYSTEM............................215
	Passive...........................................215
	Active............................................216
501-09 - REAR VIEW MIRRORS............................219
	Electrochromic....................................219
	Heated............................................220
	Fold back.........................................221
	Non memory........................................222
	Memory............................................223
501-10 - SEATING......................................225
	Memory............................................225
	Non memory........................................227
	Heated - rear.....................................229
	Heated - front....................................231
	Lumbar support - non memory.......................232
	Lumbar support - memory...........................233
501-11 - GLASS, FRAMES AND MECHANISMS.................234
	Window lift.......................................234
501-12 - INSTRUMENT PANEL AND CONSOLE.................236
	Cigar lighter.....................................236
501-14 - HANDLES, LOCKS, LATCHES AND ENTRY SYSTEMS....238
	Tailgate power striker............................238
	Central locking system............................239
501-16 - WIPERS AND WASHERS...........................244
	Washer jets - heated..............................244
	Power wash........................................245
	Rear..............................................246
	Front.............................................248
501-17 - ROOF OPENING PANEL...........................249
501-20 - SUPPLEMENTAL RESTRAINT SYSTEM................250
	Non NAS...........................................250
	NAS...............................................253
Published by Technical Communications, Land Rover.....256
