FILE DETAILS:

2008 Land Rover L320 Range Rover Sport LHD Electrical Wiring Diagrams Manual – PDF DOWNLOAD

Language : English
Pages : 257
Downloadable : Yes
File Type : PDF

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

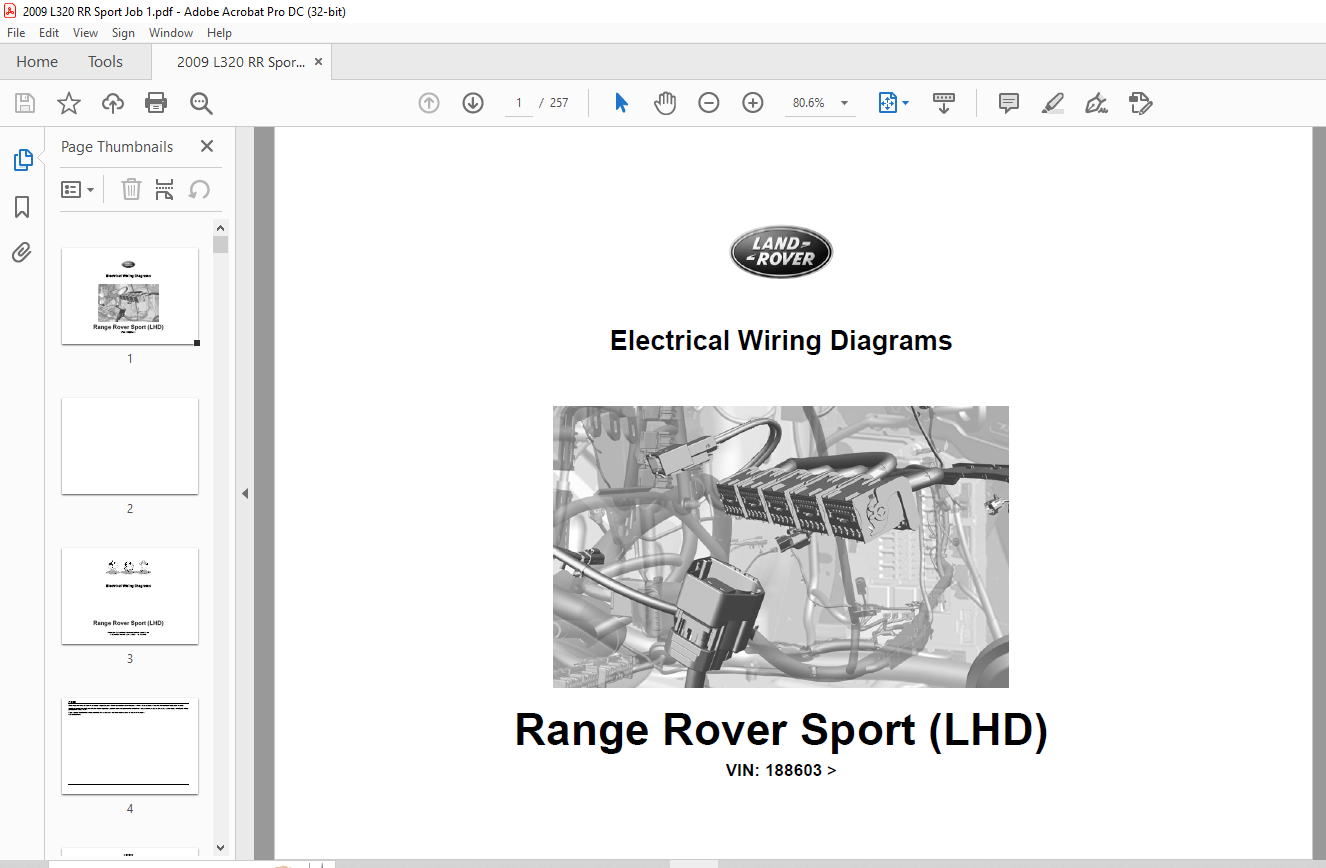

2008 Land Rover L320 Range Rover Sport LHD Electrical Wiring Diagrams Manual – PDF DOWNLOAD

VIN: 188603
Part No. JLR 13 69 21_1E

PREFACE

While every effort is made to ensure accuracy, design changes to the vehicle may be made in the period between the completion of this publication and the introduction of vehicles. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form, electronic, mechanical, recording or other means without prior written permission from Land Rover. Paper copies of this document are uncontrolled, always refer to the electronic source material for the latest information.

USING THIS PUBLICATION
 Health and safety

Always follow health and safety guidelines, specifically those detailed in the Workshop
Manual.
Using this publication
The information provided in this publication is for use only by competent, qualified autoelectricians.
Good product knowledge is assumed, as well as the ability to access and use
recommended test equipment and other reference material provided.
Test equipment and other reference material
The information in this publication should be used in conjunction with the recommended test
equipment; refer to Workshop Manual. Other reference material includes: Technical Service
Bulletins (TSB) and the Workshop Manual.
The Electrical Reference Library (ERL) may also prove useful since it provides detailed
connector information.
Battery disconnection and reconnection
It is imperative that any information relating to battery disconnection and reconnection is
followed; refer to the appropriate sections in the Workshop Manual.
Fault Diagnosis
Always use the recommended test equipment for correct and reliable fault diagnosis, refer to
the Workshop Manual.
Harness Repair
Repairs should only be undertaken for connectors where a Service Repair Kit is available;
refer to the appropriate Electrical Reference Library (ERL).

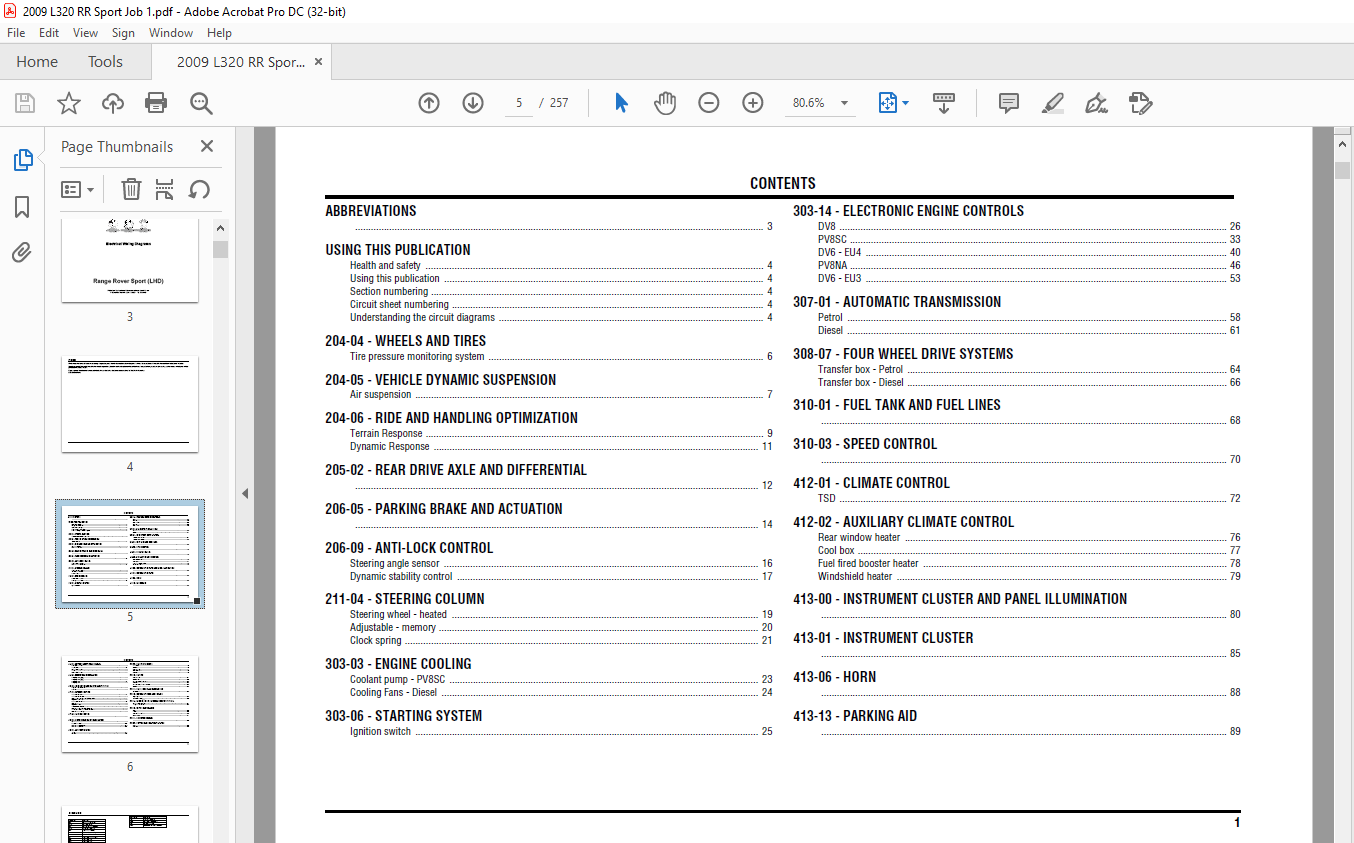

TABLE OF CONTENTS:

2008 Land Rover L320 Range Rover Sport LHD Electrical Wiring Diagrams Manual – PDF DOWNLOAD

Range Rover Sport (LHD) - VIN: 188603 >...............  1
CONTENTS..............................................  5
ABBREVIATIONS.........................................  7
USING THIS PUBLICATION................................  8
204-04 - WHEELS AND TIRES............................. 10
	Tire pressure monitoring system................... 10

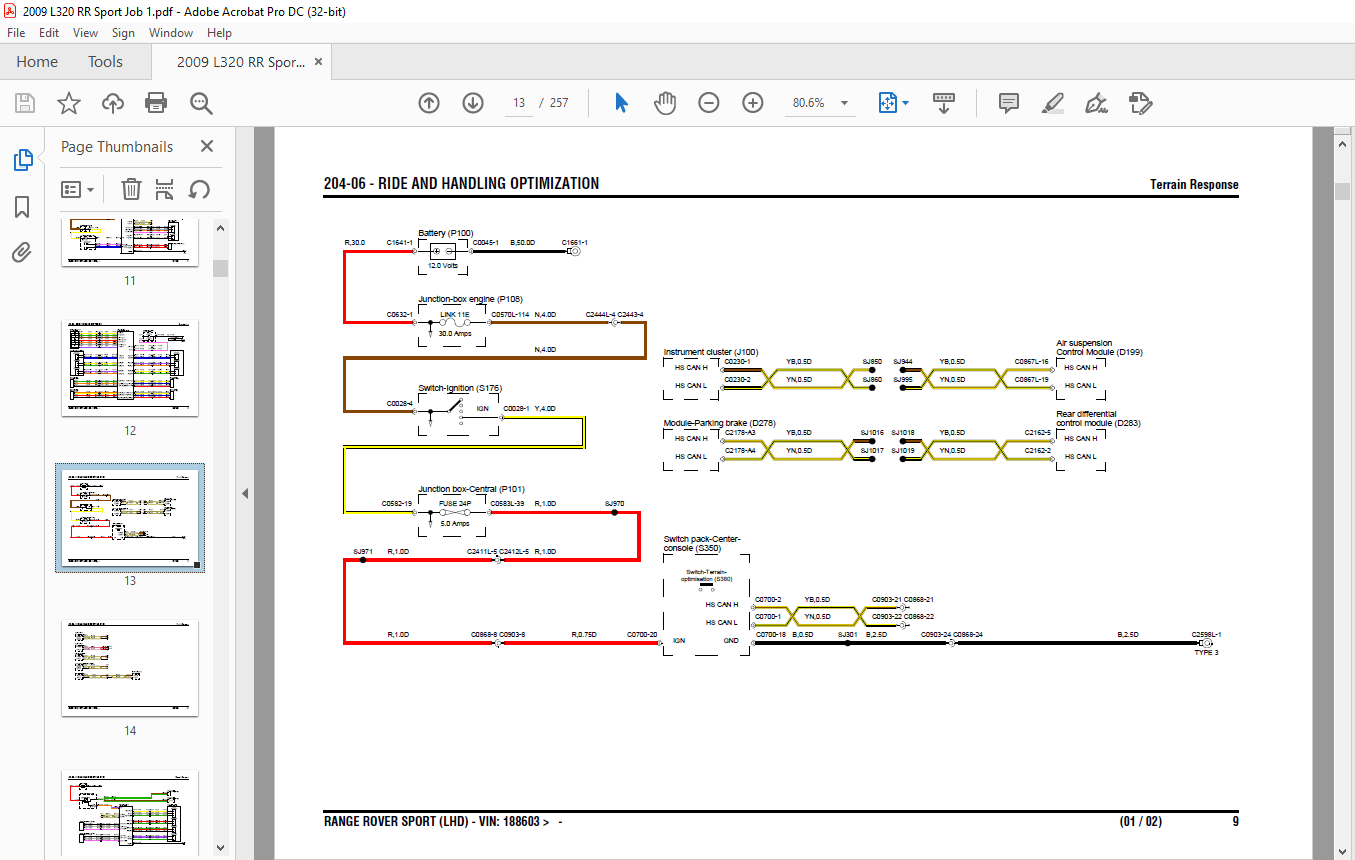

204-05 - VEHICLE DYNAMIC SUSPENSION................... 11
	Air suspension.................................... 11
204-06 - RIDE AND HANDLING OPTIMIZATION............... 13
	Terrain Response.................................. 13
	Dynamic Response.................................. 15
205-02 - REAR DRIVE AXLE AND DIFFERENTIAL............. 16
206-05 - PARKING BRAKE AND ACTUATION.................. 18
206-09 - ANTI-LOCK CONTROL............................ 20
	Steering angle sensor............................. 20
	Dynamic stability control......................... 21
211-04 - STEERING COLUMN.............................. 23
	Steering wheel - heated........................... 23
	Adjustable - memory............................... 24
	Clock spring...................................... 25
303-03 - ENGINE COOLING............................... 27
	Coolant pump - PV8SC.............................. 27
	Cooling Fans - Diesel............................. 28
303-06 - STARTING SYSTEM.............................. 29
	Ignition switch................................... 29
303-14 - ELECTRONIC ENGINE CONTROLS................... 30
	DV8............................................... 30
	PV8SC............................................. 37
	DV6 - EU4......................................... 44
	PV8NA............................................. 50
	DV6 - EU3......................................... 57
307-01 - AUTOMATIC TRANSMISSION....................... 62
	Petrol............................................ 62
	Diesel............................................ 65
308-07 - FOUR WHEEL DRIVE SYSTEMS..................... 68
	Transfer box - Petrol............................. 68
	Transfer box - Diesel............................. 70
310-01 - FUEL TANK AND FUEL LINES..................... 72
310-03 - SPEED CONTROL................................ 74
412-01 - CLIMATE CONTROL.............................. 76
	TSD............................................... 76
412-02 - AUXILIARY CLIMATE CONTROL.................... 80
	Rear window heater................................ 80
	Cool box.......................................... 81
	Fuel fired booster heater......................... 82
	Windshield heater................................. 83
413-00 - INSTRUMENT CLUSTER AND PANEL ILLUMINATION.... 84
413-01 - INSTRUMENT CLUSTER........................... 89
413-06 - HORN......................................... 92
413-13 - PARKING AID.................................. 93
414-01 - BATTERY, MOUNTING AND CABLES................. 96
	Ground distribution............................... 96
	Transit relay.....................................108
	Battery junction box..............................109
	Splices...........................................116
	Central junction box..............................140
414-02 - GENERATOR AND REGULATOR......................149
	Charging - DV6 (EU4)..............................149
	Charging - DV6 (EU3)..............................150
	Charging - DV8....................................151
	Charging - PV8....................................152
415-00 - INFORMATION AND ENTERTAINMENT SYSTEM.........153
	High line - Harman Kardon.........................153
	Low line..........................................164
417-01 - EXTERIOR LIGHTING............................171
	Trailer socket - NAS..............................171
	Trailer socket - Europe...........................173
	Headlamps - adaptive front lighting system........175
	Fog lamps - non NAS...............................177
	Lighting control switch...........................178
	Headlamps.........................................179
	Fog lamps - NAS...................................182
	Stop and reverse lamps............................183
	Headlamps - high intensity discharge..............184
	Turn signal indicators and hazard flashers........187
	Headlamps - cornering.............................189
417-02 - INTERIOR LIGHTING............................190
418-00 - MODULE COMMUNICATIONS NETWORK................193
	MOST..............................................193
	Diagnostic socket.................................208
	CAN bus - medium speed............................209
	CAN bus - high speed..............................211
419-01 - ANTI-THEFT SYSTEM............................215
	Active............................................215
	Passive...........................................218
501-09 - REAR VIEW MIRRORS............................219
	Fold back.........................................219
	Heated............................................220
	Non memory........................................221
	Electrochromic....................................222
	Memory............................................223
501-10 - SEATING......................................225
	Non memory........................................225
	Heated - rear.....................................227
	Lumbar support - memory...........................229
	Memory............................................230
	Lumbar support - non memory.......................232
	Heated - front....................................233
501-11 - GLASS, FRAMES AND MECHANISMS.................234
	Window lift.......................................234
501-12 - INSTRUMENT PANEL AND CONSOLE.................236
	Cigar lighter.....................................236
	Accessory socket(s)...............................237
501-14 - HANDLES, LOCKS, LATCHES AND ENTRY SYSTEMS....238
	Central locking system............................238
	Tailgate power striker............................243
501-16 - WIPERS AND WASHERS...........................244
	Rear..............................................244
	Front.............................................246
	Washer jets - heated..............................247
	Power wash........................................248
501-17 - ROOF OPENING PANEL...........................249
501-20 - SUPPLEMENTAL RESTRAINT SYSTEM................250
	NAS...............................................250
	Non NAS...........................................253
