DESCRIPTION:

2010 Land Rover L359 LR2 LHD FREELANDER 2 – LR2 (LHD) Electrical Circuit Diagrams Manual – PDF DOWNLOAD

VIN: 216517
Part No. JLR 15 62 21_2E

PREFACE
While every effort is made to ensure accuracy, design changes to the vehicle may be made in the period between the completion
of this publication and the introduction of vehicles.
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form, electronic,
mechanical, recording or other means without prior written permission from Land Rover.
Paper copies of this document are uncontrolled, always refer to the electronic source material for the latest information

USING THIS PUBLICATION
 Health and safety
Always follow health and safety guidelines, specifically those detailed in the Workshop Manual.
Using this publication
The information provided in this publication is for use only by competent, qualified auto-electricians. Good product knowledge is
assumed, as well as the ability to access and use recommended test equipment and other reference material provided.
Test equipment and other reference material
The information in this publication should be used in conjunction with the recommended test equipment; refer to Workshop Manual.
Other reference material includes: Technical Service Bulletins (TSB) and the Workshop Manual.
The Electrical Reference Library (ERL) may also prove useful since it provides detailed connector information.
Battery disconnection and reconnection
It is imperative that any information relating to battery disconnection and reconnection is followed; refer to the appropriate sections
in the Workshop Manual.
Fault Diagnosis
Always use the recommended test equipment for correct and reliable fault diagnosis, refer to the Workshop Manual.
Harness Repair
Repairs should only be undertaken for connectors where a Service Repair Kit is available; refer to the appropriate Electrical
Reference Library (ERL).

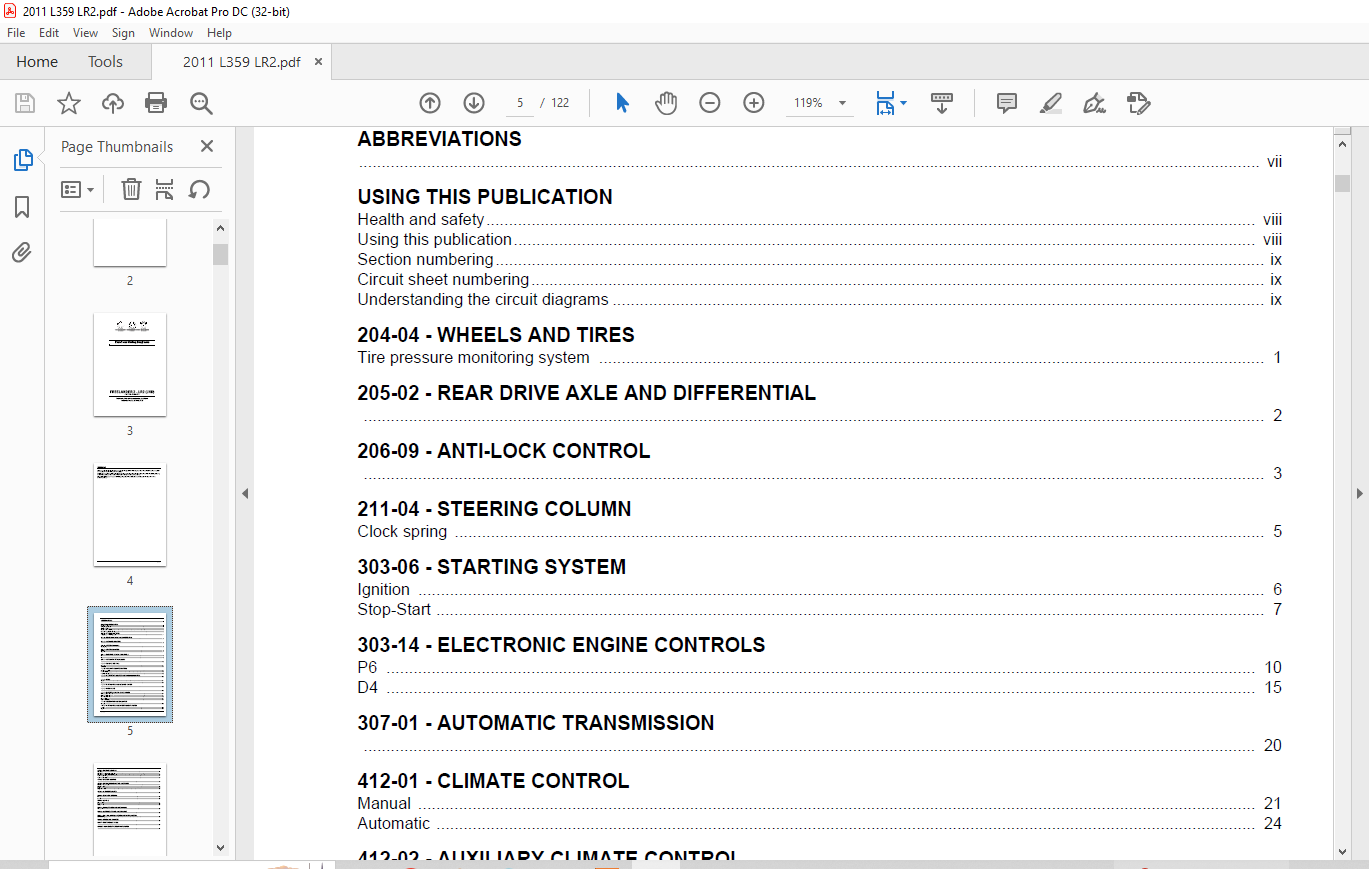

TABLE OF CONTENTS:

2010 Land Rover L359 LR2 LHD FREELANDER 2 – LR2 (LHD) Electrical Circuit Diagrams Manual – PDF DOWNLOAD

FREELANDER 2 - LR2 (LHD) - VIN: 216517 >..............  1
	CONTENTS..........................................  5
	ABBREVIATIONS.....................................  7
	USING THIS PUBLICATION............................  8
		Health and safety.............................  8
		Using this publication........................  8
		Section numbering.............................  9
		Circuit sheet numbering.......................  9
		Understanding the circuit diagrams............  9
204-04 - WHEELS AND TIRES............................. 11

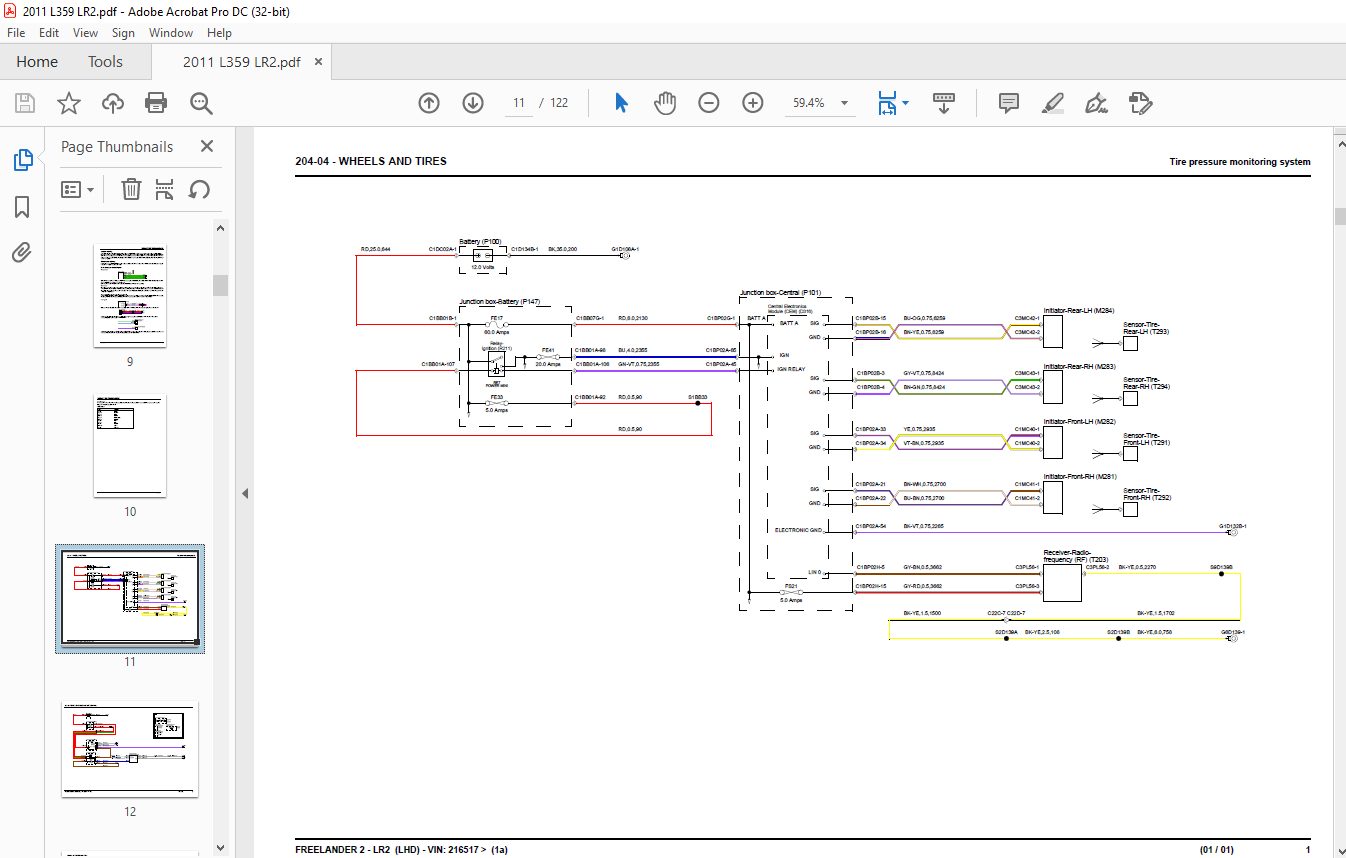

	Tire pressure monitoring system................... 11
205-02 - REAR DRIVE AXLE AND DIFFERENTIAL............. 12
206-09 - ANTI-LOCK CONTROL............................ 13
211-04 - STEERING COLUMN.............................. 15
	Clock spring...................................... 15
303-06 - STARTING SYSTEM.............................. 16
	Ignition.......................................... 16
	Stop-Start........................................ 17
303-14 - ELECTRONIC ENGINE CONTROLS................... 20
	P6................................................ 20
	D4................................................ 25
307-01 - AUTOMATIC TRANSMISSION....................... 30
412-01 - CLIMATE CONTROL.............................. 31
	Manual............................................ 31
	Automatic......................................... 34
412-02 - AUXILIARY CLIMATE CONTROL.................... 37
	Heated windshield................................. 37
	Electric booster heater........................... 38
	Fuel fired booster heater......................... 39
413-00 - INSTRUMENT CLUSTER AND PANEL ILLUMINATION.... 40
413-06 - HORN......................................... 41
	Standard.......................................... 41
	Heavy duty........................................ 42
413-08 - INFORMATION AND MESSAGE CENTER............... 43
413-13 - PARKING AID.................................. 45
414-01 - BATTERY, MOUNTING AND CABLES................. 47
	Battery junction box - P6......................... 47
	Battery junction box - D4......................... 51
	Central junction box.............................. 55
	Rear junction box................................. 61
	Ground distribution............................... 64
414-02 - GENERATOR AND REGULATOR...................... 69
	Charging.......................................... 69
415-00 - INFORMATION AND ENTERTAINMENT SYSTEM......... 70
	Low-line.......................................... 70
	High line......................................... 72
417-01 - EXTERIOR LIGHTING............................ 77
	Headlamps......................................... 77
	Headlamps - high intensity discharge.............. 81
	Headlamps - adaptive front lighting system........ 85
	Trailer socket - Europe........................... 87
	Trailer socket - NAS.............................. 88
417-02 - INTERIOR LIGHTING............................ 89
418-00 - MODULE COMMUNICATIONS NETWORK................ 91
	CAN bus - medium speed............................ 91
	CAN bus - high speed.............................. 93
	LIN bus........................................... 94
	Diagnostic socket................................. 96
419-01 - ANTI-THEFT SYSTEM............................ 97
501-09 - REAR VIEW MIRRORS............................ 99
	Interior.......................................... 99
	Exterior..........................................100
501-10 - SEATING......................................101
	Non memory........................................101
	Memory............................................103
	Heated - front....................................105
501-11 - GLASS, FRAMES AND MECHANISMS.................106
	Window lift.......................................106
501-12 - INSTRUMENT PANEL AND CONSOLE.................109
501-14 - HANDLES, LOCKS, LATCHES AND ENTRY SYSTEMS....110
	Central locking system............................110
501-16 - WIPERS AND WASHERS...........................113
501-17 - ROOF OPENING PANEL...........................116
501-20B - SUPPLEMENTAL RESTRAINT SYSTEM...............117
