2011 Land Rover L538 RANGE ROVER SPORT (LHD) Electrical Wiring Diagrams Manual – PDF DOWNLOAD

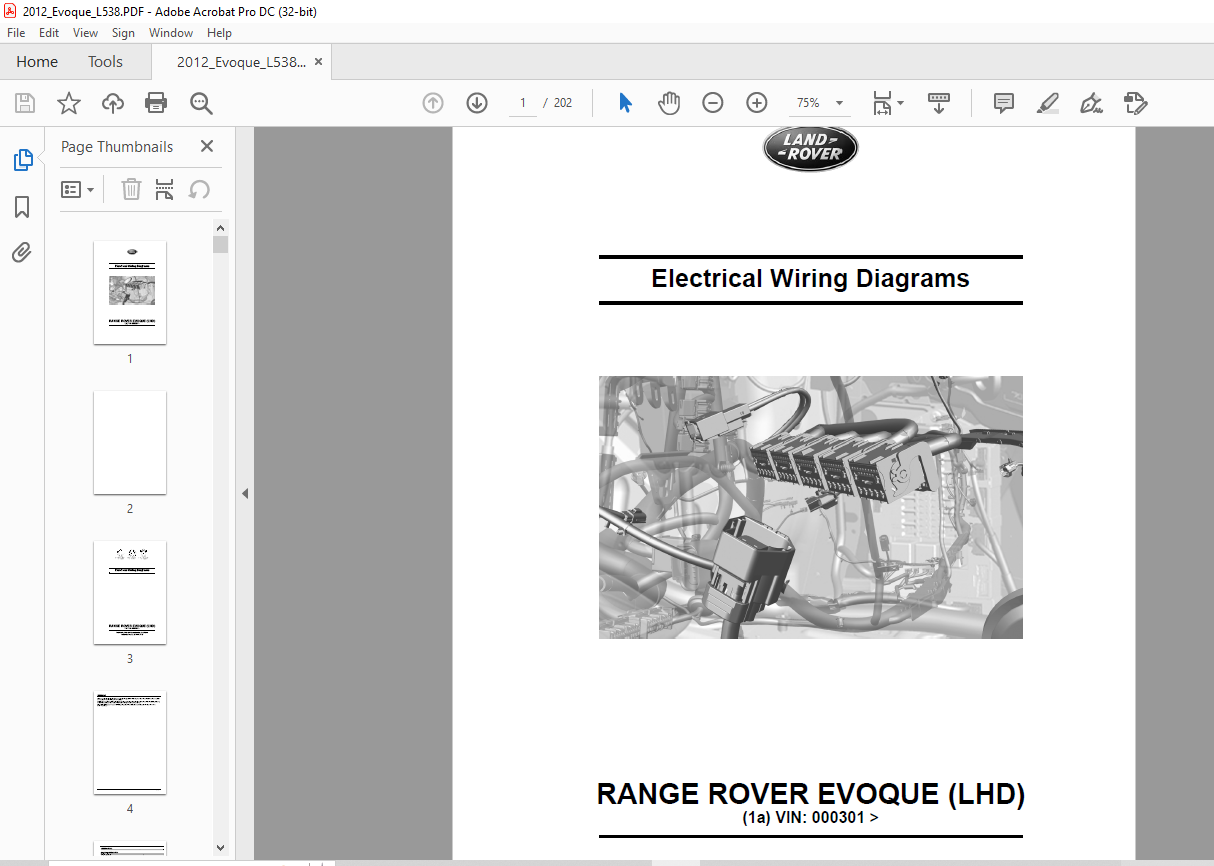

VIN: 000301
Part No. JLR 15 94 21_1E

PREFACE

• While every effort is made to ensure accuracy, design changes to the vehicle may be made in the period between the completion of this publication and the introduction of vehicles.
• All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form, electronic, mechanical, recording or other means without prior written permission from Land Rover.
• Paper copies of this document are uncontrolled, always refer to the electronic source material for the latest information

USING THIS PUBLICATIONHealth and safety
Always follow health and safety guidelines, specifically those detailed in the Workshop Manual.
Using this publication
The information provided in this publication is for use only by competent, qualified auto-electricians. Good product knowledge is
assumed, as well as the ability to access and use recommended test equipment and other reference material provided.
Test equipment and other reference material
The information in this publication should be used in conjunction with the recommended test equipment; refer to Workshop Manual.
Other reference material includes: Technical Service Bulletins (TSB) and the Workshop Manual.
The Electrical Reference Library (ERL) may also prove useful since it provides detailed connector information.
Battery disconnection and reconnection
It is imperative that any information relating to battery disconnection and reconnection is followed; refer to the appropriate sections
in the Workshop Manual.
Fault Diagnosis
Always use the recommended test equipment for correct and reliable fault diagnosis, refer to the Workshop Manual.
Harness Repair
Repairs should only be undertaken for connectors where a Service Repair Kit is available; refer to the appropriate Electrical
Reference Library (ERL).

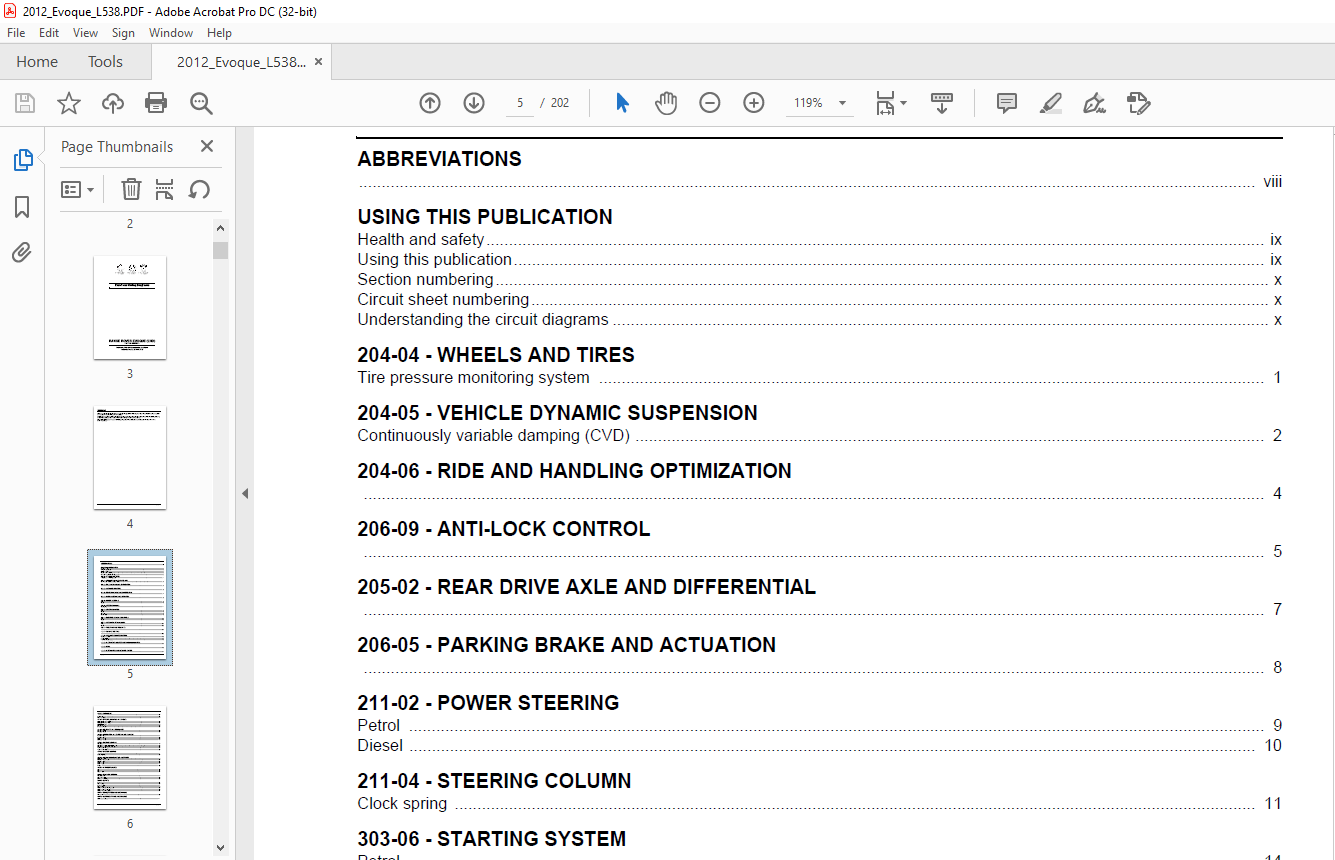

TABLE OF CONTENTS:

2011 Land Rover L538 RANGE ROVER SPORT (LHD) Electrical Wiring Diagrams Manual – PDF DOWNLOAD

RANGE ROVER EVOQUE (LHD) VIN: 000301..................  1
	CONTENTS..........................................  5
	ABBREVIATIONS.....................................  8
	USING THIS PUBLICATION............................  9
		Health and safety.............................  9
		Using this publication........................  9
		Section numbering............................. 10
		Circuit sheet numbering....................... 10
		Understanding the circuit diagrams............ 10
204-04 - WHEELS AND TIRES............................. 13
	Tire pressure monitoring system................... 13

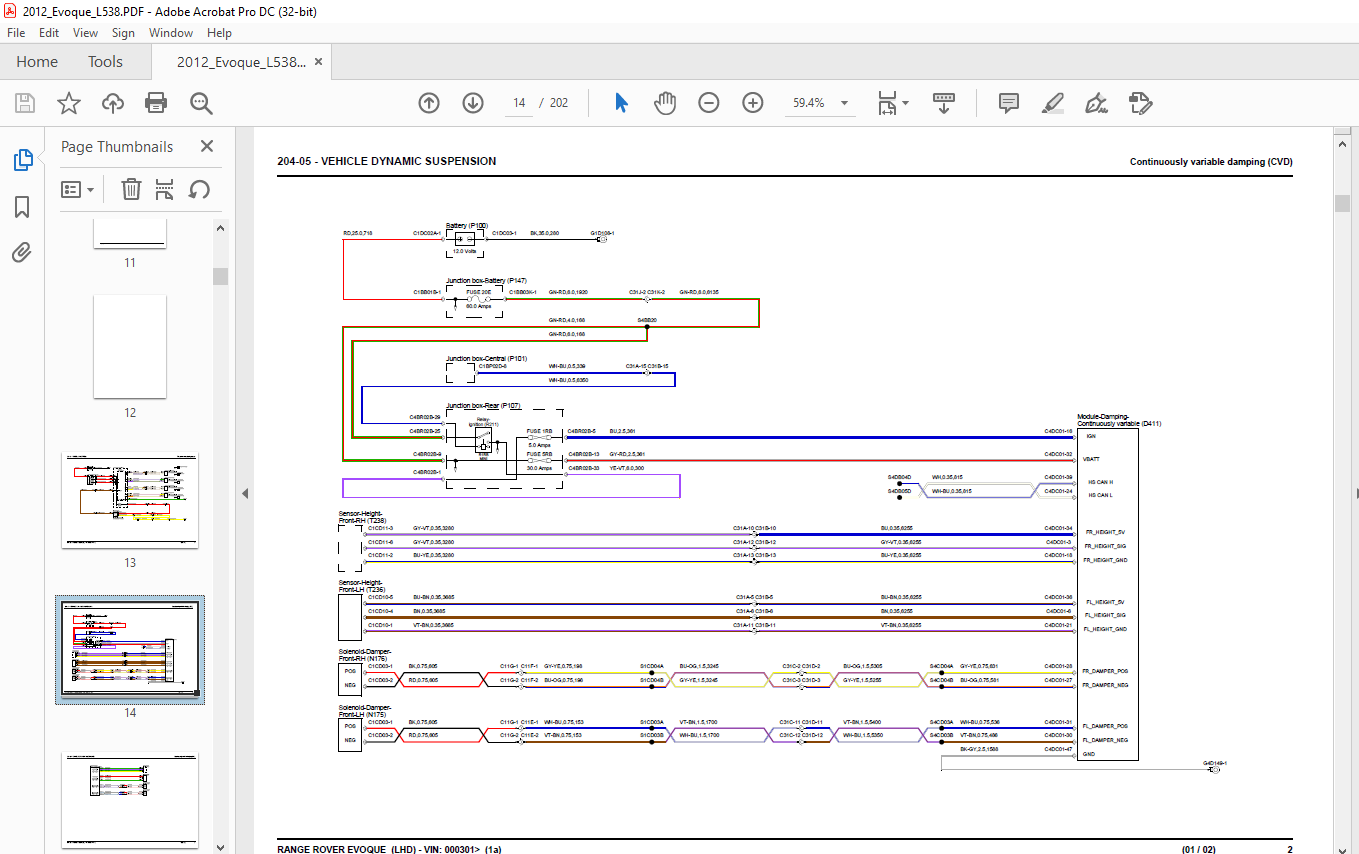

204-05 - VEHICLE DYNAMIC SUSPENSION................... 14
	Continuously variable damping (CVD)............... 14
204-06 - RIDE AND HANDLING OPTIMIZATION............... 16
206-09 - ANTI-LOCK CONTROL............................ 17
205-02 - REAR DRIVE AXLE AND DIFFERENTIAL............. 19
206-05 - PARKING BRAKE AND ACTUATION.................. 20
211-02 - POWER STEERING............................... 21
	Petrol............................................ 21
	Diesel............................................ 22
211-04 - STEERING COLUMN.............................. 23
	Clock spring...................................... 23
303-06 - STARTING SYSTEM.............................. 26
	Petrol............................................ 26
	Diesel............................................ 27
	Stop-Start........................................ 28
	Block-heater...................................... 31
303-14 - ELECTRONIC ENGINE CONTROLS................... 32
	Petrol............................................ 32
	Diesel............................................ 38
307-01 - AUTOMATIC TRANSMISSION....................... 44
	Petrol............................................ 44
	Diesel............................................ 45
310-01 - FUEL TANK AND FUEL LINES..................... 46
412-01 - CLIMATE CONTROL.............................. 48
412-02 - AUXILIARY CLIMATE CONTROL.................... 52
	Heated windshield................................. 52
	Electric booster heater........................... 54
	Fuel fired booster heater......................... 55
413-00 - INSTRUMENT CLUSTER AND PANEL ILLUMINATION.... 56
413-06 - HORN......................................... 58
413-08 - INFORMATION AND MESSAGE CENTER............... 59
413-13 - PARKING AID.................................. 61
	Multiple cameras.................................. 64
	Rear view camera.................................. 66
414-01 - BATTERY, MOUNTING AND CABLES................. 68
	Battery junction box - Petrol..................... 68
	Battery junction box - Diesel..................... 72
	Central junction box.............................. 76
	Rear junction box................................. 88
	Ground distribution............................... 92
414-02 - GENERATOR AND REGULATOR......................101
	Charging - Petrol.................................101
	Charging - Diesel.................................102
415-00 - INFORMATION AND ENTERTAINMENT SYSTEM.........103
	Premium - 3 door..................................103
	Premium - 5 door..................................112
	Standard - 3 door.................................121
	Standard - 5 door.................................124
417-01 - EXTERIOR LIGHTING............................127
	Headlamps.........................................127
	Headlamps - adaptive front lighting system........132
	Headlamps - high intensity discharge..............135
	Trailer socket - Europe...........................141
	Trailer socket - NAS..............................142
417-02 - INTERIOR LIGHTING............................143
	Ambient lighting..................................145
418-00 - MODULE COMMUNICATIONS NETWORK................146
	Diagnostic socket.................................146
	CAN bus - medium speed............................147
	CAN bus - high speed..............................149
	MOST - 3 door.....................................151
	MOST - 5 door.....................................153
	LIN bus...........................................155
419-01 - ANTI-THEFT SYSTEM............................157
	Active............................................157
	Passive...........................................159
	Passive start.....................................164
501-09 - REAR VIEW MIRRORS............................166
	Electrochromic....................................166
	Mirror Movement...................................167
	Blind spot monitoring.............................168
501-10 - SEATING......................................169
	Memory............................................169
	Non memory........................................172
	Memory (sport)....................................173
	Non memory (sport)................................176
	Heated - power positioning (sport)................177
	Heated - power positioning........................178
	Heated - manual positioning.......................179
501-11 - GLASS, FRAMES AND MECHANISMS.................180
	Window lift.......................................180
501-12 - INSTRUMENT PANEL AND CONSOLE.................183
	Accessory socket(s)...............................183
501-14 - HANDLES, LOCKS, LATCHES AND ENTRY SYSTEMS....184
	Central locking system............................184
	Tailgate power striker - 3 door...................188
	Tailgate power striker - 5 door...................189
501-16 - WIPERS AND WASHERS...........................190
501-17 - ROOF OPENING PANEL...........................193
	Roof opening panel and sun blind..................193
501-20A - SAFETY BELT SYSTEM..........................194
	Super sport seat..................................194
	Non super sport seat..............................195
501-20 - SUPPLEMENTAL RESTRAINT SYSTEM................196
