2011 Land Rover RANGE ROVER SPORT (LHD) Electrical Wiring Diagrams Manual – PDF DOWNLOAD

2011 Land Rover RANGE ROVER SPORT (LHD) Electrical Wiring Diagrams Manual – PDF DOWNLOAD

FILE DETAILS:

2011 Land Rover RANGE ROVER SPORT (LHD) Electrical Wiring Diagrams Manual – PDF DOWNLOAD

Language : English
Pages :158
Downloadable : Yes
File Type : PDF

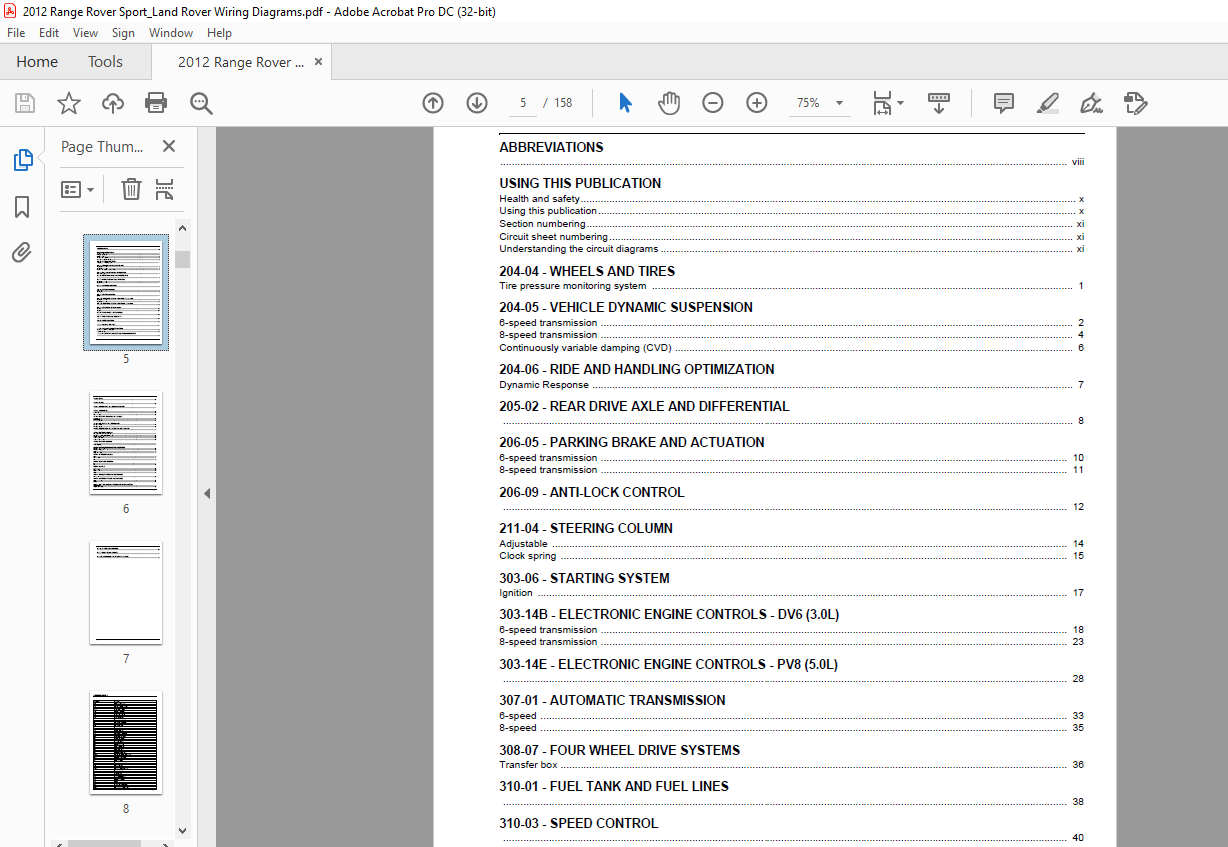

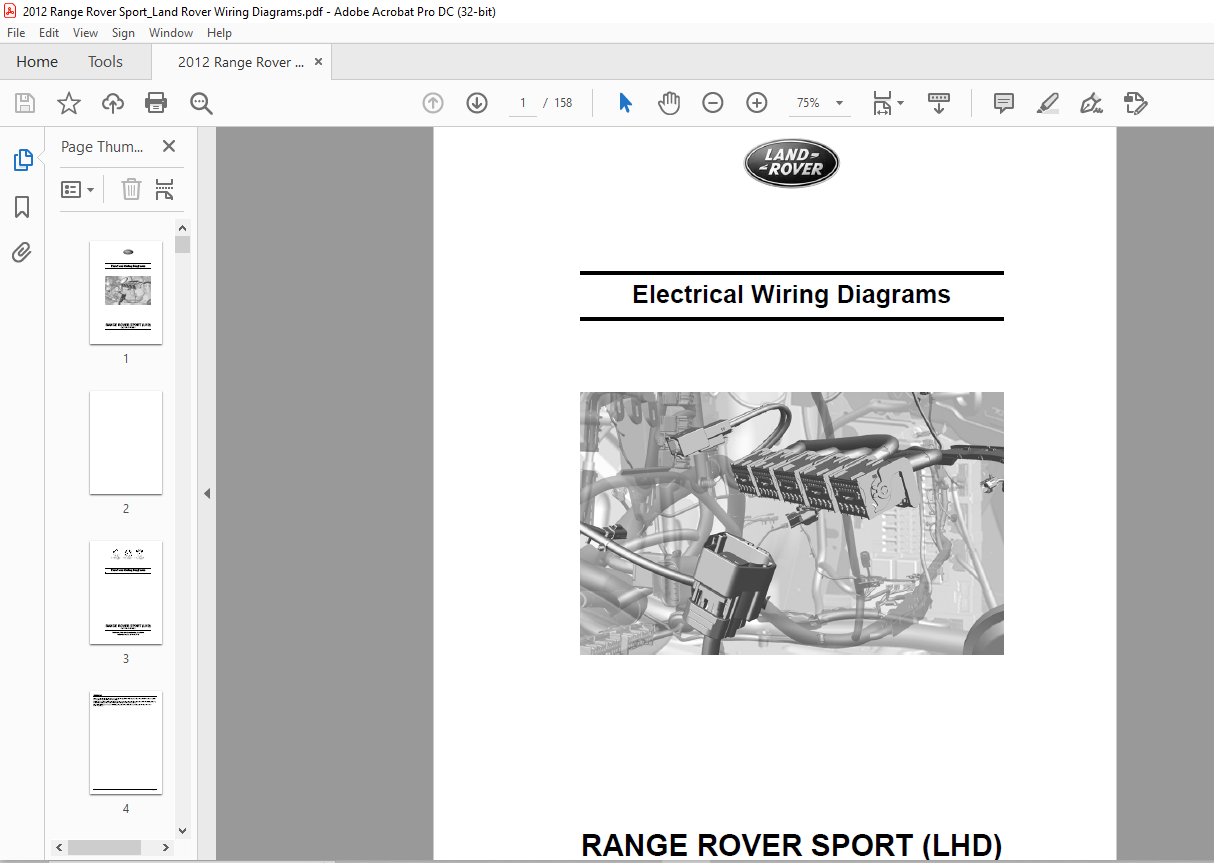

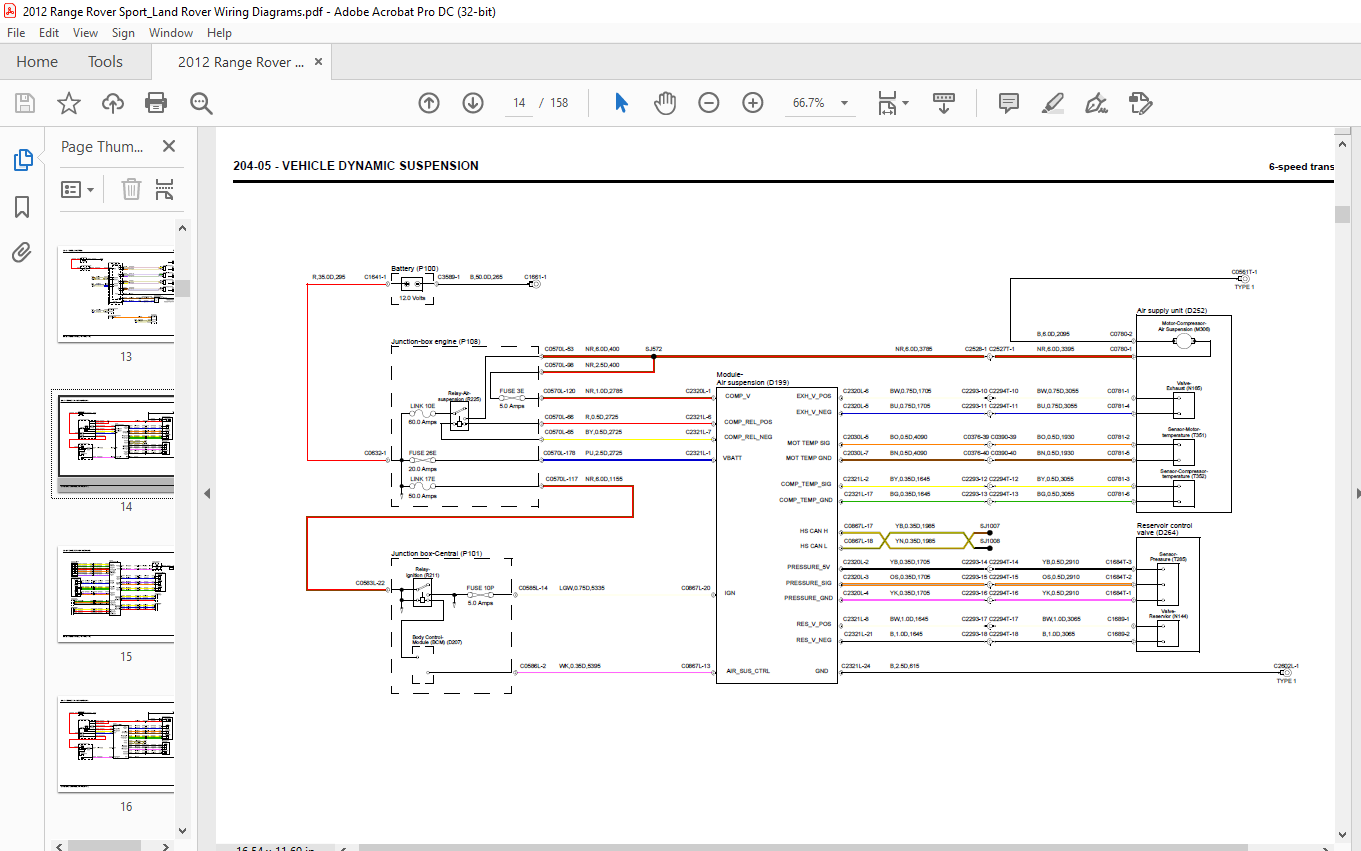

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

2011 Land Rover RANGE ROVER SPORT (LHD) Electrical Wiring Diagrams Manual – PDF DOWNLOAD

VIN: 717166 >
Publication Part No. JLR 16 24 21_1E

PREFACE

• While every effort is made to ensure accuracy, design changes to the vehicle may be made in the period between the completion of this publication and the introduction of vehicles. All rights reserved.
• No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form, electronic, mechanical, recording or other means without prior written permission from Land Rover.
• Paper copies of this document are uncontrolled, always refer to the electronic source material for the latest information.

USING THIS PUBLICATION
 Health and safety
Always follow health and safety guidelines, specifically those detailed in the Workshop Manual.
Using this publication
The information provided in this publication is for use only by competent, qualified auto-electricians. Good product knowledge is
assumed, as well as the ability to access and use recommended test equipment and other reference material provided.
Test equipment and other reference material
The information in this publication should be used in conjunction with the recommended test equipment; refer to Workshop Manual.
Other reference material includes: Technical Service Bulletins (TSB) and the Workshop Manual.
The Electrical Reference Library (ERL) may also prove useful since it provides detailed connector information.
Battery disconnection and reconnection
It is imperative that any information relating to battery disconnection and reconnection is followed; refer to the appropriate sections
in the Workshop Manual.
Fault Diagnosis
Always use the recommended test equipment for correct and reliable fault diagnosis, refer to the Workshop Manual.
Harness Repair
Repairs should only be undertaken for connectors where a Service Repair Kit is available; refer to the appropriate Electrical
Reference Library (ERL).
