2014 Arctic Cat Complete Factory Snowmobile Wiring Diagrams – PDF DOWNLOAD

2014 Arctic Cat Complete Factory Snowmobile Wiring Diagrams – PDF DOWNLOAD

FILE FORMAT:

LANGUAGE:ENGLISH
PAGES: 66
DOWNLOADABLE:YES
FILE TYPE:PDF

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

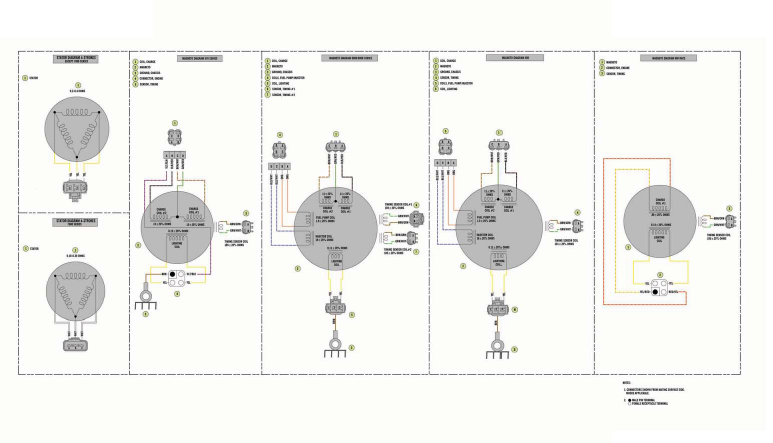

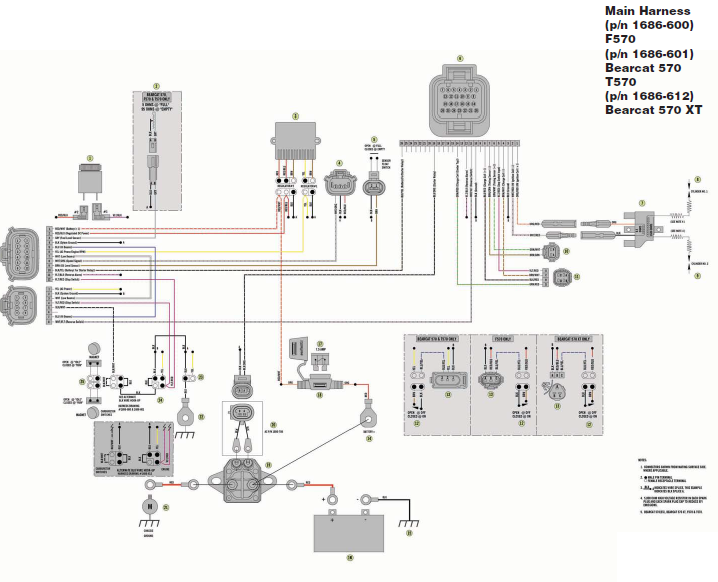

2014 ARCTIC CAT SNOWMOBILE ZR 7000 LIMITEDThis professional technical manual contains service, maintenance, and troubleshooting information for your 2014 ARCTIC CAT SNOWMOBILE ZR 7000 LIMITED, covering All Models/Engines/Trim/Transmissions Types. This top quality 2014 ARCTIC CAT SNOWMOBILE ZR 7000 LIMITED Workshop Repair Service manual

MODELS COVERED:

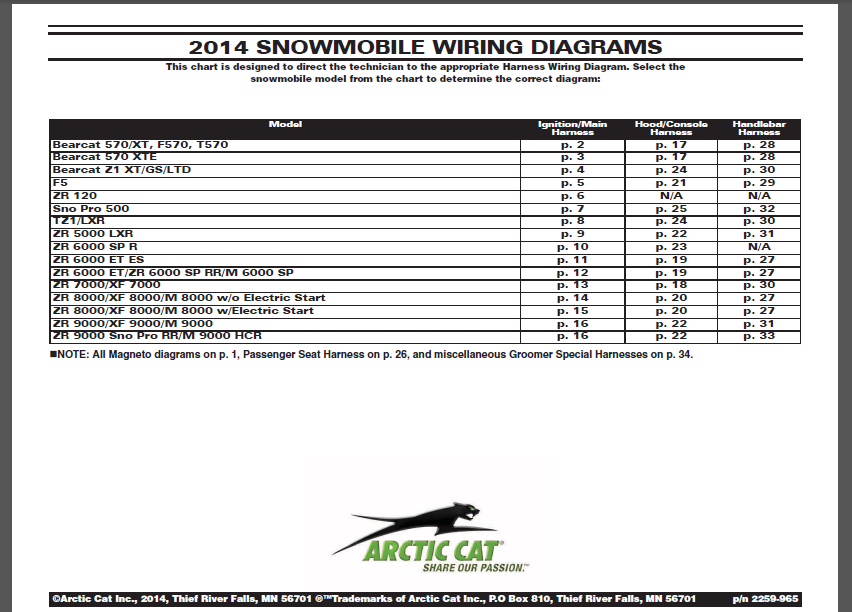

Bearcat 570/XT, F570, T570 p. 2 p. 17 p. 28
Bearcat 570 XTE p. 3 p. 17 p. 28
Bearcat Z1 XT/GS/LTD p. 4 p. 24 p. 30
F5 p. 5 p. 21 p. 29
ZR 120 p. 6 N/A N/A
Sno Pro 500 p. 7 p. 25 p. 32
TZ1/LXR p. 8 p. 24 p. 30
ZR 5000 LXR p. 9 p. 22 p. 31
ZR 6000 SP R p. 10 p. 23 N/A
ZR 6000 ET ES p. 11 p. 19 p. 27
ZR 6000 ET/ZR 6000 SP RR/M 6000 SP p. 12 p. 19 p. 27
ZR 7000/XF 7000 p. 13 p. 18 p. 30
ZR 8000/XF 8000/M 8000 w/o Electric Start p. 14 p. 20 p. 27
ZR 8000/XF 8000/M 8000 w/Electric Start p. 15 p. 20 p. 27
ZR 9000/XF 9000/M 9000 p. 16 p. 22 p. 31
ZR 9000 Sno Pro RR/M 9000 HCR
