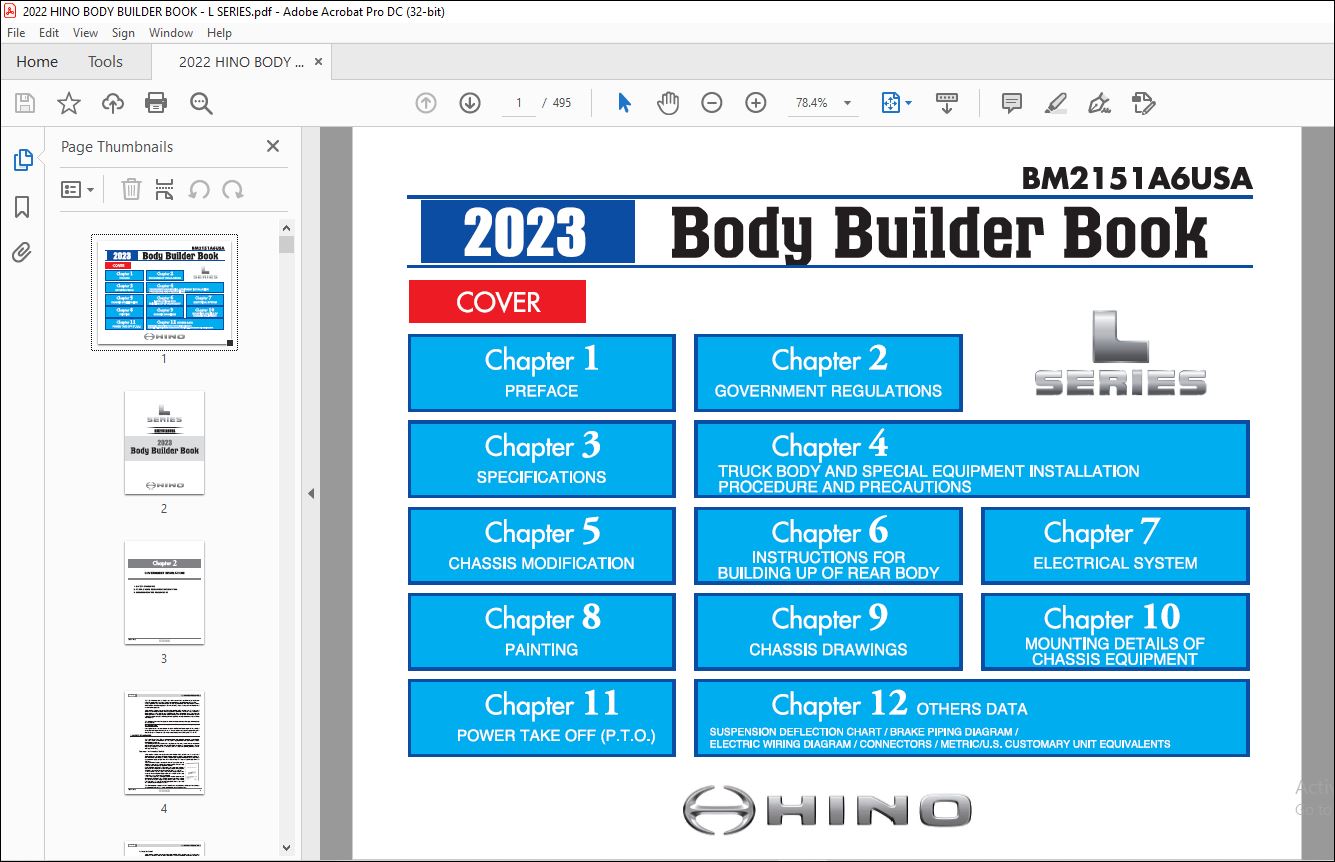

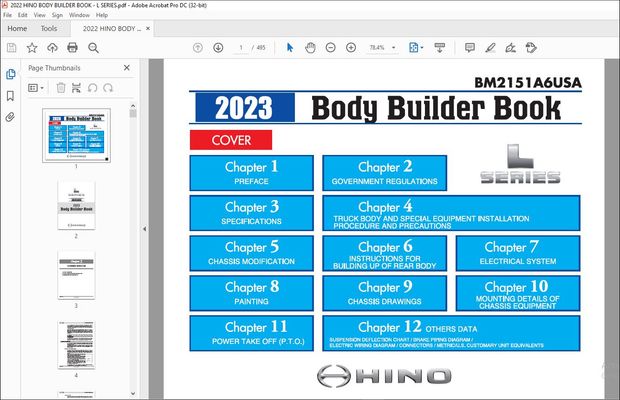

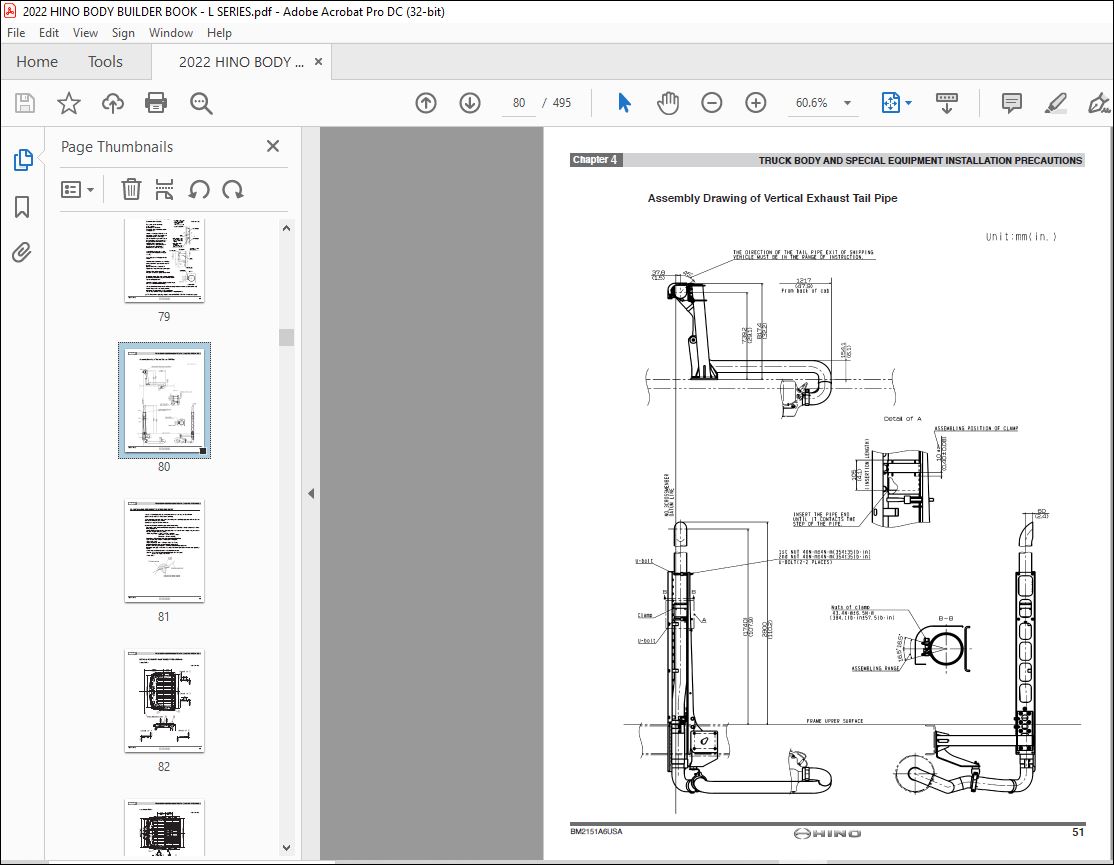

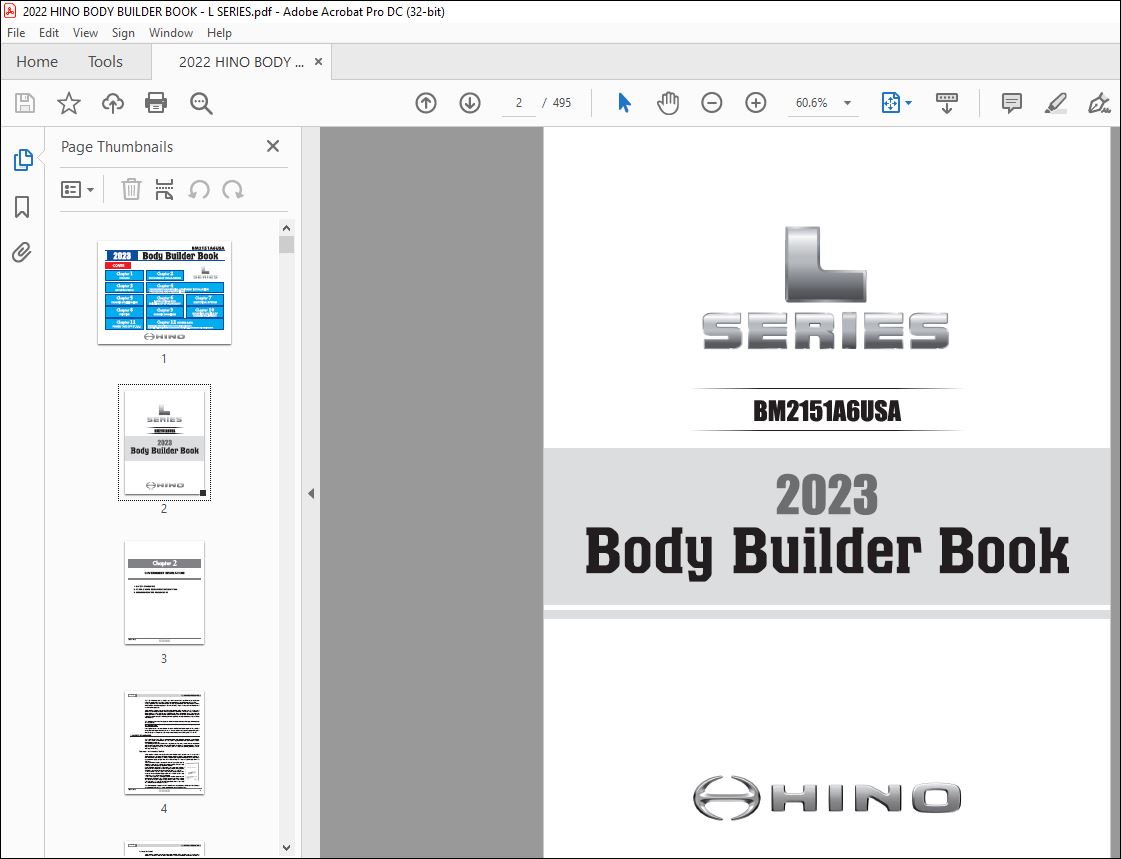

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

2023 Hino L Series Body Builder Book Service Manual BM2151A6USA – PDF DOWNLOAD

1. PURPOSE:
This book is provided to Body and Equipment Manufacturers, including intermediate and/or
final stage manufacturers, (hereinafter collectively termed Body and Equipment Manufacturers),
to provide:
• A technical guideline to have Hino Truck Chassis with cab comply with U.S. emission regulations,
Greenhouse Gas regulations (hereinafter termed GHG), noise control regulations and
Federal Motor Vehicle Safety Standards (hereinafter termed FMVSS).
• An aid to Body and Equipment Manufacturers for producing safe vehicles at own discretions
and responsibilities.
• Other general advices for installation, modification or alteration.
When Body and Equipment Manufacturers install any body or other equipment or device on
Hino Truck Chassis with cab (hereinafter termed Hino Chassis) or modify or alter a Hino Chassis.
2. RELATION TO OTHER HINO MANUALS:
In installing any body or other equipment or device on Hino Chassis, or modifying or altering a
Hino Chassis in accordance with this book, Body and Equipment Manufacturers shall read the
following documents together with this book, and shall observe all cautions in this book and
the following documents:
• HINO DOCUMENT FOR INCOMPLETE VEHICLE (This document accompanies each Hino
Chassis.)
• WORKSHOP MANUAL for any Hino Chassis model concerned (This document is available
at HMS (USA).)
• OWNER’S MANUAL (This document accompanies each Hino Chassis.)
This book shall prevail over all manuals previously published regarding the installation, modification,
or alteration of a Hino Chassis.
