FILE DETAILS:

Volvo Penta D4,D6 Operator’s Manual 395263767 – PDF DOWNLOAD

Language : English
Pages : 128
Downloadable : Yes
File Type : PDF

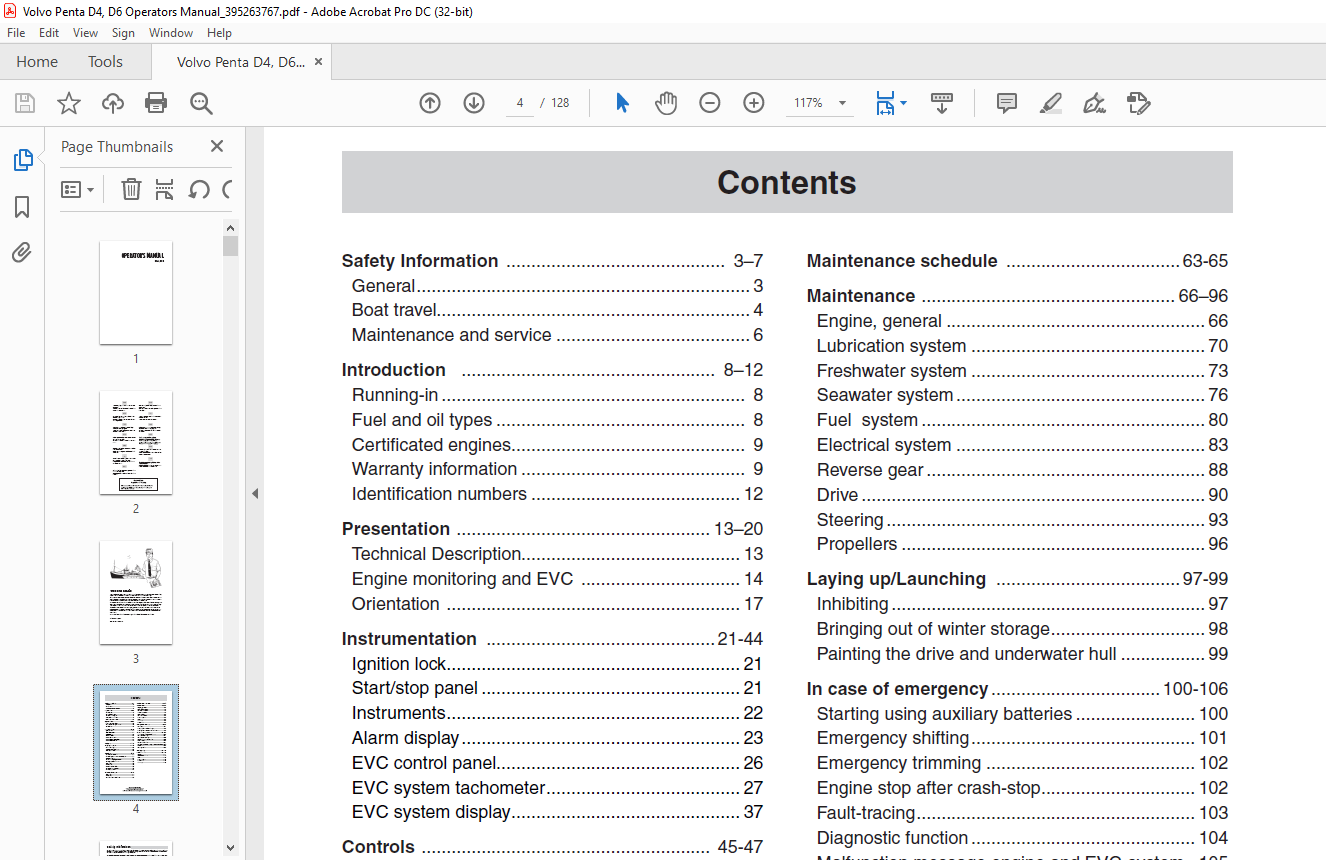

TABLE OF CONTENTS:

Volvo Penta D4,D6 Operator’s Manual 395263767 – PDF DOWNLOAD

Safety Information 3–7
General 3
Boat travel 4
Maintenance and service 6
Introduction 8–12
Running-in 8
Fuel and oil types 8
Certificated engines 9
Warranty information 9
Identification numbers 12
Presentation 13–20
Technical Description 13
Engine monitoring and EVC 14
Orientation 17
Instrumentation 21-44
Ignition lock 21
Start/stop panel 21
Instruments 22
Alarm display 23
EVC control panel 26
EVC system tachometer 27
EVC system display 37
Controls 45-47
Starting the engine 48-50
Before starting 48
General about starting 48
Starting method 50
Operation 51-57
Reading instruments 51
Acknowleging alarms and messages 51
Cruising speed 52
Synchronising engine speed 52
Changing helm station 53
Operation 54
Power trim 54
Power trim Assistant 58
Volvo Penta Lowspeed 59
Running aground 60
Stopping the engine 61-62
Stopping 61
Laying up 61
Cold weather precautions 62
Maintenance schedule 63-65
Maintenance 66–96
Engine, general 66
Lubrication system 70
Freshwater system 73
Seawater system 76
Fuel system 80
Electrical system 83
Reverse gear 88
Drive 90
Steering 93
Propellers 96
Laying up/Launching 97-99
Inhibiting 97
Bringing out of winter storage 98
Painting the drive and underwater hull 99
In case of emergency 100-106
Starting using auxiliary batteries 100
Emergency shifting 101
Emergency trimming 102
Engine stop after crash-stop 102
Fault-tracing 103
Diagnostic function 104
Malfunction message engine and EVC-system 105
Faults list 106
Erasing faults 106
Fault register 107-113
Technical Data 114-116
Engine 114
Fuel specification 115
Drive 116
Reverse gear 116
Power Trim 116
Steering 116

DESCRIPTION:

Volvo Penta D4,D6 Operator’s Manual 395263767 – PDF DOWNLOAD

Safety precautions for maintenance and service operations:
Knowledge:

• The operator’s manual contains instructions on how to carry out general maintenance and service
  opera- tions safely and correctly. Read the instructions care- fully before starting work.
  Service literature covering more complicated opera- tions is available from your Volvo Penta
  dealer.
• Never carry out any work on the engine if you are unsure of how it should be done, contact your
  Volvo Penta dealer who will be glad to offer assistance.

Stop the engine:

• Stop the engine before opening or removing engine hatches. Unless otherwise specified all
  maintenance and service must be carried out with the engine stopped.
• To prevent accidental start of the boat engine remove the ignition key, turn off the power supply
  to the en- gine at the main switches and lock them in the OFF position before starting work. Put up
  a warning sign in the control position that work on the engine is be- ing carried out.
• Approaching or working on an engine that is run- ning is a safety risk. Loose clothing, hair,
  fingers or a dropped tool can be caught in the rotating parts of the engine and cause serious
  personal injury. Volvo Penta recommend that all servicing with the engine running be undertaken by
  an authorized Volvo Penta workshop.
