AGCO NA 1233 ST30X Prior to L SN Tractor Service Manual – PDF DOWNLOAD

AGCO NA 1233 ST30X Prior to L SN Tractor Service Manual – PDF DOWNLOAD

FILE DETAILS:

AGCO NA 1233 ST30X Prior to L SN Tractor Service Manual – PDF DOWNLOAD

Language : English
Pages : 137
Downloadable : Yes
File Type : PDF

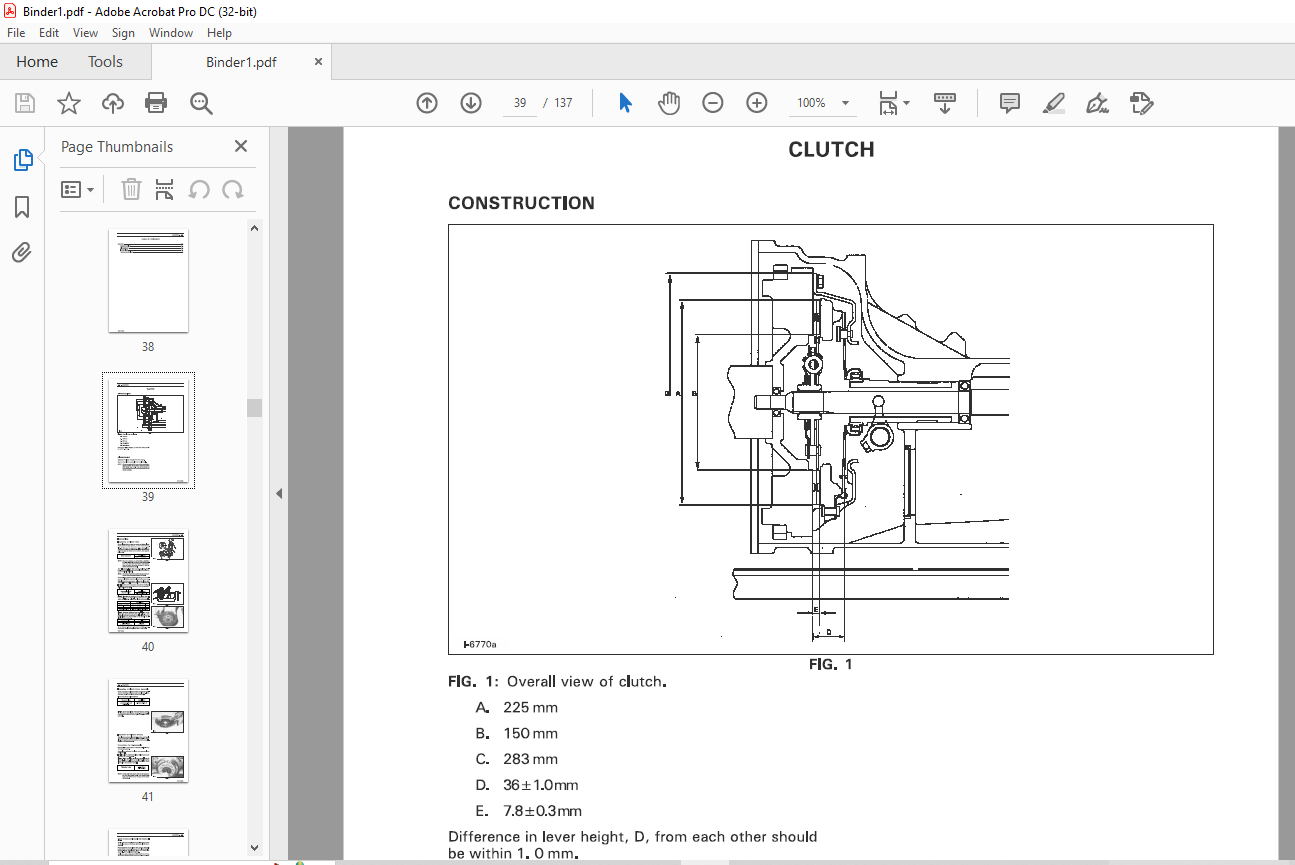

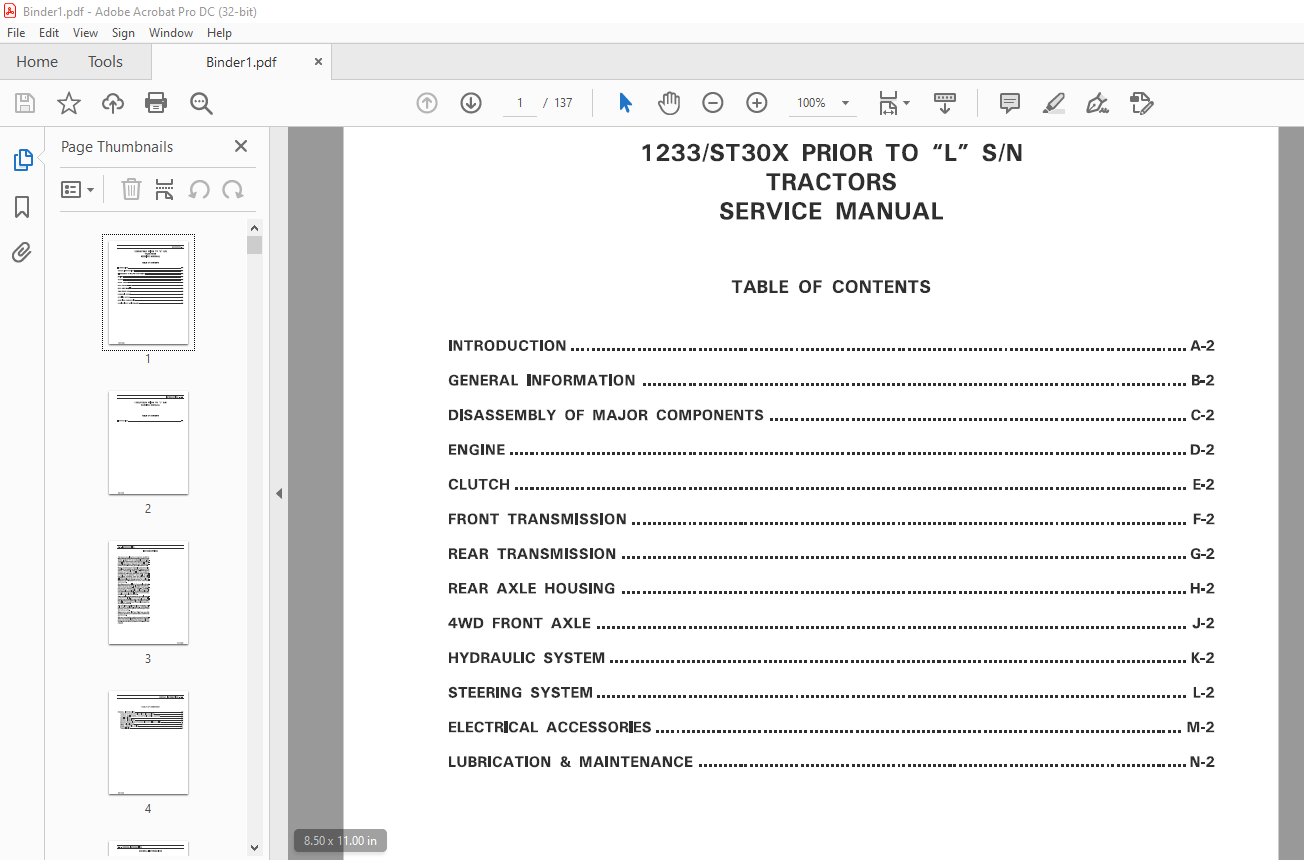

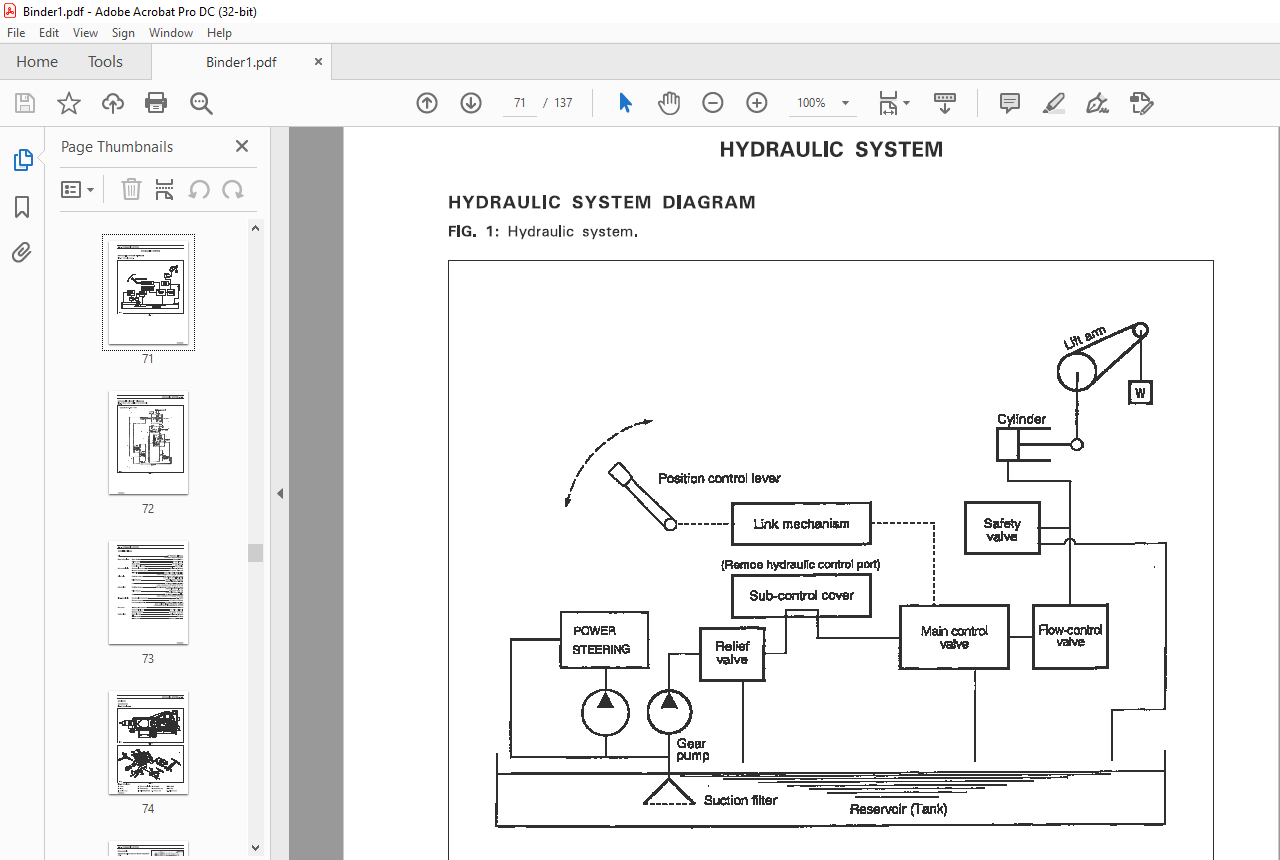

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

AGCO NA 1233 ST30X Prior to L SN Tractor Service Manual – PDF DOWNLOAD

INTRODUCTION :

This service manual has been prepared to provide the information and suggestions necessary for servicing the Tractor equipped with the mechanical transmission. These include construction, specifications, removal and reinstallation of the components, disassembly and reassembly instructions, inspection and adjustment instructions, troubleshooting, general precautions etc.

• Figures mentioned in this manual are standard values established by AGCO and Massey Ferguson for the Tractor, consequently when a non-AGCO/Massey Ferguson part has been installed on the machine or adjustments and repairs have been made in a manner other than as specified in this manual, the pertinent values mentioned herein are no longer valid .
• AGCO/Massey Ferguson does not assume responsibility for problems or damage caused by a value deviation due to maladjustment or by the use of unauthorized parts. Servicing procedures outlined in the manual contain sufficient information to return all component parts of a machine to new condition. In discussion of each component part, it is assumed that a complete overhaul is being performed, consequently, complete disassembly and reassembly are outlined.
• The machine is relied upon to decide how far disassembly must be carried out when complete overhaul is not required. Study unfamiliar service procedures thoroughly and understand them clearly before attempting disassembly. Specific data essential for proper overhaul, such as running clearances and torque values, have been provided in interline of inspection and reassembling procedures of each group section. This manual was compiled from latest information available at time of publication.
• However, AGCO/Massey Ferguson reserves the right to make changes at any time without notice. Whenever the terms “left” and “right” are used, this means as viewed by the operator when seated in the operator’s seat. Whenever servicing the machines, pay sufficient attention to the operational safety to protect you and other persons around the machines from danger by following carefully the instructions given in the manual. Never take chances!

TABLE OF CONTENTS:

AGCO NA 1233 ST30X Prior to L SN Tractor Service Manual – PDF DOWNLOAD

INTRODUCTION A-2
GENERAL INFORMATION B-2
DISASSEMBLY OF MAJOR COMPONENTS C-2
ENGINE D-2
CLUTCH E-2
FRONT TRANSMISSION F-2
REAR TRANSMISSION G-2
REAR AXLE HOUSING H-2
4WD FRONT AXLE J-2
HYDRAULIC SYSTEM K-2
STEERING SYSTEM L-2
ELECTRICAL ACCESSORIES M-2
LUBRICATION & MAINTENANCE N-2
