AGCO® NA 8792 8776 Planter SERVICE MANUAL 79034268 B – PDF DOWNLOAD

GENERAL OPERATION AND SERVICE
Operating

• Read and understand all the operating and safety precautions before operating machinery.• In addition to equipment configuration and design, hazard control and accident prevention depend on awareness, concern, prudence and proper training of personnel in the operation, maintenance, transport and storage of equipment.• Always raise implement, shut off tractor engine, set the parking brake, shift to park position (or neutral) remove the key and install cylinder lockup channels before working around the machine.• Avoid working under the planter. However, if it becomes unavoidable to do so, make sure planter is securely blocked and cylinder lockup channels are in place.• Do not attempt to lubricate or adjust planter while the machine is in operation.• Machinery operation must be performed only by persons who are responsible and delegated to do so.• Only the operator must be permitted on the tractor (unless tractor has a factory-installed instructor seat) when tractor and planter are moving. Never permit anyone to ride on the planter.• Avoid wearing loose-fitting clothing and jewelry. Always tie up long hair that can be caught in moving parts.• Wear personal protective equipment (PPE) such as, but not limited to, protection for the eyes, lungs, ears, head, hands and feet when operating, servicing or repairing equipment.• Make sure bystanders are clear before operating tractor or machine.• Do not leave the tractor or implement unattended with the engine running.• Never attempt to operate the planter unless seated in the operator’s seat on the tractor. 79034268 B Rev. Safety• Tractor must be equipped with a rollover protective structure (ROPS), and a seat belt. Use seat belt during operation.• Make sure the tractor is in good operating condition, and has adequate braking capabilities.• Do not dismount from the moving tractor. • Regulate ground speed to field conditions, and maintain control at all times. • Watch for overhead wires or other obstructions when raising markers, and when moving planter with marker(s) raised.• Disconnect and store the planter where children do not normally play. Stabilize the planter by using suitable supports, and block the wheels. • Always lower planter when not in use and relieve pressure in the hoses and cylinders.• Do not allow children to ride on, play on, or operate equipment. Always keep children away from equipment operating, servicing, and storage areas.• Do not stand between tractor and planter to install hitch pin when tractor engine is running.

TABLE OF CONTENTS:

AGCO® NA 8792 8776 Planter SERVICE MANUAL 79034268 B – PDF DOWNLOAD

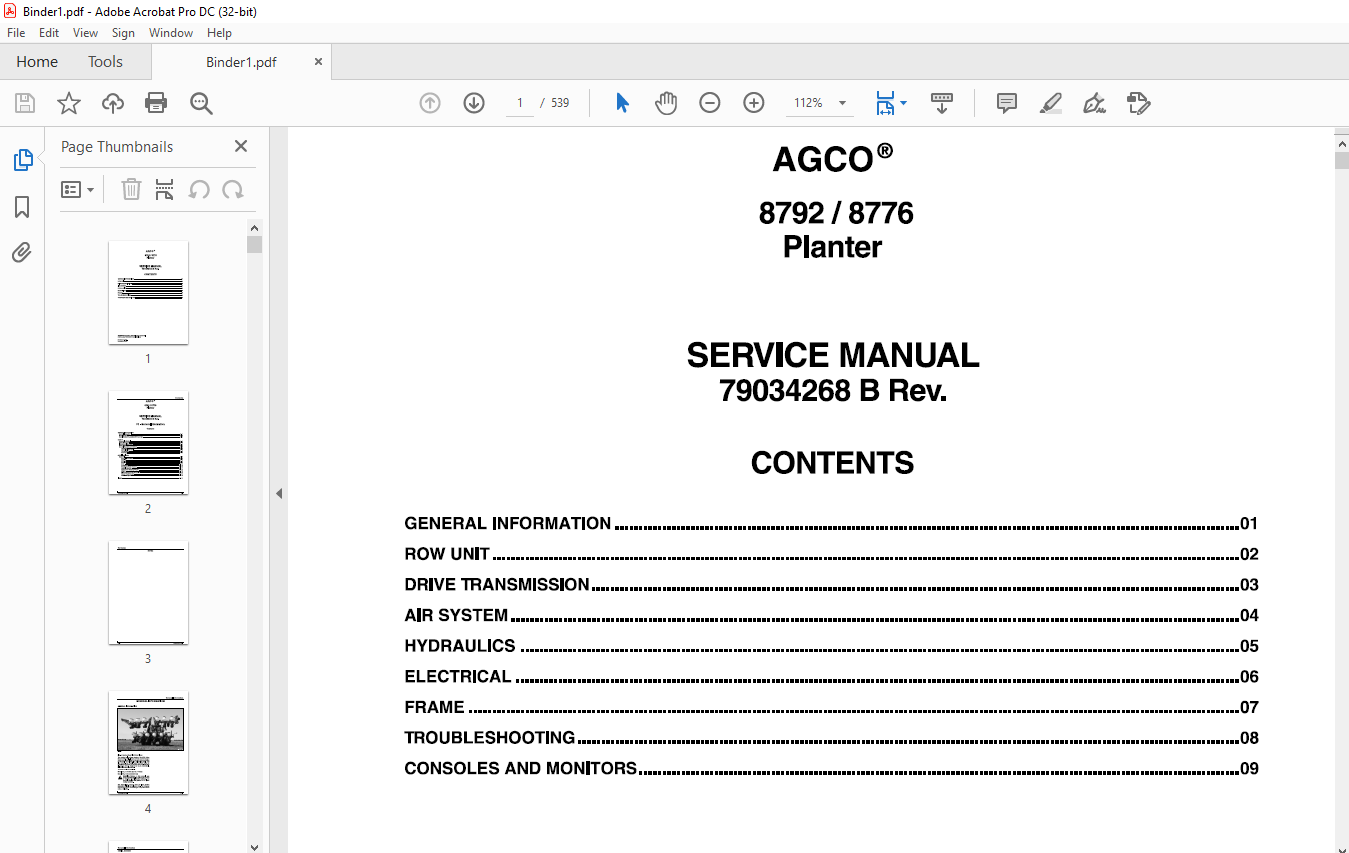

GENERAL INFORMATION 01
