AGCO® NA 8831 Planter SERVICE MANUAL 79033455 A – PDF DOWNLOAD

AGCO® NA 8831 Planter SERVICE MANUAL 79033455 A – PDF DOWNLOAD

FILE DETAILS:

AGCO® NA 8831 Planter SERVICE MANUAL 79033455 A – PDF DOWNLOAD

Language : English
Pages :581
Downloadable : Yes
File Type : PDF
Size:77.3 MB

DESCRIPTION:

AGCO® NA 8831 Planter SERVICE MANUAL 79033455 A – PDF DOWNLOAD

GENERAL OPERATION ANDSERVICE Operating• Read and understand all the operating and safety precautions before operating the machinery.• In addition to the equipment configuration and design, hazard control and accident prevention depend on awareness, concern, prudence and proper training of the personnel in the operation, maintenance, transport and storage of the equipment. • Always raise the implement, shut off the tractor engine, set the brakes, shift to park position (or neutral) and install the cylinder lockup channels before working around the machine.• Avoid working under the planter. However, if it becomes unavoidable to do so, make sure the planter is securely blocked and the cylinder lockup channels are in place.• Do not attempt to lubricate or adjust the planter while the machine is in operation.• The machinery operation must be performed only by persons who are responsible and delegated to do so. • Only the operator must be permitted on the tractor (unless tractor has a factory-installed instructor seat) when the tractor and the planter are moving. Never permit anyone to ride on the planter.• Avoid wearing loose-fitting clothing and jewelry. Always tie up long hair that can be caught in the moving parts. • Wear personal protective equipment (PPE) such as, but not limited to, protection for eyes, lungs, ears, head, hands and feet when operating, servicing or repairing the equipment.• Make sure all persons are clear before operating the tractor or machine.• Do not leave the tractor or implement unattended with the engine running.• Never attempt to operate the planter unless seated in the operator’s seat on the tractor with the seat belt fastened. 79033455 A Rev. Safety• The tractor must be equipped with rollover protective structure (ROPS), and a seat belt. Use the seat belt during operation. • Make sure the tractor is in good operating condition, and has adequate braking capabilities.• Do not dismount from a moving tractor.• Regulate the ground speed to field conditions, and maintain control at all times.• When working around discs, be careful to not get cut on the sharp edges.• Watch for overhead wires or other obstructions when raising markers, and when moving the planter with the marker(s) raised. • Disconnect the planter. Store the planter where children do not normally play. Stabilize the planter by using suitable supports, and block the wheels.• Always lower the planter when not in use and relieve pressure in the hoses and cylinders.• Do not allow children to ride on, play on, or operate equipment. Always keep children away from the equipment operating, servicing, and storage areas.• Do not stand between the tractor and planter to install the hitch pin when the tractor engine is running. 01

TABLE OF CONTENTS:

AGCO® NA 8831 Planter SERVICE MANUAL 79033455 A – PDF DOWNLOAD

GENERAL INFORMATION 01
ROWUNIT 02
DRIVE TRANSMISSION 03
AIR SYSTEM 04
HYDRAULICS 05
ELECTRICAL 06
FRAME 07
TROUBLESHOOTING 08
CONSOLES AND MONITORS 09
General Information 01-1
Serial Number Plate Location 01-2
SAFETY
Safety Alert Symbol 01-3
Safety Messages 01-3
Informational Messages 01-4
Safety Signs 01-4
General Operation And Service 01-5
Operating 01-5
Agricultural Chemicals 01-6
Transporting 01-6
Servicing 01-7
SPECI Fl CATIONS
Specifications 01-9
8831 01-9
Frame 01-9
Tires and Wheels 01-9
Markers 01-9
Row Units 01-10
Air System 01-10
Tractor Requirements 01-10
Hydraulic System 01-10
Shear Pins 01-11
Electronic Seed Drive Controller 01-11
Frame Fold Control 01-11
Approximate Shipping Weights 01-11
FIELD OPERATIONS AND ADJUSTMENTS
Tractor Preparation 01-13
General 01-13
Recommended Tractor Horsepower 01-13
Wheel Tread Spacing 01-13
Electrical Requirements 01-13
Tractor Preparation 01-14
Tractor PTO 01-14
Tire Inflation 01-14
Front Weights 01-14
Hydraulic Requirements 01-14
Planter Preparation 01-14
Lubrication 01-14
79033455 A Rev 01-i
Contents
Bolt Torque 01-14
Tire Inflation 01-14
Markers 01-14
Chains 01-14
Seed Discs 01-14
Hydraulic Seeding Monitor 01-14
Connecting the Planter to the Tractor 01-15
Hydraulic Hose Connections 01-16
Seed Meter Blower/Meter Drive Hoses 01-18
Adjusting Tractor Remote Valve Flow 01-18
Hitch Height 01-19
Hitch Height Adjustment 01-19
Disconnecting the Planter from the Tractor 01-19
Frame Control System 01-22
Control Box Switches 01-22
Operating Notes 01-23
Raise and Lower 01-23
Raise Procedure 01-23
Lower Procedure 01-23
Folding And Unfolding 01-24
General 01-24
Safety 01-24
Folding Procedure 01-24
Unfolding Procedure 01-25
Markers 01-27
Operation 01-27
Marker Sequence Valve 01-27
Marker Position Switch 01-28
Tri-fold Breakaway Marker 01-28
Shear Bolts 01-28
Split row Units 01-29
General 01-29
Split Row Unit Disengagement 01-29
Split Row Unit Engagement 01-30
Planting Rates 01-31
Wheat Conversion Chart 01-31
Checking Population 01-31
Initial Pressure Settings 01-33
Seed Disc Identification Chart 01-34
Large Bean Disc 01-36
Snap Bean Disc 01-36
Treated Seed 01-36
Seed Recommendations 01-37
Chemical Attachment 01-38
General 01-38
Cleaning Hoppers and Meters 01-39
Application Rate 01-39
Checking Application Rate 01-39
Insecticide Rate Chart – Clay Granules 01-40
Approximate rate in lb/acre @ 5 mph with 7 inch or 14 inch banders 01-40
Narrow Row Calculations 01-40
Insecticide Rate Chart – Sand Granules 01-41
Approximate rate in lb/acre @ 5 mph with 7 inch or 14 inch banders 01-41
Narrow Row Calculations 01-41
Herbicide Rate Chart 01-42
Approximate rate in lb/acre @ 5 mph with 7 inch or 14 inch banders 01-42
Narrow Row Calculations 01-42
General Maintenance 01-43
Beginning of Day 01-43
End of Day 01-43
Beginning of Season 01-43
End of Season 01-43
Lubrication Chart 01-44
01-ii 79033455 A Rev
Contents
Clutch Alignment 01-45
Hydraulic Drive 01-45
Radar Device 01-45
ISOBUS Planter Controller 01-45
Test Button 01-46
Control Installation 01-46
Test Switch Storage Tube 01-46
Bolt Torque Values 01-48
Special Torque Values 01-48
Metric Bolts 01-49
INSTALLATION INSTRUCTIONS
Installation Instructions 01-51
INDEX 01-53

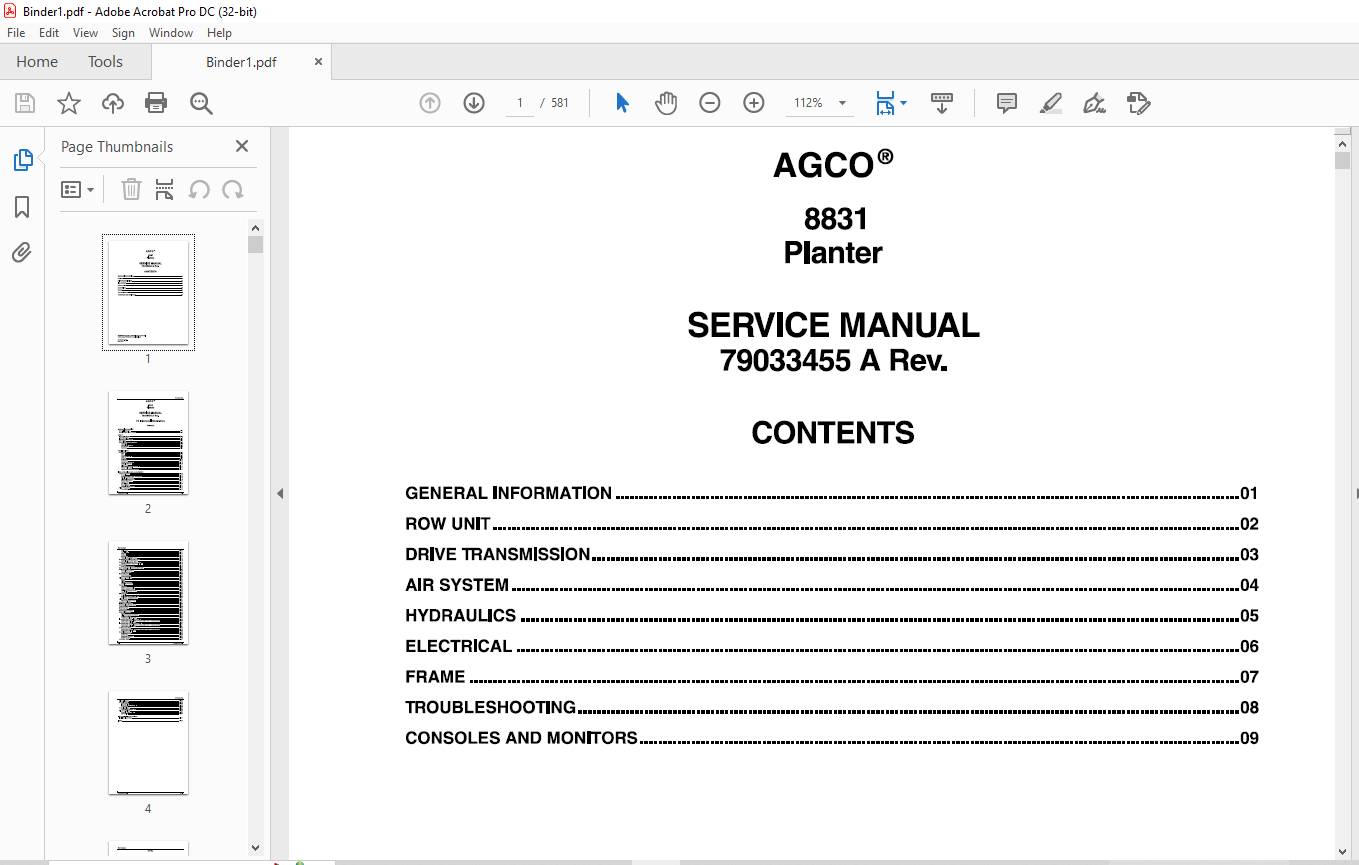

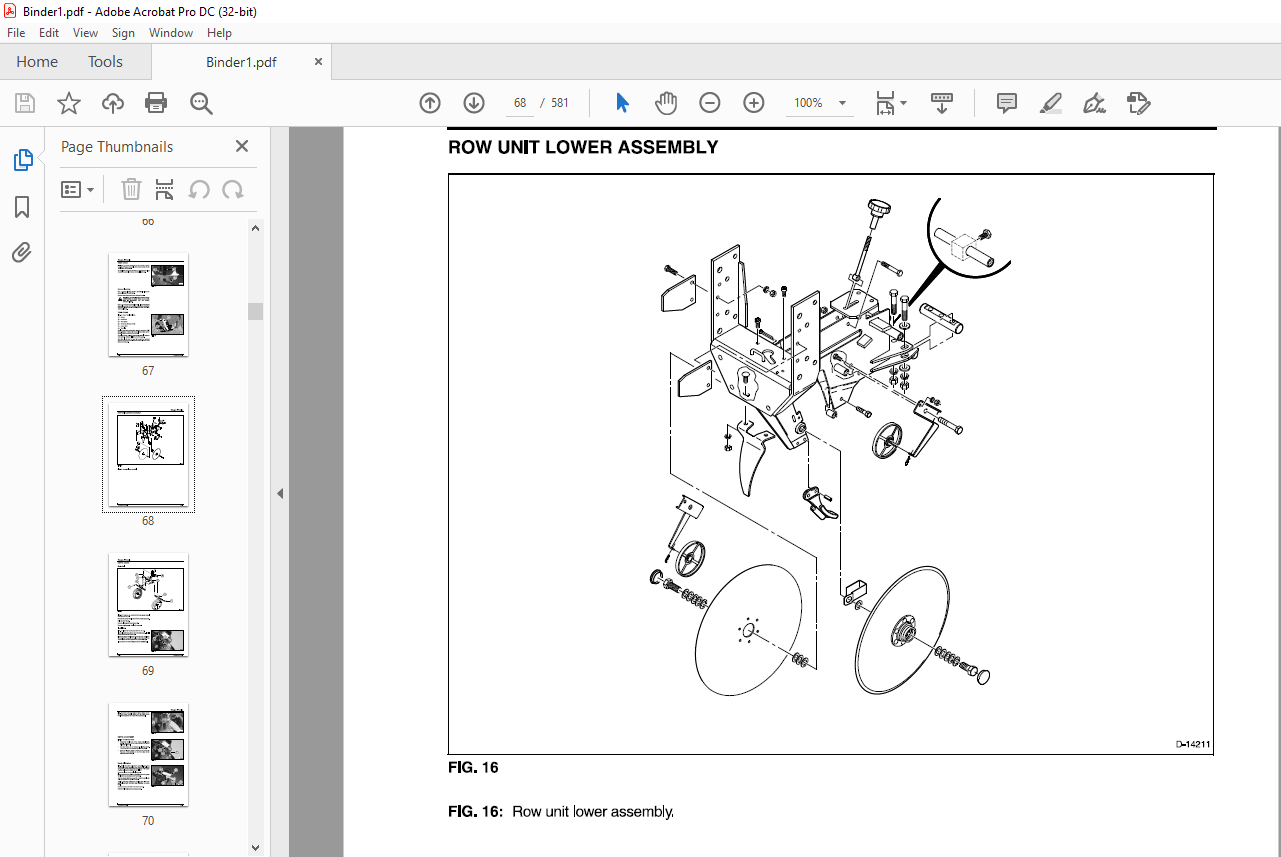

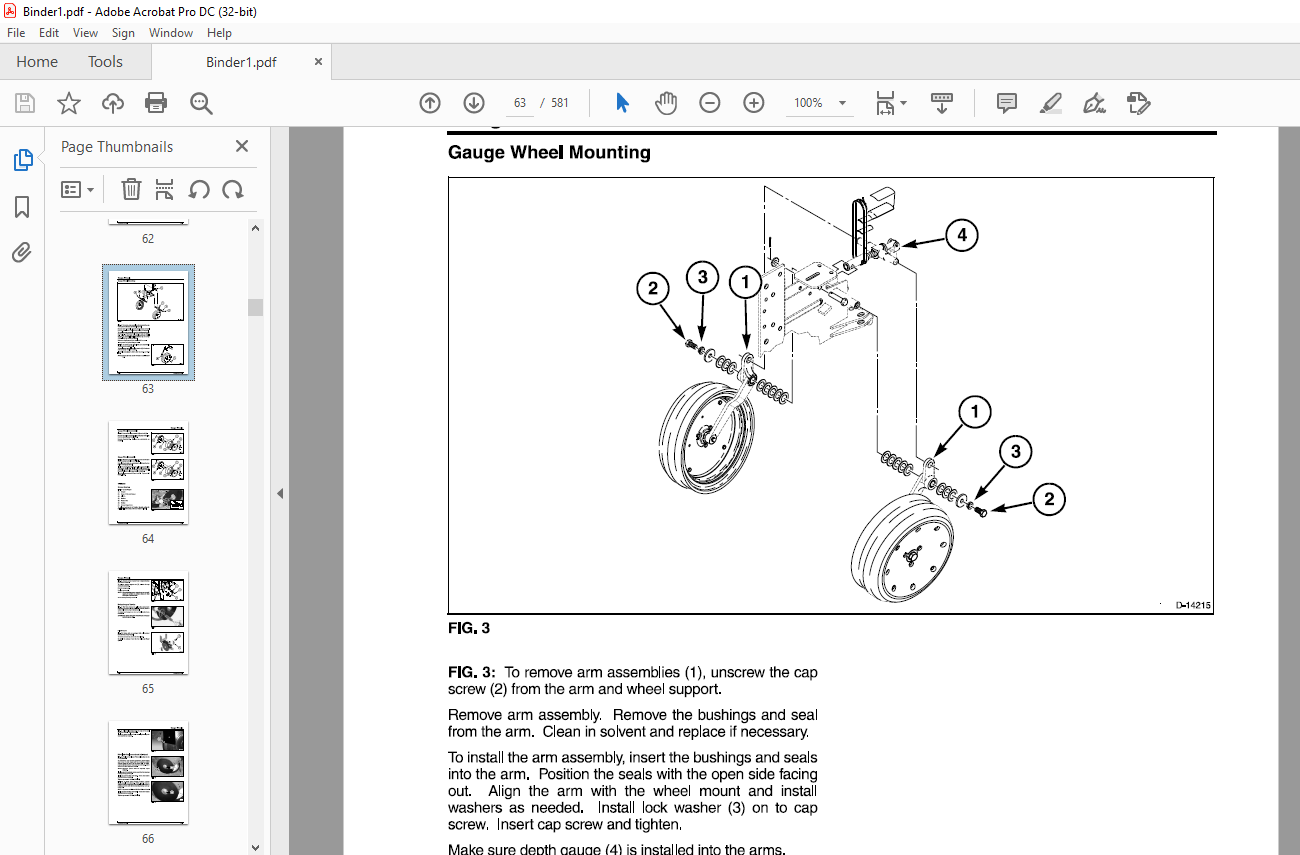

IMAGES PREVIEW OF THE MANUAL:
