FILE DETAILS:

AGCO NA LT LTA Workshop Service Manual 3378583M5 – PDF DOWNLOAD

Language : English
Pages : 1959
Downloadable : Yes
File Type : PDF

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

AGCO NA LT LTA Workshop Service Manual 3378583M5 – PDF DOWNLOAD

A. General:
The purpose of this manual is to assist Dealers and Agents in the efficient installation, maintenance and repair of AGCO equipment. Carrying out the procedures as detailed, together with the use of special tools where appropriate, will enable the operations to be completed within the time stated in the Repair Time Schedule.
B . Structure of the manual:
Page numbering
The present manual is divided into chapters and sections, and each page is numbered with the following information:
Example: 10A12.1
10 = Chapter
A12 = Section
1 = Page number within the section
The issue number is indicated at the bottom of the page.
Contents:
For quick reference, each chapter starts with a table of contents, listing the various sections included in that chapter.
Meaning of references:
(. .) : identification of parts and components
Amendments:
Amended pages will be issued carrying the same page number as the former pages: only the version number will change. Former pages should be destroyed.
C . Service tools
Where the use of a service tool is necessary to carry out an operation, the tool reference is mentioned following the relevant instruction. Drawings for locally made tools are given at the end of the relevant sections.

D . Repairs and replacements:

When parts have to be replaced, it is essential that only genuine AGCO parts are used. The following points are of particular importance when carrying out repairs and fitting replacement parts and accessories. Tractor safety features may be impaired if non-genuine parts are fitted.

• Legislation in certain countries prohibits the fitting of parts that do not comply with the tractor manufacturer’s specifications. Torque wrench setting figures given in the Workshop Service Manual must be strictly adhered to. Locking devices must be fitted where specified.
• If the efficiency of a locking device is impaired during removal, it must be replaced. The tractor warranty may be invalidated if non-genuine AGCO parts are fitted. All AGCO spare parts have the full backing of the manufacturer’s warranty. AGCO Dealers and Agents are required to supply only genuine service parts.

TABLE OF CONTENTS:

AGCO NA LT LTA Workshop Service Manual 3378583M5 – PDF DOWNLOAD

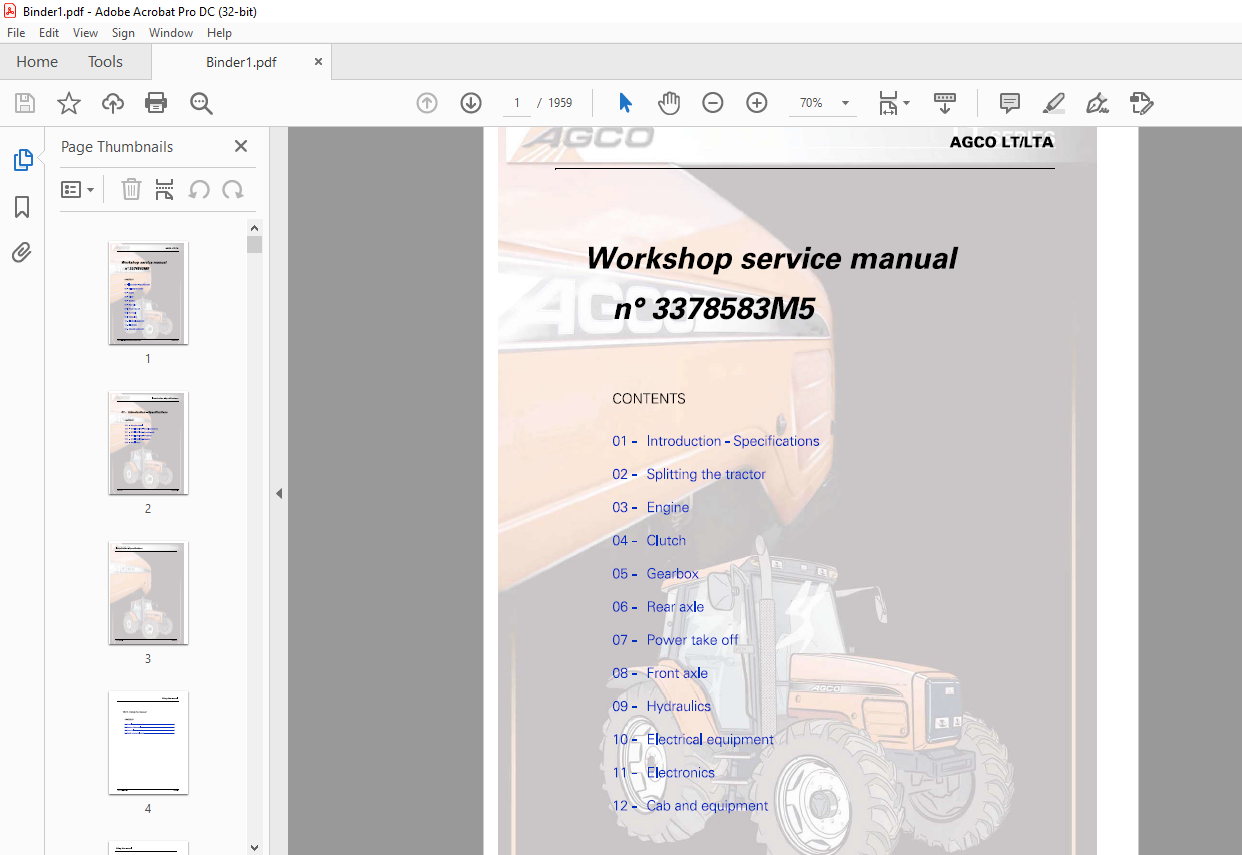

01 – Introduction – Specifications
02 – Splitting the tractor
03 – Engine
04- Clutch
05 – Gearbox
06 – Rear axle
07 – Power take off
08 – Front axle
09 – Hydraulics
10 – Electrical equipment
11 – Electronics
12 – Cab and equipment
