AGCO ST28A ST33A Hydrostatic Compact Tractor Service Manual 79024228A – PDF DOWNLOAD

AGCO ST28A ST33A Hydrostatic Compact Tractor Service Manual 79024228A – PDF DOWNLOAD

FILE DETAILS:

AGCO ST28A ST33A Hydrostatic Compact Tractor Service Manual 79024228A – PDF DOWNLOAD

Language : English
Pages : 225
Downloadable : Yes
File Type : PDF

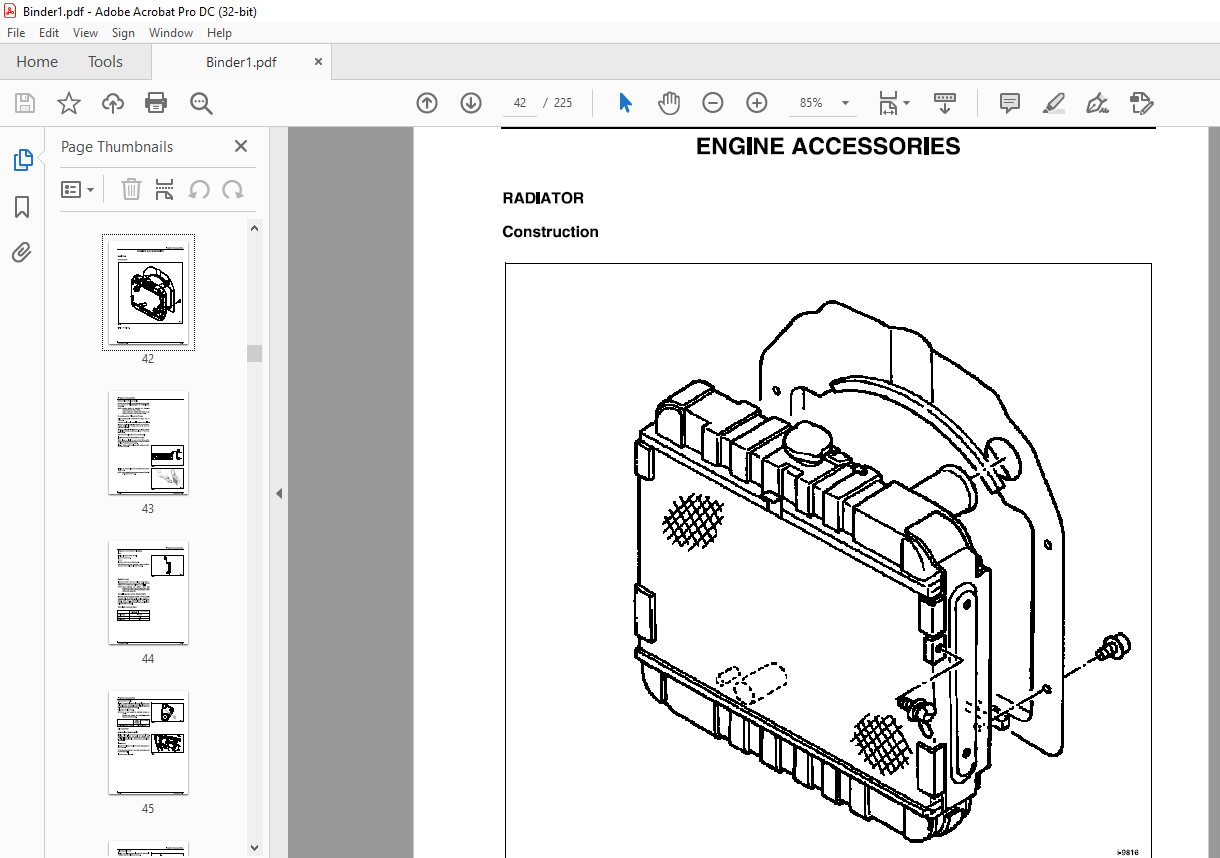

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

AGCO ST28A ST33A Hydrostatic Compact Tractor Service Manual 79024228A – PDF DOWNLOAD

GENERAL PRECAUTIONS FOR SEPARATION AND RE-INSTALLATION:
Before Operation:

Always be safety-conscious in selecting clothes to wear and suitable tools to use. Before disassembly, be sure that you familiarize yourself with the assembled condition for subsequent reference in reassembly. Keep parts and tools in proper order during operations.

• When servicing electrically live parts, be sure to disconnect the negative battery terminal. To prevent oil or water leaks, use the liquid gasket as required.
• When reassembling disassembled parts, discard used gaskets, O-rings, or oil seals and install new ones. When lifting up only the front or rear part of the tractor, be sure to wedge the grounded wheels.
• When the tractor is jacked up, be sure to support the entire tractor with something like a stand. Lifting it up with a jack only is a dangerously unstable procedure.
• When replacing parts, use authorized, genuine AGCO parts only. AGCO assumes no responsibility for accidents, operating problems or damage caused by the use of imitation parts. Also, the use of unauthorized parts will result in relatively poor machine performance.

Precautions to be Followed When Installing Common Parts:
Roller or Ball Bearings:

When a bearing is fitted in by the outer race, use an installer, which is specially designed to push only the outer race and vice versa. The installer must be designed to install the bearing on the shaft in a parallel position.

• When installing a bearing, which appears the same on both sides, install it so that the face, which has the identification number faces in a direction for easy visual identification.
• All the bearings, which are to be installed in the transmission case should be placed so that their identification number faces outward. If a shaft or a hole where a bearing is to be installed has a stopper, the bearing should be pushed in completely until it is seated against the stopper. Installed bearings should turn smoothly.

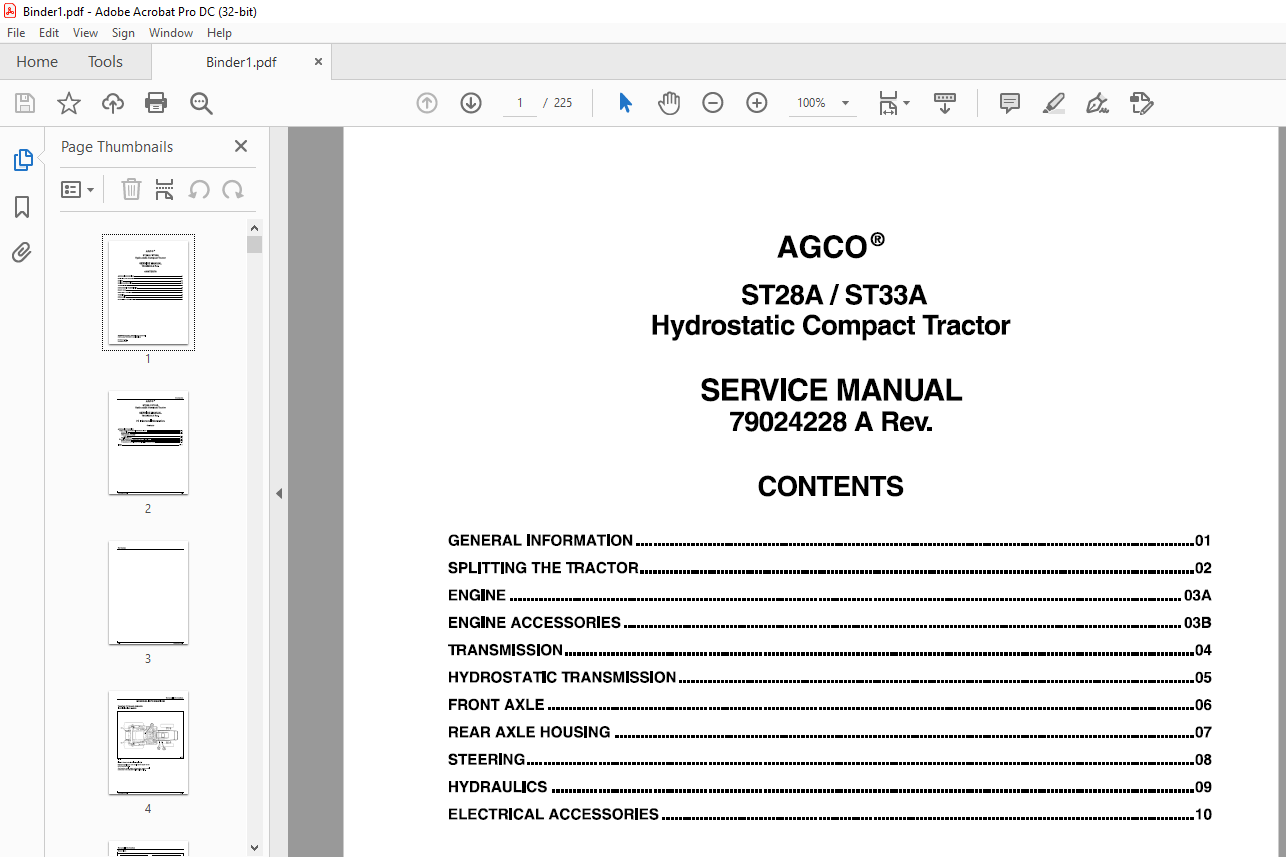

TABLE OF CONTENTS:

AGCO ST28A ST33A Hydrostatic Compact Tractor Service Manual 79024228A – PDF DOWNLOAD

GENERAL INFORMATION 01
SPLITTING THE TRACTOR 02
ENGINE 03A
ENGINE ACCESSORIES 03B
TRANSMISSION 04
HYDROSTATIC TRANSMISSION 05
FRONT AXLE 06
REAR AXLE HOUSING 07
STEERING 08
HYDRAULICS 09
ELECTRICAL ACCESSORIES 10
