Ammann AFT 300-2 Deutz Stage V Parts Catalogue Manual 10002170AN3022748 – PDF DOWNLOAD

FILE DETAILS:

Ammann AFT 300-2 Deutz Stage V Parts Catalogue Manual 10002170AN3022748 – PDF DOWNLOAD

Language : English
Pages : 343
Downloadable : Yes
File Type : PDF

IMAGES PREVIEW OF THE MANUAL:

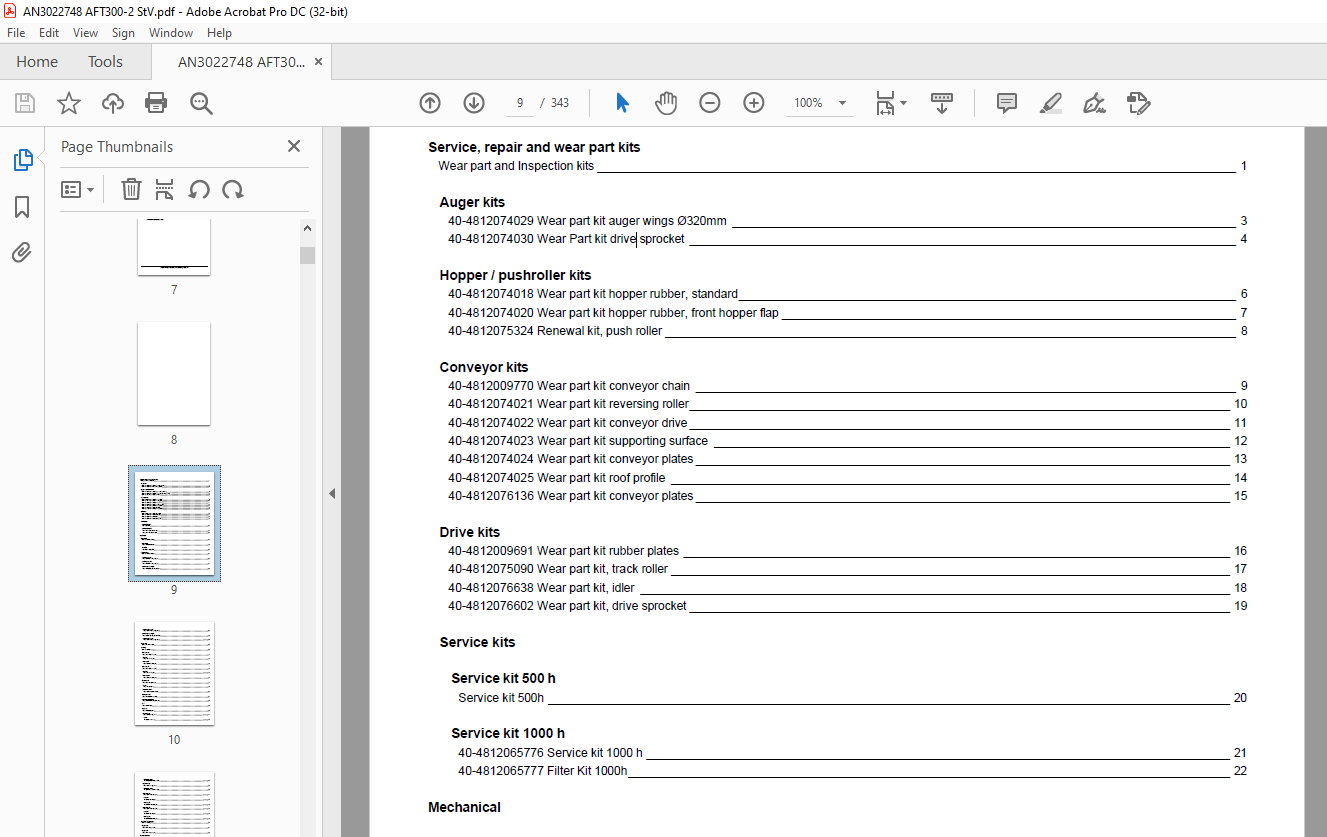

TABLE OF CONTENTS:

Ammann AFT 300-2 Deutz Stage V Parts Catalogue Manual 10002170AN3022748 – PDF DOWNLOAD

Service, repair and wear part kits
Wear part and Inspection kits 1
Auger kits

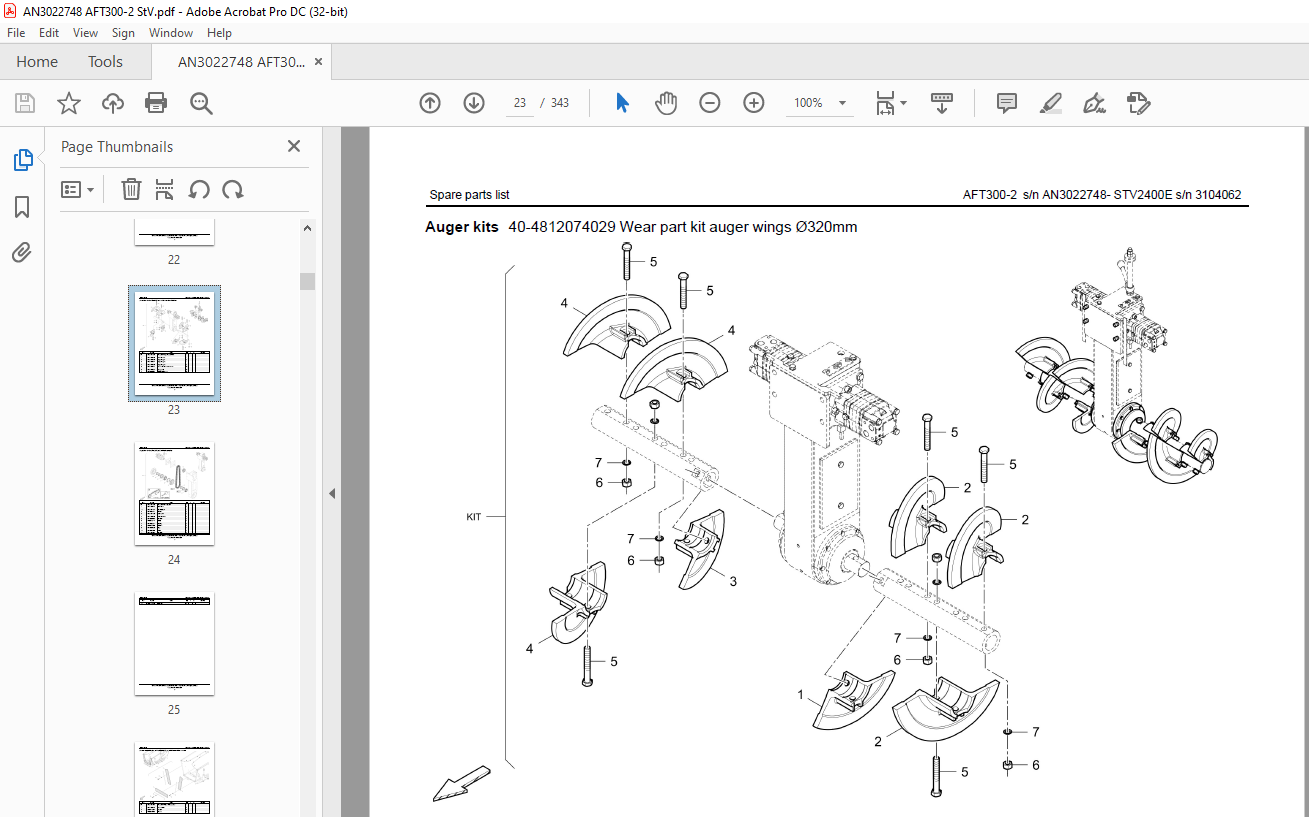

40-4812074029 Wear part kit auger wings Ø320mm 3
40-4812074030 Wear Part kit drive sprocket 4
Hopper / pushroller kits
40-4812074018 Wear part kit hopper rubber, standard 6
40-4812074020 Wear part kit hopper rubber, front hopper flap 7
40-4812075324 Renewal kit, push roller 8
Conveyor kits
40-4812009770 Wear part kit conveyor chain 9
40-4812074021 Wear part kit reversing roller 10
40-4812074022 Wear part kit conveyor drive 11
40-4812074023 Wear part kit supporting surface 12
40-4812074024 Wear part kit conveyor plates 13
40-4812074025 Wear part kit roof profile 14
40-4812076136 Wear part kit conveyor plates 15
Drive kits
40-4812009691 Wear part kit rubber plates 16
40-4812075090 Wear part kit, track roller 17
40-4812076638 Wear part kit, idler 18
40-4812076602 Wear part kit, drive sprocket 19
Service kits Service kit 500 h
Service kit 500h 20
Service kit 1000 h
40-4812065776 Service kit 1000 h 21
40-4812065777 Filter Kit 1000h 22
Mechanical Main frame
40-4812073329 Main frame 23
Main frame
40-4812073333 Main frame 24
Dip stick
40-4720005788 Dip stick 26
Levelling arm
40-4812071729 Levelling arm 27
Levelling arm, l.h.
40-4812072270 Levelling arm, l.h. 30
Levelling arm, r.h.
40-4812072275 Levelling arm, r.h. 31
Screed adjustment, r.h.
40-4812075900 Screed adjustment, r.h. 32
Screed adjustment
40-4812075902 Screed adjustment 33
Screed adjustment, l.h.
40-4812075901 Screed adjustment, l.h. 34
Screed adjustment
40-4812075902 Screed adjustment See page 33
Push roller
40-4812061182 Push roller 36
Covering
40-4812073657 Covering 38
Side door, l.h.
40-4812062744 Side door, l.h. 41
Stay bar
40-4812061391 Stay bar 42
Locking, l.h.
40-4812062810 Locking, l.h. 43
Side door, r.h.
40-4812062740 Side door, r.h. 44
Stay bar
40-4812061391 Stay bar See page 42
Locking, r.h.
40-4812062809 Locking, r.h. 46
Engine hood
40-4812062795 Engine hood 47
Cover
40-4812061342 Cover 49
Maintenance lid
40-4812062800 Maintenance lid 50
Battery bracket
40-4812062239 Battery bracket 51
Vandalism protection
40-4812076362 Vandalism protection 52
Rod
40-4812072217 Rod 54
Kit, hood
40-4812076806 Kit, hood 55
Engine hood
40-4812062795 Engine hood See page 47
Cover
40-4812061342 Cover See page 49
Maintenance lid
40-4812062800 Maintenance lid See page 50
Engine hood
40-4812076741 Engine hood 58
Maintenance lid
40-4812076747 Maintenance lid 60
Side door, l.h.
40-4812062744 Side door, l.h. See page 41
Stay bar
40-4812061391 Stay bar See page 42
Locking, l.h.
40-4812062810 Locking, l.h. See page 43
Side door, r.h.
40-4812062740 Side door, r.h. See page 44
Stay bar
40-4812061391 Stay bar See page 42
Locking, r.h.
40-4812062809 Locking, r.h. See page 46
40-4812217945 Hopper
40-4812217945 Hopper 65
Hopper, l.h.
40-4812217715 Hopper, l.h. 67
Hopper, r.h.
40-4812217714 Hopper, r.h. 68
Operator platform Ascent
40-4812060850 Ascent 69
Ascent
40-4812062200A Ascent 70
Platform, l.h.
40-4812062201 Platform, l.h. 72
Platform, r.h.
40-4812062206 Platform, r.h. 73
Ascent
40-4812076370 Ascent 74
Platform, l.h.
40-4812062201 Platform, l.h. See page 72
Platform, r.h.
40-4812062206 Platform, r.h. See page 73
Engine, STGV/T4F
Engine, STGV/T4F
40-4812063754 Drive, STGV/T4F 78
Motor
40-4812063724 Motor TD2.9 55,4KW 79
Radiator unit
40-4812062579 Radiator unit 80
Cooler with extension part
40-4812062625 Radiator unit 82
Cooler
40-4812072092 Cooler 83
Gear motor
40-4812009044 Gear motor 84
Expansion tank
40-4812061538 Expansion tank 85
Fuel system
40-4812073744 Fuel system 86
Mounting parts
40-4812075771 Mounting parts, motor 88
Air cleaning equipment
40-4812062452 Air cleaning equipment 89
Exhaust system
40-4812062811 Exhaust system 91
Diesel cooler
40-4812063715 Diesel cooler 92
Service parts
40-4812216008 Service parts 93
Electric, Stage V
40-4812062384 Electric, Stage V 95
Harness
40-4812216228 Harness W30 96
Pump distributor gear
40-4812061813 Pump distributor gear 100
Gearbox
40-4812072337 Gearbox 101
Engine clutch
40-4812216144 Engine clutch 103
Pump arrangement
40-4812201724 Pump arrangement 105
Pump
40-4812008897 Pump 106
Track group
40-4812073662 Track group 107
Idler
40-4812237364 Idler 110
Gearbox
40-4812044132 Gearbox 112
Chain with rubber plates
40-4812008943 Chain with rubber plates 113
Conveyor
40-4812071521 Conveyor 114
Conveyor chain
40-4812233743 Conveyor chain 117
Conveyor drive
40-4812060467 Conveyor drive 118
Conveyor limit switch cpl.
40-4812060669 Conveyor limit switch, cpl. 120
Conveyor limit switch cpl.
40-4812060670 Conveyor limit switch, cpl. 121
Conveyor limit switch, l.h.
40-4812075405 Conveyor limit switch, l.h. 122
Conveyor limit switch, r.h.
40-4812075406 Conveyor limit switch, r.h. 123
Reversing roller
40-4812071431 Reversing roller 124
Auger
Auger Ø320mm, 2.06m
40-4812071117 Auger Ø320mm, 2.06m 125
Auger Ø320mm, 1.2m
40-4812071125 Auger Ø320mm, 1.2m 126
Auger
40-4812071079 Auger 128
Material chute
40-4812237053 Material chute 133
Auger Ø320mm, 1.65m
40-4812071133 Auger Ø320mm, 1.65m 134
Auger extension Ø320mm, 0.26m, r.h.
40-4812071151 Auger extension Ø320mm, 0.26m, r.h. 135
Material shaft plate, 300mm, l.h.
40-4812071129 Material shaft plate, 300mm, l.h. 136
Material shaft plate, 300mm, r.h.
40-4812071128 Material shaft plate, 300mm, r.h. 137
Auger extension Ø320mm, 0.26m, l.h.
40-4812071152 Auger extension Ø320mm, 0.26m, l.h. 138
Auger Ø320mm, 2.06m
40-4812071134 Auger Ø320mm, 2.06m 139
Auger extension Ø320mm, 0.47m, l.h.
40-4812071149 Auger extension Ø320mm, 0.47m, l.h. 140
Material shaft plate, 550mm, l.h.
40-4812071136 Material shaft plate, 550mm, l.h. 141
Material shaft plate, 550mm, r.h.
40-4812071135 Material shaft plate, 550mm, r.h. 142
Auger extension Ø320mm, 0.47m, r.h.
40-4812071150 Auger extension Ø320mm, 0.47m, r.h. 143
Hydraulic
40-4812234566A Hydraulic 144
Hydrl. drive system
40-4812201710 Hydrl. drive system 145
Valve for hand brake
40-4812202048 Valve for hand brake 148
Pump
40-4812008897 Pump See page 106
Hydrl. connveyor
40-4812201713 Hydrl. auger & conveyor 150
40-4812215760 Valve block 153
Hydrl. tamper & vibration
40-4812073212 Hydrl. tamper & vibration 154
Flow control valve
40-4812215752 Flow control valve 156
Hydrl. work hydraulic
40-4812073213 Hydrl. work hydraulic 157
Valve block
40-4812073277 Valve block 161
Control block
40-4812010310 Control block 162
Control block
40-4812075897 Control block 163
Control block
40-4812075907 Control block 164
Control block
40-4812075919 Control block 165
Hydraulic cylinder
40-4720004897 Hydraulic cylinder 166
Hydrl. fan
40-4812073742 Hydrl. fan 168
Hydrl. tank, collector
40-4812073741 Hydrl. tank, collector 170
Return-succion filter
40-4812202040 Return/succion filter 172
Electric system
40-4812074000 Electric 173
Electric
40-4812073357 Electric 174
Spotlight
40-4812081191 Spotlight 178
Strapping plug W43
40-4812215330 Strapping plug W43 179
Strapping plug W44
40-4812202559 Strapping plug W44 180
Junction box
40-4812072397 Junction box 181
Junction box
40-4812018922 Junction box 182
Junction box
40-4812072103 Junction box 183
Mainboard
40-4812215123 Mainboard 184
40-4812076791 Operating panel
40-4812076791 Operating panel 186
Control unit
40-4812074064 Control unit 187
Steering unit
40-4812045687 Steering unit 192
Cable
40-4812073223 Harness W21 193
Wiring
40-4812073188 Wiring 197
Cable
40-4812073258 Cable W1 199
40-4812202503 Cable W3 200
40-4812073259 Cable W4 201
40-4812202497 Cable W5 202
40-4812202508 Cable W6 203
40-4812078164 Cable W7 204
40-4812202521 Cable W12 205
40-4812202522 Cable W13 206
40-4812073263 Cable W14 207
40-4812073271 Cable W15 208
40-4812073273 Cable W16 209
40-4812073523 Harness W20 210
40-4812073223 Harness W21 See page 193
40-4812217620 Harness W23 212
40-4812217478 Cable W24 213
40-4812073216 Harness W26 214
40-4812073249 Harness W27 215
40-4812073217 Harness W28 219
40-4812073219 Harness W29 221
40-4812216228 Harness W30 See page 96
40-4812073535 Harness W31 222
40-4812202516 Cable W40 224
40-D977436121 Ground strap 225
Control system
40-4812215000 Control system 227
Options
40-4812071730 Generator drive
40-4812071730 Generator drive 228
Cable
40-4812215856 Cable 232
Turnbuckle
40-4812024541 Turnbuckle 234
Electric
40-4812217474 Electric 235
Junction box
40-4812202643 Junction box 236
Harness
40-4812071058 Harness W11 241
40-4812216556 Harness W3 242
Control panel
40-4812202653 Control panel 243
Harness W2
40-4812202602 Harness W2 244
40-4812046197 Back-up alarm
40-4812046197 Back-up alarm 245
Back-up alarm
40-4812046475 Back-up alarm 246
40-4812216777 Rotaflare light
40-4812216777 Rotaflare light 247
Slip-on pipe
40-4812072152 Slip-on pipe 248
Cable harness W13
40-4812004752 Cable harness W13 249
Rotaflare light
40-4812072114 Rotaflare light 250
40-4812072046 Electric option, USB/24V
40-4812072046 USB/24V 251
Cable W24
40-4812217478 Cable W24 See page 213
40-4812215331 Headlight
40-4812215331 Headlight 253
40-4812078204 Headlight
40-4812078204 Headlight 254
40-4812078202 Headlight
40-4812078202 Headlight 255
Cable
40-4812078181 Cable W1 256
40-4812076033 Emulsion spray
40-4812076033 Emulsionstank 257
Electric emulsion spray system
40-4812075370 Electric emulsion spray system 259
Spray arm
40-4812216031 Spray arm 260
Spray arm
40-4812217384 Spray arm 261
Available options
40-4812080846 Headset, cpl. ( only for STG V )
40-4812080846 Headset, cpl. 263
40-4812082062 Headset Comfort Paket ( only for STG V )
40-4812082062 Headset Comfort Paket 264
40-4812076836 Hydraulic oil
40-4812076836 Hydraulic oil 265
40-4812061822 Panolin package
40-4812061822 Panolin package 266
40-4812201722 Hydrl. partial flow filter
40-4812201722 Hydrl. partial flow filter 267
40-4812072050 Electric option, USB/24V/230V
40-4812072050 USB/24V/230V 268
Cable W24
40-4812217478 Cable W24 See page 213
Harness W8
40-4812202646 Harness W8 270
Electric option, remote control
40-4812073534 Electric option, remote control 271
Controlling unit
40-4812073542 Controlling unit 272
Holding device
40-4812073506 Holding device 274
Harness W31
40-4812073535 Harness W31 See page 222
40-4812237693 Fire extinguisher
40-4812237693 Fire extinguisher 276
40-4812074787 Spotlight
40-4812074787 Spotlight 277
Spotlight
40-4812074770 Spotlight 278
Cable
40-4812006792 Cable 279
40-4812009359 Gloria spraying device
40-4812009359 Gloria spraying device 280
40-4812002731 First-aid kit
40-4812002731 First-aid kit 281
40-4812071410 Gas bottle support
40-4812071410 Gas bottle support 282
Strap retainer
Strap retainer 284
40-4812009244 Tools and accessories
40-4812009244 Tools and accessories 285
Tar spattle 287
40-4812071405 GPS installation
40-4812071405 GPS installation 288
GPS module
40-4812078171 GPS module 289
40-4812210167 Counterweight kit
40-4812210167 Counterweight kit 290
Levelling
40-4812004013 Moba gradline 2+1
40-4812004013 Moba gradline 2+1 291
Altitude control
40-D900624801 Altitude control 292
Inclination regulator
40-D900624754 Inclination regulator 293
Box
40-D900624870 Tool box 294
40-4812004014 Moba gradline 1+1
40-4812004014 Moba gradline 1+1 295
Altitude control
40-D900624801 Altitude control See page 292
Inclination regulator
40-D900624754 Inclination regulator See page 293
Box
40-D900624870 Tool box See page 294
40-4812076917 TF Mini Line 2+1
40-4812076917 TF Mini Line 2+1 299
40-4812076918 TF Mini Line 1+1
40-4812076918 TF Mini Line 1+1 300
40-4812077065 MOBA-Matic II 2+1, red
40-4812077065 MOBA-Matic II 2+1 red 301
40-4812077066 MOBA-Matic II 1+1, red
40-4812077066 MOBA-Matic II 1+1 red 302
Accessories Decals
40-4812074317 Decals 303
Labeling AFT300-2
40-4812074310 Decal Position 304
Tools and accessories
40-4812009874 Tools and accessories 305
Tools and accessories
40-4812009821 Tools and accessories 306
Special tool
Ultrasonic thickness guage 308
Tension tester 309
Frequency tension tester 310
Infrared thermometer 311
Test adapter 312
Welding protection 314
Color Dynapac 315
Dismantling tool (big pins) 317
Dismantling tool (smal pins) 318
Service tool bodas 319
Magnet tester 320
Digital pressure gauge kit 321
Frequency and amplitude meter 322
