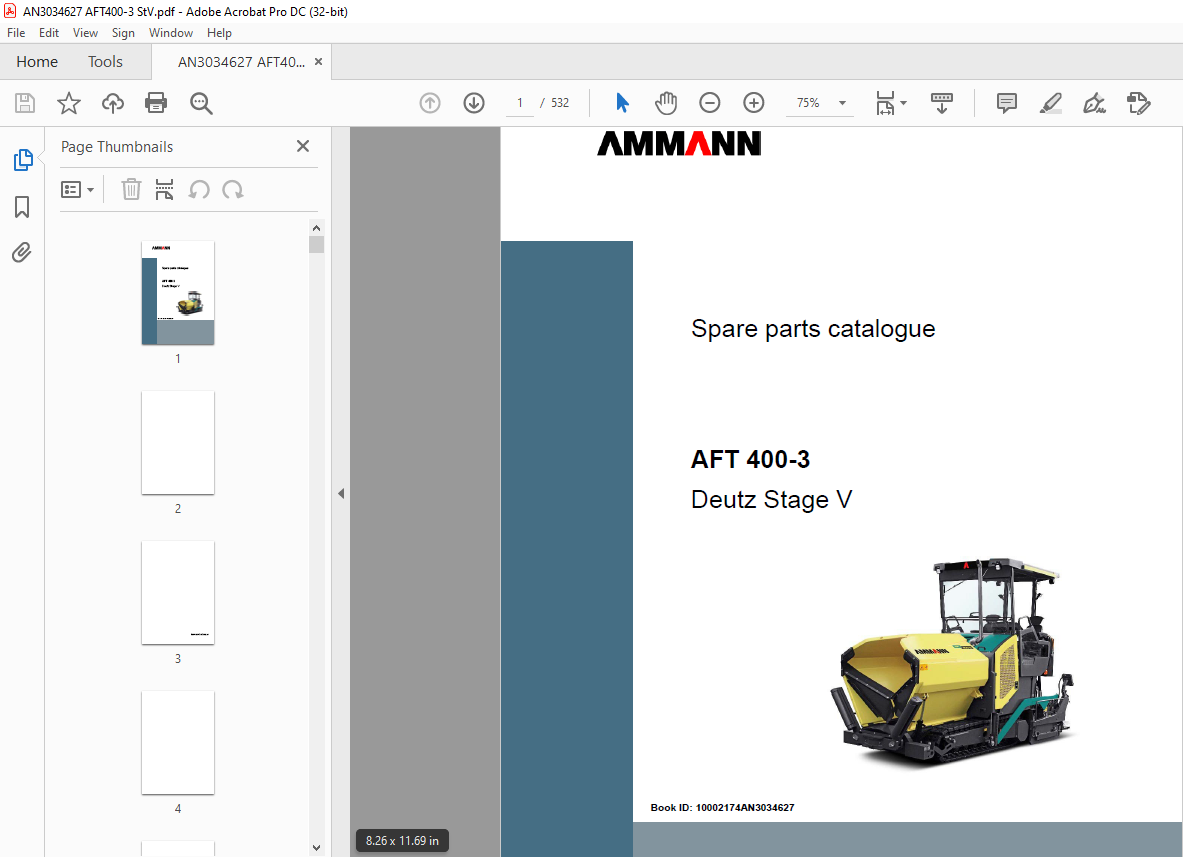

Ammann AFT 400-3 sn AN3034627 – STV 3500 E sn 3104156 Parts Manual PDF

Ammann AFT 400-3 s/n AN3034627 – STV 3500 E s/n 3104156 Deutz Stage V Parts Catalogue Manual – PDF DOWNLOAD

FILE DETAILS:

Ammann AFT 400-3 s/n AN3034627 – STV 3500 E s/n 3104156 Deutz Stage V Parts Catalogue Manual – PDF DOWNLOAD

Language : English
Pages : 532
Downloadable : Yes
File Type : PDF

IMAGES PREVIEW OF THE MANUAL:

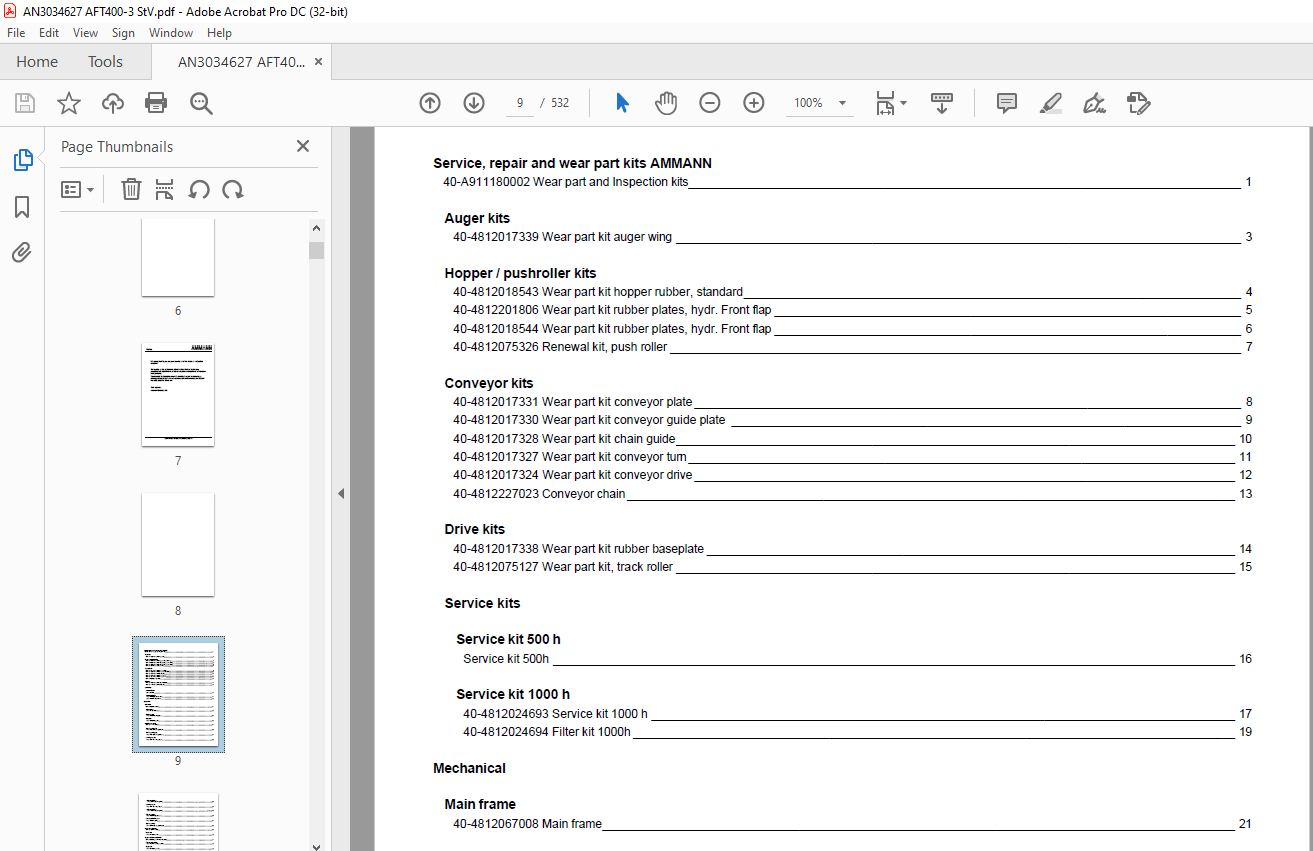

TABLE OF CONTENTS:

Ammann AFT 400-3 s/n AN3034627 – STV 3500 E s/n 3104156 Deutz Stage V Parts Catalogue Manual – PDF DOWNLOAD

Service, repair and wear part kits AMMANN
40-A911180002 Wear part and Inspection kits 1
Auger kits
40-4812017339 Wear part kit auger wing 3
Hopper / pushroller kits
40-4812018543 Wear part kit hopper rubber, standard 4
40-4812201806 Wear part kit rubber plates, hydr. Front flap 5
40-4812018544 Wear part kit rubber plates, hydr. Front flap 6
40-4812075326 Renewal kit, push roller 7
Conveyor kits
40-4812017331 Wear part kit conveyor plate 8
40-4812017330 Wear part kit conveyor guide plate 9
40-4812017328 Wear part kit chain guide 10
40-4812017327 Wear part kit conveyor turn 11
40-4812017324 Wear part kit conveyor drive 12
40-4812227023 Conveyor chain 13
Drive kits
40-4812017338 Wear part kit rubber baseplate 14
40-4812075127 Wear part kit, track roller 15
Service kits Service kit 500 h
Service kit 500h 16
Service kit 1000 h
40-4812024693 Service kit 1000 h 17
40-4812024694 Filter kit 1000h 19
Mechanical Main frame
40-4812067008 Main frame 21
Splash guard
40-4812011991 Splash guard 24
Steering guide
40-4812018329 Steering guide 25
Stop plate
40-4812215967 Stop plate 26
Levelling arm, track
40-4812077141 Levelling arm 27
Side bar guiding, l.h.
40-4812215148 Side bar guiding, l.h. 30
Side bar guiding, r.h.
40-4812215150 Side bar guiding, r.h. 31
Levelling arm, r.h.
40-4812077146 Levelling arm, r.h. 32
Side arm guiding
40-4812232214 Side arm guiding 33
Levelling arm, l.h.
40-4812077145 Levelling arm, l.h. 34
Side arm guiding
40-4812232214 Side arm guiding See page 33
Adjusting screw
40-4812064027 Adjusting screw 36
Locking for levelling arm
40-4812013077 Locking 37
Side bar guiding
40-4812013078 Side bar guiding back 38
Push roller, standard
40-4812010594 Push roller 39
Push roller
40-4812227893 Push roller 40
Hopper with bulk meterial flap
40-4812067039 Hopper with bulk meterial flap 41
Front hopper, middle
40-4812232424 Front hopper, middle 43
Hopper, r.h.
40-4812067040 Hopper, r.h. 44
Covering flap, r.h.
40-4812069225 covering flap,r.h 46
Hopper, l.h.
40-4812067042 Hopper, l.h. 47
Covering flap, l.h.
40-4812069218 Covering flap l.h 49
Covering
40-4812060929 Covering isolated 50
Door plate, l.h.
40-4812064211 Door plate, l.h. 52
Door plate, r.h.
40-4812064212 Door plate, r.h. 53
Intermediate section
40-4812060150 Intermediate section 54
Hood, r.h.
40-4812230591 Hood, r.h. 56
Locking
40-4812034713 Locking 58
Hood, l.h.
40-4812235519 Hood, l.h. 59
Support plate, l.h.
40-4812215155 Support plate, l.h. 61
Support plate, r.h.
40-4812215156 Support plate, r.h. 62
Cover plate
40-4812234006 Cover plate 63
Support plate
40-4812236026 Support plate 64
Lock plate
40-4812235987 Lock plate 65
Mounting bracket
40-4812236027 Mounting bracket 66
Cover plate, l.h.
40-4812235497 Cover plate, l.h. 67
Side cover, r.h.
40-4812235499 Side cover, r.h. 68
Cover plate, r.h.
40-4812234017 Cover plate, r.h. 69
Side cover, l.h.
40-4812235490 Side cover, l.h. 70
Wheel cover, r.h.
40-4812235922 Wheel cover, r.h. 71
Scale
40-4812015040 Scale 72
Operator platform Ascent, elec. screed
40-4812228513B Ascent, elec. screed 73
Ascent, middle
40-4812228663 Ascent, middle 74
Ascent
40-4812229210 Ascent 75
Ascent, r.h.
40-4812228662B Ascent, r.h. 76
Cover
40-4812201975 Cover 77
40-4812076316 Cover 78
Ascent, l.h.
40-4812230940A Ascent, l.h. 79
Hand rail
40-4812228638A Hand rail 80
Holder for remote control
40-4812228664 Holder for remote control 81
Socket Holder
40-4812017858 Socket holder 82
Platform, weather roof
40-4812236075B Platform, weather roof 83
Cover
40-4812230653 Cover 86
Bottom plate
40-4812230695 Bottom plate 88
40-4812076325 Bottom plate 89
Console body
40-4812236084 Console body 90
Operator board
40-4812236087 Operator board 92
Clamping lever
40-4812230890 Clamping lever 94
Telescopic pipe set
40-4812233983 Telescopic pipe set 95
Console
40-4812230735 Console 96
Steering unit
40-4812026356 Steering unit 98
40-4812014593 Steering unit 99
Seat mount, l.h.
40-4812018505A Seat mount, l.h. 102
Stop bolt
40-4812215929 Stop bolt 104
Cover plate footwell
40-4812230555 Cover plate footwell 105
40-4812076321 Cover plate footwell 106
Seat mount, r.h.
40-4812018504A Seat mount, r.h. 107
Stop bolt
40-4812215929 Stop bolt See page 104
Cover plate footwell
40-4812230555 Cover plate footwell See page 105
40-4812076321 Cover plate footwell See page 106
Stop plate
40-4812230911 Stop plate 111
Hyd. roof lifting cpl. Kit
40-4812229561 Hyd. roof lifting cpl. Kit 112
Hyd. roof adjustment
40-4812227560 Hyd. roof adjustment 113
Roof frame
40-4812236094A Roof frame 115
Holder, l.h.
40-4812018842 Holder, l.h. 118
Holder, r.h.
40-4812018839 Holder, r.h. 119
Cross bar
40-4812236534 Cross bar 120
Side roof, r.h.
40-4812215226 Side roof, r.h. 121
Side roof, l.h.
40-4812215225 Side roof, l.h. 123
Holder
40-4812063711 Retainer 125
Socket pin
40-4812236815 Socket pin 126

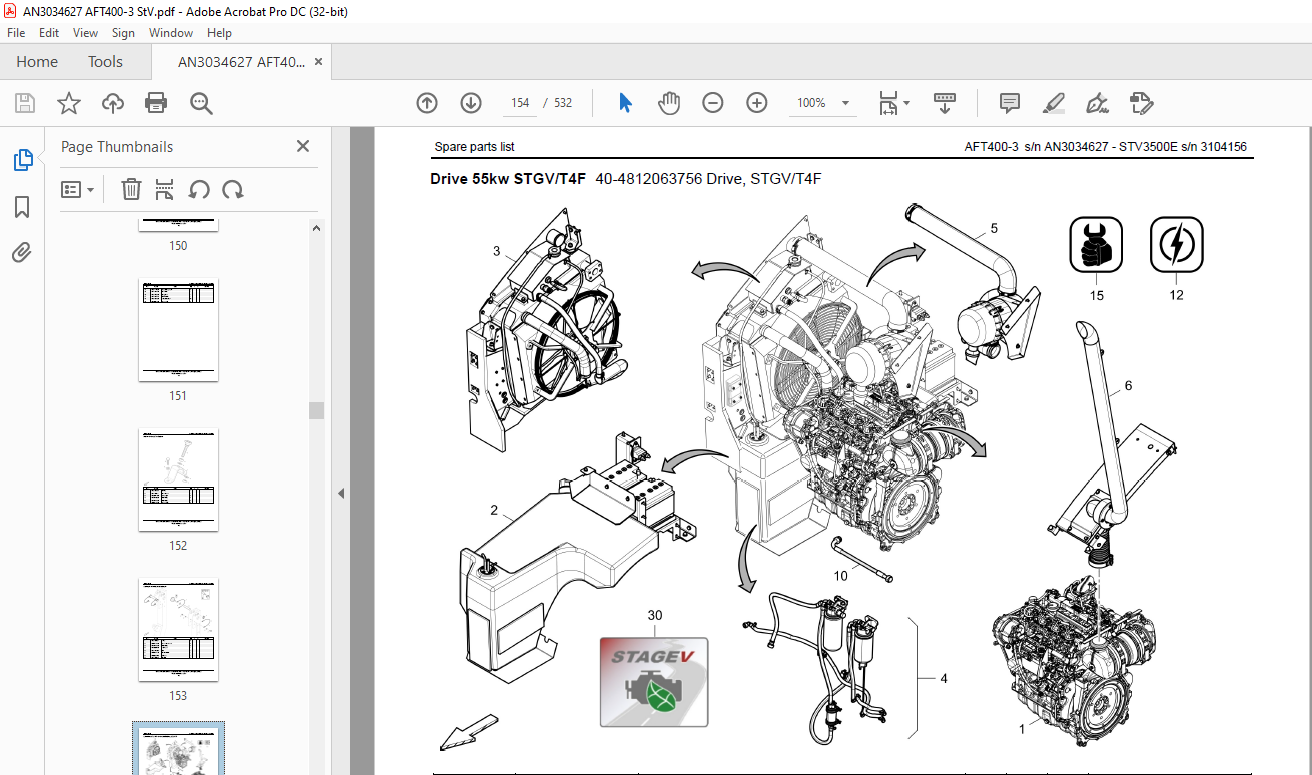

Engine STGV/T4F Drive 55kw STGV/T4F
40-4812063756 Drive, STGV/T4F 127
Fuel tank
40-4812076333 Fuel tank 128
Battery support
40-4812236036 Battery support 130
Cooler
40-4812239963 Cooler 132
Cooler
40-4812239966 Cooler 134
Combined cooler
40-4812060041 Combined cooler 136
Expansion tank
40-4812239952 Expansion tank 137
Side cover
40-4812074123 Side cover 138
Disc frame
40-4812060246 Disc frame 139
Fuel system
40-4812060171 Fuel system 141
Hose packet
40-4812074335 Hose packet 142
Air filter system
40-4812074115 Air filter system 144
Exhaust system
40-4812060159 Exhaust system 146
Rotary feedthrough
40-4812074106 Rotary feedthrough 147
Mounting parts
40-4812230755 Mounting parts 148
Cable W62
40-4812071763 Cable W62 149
Service parts
40-4812216008 Service parts 153
PVG E-Screed
40-4812063005 Pump distributor gear 155
Pump distributor gear
40-4812072338 Gearbox 157
Hydraulic pump
40-4812010703 Variable displacement pump 159
Hydraulic pump
40-4812024264 Hydraulic pump 160
Drive
40-4812010900 Track group 161
Track group Track group, l.h.
40-4812010905 Track group, l.h. 163
Drive gear box
40-4812010635 Drive gear box 166
Idler
40-4812010424 Idler 167
Track chain
40-4812233976 Track chain 169
Chain with rubber plates
40-4812007389 Chain with rubber plates 170
Track cleaner, cpl.
40-4812010982 Track cleaner, cpl. 171
Track cleaner
40-4812012373 Track cleaner 172
Locking laver
40-4812043349 Locking laver 173
Track group, r.h.
40-4812010907 Track group, r.h. 174
Conveyor, PLC
40-4812010605 Conveyor, PLC 177
Conveyor, PLC
40-4812011565 Conveyor drive
40-4812011565 Conveyor drive 178
Conveyor drive
40-4812010042 Conveyor drive 179
Conveyor bearing
40-4812010005 Conveyor bearing 181
40-4812016235 Conveyor guide 182
Conveyor chain
40-4812227023 Conveyor chain See page 13
40-4812228001 Guide plate, cpl.
40-4812228001 Guide plate, cpl. 184
40-4812227999 Guide plate 185
40-4812228005 Conveyor motor
40-4812228005 Conveyor motor 186
40-4812228003 Conveyor motor 187
40-4812011615 Conveyor limit switch, PLC cpl.
40-4812011615 Conveyor limit switch, PLC cpl. 188
40-4812011362 Conveyor limit switch PLC cpl.
40-4812011362 Conveyor limit switch PLC cpl. 189
Conveyor limit switch, r.h.
40-4812075404 Conveyor limit switch, r.h. 190
Conveyor limit switch, l.h.
40-4812075403 Conveyor limit switch, l.h. 191
40-4812228016 Chain guide
40-4812228016 Chain guide, cpl. 192
40-4812228015 Chain guide 193
Auger
Auger Ø320mm, 2,20m
40-4812235472 Auger Ø320mm, 2.20m 194
Auger
40-4812235473 Auger 195
Outer support, l.h.
40-4812013689 Outer support, l.h. 199
Outer support, r.h.
40-4812013740 Outer support, r.h. 201
Mounting parts
40-4812235474 Mounting parts 203
Material chute
40-4812235475 Material chute 204
Worm extension, r.h.
40-4812019816 Worm extension, r.h. 205
Worm extension, l.h.
40-4812235380 Worm extension, l.h. 206
Hydraulic system
40-4812024415 Hydraulic 207
Hydraulic
Hydraulic, drive system
40-4812024421 Hydraulic, drive system 209
Brakevalve
40-4812015999 Brakevalve 212
40-4812024410 Brakevalve 213
40-4812215465 Brakevalve 214
Filter
40-4812044338 Filter 215
Hydraulic, work hydraulic 1
40-4812024436A Hydraulic, work hydraulic 1 216
Control block
40-4812073045 Control block 223
40-4812018005 Control block 227
Valve support
40-4812012789 Valve support 231
Hydraulic, work hydraulic 2
40-4812024438 Hydraulic, work hydraulic 2 232
Valve support
40-4812012725 Valve support 237
Control block
40-4812019111 Control block 238
40-4812075228 Control block 240
Hydraulic, fan
40-4812024441 Hydraulic, fan 242
Filter
40-4812044338 Filter See page 215
Hydraulic, tank collector
40-4812024443 Hydraulic, tank collector 245
Hydraulic tank
40-4812226957 Hydraulic tank 247
Return/succion filter
40-4812010357 Return/succion filter 249
Filter
40-4812044338 Filter See page 215
Hydr. Tamper
40-4812227559 Hydr. Tamper 252
Electric system AMMANN Electric
40-4812016557B Electric 254
Electric
40-4812011422 Electric 255
Operating panel, cpl.
40-4812019196A operating , cpl. 262
40-4812016174 Operating panel
40-4812016174 Operating panel 263
40-4812016676 Cable W73 267
40-4812016568 Cable W21 268
Operating panel, cpl.
40-4812076566 operating , cpl. 271
Operating panel
40-4812076507 Operating panel 272
Harness
40-4812016568 Cable W21 See page 268
40-4812016676 Cable W73 See page 267
40-4812016459 Cable W66 276
Junction box
40-4812201245 Junction box 278
Mainboard
40-4812011488 Mainboard 284
Junction box
40-4812228999A Junction box 286
Cable W30
40-4812014443 Cable W30 288
Plug
40-4812017201 Plug 290
40-4812201552 Wiring
40-4812201552 Wiring 291
Cable W1
40-4812012299 Cable W1 293
Cable W3
40-4812012301 Cable W3 294
Cable W4
40-4812012303 Cable W4 295
Cable W5
40-4812012304 Cable W5 296
Cable W6
40-4812012305 Cable W6 297
Cable W7
40-4812047525 Cable W7 298
Cable W14
40-4812012311 Cable W14 299
Cable W15
40-4812012312 Cable W15 300
Cable W16
40-4812012313 Cable W16 301
Cable W25
40-4812201533 Cable W25 302
Cable W26
40-4812017389 Cable W26 306
Cable W27
40-4812071697 Cable W27 310
Cable W29
40-4812023290 Cable W29 315
Cable W34
40-4812012325 Cable W34 317
Cable W36
40-4812016723 Cable W36 319
Cable W40
40-4812013450 Cable W40 321
Cable W45
40-4812201461 Cable W45 322
Cable W46
40-4812073869 Cable W46 325
Strapping plug
40-4812014502 Strapping plug 326
Plug
40-4812017201 Plug See page 290
Ground strap
40-D977436121 Ground strap 328
Steering unit
40-4812014593 Steering unit See page 99
Control system
40-4812017385 Control system 330
Remote control
40-4812202805 Remote control 331
Housing
40-4812072857 Housing, remote control 332
Vandalism protection
40-4812076303 Vandalism protection 333
Options
40-4812071687 Generator drive, 12.5 KVA
40-4812071687 Generator drive, 12.5 KVA 335
Cable W1
40-4812023340 Cable W1 338
Turnbuckle
40-4812024541 Turnbuckle 339
40-4812013302 Spotlight for auger
40-4812013302 Spotlight for auger 340
40-4812013288 LED Spot light, 2 front / rear with roof
40-4812013288 LED Spot light, 2 front / rear with roof 341
40-4812012833 12V installation
40-4812012833 12V installation 343
Cable W34
40-4812012325 Cable W34 See page 317
40-4812080691 Rotaflare light, with roof
40-4812080691 Rotaflare light, l.h. with roof 346
40-4812079191 Electric, rotaflare light
40-4812079191 Electric, rotaflare light 347
Rotaflare light
40-4749140026 Rotary light 348
Slip-on pipe
40-4812012450 Slip-on pipe 350
Holder for rotaflare light
40-4812011482 Holder for rotaflare light 351
40-4812012823 Back-up alarm
40-4812012823 Back-up alarm 352
40-4812230939A Side window, valid from s/n G002007,
GPS installation
40-4812074568 GPS installation 353
40-4812071963 Hyd, screed unload
40-4812071963 Hyd, screed unload 354
40-4812227611 Hydr. profile adjustment
40-4812227611 Hydr. profile adjustment 356
Vertical adjustment, hyd.
40-4812201247 Vertical adjustment, hyr. 357
High adjustable auger
40-4812227562 High adjustable auger 359
Control block
40-4812016335 Control block 360
40-4812023661 Control block 361
40-4812232767 Without fume absorbing system
40-4812232767 Without fume absorbing system 362
Without fume control
40-4812227605 Without fume control 363
40-4812014300 Central lubrication
40-4812014300 Central lubrication 364
Kit central lubrication f. auger
40-4812024907 Kit central lubrication f. auger 365
Kit, pump
40-4812014357 Kit, pump 366
40-4812076814 Emulsion spray system
40-4812076814 Emulsion spray system 367
Emulsion tank
40-4812076114 Emulsion tank 369
Spray arm
40-4812216031 Spray arm 371
Spray arm
40-4812217384 Spray arm 372
Electric, emulsion spray
40-4812076614 Electric, emulsion spray 373
Cable
40-4812076616 Cable W36 374
40-4812074902 Drivers seat, Standard
40-4812015766 Drivers seat, standard 375
Drivers seat, cpl.
40-4812009466 Drivers seat, cpl. 376
40-4812230939A Side window 377
CAN-sensor kit 2+1 yellow
40-4812073452 CAN-sensor kit 2+1, yellow 378
Available options
40-4812078816 Box, remote control PLC
40-4812078816 Box, remote control PLC 379
40-4812080846 Headset, cpl. ( only for STG V )
40-4812080846 Headset, cpl. 380
40-4812082062 Headset Comfort Paket ( only for STG V )
40-4812082062 Headset Comfort Paket 381
40-4812232768 Fume control system
40-4812232768 Fume control system, cpl. 382
Fume control system, main frame
40-4812232943 Fume control system, main frame 383
Blower
40-4812073904 Exhaust fan 386
Fume control system, roof frame
40-4812232946 Fume control system, roof frame 387
Exhaust pipe
40-4812232965 Exhaust pipe 388
Pipe clamp
40-4812232999 Pipe clamp 389
Hydrl. fume suction
40-4812227612 Hydrl. fume suction 390
40-4812215477 Pressure relief valve 392
40-4812044916 Pressure reduction valve 393
40-4812065765 Fume control system
40-4812065765 Fume control system 394
Fume control system, main frame
40-4812077941 Fume control system, main frame 395
Exhaust fan
40-4812073904 Exhaust fan See page 386
Fume control system, roof frame
40-4812065764 Fume control system, roof frame 399
Hydrl. fume suction
40-4812227612 Hydrl. fume suction See page 390
Pressure relief valve
40-4812044916 Pressure reduction valve See page 393
40-4812215477 Pressure relief valve See page 392
40-4812074900 Drivers seat, comfort
40-4812074039 Drivers seat, comfort 401
40-4812228764 Fire
Driver`s seat
40-4812076671 Driver seat 402
Seat heater
40-4812030001 Seat heater 403
SetAssist
40-4812201249 SetAssist 404
High adjustable auger
40-4812232967 High adjustable auger 406
Control block
40-4812016335 Control block See page 360
40-4812023661 Control block See page 361
40-4812014661 Hydrl.partial flow filter
40-4812014661 Hydrl.partial flow filter 409
Hydrl. partial filter
40-4812012640 Hydrl.partial flow filter 410
40-4812081824 Hyd. side shield
40-4812081824 Hydraulic side shield 412
40-4812010982 Track cleaner, cpl.
40-4812010982 Track cleaner, cpl. See page 171
Track cleaner
40-4812012373 Track cleaner See page 172
Locking laver
40-4812043349 Locking laver See page 173
40-4812013303 LED Spotlight for auger
40-4812013303 LED Spotlight for auger 415
40-4812013290 LED Spot light, 2 front / rear without roof
40-4812013290 LED Spot light, 2 front / rear without roof 416
Worklight without roof
40-4812073880 Worklight without roof 417
Cable W46
40-4812073869 Cable W46 See page 325
40-4812067517 Rotaflare light, without roof
40-4812067517 Rotaflare light, without roof 419
40-4812067514 Electric, rotaflare light
40-4812067514 Electric, Rotaflare light 420
Rotaflare light
40-4749140026 Rotary light See page 348
Slip-on pipe
40-4812067352 Slip-on pipe 422
40-4812228764 Fire extinguisher 423
40-4812034869 Gloria spraying device
40-4812034869 Gloria spraying device 424
First-aid kit
40-4812217856 First-aid kit 425
Option England without truck assist
40-4812236306 Option England without truck assist 426
Option England
40-4812013436 Option England 427
El. option england
40-4812012824 El. option england 428
Option England with truck assist
40-4812236324 Option England with truck assist 429
Option England
40-4812013436 Option England See page 427
El. option england
40-4812012824 El. option england See page 428
Shining balloon
40-4812215224 Shining balloon 431
Electric lighting
40-4812012899 Electric lighting 432
40-4812236093 Pane frame Valid from s/n G002756, 2830, 2847, 2855, 2865, ff
40-4812236093A Pane frame 433
Front pane
40-4812060294 Front pane 435
El. option wiper
40-4812201470 Wiper 437
Cable W31
40-4812201463 Cable W31 439
Truck Assist Advanced
40-4812236348 TruckAssist Advanced 440
Housing
40-4812018218 Housing 441
Housing
40-4812018226 Housing 442
Electric
40-4812018144 Electric 443
40-4812016890 Cable W67 445
40-4812016888 Cable W68 446
40-4812216118 Kit, mat-manager
40-4812216118 Kit, mat-manager 447
Spare key
40-4812024853 Cover
40-4812024853 Cover 452
40-4812009244 Hand tools, special
40-4812009244 Tools and accessories 453
Tar spattle 455
40-4812017032 GPS installation advanced
40-4812017032 GPS installation advanced 456
40-4812013040 GPS module, V2 457
40-4812016459 Cable W66 See page 276
40-4812075536 DynaLink Pro
40-4812075536 DynaLink Pro 459
Hardlock Advanced
40-4812017027 Hardlock pro / Pavemanager 2 460
Levelling
CAN-sensor kit 1+1 yellow
40-4812073449 CAN-sensor kit 1+1, yellow 461
Digirotary Kit
40-4812038617 Digirotary Kit 462
Accessories AMMANN Decals
40-4812024618 Decals 463
40-4812024637 Sticker 464
Symbol AFT400-3
Symbol 465
Tools and accessories
40-4812231606 Tools and accessories 466
Tool box
40-4812230789 Tool box 467
Tools and accessories
40-4812009821 Tools and accessories 468
Special tool
Ultrasonic thickness guage 470
Tension tester 471
Frequency tension tester 472
Infrared thermometer 473
Test adapter 474
Welding protection 476
Dismantling tool (big pins) 477
Dismantling tool (smal pins) 478
Service tool bodas 479
Magnet tester 480
Digital pressure gauge kit 481
Frequency and amplitude meter 482
Spare key
