Ammann AFT 700-2 Parts Manual 10002150AM3010164 - PDF

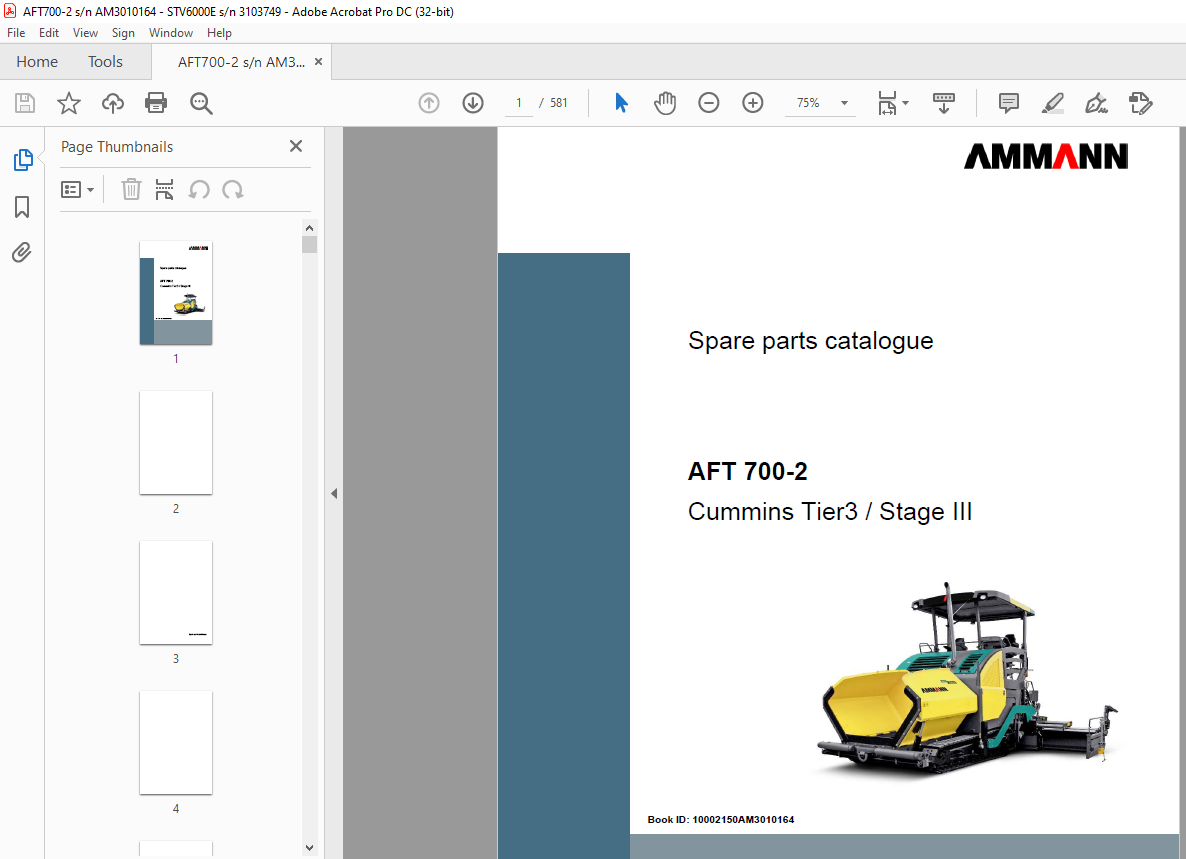

Ammann AFT 700-2 Cummins Tier3 / Stage III Spare Parts Catalogue Manual 10002150AM3010164 – PDF DOWNLOAD

FILE DETAILS:

Ammann AFT 700-2 Cummins Tier3 / Stage III Spare Parts Catalogue Manual 10002150AM3010164 – PDF DOWNLOAD

Language : English
Pages : 581
Downloadable : Yes
File Type : PDF

IMAGES PREVIEW OF THE MANUAL:

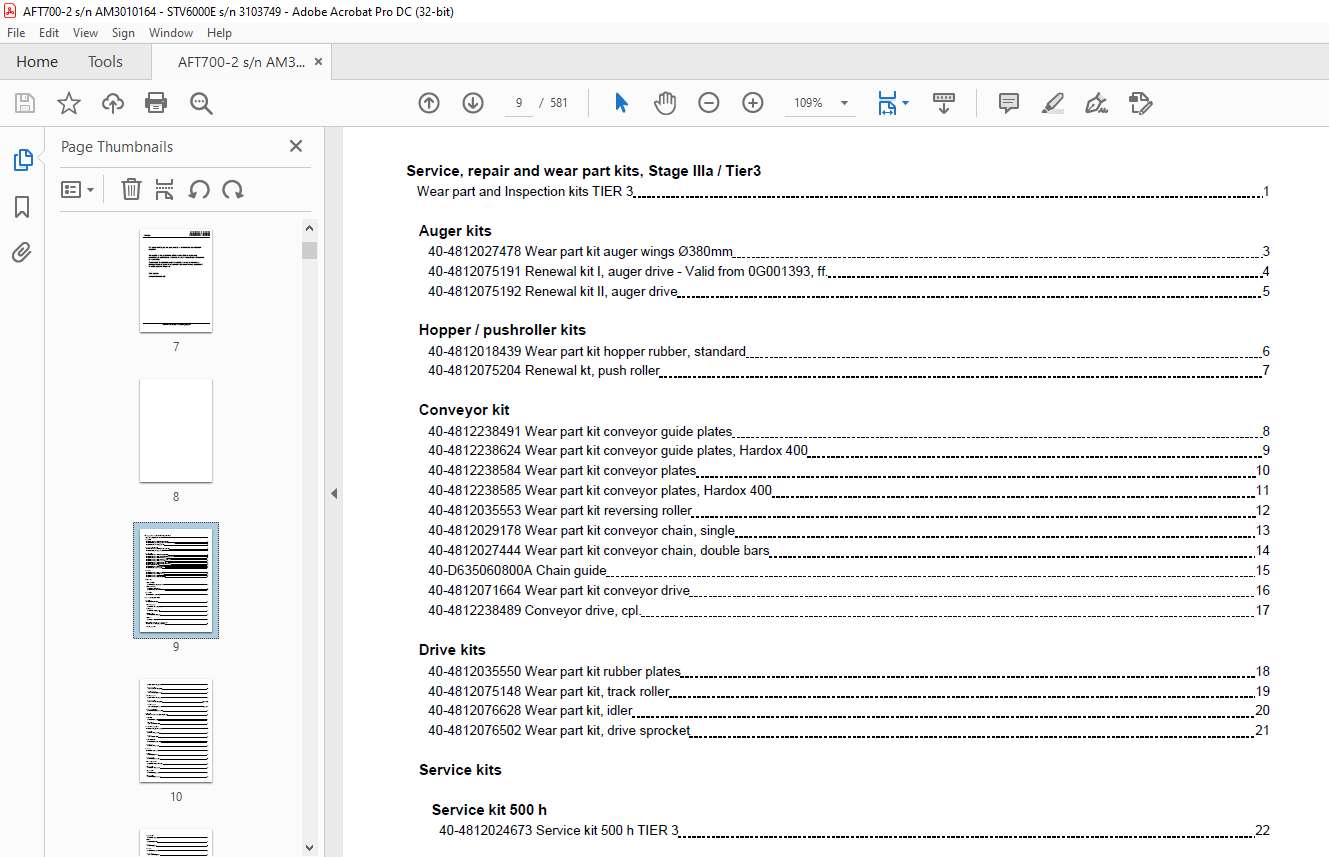

TABLE OF CONTENTS:

Ammann AFT 700-2 Cummins Tier3 / Stage III Spare Parts Catalogue Manual 10002150AM3010164 – PDF DOWNLOAD

Service, repair and wear part kits, Stage IIIa / Tier3
Wear part and Inspection kits TIER 3 1
Auger kits
40-4812027478 Wear part kit auger wings Ø380mm 3 40-4812075191 Renewal kit I, auger drive – Valid from 0G001393, ff. 4 40-4812075192 Renewal kit II, auger drive 5
Hopper / pushroller kits
40-4812018439 Wear part kit hopper rubber, standard 6 40-4812075204 Renewal kt, push roller 7
Conveyor kit

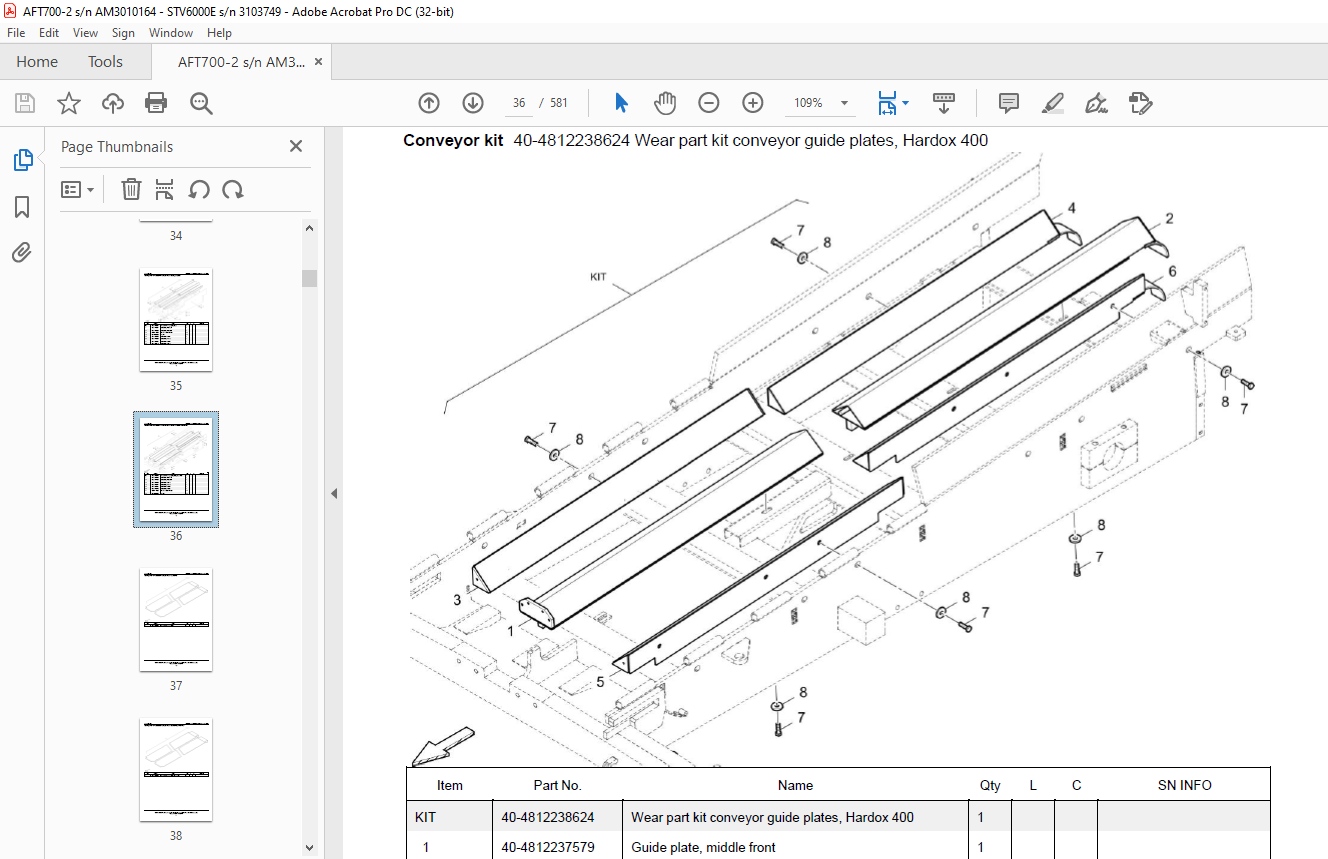

40-4812238491 Wear part kit conveyor guide plates 8 40-4812238624 Wear part kit conveyor guide plates, Hardox 400 9 40-4812238584 Wear part kit conveyor plates 10 40-4812238585 Wear part kit conveyor plates, Hardox 400 11 40-4812035553 Wear part kit reversing roller 12 40-4812029178 Wear part kit conveyor chain, single 13 40-4812027444 Wear part kit conveyor chain, double bars 14 40-D635060800A Chain guide 15 40-4812071664 Wear part kit conveyor drive 16 40-4812238489 Conveyor drive, cpl. 17
Drive kits
40-4812035550 Wear part kit rubber plates 18 40-4812075148 Wear part kit, track roller 19 40-4812076628 Wear part kit, idler20 40-4812076502 Wear part kit, drive sprocket 21
Service kits Service kit 500 h
40-4812024673 Service kit 500 h TIER 3 22
Service kit 1000 h
40-4812071041 Filter kit 1000h 23 40-4812071042 Service kit 1000h TIER 3 24
General kits
40-4812077016 Fuse and relay kit 25
Mechanical, Stage IIIa / Tier3 Main frame
40-4812238421 Main frame 26
Side arm guiding
40-4812028721 Side arm guiding 27
Splash guard
40-4812238374 Splash guard 28
Steering guide
40-4812036083 Steering guide29
Extension
40-4812232118 Extension 30
40-4812217274 Levelling arm, mech. locked
40-4812217274 Levelling arm, mech. locked 31
Levelling arm, l.h.
40-4812217282 Levelling arm, l.h. 32
Side arm guiding
40-4812232214 Side arm guiding 34
Adjusting screw
40-4812061689 Adjusting screw 35
Levelling arm, r.h.
40-4812217283 Levelling arm, r.h. 36
Side arm guiding
40-4812232214 Side arm guiding See page 34
Adjusting screw
40-4812061689 Adjusting screw See page 35
Locking, mechanical
40-4812029222 Locking, mechanical 40
Push roller
40-4812044911B Push roller, hydraulic crosshead41
Push roller
40-4812063758 Push roller 42
Pillow block
40-4812046568 Pillow block 43
Hopper with dump plate
40-4812229083 Hopper with dump plate 44
Hopper, l.h.
40-4812229108 Hopper, l.h. 45
Locking
40-4812231436 Locking 46
Bulk material flap
40-4812028563 Bulk material flap 47
Hopper, r.h.
40-4812229107 Hopper, r.h.48
Covering
40-4812226471D Covering49
Bulk head
40-4812200656 Bulk head 53
Hood support
40-4812225685 Hood support54
Intermediate section
40-4812225631 Intermediate section55
Air guide, r.h.
40-4812034771 Air guide, r.h. 56
Air guide, l.h.
40-4812225640 Air guide, l.h. 57
Air guide, rear
40-4812225657 Air guide, rear58
Support plate
40-4812225681 Support plate 59
Retainer
40-4812225682 Retainer60
Cover
40-4812225689 Cover61
Door, l.h.
40-4812064226 Door, l.h. 62
Support rod
40-4812041407 Support rod 63
Door, r. h.
40-4812064222 Door, r.h.64
Support rod
40-4812041407 Support rod See page 63
Hood, r.h.
40-4812074444 Hood, r.h.66
Hood, l.h.
40-4812074698 Hood, l.h. 68
Covering center part, l.h.
40-4812225667 Covering center part, l.h. 70
Covering center part, r.h.
40-4812233556 Covering center part, r.h. 71
Isolation
40-4812009008 Isolation 72
Retainer, l.h.
40-4812226380 Retainer, l.h.73
Retainer, r.h.
40-4812226135 Retainer, r.h. 74
Operator platform
40-4812060019 Operator platform, fixed, weather roof
40-4812060019 Operator platform, fixed, weather roof75
Platform, cpl.
40-4812239351 Plattform, cpl. 76
Platform
40-4812239350 Platform 77
Cable W94
40-4812217152 Cable W9480
Bottom plate, middle
40-4812227769 Bottom plate, middle83 40-4812064117 Bottom plate, middle84
Base plate
40-4812005148 Base plate85
Crash protection, l.h.
40-4812225523 Crash protection, l.h. 86
Crash protection, r.h.
40-4812225524 Crash protection, r.h. 87
Roof frame front
40-4812225474 Roof frame front 88
Platform
40-4812239346 Platform 89
Crash protection front
40-4812226856 Crash protection front90
Umbrella roof
40-4812239580 Umbrella roof91
Locking
40-4812229224 Locking 92
Fold away step, r.h.
40-4812007101 Fold away step r.h.93
Fold away step, l.h.
40-4812007102 Fold away step l.h.95
Sheet tub
40-4812006340 Sheet tub 97
Door
40-4812239585 Door98
Holding device
40-4812005104 Holding device99
Adapte, front r.h.
40-4812006204 Adapte, front r.h. 100
Adapte, front l.h.
40-4812006203 Adapte, front l.h. 101
Adapte, back
40-4812006206 Adapter, back 102
Umbrella roof
40-4812239367 Umbrella roof103
Linear actuators
40-4812060175 Linear actuators104
Electric roof
40-4812217153 Electric roof 105
Retainer
40-4812217328 Retainer106
Operator board
40-4812017300 Operator board107
Clamping lever
40-4812227100 Clamping lever109
Telescopic pipe set
40-4812228437 Telescopic pipe set111
Console
40-4812005193 Console112
Stop bolt
40-4812007259 Stop bolt 114
Cover
40-4812009877 Cover115
40-4812074011 Cover116
Harness
40-4812011095 Harness W14 117
40-4812061360 Ascension f. Vario screed
40-4812061360 Ascent VB 121
Ascent, middle
40-4812225923 Ascent, middle 122
Ascent, l.h.
40-4812217871 Ascent, l.h. 124
Ascent, r.h.
40-4812061359 Ascent, r.h. 126
Engine, Stage IIIa / Tier 3 Drive TIER 3
40-4812030216A Drive TIER 3 (2016)128
40-4812202264 Fuel system 129
Engine
40-4812026685 Engine130
Combined cooler / air filter
40-4812010983 Combined cooler / air filter 131
Expansion tank
40-4812019655 Expansion tank 136
Combined cooler
40-4812010984 Combined cooler137
Cooler
40-4812008735 Combined cooler 138
Fuel tank
40-4812028928A Fuel tank 139
Fuel tank
40-4812237353 Fuel tank 141 40-4812225145 Fuel tank 142
Attaching parts
40-4812030294 Attaching parts 143
Muffler
40-4812030230 Muffler 146
Fuel system
40-4812030290 Fuel system 148
Engine support
40-4812046937A Engine support 149
End pipe / rotary feedthrough
40-4812037845 End pipe / rotary feedthrough 150
Joint rod
40-4812037585 Joint rod 151
Service parts
Service parts 152
Oil drain
40-4812023352 Oil drain154
Cable
40-4812009667 Cable W12 155
Split gear
40-4812039759 Split gear 158
Split gear
40-4812071339 Split gear 159 40-4812009405 Split gear 161
Engine clutch
40-4812009002 Engine clutch 163
Gear oil drain
40-4812037689 Gear oil drain164
Split gear box
40-4812201798 Pump distributor gear 165
Pump
40-4812026139 Pump167
40-4812026136 Pump168
Drive
40-4812216987 Track group 169
Track group, short, r.h.
40-4812216985 Track group, short, r.h. 170
Presure gauge Kit
40-4812071800 Pressure gauge Kit 172
Track roller
40-4812043052 Track roller, big 173 40-4812215845 Track roller, small 174
Track drive
40-4812042985 Track drive 175
Drive gear box, cpl.
40-4812027192 Drive gear box 176
Drive gear box
40-4812035018 Drive gear box 177
Track chain
40-4812238822 Track chain178
Track group, short, l.h.
40-4812216986 Track group, short, l.h. 179
Presure gauge Kit
40-4812071800 Pressure gauge Kit See page 172
Track roller
40-4812043052 Track roller, big See page 173 40-4812215845 Track roller, small See page 174
Track chain
40-4812238822 Track chainSee page 178
Track drive
40-4812042985 Track drive See page 175
Drive gear box, cpl.
40-4812027192 Drive gear box See page 176
Drive gear box
40-4812035018 Drive gear box See page 177
Track group support
40-4812077810 Track group support186
Conveyor
40-4812238603 Conveyor, double bars
40-4812238603 Conveyor, double bars187
Conveyor drive
40-4812238489 Conveyor drive188
Conveyor motor
40-4812238488 Conveyor motor 190
Conveyor turn
40-4812026816 Conveyor turn191
Conveyor limit switch conv. cpl.
40-4812016243 Conveyor limit switch conv. cpl. 192
Conveyor limit switch, lh
40-4812014274 Conveyor limit switch conv. l.h. 193 40-4812236095 Conveyor limit switch conv., l.h. 195 40-4812215300 Conveyor limit switch conv. l.h. 197
Conveyor limit switch, rh
40-4812014283 Conveyor limit switch conv. r.h. 199 40-4812236096 Conveyor limit switch conv., r.h. 201 40-4812201804 Conveyor limit switch conv. r.h. 203
Wear part kit conveyor chain, double bars
40-4812027444 Wear part kit conveyor chain, double bars See page 14
Chain guide
40-D635060800A Chain guide See page 15
Wear part kit conveyor guide plates
40-4812238491 Wear part kit conveyor guide plates See page 8 40-4812238624 Wear part kit conveyor guide plates, Hardox 400 See page 9
Wear part kit conveyor plates
40-4812238584 Wear part kit conveyor plates See page 10 40-4812238585 Wear part kit conveyor plates, Hardox 400 See page 11
Auger
40-4812233025 Auger Ø380mm, 2,50m
Auger Ø380mm, basic width
40-4812233020 Auger, basic width 380 209
Auger box
40-4812232996 Auger box 210
Outer support
40-4812026736 Outer support212
Auger support
40-4812016497 Auger support214
Wear part kit auger wings Ø380mm
40-4812027478 Wear part kit auger wings Ø380mm See page 3 40-4812075191 Renewal kit I, auger drive – Valid from 0G001393, ff. See page 4 40-4812075192 Renewal kit II, auger drive See page 5
Mounting parts
40-4812232097 Mounting parts 217
Auger gear
40-4812045075 Auger gear 218
40-4812074320 Material tunnel installation kit, Ø380 / 160mm
40-4812074320 Material tunnel installation kit, Ø380 / 160mm 219
Material tunnel
40-4812045416 Material tunnel, 230mm 220
Worm extension, l.h.
40-4812074308 Worm extension, Ø380 / 160mm l.h. 221
Worm extension, r.h.
40-4812074312 Worm extension, Ø380 / 160mm r.h. 222
40-4812233064 Auger Ø380mm, 8.26m
40-4812233064 Auger Ø380mm, 8.26m 223
Auger Ø380mm, basic width
40-4812233020 Auger, basic width 380 See page 209
Auger box
40-4812232996 Auger box See page 210
Outer support
40-4812026736 Outer supportSee page 212
Auger support
40-4812016497 Auger supportSee page 214
Wear part kit auger wings Ø380mm
40-4812027478 Wear part kit auger wings Ø380mm See page 3 40-4812075191 Renewal kit I, auger drive – Valid from 0G001393, ff. See page 4 40-4812075192 Renewal kit II, auger drive See page 5
Mounting parts
40-4812232097 Mounting parts See page 217
Auger gear
40-4812045075 Auger gear See page 218
Extension part f. auger Ø380mm
40-4812047214 Extension part f. auger Ø380mm229
Auger Ø380mm, 8,26m
40-4812032210 Auger Ø380mm, 8,26m 230
Auger extension, r.h., L:960mm
40-4720000139 Auger extension, r.h. L:960mm 232
Auger extension, l.h., L960mm
40-4720000138 Auger shaft extension assy. 960 mm l.h./lks. 233
Strut material duct, L960mm
40-4812028789 Strut material duct L:960mm 234
Auger shaft extension assy 640 mm r.h.
40-4720000137 Auger extension, r.h. L:640mm 235
Auger shaft extension assy 640mm l.h.
40-4720000818 Auger shaft extension assy. 640 mm l.h./lks. 236
Strut material duct, r.h. L960mm
40-4812028787 Strut material duct, r.h. L:960mm 237
Strut material duct, l.h. L960mm
40-4812028782 Strut material duct, l.h. L:960mm 238
Outer support
40-4812031804 Outer support239
Auger bearing
40-D438081200 Auger bearing240
Auger wing Ø380mm, l.h.
40-4812032195 Auger wing Ø380mm, l.h. 242
Auger wing Ø380mm, r.h.
40-4812032196 Auger wing Ø380mm, r.h. 243
Material tunnel, cpl. L:640mm
40-4812028792 Material tunnel, cpl. L:640mm 244
End support, cpl.
40-4812031805 End support, cpl. 245
End support
40-D439082200 Screw conveyor, end bearing246
Auger extension, l.h. L320mm
40-4720000140 Auger extension, l.h. L:320mm 248
Material tunnel, cpl. L:320mm
40-4812028794 Material tunnel, cpl. L:320mm 249
Auger extension, r.h. L320mm
40-4720000816 Auger extension, r.h. L:320mm 250
Brace
40-4812029259 Brace251
Cross struts
40-4812028882 Cross struts 254 40-4812201937 Cross struts 255
Hydraulic system
40-4812019560A Hydraulic 256
Hydraulic
Hydraulic, drive system
40-4812201341 Hydraulic, drive system 257
Pump
40-4812026136 PumpSee page 168
40-4812026139 PumpSee page 167
Brakeventil
40-4812024410 Brakevalve261
40-4812215465 Brakevalve262
Hydraulic, auger
40-4812201343 Hydraulic, auger263
Flow control valve
40-4812010000 Flow control valve 266
Directional spool valve
40-4812008585 Directional spool valve 267
Hydraulic, conveyor
40-4812201344 Hydraulic, conveyor268
Pressure relief valve
40-4812011298 Pressure relief valve 270
Directional spool valve
40-4812008584 Directional spool valve 271
Connecting plate, l.h.
40-4812010974 Connecting plate, l.h. 272
Connecting plate, r.h.
40-4812010925 Connecting plate, r.h. 273
Tamper, vibration
40-4812201351 Tamper, vibration 274
Flow control valve
40-4812010000 Flow control valve See page 266
Work hydraulic
40-4812019597A Work hydraulic277
Montage kit
40-4812201809 Montage kit 282
Control block
40-4812075449 Control block283
Filter
40-4812018069 Filter 287
Hydraulic, fan
40-4812201373 Hydraulic, fan 288
Filter
40-4812044338 Filter 290
Hydraulic tank, collector
40-4812019652 Hydraulic tank, collector 291
Hydraulic tank, cpl.
40-4812225757 Hydraulic tank, cpl. 293
Return suction filter
40-4812009435 Return suction filter 295
Hydraulic tank
40-4812225231 Hydraulic tank 296
Hydraulic, roof adjustment
40-4812201358 Hydraulic, roof adjustment 297
Ganged valve support
40-4812072851 Ganged valve support299
Leveling cylinder
Leveling cylinder standard 301
Hose packet
40-4812201894 INTERFACE HOSEPACK
40-4812201894 Hose packet 302
Screed movement
40-4812201900 Screed movement, Hydraulic 303
Tamper vibration
40-4812201901 Tamper vibration, Hydraulic 304
Electric system AM Electric
40-4812016677A Electric 305
Electric
40-4812028947 Electric 306
Control unit
40-4812016643A Operator desk311
Operator desk
40-4812016642 Operator desk312
Mainboard
40-4812028134 Mainboard322
Cable
40-4812005864 Cable harness W11 323 40-4812040943 Cable W40325
40-4812016676 Cable W73326
40-4812040945 Cable W42327
40-4812016440 Cable W63328
Steering unit
40-4812014593 Steering unit329
Junction box
40-4812009096 Junction box 331
Wiring
40-4812202764Wiring338
Harness
40-4812072828 Cable W114340
40-4812201355 Cable W1.1 341
40-4812201356 Cable W1.2 342
40-4812029589 Cable W3
343
40-4812029590 Cable W5
344
40-4812029591 Cable W4
345
40-4812029592 Cable W6
346
40-4812029593 Cable W7
347
40-4812029594 Cable W8
348
40-4812029595 Cable W9
349
40-4812029596 Cable W10 350
40-4812005952 Cable W12 351
40-4812009667 Cable W12 See page 155 40-4812005977 Cable harness W14 354 40-4812031250 Cable harness W15 356 40-4812031268 Cable harness W16 357 40-4812202762 Harness W17 359
40-4812031252 Cable harness W19 362 40-4812029971 Cable harness W23 364 40-4812009075 Cable harness W19 365 40-4812201348 Cable W2.1 367
40-4812201349 Cable W2.2 368
40-4812007165 Cable W27 369
40-4812005976 Cable W25 370
40-4812005974 Cable W26 371
40-D977436121 Ground strap372 40-4812005864 Cable harness W11 See page 323 40-4812036435 Cable harness W13 373 40-4812040943 Cable W40 See page 325 40-4812040944 Cable W41 374
40-4812040945 Cable W42 See page 327 40-4812031044 Potentiometer, l.h. 375 40-4812031045 Potentiometer, r.h.377 40-4812011121 Cable W3379
40-4812011127 Cable W4380
40-4812011128 Cable W6381
40-4812011129 Cable W7382
Remote control Konv.
40-4812024634 Remote control 384
Remote control
40-4812024555 Remote control 385
El. Remote control
40-4812016231 El. Remote control386
Housing
40-4812024556 Housing387
Remote control, valid for s/n G003820, ff
40-4812072690 Remote control con. AM 388
Remote control
40-4812072691 Remote control con. cpl. 389
El. remote control
40-4812016231 El. Remote controlSee page 386
Housing
40-4812072671 Housing391
Vandalism protection, AMMANN, tracked
40-4812076303 Vandalism protection392
Options
40-4812237431 Generator set 25 KVA
40-4812237431 Generator set 25KVA 394
Universal joint protection
40-4812015882 Universal joint protection 397
Electric, heating
40-4812202397 Electric, heating 398
Control box
40-4812202381 Control box399 40-4812076489 Control box 33 KVA 409
Vandalism protection
40-4812238815 Vandalism protection420 40-4812064111 Vandalism protection421
40-4812016484 Spot light
40-4812016484 Spot light 422
40-4812029934 Back-up alarm
40-4812029934 Back-up alarm423
GPS installation
40-4812074558 GPS installation424
GPS module
40-4812078171 GPS module 425
40-4812017780 Adjustment, mech.
40-4812017780 Adjustment, mech.426
Ratchet
40-4812017778 Ratchet427
40-4812076693 Sprayer 25L, hose reel
40-4812076693 Sprayer 25L, hose reel428
Emulsion tank
40-4812076114 Emulsion tank 429
Hose reel
40-4812217867 Hose reel431
Hose reel
40-4812216609 Hose reel432
Spray arm
40-4812217384 Spray arm 433
Electric, emulsion spray
40-4812076614 Electric, emulsion spray 434
Cable
40-4812076616 Cable W36 435
40-4812074550 Drivers seat Standard
40-4812009465 Drivers seat Standard436
Driver seat, cpl.
40-4812009466 Drivers seat, cpl. 437
40-4812045427 Material tunnel installation kit
40-4812045427 Material tunnel installation kit 438
Material tunnel 230
40-4812045416 Material tunnel, 230mm See page 220
Protection cover
40-4812045421 Protection cover 440
40-4812202582 Without fume absorbing system
40-4812202582Without fume absorbing system 441
Cover
40-4812028733 Cover442
Maintenance lid
40-4812011195 Maintenance lid 443
40-4812216522 Track cleaner, cpl.
40-4812216522 Track cleaner, cpl.444
Track cleaner
40-4812216544 Track cleaner 445
Locking lever
40-4812043349 Locking laver 446
40-4812030771 Auxiliary weight
40-4812030771 Auxiliary weight 447
40-4812232096 Indicator thickness, bottom
40-4812232096 Indicator 448
Pointer
40-4812238919 Pointer 449
40-4812063704 Indicator thickness, top
40-4812063704 Indicator thickness, top 450
40-4812009244 Tools and accessories
40-4812009244 Tools and accessories452 Tar spattle 454
Moba gradline 2+1
40-4812004013 Moba gradline 2+1 455
Altitude control
40-D900624801 Altitude control 456
Inclination regulator
40-D900624754 Inclination regulator457
Box
40-D900624870 Tool box458
Available options
40-4812226413 Indicator thickness, top
40-4812226413A Indicator thickness, top 459
40-4812041024 Material chute
40-4812041024 Material chute460
40-4812012460 Rotaflare light, con.
40-4812012460 Rotaflare light462
Electric rotaflare light
40-4812012455 Electrik rotaflare light463
Slip-on pipe
40-4812012450 Slip-on pipe 464
Holder for rotaflare light
40-4812011482 Holder for rotaflare light 465
40-4812035023 Spot light for auger
40-4812035023 Spot light for auger466
Spot light
40-4812028823 Spot light 467
40-4812201910 12V installation
40-4812201910 12V installation 468
Cable W23
40-4812024317 Cable W23 469
40-4812061346 Fire extinguisher
40-4812061346 Fire extinguisher470
40-4812076692 Sprayer 25L, hose package
40-4812076692 Sprayer 25L, hose package 471
Emulsion tank
40-4812076114 Emulsion tank See page 429
Tube seat
40-4812227350 Hose package 473
Spray arm
40-4812217384 Spray arm See page 433
Electric, emulsion spray
40-4812076614 Electric, emulsion spray See page 434
Cable
40-4812076616 Cable W36See page 435
40-4812074069 Gloria spraying device
40-4812074069 Gloria spraying device476
40-4812217856 First-aid kit
40-4812217856 First-aid kit 477
40-4812228144 Cover
40-4812228144 Cover478
40-4812042806 Gravel field kit, short
40-4812042806 Gravel field kit 479
Conveyor chain
40-4812042760 Conveyor chain 480
Gusset plate
40-4812042829 Gusset plate 481
Bulk material flap
40-4812042848 Bulk material flap 482
40-4812007491 Oil drain hydr tank
40-4812007491 Oil drain hydr. tank 483
40-4812016354 Tropical kit
40-4812016354 Conversion kit 484
Door, r. h.
40-4812064222 Door, r.h.See page 64
Support rod
40-4812041407 Support rodSee page 63
Engine clutch
40-4812234614 Engine clutch 486
Door, l.h.
40-4812064225 Door, l.h. 487
Support rod
40-4812041407 Support rodSee page 63
Diesel cooler cpl.
40-4812009263 Diesel cooler cpl. 489
Diesel cooler
40-4812009222 Diesel cooler 490
Insulating board
40-4812010209 Insulating board491
Additional storage boxes
40-4812073931 Additional storage boxes 492
Leveling, conv.
Moba gradline 1+1
40-4812004014 Moba gradline 1+1 493
Altitude control
40-D900624801 Altitude control See page 456
Inclination regulator
40-D900624754 Inclination regulatorSee page 457
Box
40-D900624870 Tool boxSee page 458
MOBA-Matic II 2+1
40-4812072947 MOBA-Matic II 2+1, yellow 497
Slope sensor
40-D900626011 Slope sensor 498
MOBA-Matic II 1+1
40-4812072948 MOBA-Matic II 1+1, yellow 499
Slope sensor
40-D900626011 Slope sensor See page 498
Big Ski 13m
40-4812072326 Big Ski 13m, yellow501
Electro installation Big Ski
40-4812072902 Electro installation Big Ski 502
Big Ski 13 m cpl.
40-4812041925 Big Ski 13 m 504
Side arm support
40-4812004304 Side arm support 506
Big Ski 9m
40-4812072328 Big Ski 9m, yellow 507
Electro installation Big Ski
40-4812072902 Electro installation Big Ski See page 502
Big Ski 9 m cpl.
40-4812042035 Big Ski 9 m 509
Side arm support
40-4812004304 Side arm support See page 506
Big Ski 13 m cpl.
40-4812041998A Big Ski 13m 512
Electric parts big ski
40-4812073109 Electro installation Big Ski 513
Big Ski 13 m cpl.
40-4812041925 Big Ski 13 m See page 504
Side arm support
40-4812004304 Side arm support See page 506
Big Ski 9 m cpl.
40-4812042040A Big Ski 9m 516
Electric parts big ski
40-4812073109 Electro installation Big Ski See page 513
Big Ski 9 m cpl.
40-4812042035 Big Ski 9 m See page 509
Side arm support
40-4812004304 Side arm support See page 506
Add-on kit
40-4812019221 Add-on kit, yellow 520
Trailing ski, 9m
40-D830031400 Trailing ski, 9m 521
Trailing ski, 9m
40-4700688226 Trailing ski, 9m 522
Mounting parts
40-4700691720 Mounting parts 525
Trailing ski, 6m
40-D830031300 Trailing ski, 6m 526
Trailing ski, 6m
40-4700688225 Trailing ski, 6m 527
Mounting parts
40-4700691720 Mounting parts See page 525
Wire tensioner cpl.
40-4720000701 Wire tensioner cpl.531
Accessories AM Spare key
Key 532
Tools and accessories
40-4812035048 Tools and accessories533 40-4812009821 Tools and accessories534
Decals
Symbol 536
Decals
40-4812024656 Decals538
40-4812064433 Decals539
Sticker, roof-high
40-4812024549 Sticker, roof-high 540
Special tool AMMANN
Ultrasonic thickness guage 541 Tension tester 542 Frequency tension tester 543 Infrared thermometer 544 Test adapter 545 Welding protection 546 Dismantling tool (big pins) 547 Dismantling tool (smal pins) 548 Service tool bodas 549 Magnet tester 550 Digital pressure gauge kit 551 Frequency and amplitude meter 552
