Ammann ARS 110 Single Drum Roller Parts Catalogue Manual 2383008 PDF

Ammann ARS 110 Single Drum Roller Deutz TCD3.6 L4 EU Stage V / U.S. EPA Tier 4f Parts Catalogue Manual 2383008 – PDF DOWNLOAD

FILE DETAILS:

Ammann ARS 110 Single Drum Roller Deutz TCD3.6 L4 EU Stage V / U.S. EPA Tier 4f Parts Catalogue Manual 2383008 – PDF DOWNLOAD

Language : English
Pages : 366
Downloadable : Yes
File Type : PDF

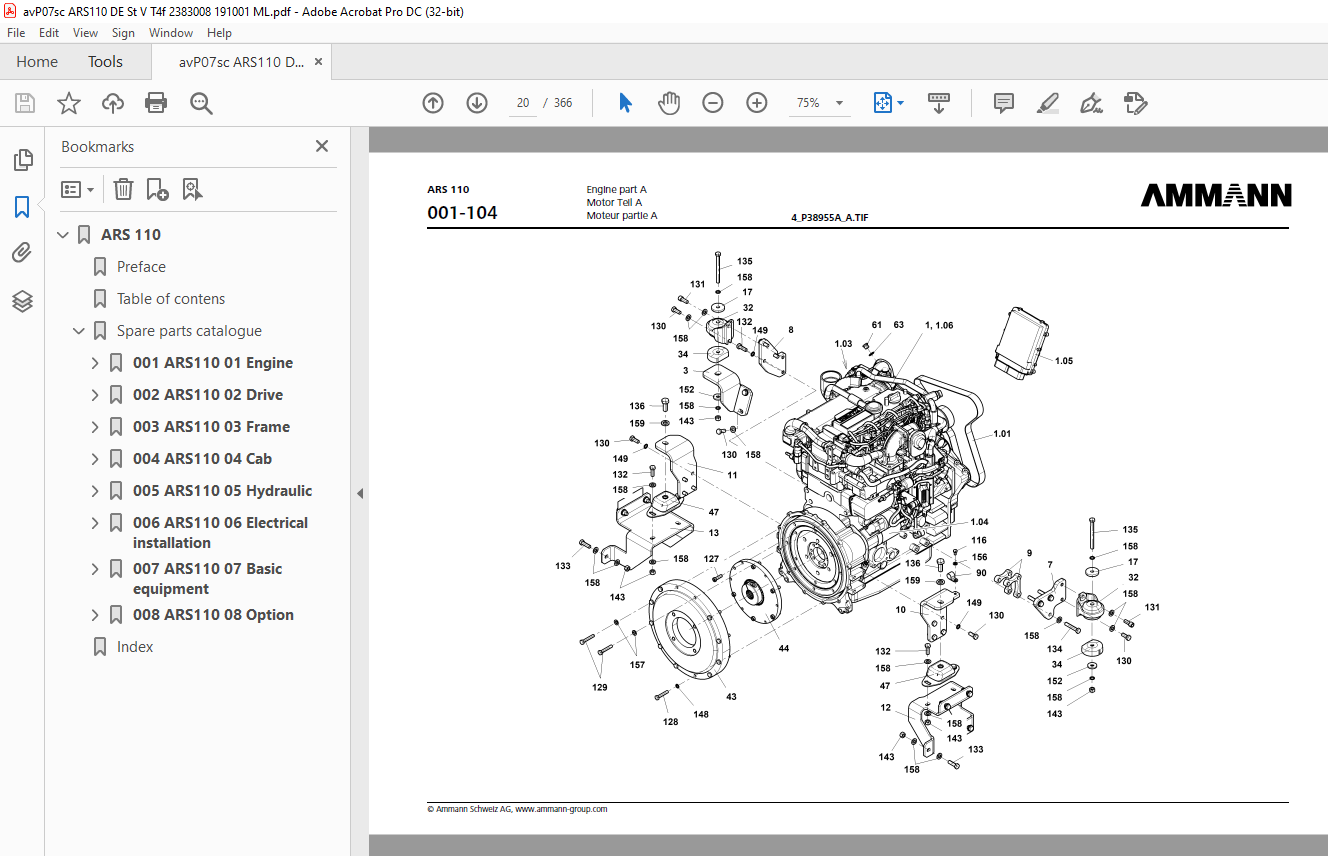

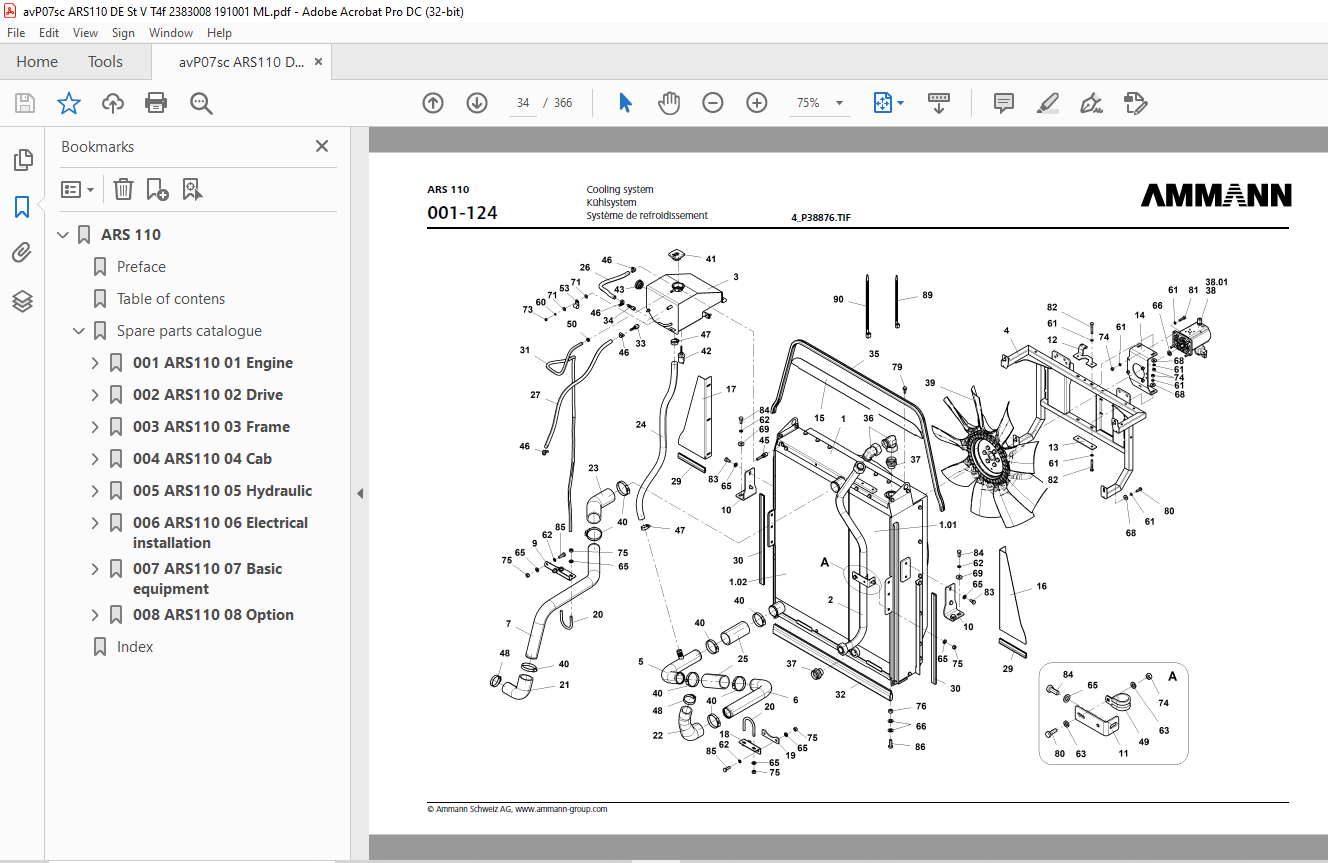

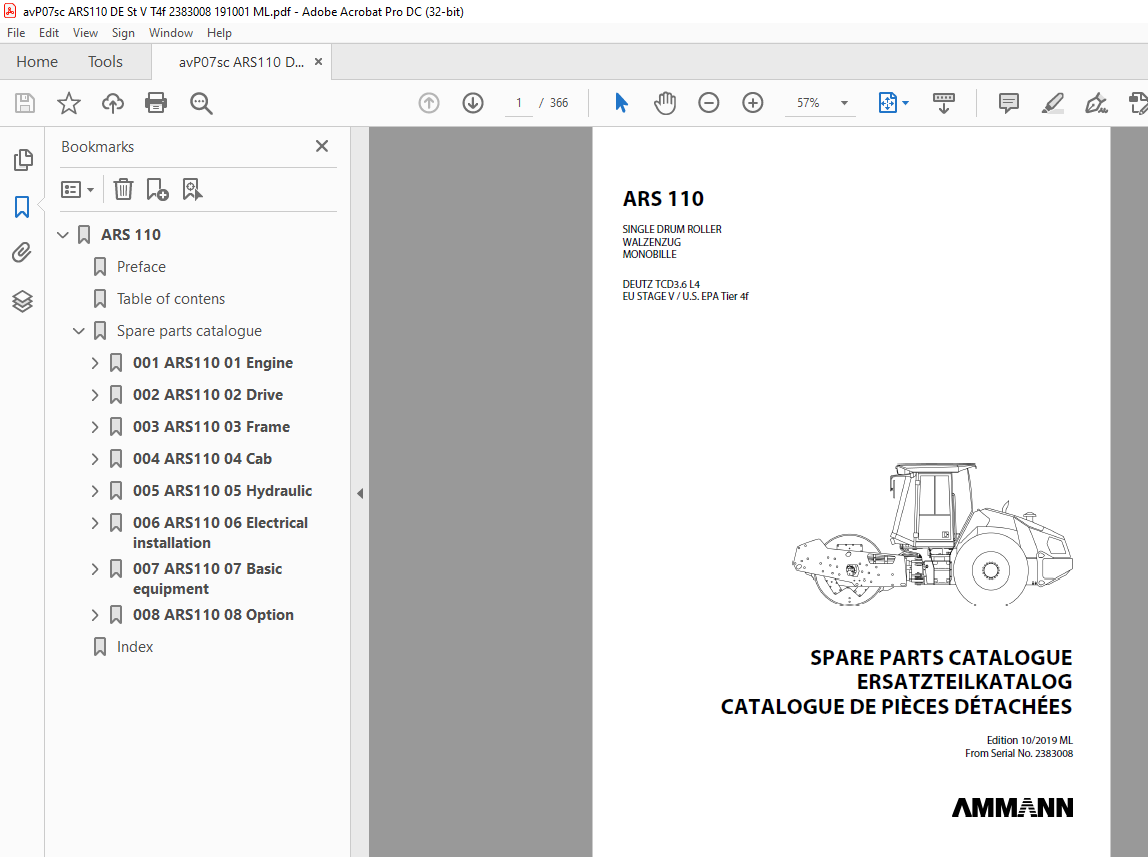

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Ammann ARS 110 Single Drum Roller Deutz TCD3.6 L4 EU Stage V / U.S. EPA Tier 4f Parts Catalogue Manual 2383008 – PDF DOWNLOAD

ARS 110 1
Preface 3
Table of contens 7
Spare parts catalogue 15
001 ARS110 01 Engine 18
001-104 Engine part A 20
001-104 Engine part B 24
001-104 Engine part C 28
001-108 Draining engine 32
001-124 Cooling system 34
001-131 Draining cooling 40
001-134 Intake 42
001-135 Exhaust part A 44
001-135 Exhaust part B 48
001-135-001 Exhaust 50
001-135 Exhaust part C 52
001-590 Fan cover 56
001-591 Fan cover 58
001-605 Blind heating 60
001-606 Heating connection 62
002 ARS110 02 Drive 64
002-001 Smooth drum 66
002-003 Padfoot drum 68
002-010 Unbalance drive 70
002-015 Shock mounts D 74
002-016 Shock mounts PD 76
002-020 Vibrator 78
002-022 Drive motor D 80
002-024 Clutch vibration 82
002-027 Drive motor HX 84
002-030 Drum drive D 86
002-031 Drum drive HX 88
002-031-001 Gearbox 90
002-044 Wheel D 92
002-045 Wheel PD 94
002-045-001 Right wheel 96
002-045-002 Left wheel 98
002-094 Final drive D 100
002-095 Final drive HX 102
003 ARS110 03 Frame 104
003-050 Frame front 106
003-051 Transverse beam 108
003-053 Scraper holder D 110
003-054 Scraper holder PD 112
003-055 Smooth scraper 114
003-056 Combined scraper 116
003-057 Padfoot scraper 118
003-059 Contact scraper 120
003-063 Joint 122
003-071 Frame rear 124
003-090 Fuel tank stopper 126
003-460 Stairs 128
003-463 Battery box 130
003-467 Wheel hydraulic motor cover 132
003-471 Thermal barrier 134
003-473 Fuel tanks accessories 136
003-474 Fuel tank filter 138
003-481 Door 140
003-481-001 Door l h 142
003-481-002 Door r h 144
003-487 Joint lock 146
003-493 Toolbox 148
004 ARS110 04 Cab 150
004-150 Operator platform complete 152
004-151 Accessories platform 154
004-151-001 Cover electrical 156
004-151-002 Cover 158
004-151-003 Filter housing 160
004-156 Operator stand 162
004-160 Cab 164
004-160-001 Cab 166
004-160-001-008 Ventilation grid 170
004-161 Door l h 172
004-161-001 Door 174
004-163 Roof FOPS 176
004-167 Cab seat 178
004-168 Platform seat 180
004-169 Holder 182
004-170 Platform mounting 184
004-172 Ensuring platforms 186
004-172-001 Strut 188
004-180 Roof for ROPS 190
004-180-001 Roof 192
004-180-003 Roof FOPS 196
004-180-004 Platform wiring 198
004-181 Operator platform complete 200
004-181-003 Cover 202
004-181-003-001 Cover 204
004-182 Roof FOPS 206
004-191 Pre-filter 208
004-192 Cover 210
004-200 Cover hood 212
004-200 Customer hood 214
004-205 Bonnet accessories 216
004-206 Lower cover 218
004-207 Noise cover 220
004-600 Heating 222
005 ARS110 05 Hydraulic 224
005-300 Driving hydraulics part A 226
005-300 Driving hydraulics part B 230
005-310 Drum hydraulics D 234
005-312 Drum hydraulics HX 236
005-320 Vibration hydraulics 238
005-330 Blocking hydraulics 240
005-335 Blocking hydraulics RTM 242
005-350 Pump hydraulics 244
005-360 Hydraulic oil tank 246
005-364 Steering hydraulics 248
005-370 Cooling hydraulics 252
005-370-001 Cube downspout 254
005-375 Steer cylinder 256
005-381 Lifting hydraulics 258
005-381-001 Fluid motor 260
005-390 Measuring place under the cab 262
005-391 Measuring point 264
006 ARS110 06 Electrical installation 266
006-404 Electrical installation part A 268
006-404 Electrical installation part B 270
006-404 Electrical installation part C 272
006-409 Platform wiring 274
006-409-003 Armrest right 276
006-409-004 Switch cabinet 278
006-410 Cab wiring 284
006-415 Reversing alarm 286
006-452 Electrical installation EAT 288
007 ARS110 07 Basic equipment 290
007-510 Signs 292
008 ARS110 08 Option 294
008-092 Fuel tank lock 296
008-164 Sun shade 298
008-413 Warning beacon 300
008-421 Additional lights – cabin 302
008-429 Rear reflector 304
008-435 ACE Force 306
008-438 Module telematic prepare 308
008-439 Telematics – Topcon 310
008-440 Car radio 312
008-441 Car radio preparation 314
008-442 Telematics – Trackunit 316
008-444 Telematics – Teltonika FM6300 318
008-450 Warning triangle 320
008-523 Accessories 322
008-524 Tool kit 324
008-545 Filter set 500 and 1000 h 326
008-546 Filter set 2000 h 328
008-560 Segment 330
008-614 Air conditioning – engine set 332
008-614-002 Air conditioning – hose set 334
008-614-003 Air conditioning – engine set 336
008-615 Air conditioning – cab set 338
008-615-001 Air conditioning – cab set 340
008-625 Fire extinguisher 342
008-695 Retractor belt 3″ 344
Index 347
