Ammann ARS 110 Single Drum Roller Parts Catalogue Manual 3047632 PDF

Ammann ARS 110 Single Drum Roller Deutz TCD3.6 L4 EU Stage IV / U.S. EPA Tier 4f Parts Catalogue Manual SN 3047632 – PDF DOWNLOAD

FILE DETAILS:

Ammann ARS 110 Single Drum Roller Deutz TCD3.6 L4 EU Stage IV / U.S. EPA Tier 4f Parts Catalogue Manual SN 3047632 – PDF DOWNLOAD

Language : English
Pages : 462
Downloadable : Yes
File Type : PDF

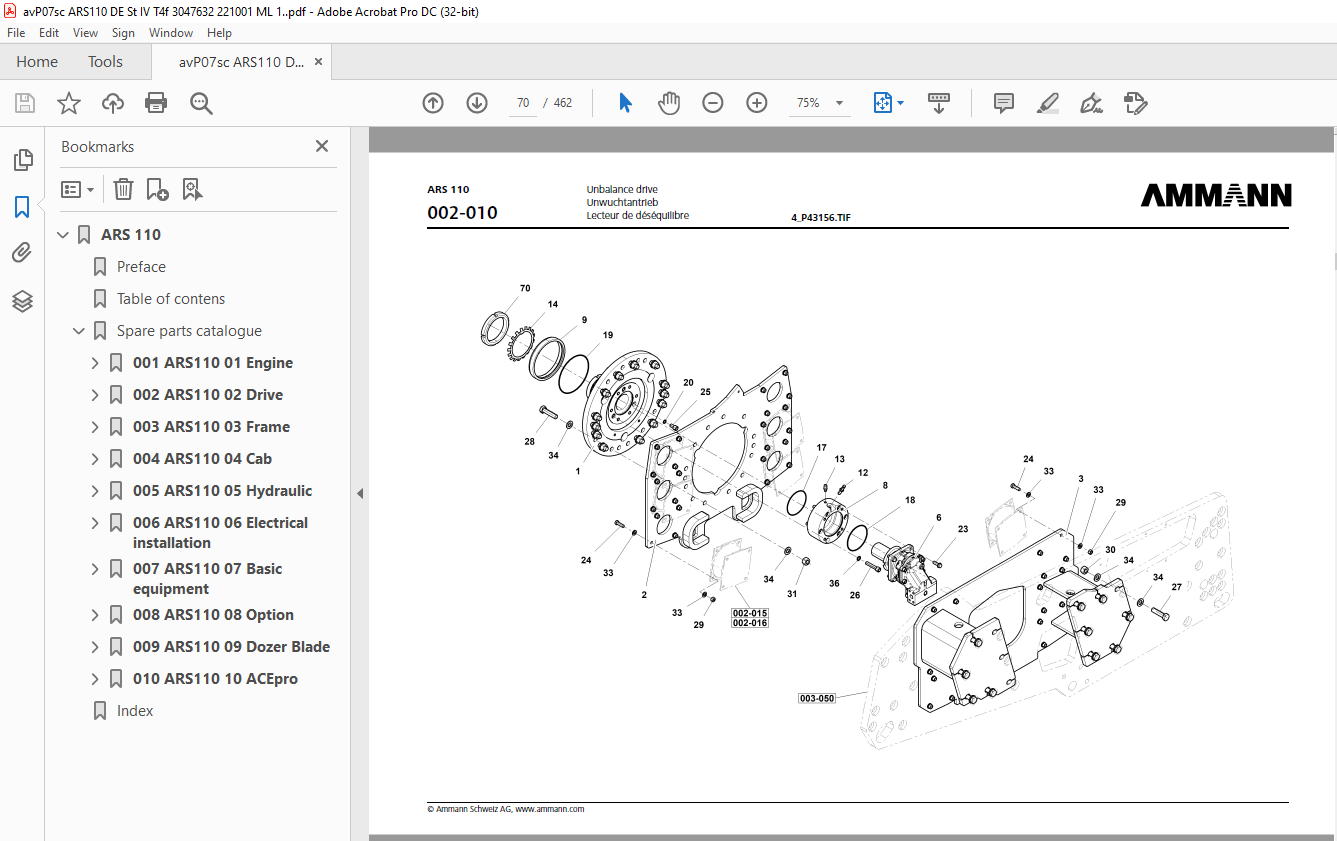

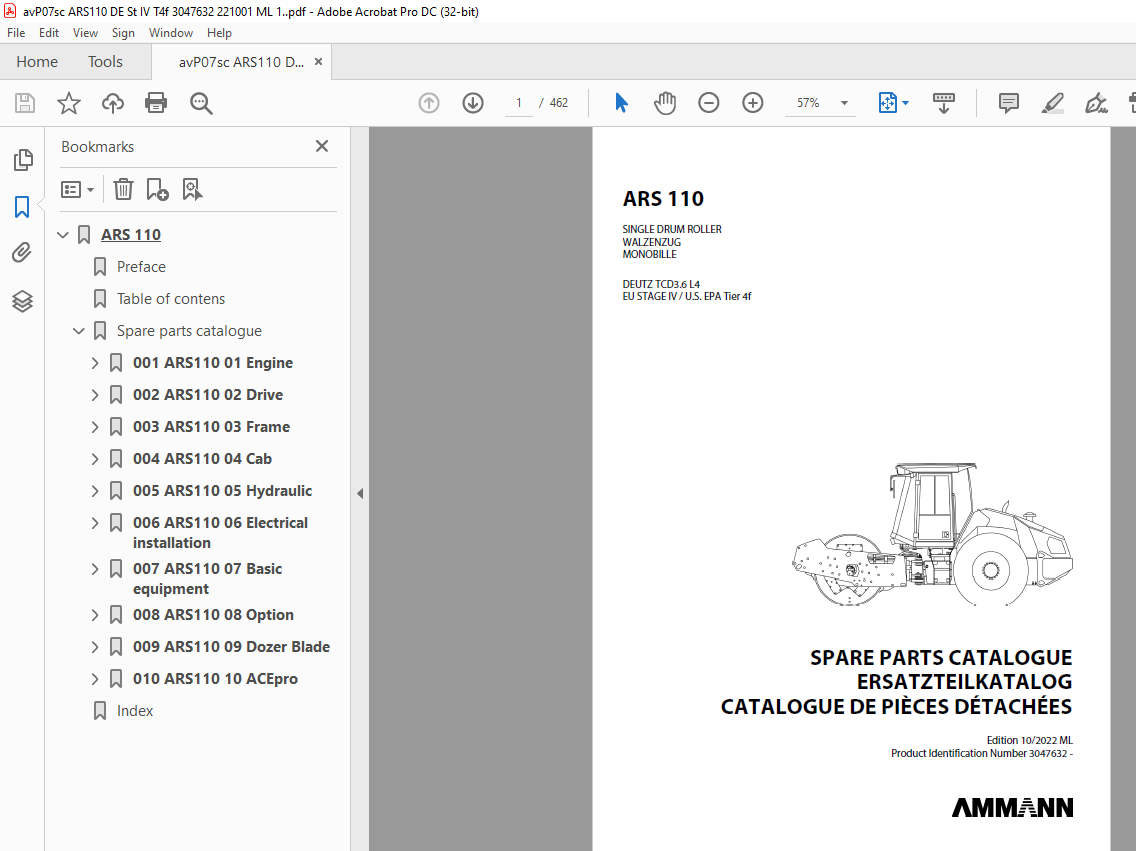

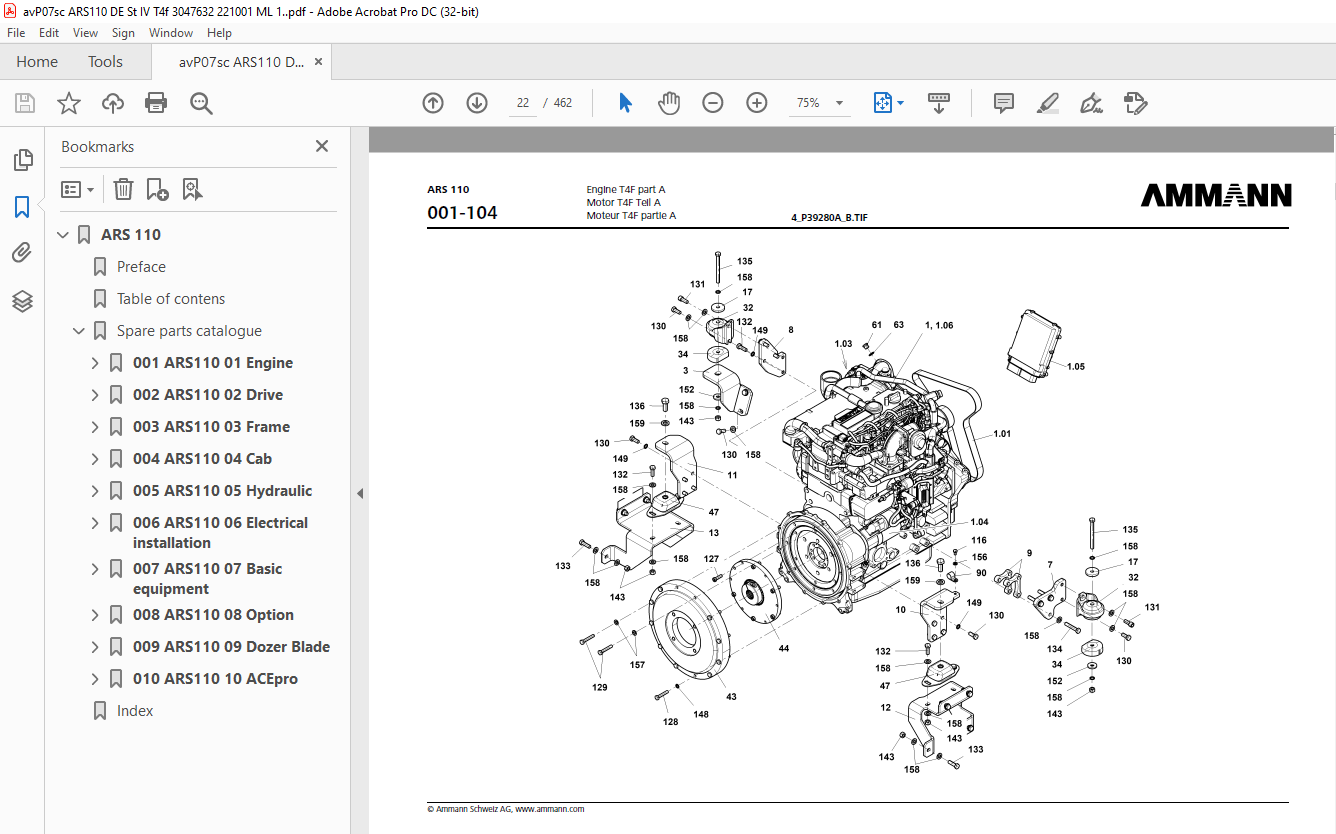

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Ammann ARS 110 Single Drum Roller Deutz TCD3.6 L4 EU Stage IV / U.S. EPA Tier 4f Parts Catalogue Manual SN 3047632 – PDF DOWNLOAD

ARS 110 1
Preface 3
Table of contens 7
Spare parts catalogue 17
001 ARS110 01 Engine 20
001-104 Engine part A 22
001-104 Engine part B 26
001-104 Engine part C 30
001-108 Draining engine 34
001-124 Cooling system 36
001-131 Draining cooling 42
001-134 Intake 44
001-135 Exhaust part A 46
001-135 Exhaust part B 50
001-135-001 Exhaust 52
001-135 Exhaust part C 54
001-590 Fan cover 56
001-591 Fan cover 58
001-605 Blind heating 60
001-606 Heating connection 62
002 ARS110 02 Drive 64
002-001 Smooth drum 66
002-003 Padfoot drum 68
002-010 Unbalance drive 70
002-015 Shock mounts D 72
002-016 Shock mounts PD 74
002-020 Vibrator 76
002-022 Drive motor D 78
002-024 Clutch vibration 80
002-027 Drive motor HX 82
002-030 Drum drive D 84
002-031 Drum drive HX 86
002-031-001 Gearbox 88
002-044 Wheel D 90
002-045 Wheel PD 92
002-045-001 Right wheel 94
002-045-002 Left wheel 96
002-094 Final drive D 98
002-095 Final drive HX 100
003 ARS110 03 Frame 102
003-050 Frame front 104
003-051 Transverse Beam without Dozer Blade 106
003-053 Scraper holder D 108
003-054 Scraper holder PD 110
003-055 Smooth scraper 112
003-056 Combined scraper 114
003-057 Padfoot scraper 116
003-059 Contact scraper 118
003-063 Joint 120
003-071 Frame rear 122
003-090 Fuel tank stopper 124
003-460 Stairs 126
003-463 Battery box 128
003-467 Wheel hydraulic motor cover 130
003-471 Thermal barrier 132
003-473 Fuel tanks accessories 134
003-474 Fuel tank filter 136
003-481 Door 138
003-481-001 Door l h 140
003-481-002 Door r h 142
003-487 Joint lock 144
003-493 Toolbox 146
004 ARS110 04 Cab 148
004-150 Operator platform complete 150
004-151 Accessories platform 152
004-151-001 Cover electrical 154
004-151-002 Cover 156
004-151-003 Filter housing 158
004-156 Operator stand 160
004-160 Cab 162
004-160-001 Cab 164
004-160-001-008 Ventilation grid 168
004-161 Door l h 170
004-161-001 Door 172
004-163 Roof FOPS 174
004-167 Cab seat 176
004-168 Platform seat 178
004-169 Holder 180
004-170 Platform mounting 182
004-172 Ensuring platforms 184
004-172-001 Strut 186
004-180 Roof for ROPS 188
004-180-001 Roof 190
004-180-003 Roof FOPS 194
004-180-004 Platform wiring 196
004-181 Operator platform complete 198
004-181-003 Cover 200
004-181-003-001 Cover 202
004-191 Pre-filter 204
004-192 Cover 206
004-200 Cover hood 208
004-200 Customer hood 210
004-205 Bonnet accessories 212
004-206 Lower cover 214
004-207 Noise cover 216
004-600 Heating 218
005 ARS110 05 Hydraulic 220
005-300 Driving hydraulics part A 222
005-300 Driving hydraulics part B 226
005-310 Drum hydraulics D 228
005-312 Drum hydraulics HX 230
005-320 Vibration hydraulics 232
005-330 Blocking hydraulics 234
005-335 Blocking hydraulics RTM 236
005-350 Pump hydraulics 238
005-360 Hydraulic oil tank 240
005-364 Steering hydraulics 242
005-370 Cooling hydraulics 246
005-370-001 Cube downspout 248
005-375 Steer cylinder 250
005-381 Lifting hydraulics 252
005-381-001 Fluid motor 254
005-390 Measuring place under the cab 256
005-391 Measuring point 258
006 ARS110 06 Electrical installation 260
006-404 Electrical installation part A 262
006-404 Electrical installation part B 266
006-404 Electrical installation part C 268
006-409 Platform wiring 270
006-409-003 Armrest right 272
006-409-004 Switch cabinet 274
006-410 Cab wiring 280
006-410 Cab wiring II 282
006-412 Platform wiring 284
006-412-002 Armrest right 286
006-412-003 Switch cabinet 288
006-415 Reversing alarm 294
006-452 Electrical installation EAT 296
007 ARS110 07 Basic equipment 298
007-510 Signs 300
007-510-005 Signs 302
007-513 Logo Ammann 304
007-514 Plate 306
008 ARS110 08 Option 308
008-092 Fuel tank lock 310
008-164 Sun shade 312
008-413 Warning beacon 314
008-414 Signal Horn Adaptive 316
008-424 Registration plate lighting 318
008-425 Road Lights 320
008-425-003 Front headlamps 322
008-425-004 Rear lamps 324
008-429 Rear reflector 326
008-435 ACE Force 328
008-437 GPS Topcon 330
008-438 Module telematic prepare 332
008-439 Telematics – Topcon 334
008-440 Car radio 336
008-441 Car radio preparation 338
008-442 Telematics – Trackunit 340
008-445 Telematic – ADS 342
008-446 Antenna – ADS 344
008-447 Base Station – GNSS 346
008-448 Telematic – Proemion 348
008-449 Warning beacon green 350
008-450 Warning triangle 352
008-456 GPS Q-Compaction Preparation 354
008-457 GPS Q-Compaction Preparation ACE 356
008-458 GPS Q-Compaction 358
008-459 GPS Q-Compaction ACE 360
008-523 Accessories 362
008-524 Tool kit 364
008-545 Filter set 500 h 366
008-546 Filter set 1000 h 368
008-547 Filter set 2000 h 370
008-558 Rear View Camera 372
008-560 Segment 374
008-614 Air conditioning – engine set 376
008-614-001 Air conditioning – cooler set 378
008-614-002 Air conditioning – hose set 380
008-614-003 Air conditioning – engine set 382
008-615 Air conditioning – cab set 384
008-615-001 Air conditioning – cab set 386
008-625 Fire extinguisher 388
008-685 Tachograph 390
008-685-001 Tachograph 392
008-695 Retractor belt 3″ 394
009 ARS110 09 Dozer Blade 396
009-051 Transverse Beam 398
009-340 Blade hydraulic system 400
009-340-002 Hydraulic block 402
009-426 Electrical installation Dozer Blade 404
009-550 Dozer Blade 406
009-556 Dozer blade lock 408
010 ARS110 10 ACEpro 410
010-007 Drum ACE 412
010-012 Drive and Vibration mechanism ACE 414
010-015 Shock mounts 416
010-023 Vibrator ACE 418
010-030 Drum drive 420
010-038 Accessories – Gear ACE 422
010-050 Frame front ACE 424
010-327 Vibration hydraulics ACE – part A 426
010-327 Vibration hydraulics ACE – part B 430
010-430 Electrical installation ACE 434
010-549 Filter set ACE 436
