Ammann ARX 23-2 Tandem Roller Parts Catalogue Manual 3007034 PDF

Ammann ARX 23-2 Tandem Roller Kubota D1803-M-DI-E3B EU Stage IIIA, U.S. EPA Tier 4i Parts Catalogue Manual 3007034 – PDF DOWNLOAD

FILE DETAILS:

Ammann ARX 23-2 Tandem Roller Kubota D1803-M-DI-E3B EU Stage IIIA, U.S. EPA Tier 4i Parts Catalogue Manual 3007034 – PDF DOWNLOAD

Language : English
Pages : 292
Downloadable : Yes
File Type : PDF

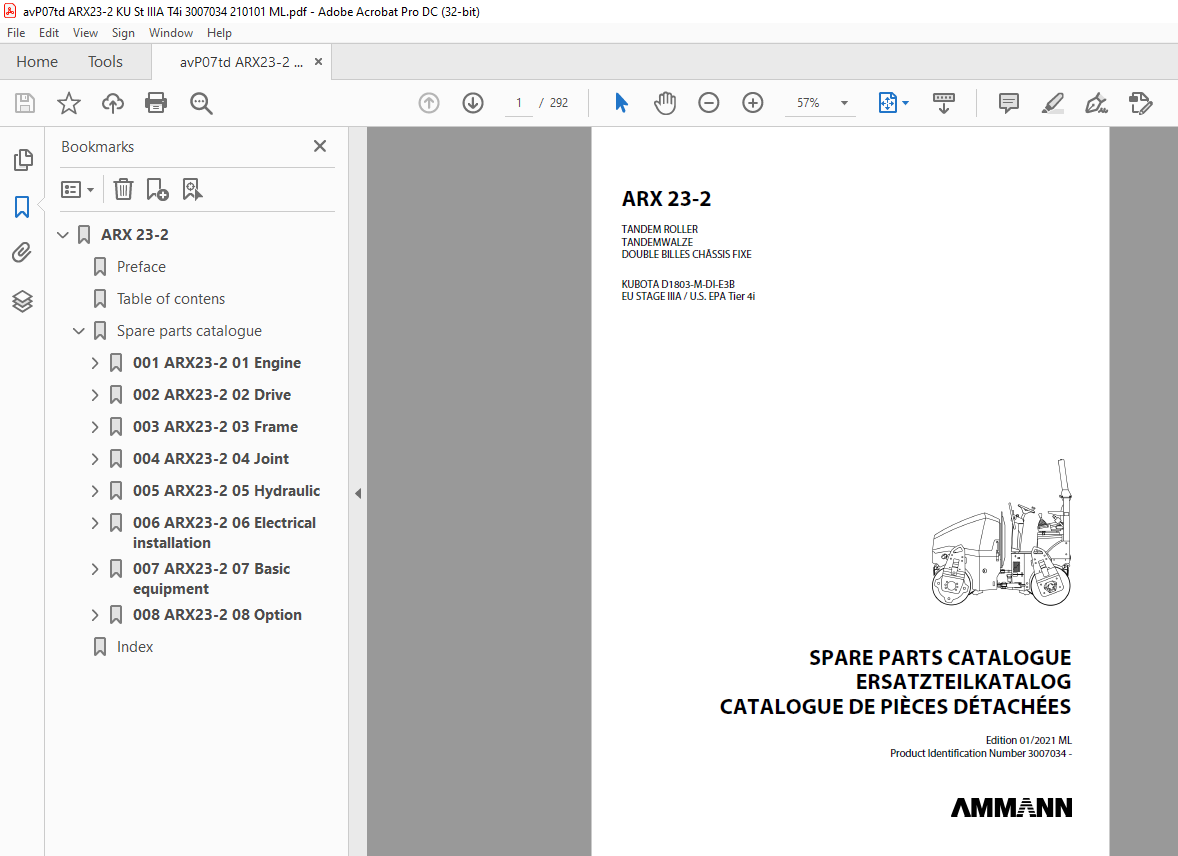

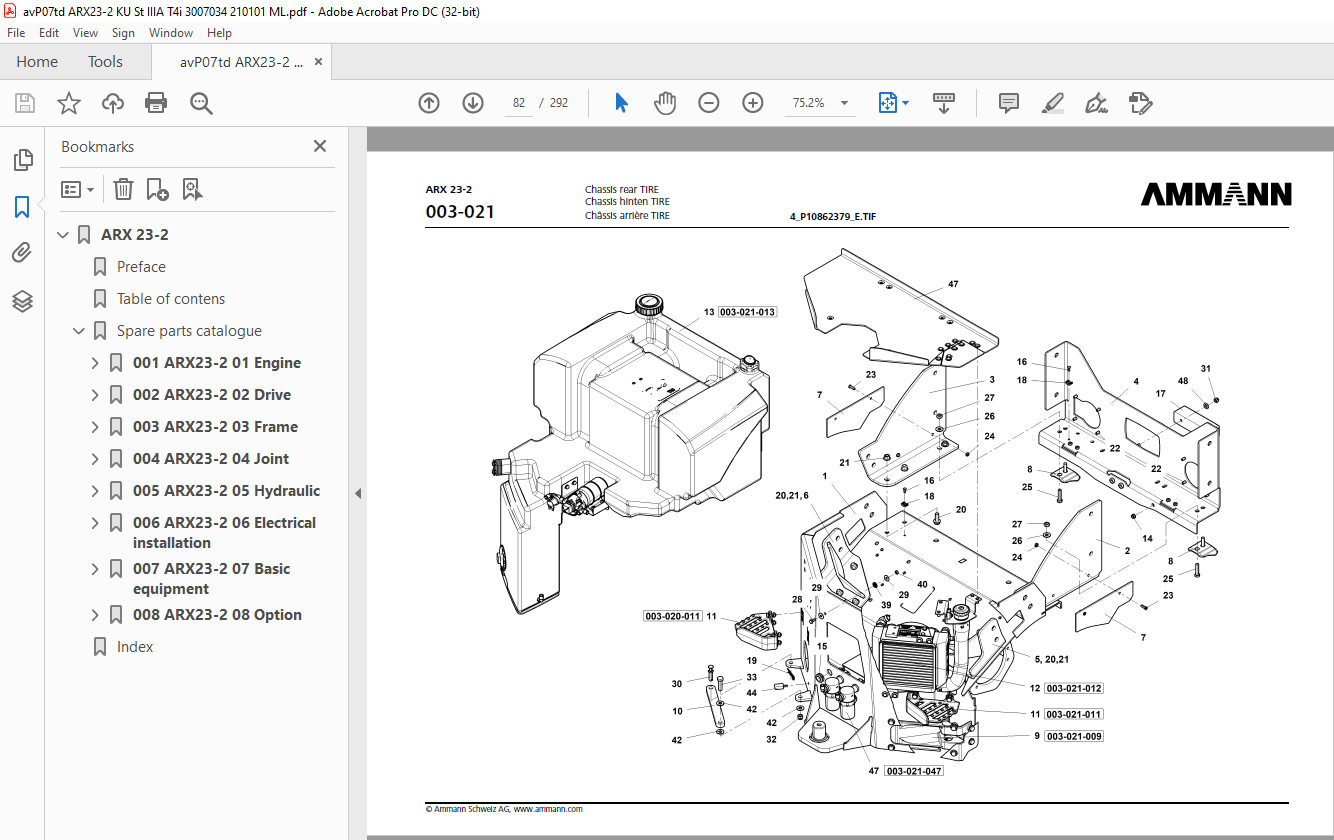

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Ammann ARX 23-2 Tandem Roller Kubota D1803-M-DI-E3B EU Stage IIIA, U.S. EPA Tier 4i Parts Catalogue Manual 3007034 – PDF DOWNLOAD

ARX 23-2 1
Preface 3
Table of contens 7
Spare parts catalogue 13
001 ARX23-2 01 Engine 16
001-010 Engine part A 18
001-010-075 Hydraulic pump 22
001-010-087 Holder relays 24
001-020 Engine part B 26
001-020-070 Engine – oil drain 30
001-020-083 Cooler 32
002 ARX23-2 02 Drive 36
002-010 Drum 38
002-070 Tyred wheel axle 42
002-070-003 Scraper 46
002-090 Fixed scraper 48
002-090-001 Sprinkling – fixed scraper 50
002-090-002 Internal scraper 52
003 ARX23-2 03 Frame 54
003-010 Frame front 56
003-010-052 Fuel tank 60
003-010-053 Hydraulic oil tank 62
003-010-053-001 Hydraulic oil tank 64
003-011 Fuel tank filter 66
003-020 Frame rear 68
003-020-005 Tread 72
003-020-006 Water tank 74
003-020-007 Hydraulic oil cooler 76
003-020-008 Holder steering cylinder 78
003-020-047 Pressurized sprinkling system 80
003-021 Chassis rear TIRE 82
003-021-009 Holder steering cylinder 86
003-021-011 Tread 88
003-021-012 Hydraulic oil cooler 90
003-021-013 Water tank 92
003-021-047 Pressure spray system TIRE 94
003-030 Hood green 98
003-030-001 Cover hood 100
003-032 Customer hood 102
003-032-001 Cover hood 104
003-035 Execution without lighting 106
003-040 Operator stand 108
003-040-001 Operator stand 112
003-060 Driver’s seat Ammann 116
003-110 Folding ROPS 118
004 ARX23-2 04 Joint 120
004-010 Pendulum joint 122
004-010-001 Pendulum joint 124
004-010-002 Pendulum support 126
004-030 Steering cylinder 128
005 ARX23-2 05 Hydraulic 130
005-010 Make without lock 132
005-020 Differential lock 134
005-050 Valve block 136
005-060 Vibration control valve 138
005-065 Vibration control valve TIRE 140
005-070 Hose set 142
005-080 Hose set – Drum front 144
005-090 Hose set – Drum rear 146
005-110 Hose set – TIRE 148
006 ARX23-2 06 Electrical installation 150
006-010 Instrument panel 152
006-020 Switch cabinet 154
006-020-001 Switch cabinet 156
006-030 Battery 158
006-040 Operating lever 160
006-050 Signal horn 162
006-060 Looms of wires 164
006-060-001 Looms of wires 166
006-060-002 Looms of wires 168
007 ARX23-2 07 Basic equipment 170
007-010 Signs 172
007-020 Type plate – AMMANN 174
007-030 Plate 176
008 ARX23-2 08 Option 178
008-010 Road lights 182
008-015 Road lights and turn signal 184
008-015-005 Front headlamps 186
008-015-006 Rear lamps 188
008-030 Without additional light beacon 190
008-035 Additional lights lighthouse 192
008-040 Warning light ROPS 194
008-042 Warning beacon green 196
008-045 Warning light constantly shining 198
008-050 Reversing alarm 200
008-065 Retainer license number plate 202
008-075 Rear mirror 204
008-080 Left control lever 206
008-090 Seat heating 208
008-100 Armrests 210
008-110 Roof 212
008-115 Warning light for roof 214
008-120 Lockable ROPS 216
008-130 Wire anti-loose 218
008-140 Brake buzzer 220
008-150 Tank cap option 222
008-155 Infrared thermometer 224
008-160 Edge cutter part A 226
008-160 Edge cutter part B 230
008-160-028 Spraying 232
008-160-030 Hoses for edge cutter KSG 234
008-190 Scraper collapsible 236
008-190-001 Scraper sprinkling foldable 238
008-190-002 Scraper internal folding 240
008-200 Filter set 250 h 242
008-210 Filter set 500 h 244
008-220 Filter set 1000 h 246
008-240 Point contacted suspension 248
008-260 Roof FOPS 250
008-265 Front headlamps FOPS 252
008-270 Warning light FOPS 254
008-275 Auxiliary light lighthouse FOPS 256
008-280 ACE Force 258
008-300 Retractor belt 260
008-310 Telematics – Trackunit 262
008-311 Telematics – Trackunit with immobilizer 264
008-312 Control 266
008-313 Telematics – Teltonika FMB204 268
008-320 Canopy 270
008-321 Warning light for roof 272
008-322 Without additional light beacon 274
008-323 Additional lights lighthouse 276
Index 279
