Ammann ARX 26-2 Tandem Roller Parts Catalogue Manual 3033765 - PDF

Ammann ARX 26-2 Tandem Roller Kubota D1803-M-DI-E3B EU Stage IIIA / U.S. EPA Tier 4i Parts Catalogue Manual SN 3033765 – PDF DOWNLOAD

FILE DETAILS:

Ammann ARX 26-2 Tandem Roller Kubota D1803-M-DI-E3B EU Stage IIIA / U.S. EPA Tier 4i Parts Catalogue Manual SN 3033765 – PDF DOWNLOAD

Language : English
Pages : 288
Downloadable : Yes
File Type : PDF

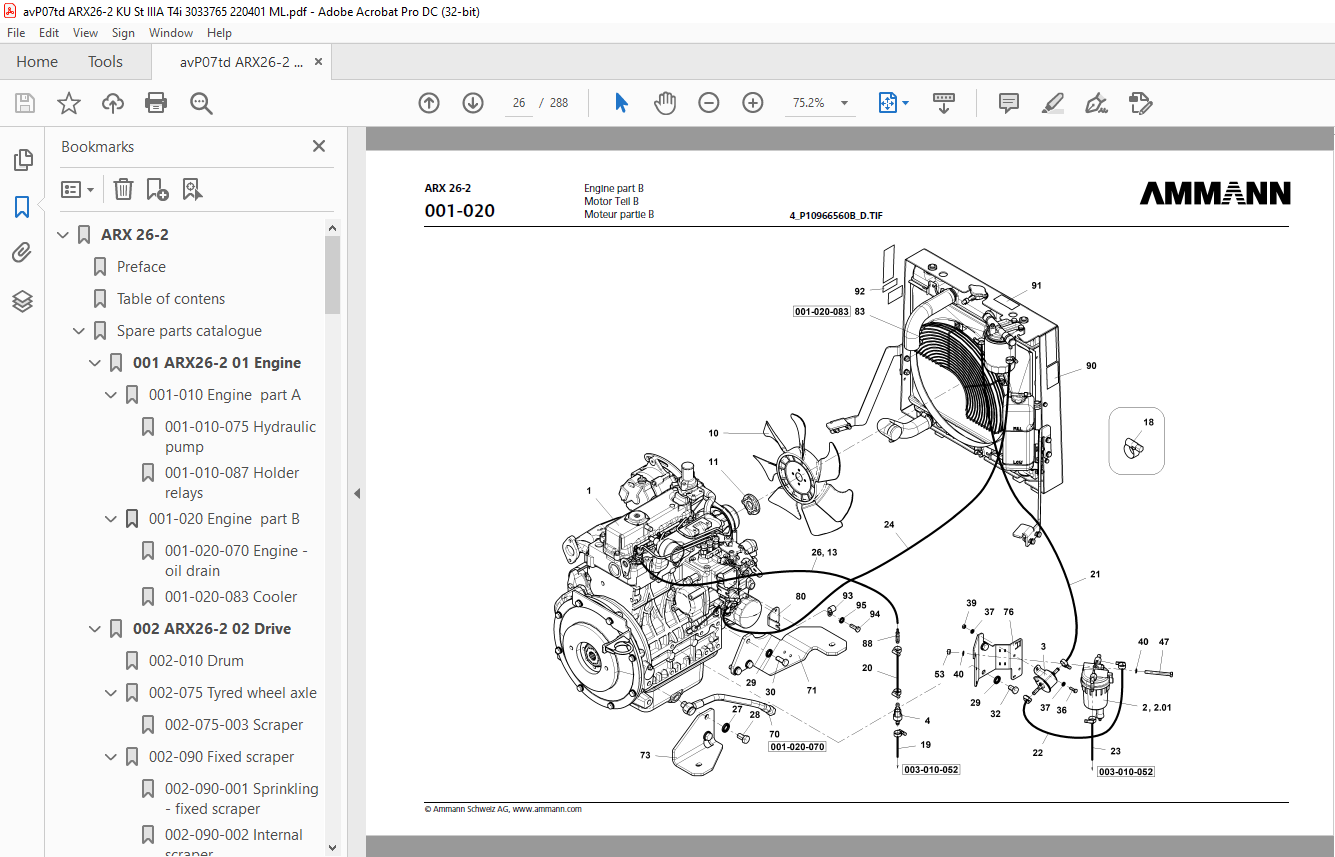

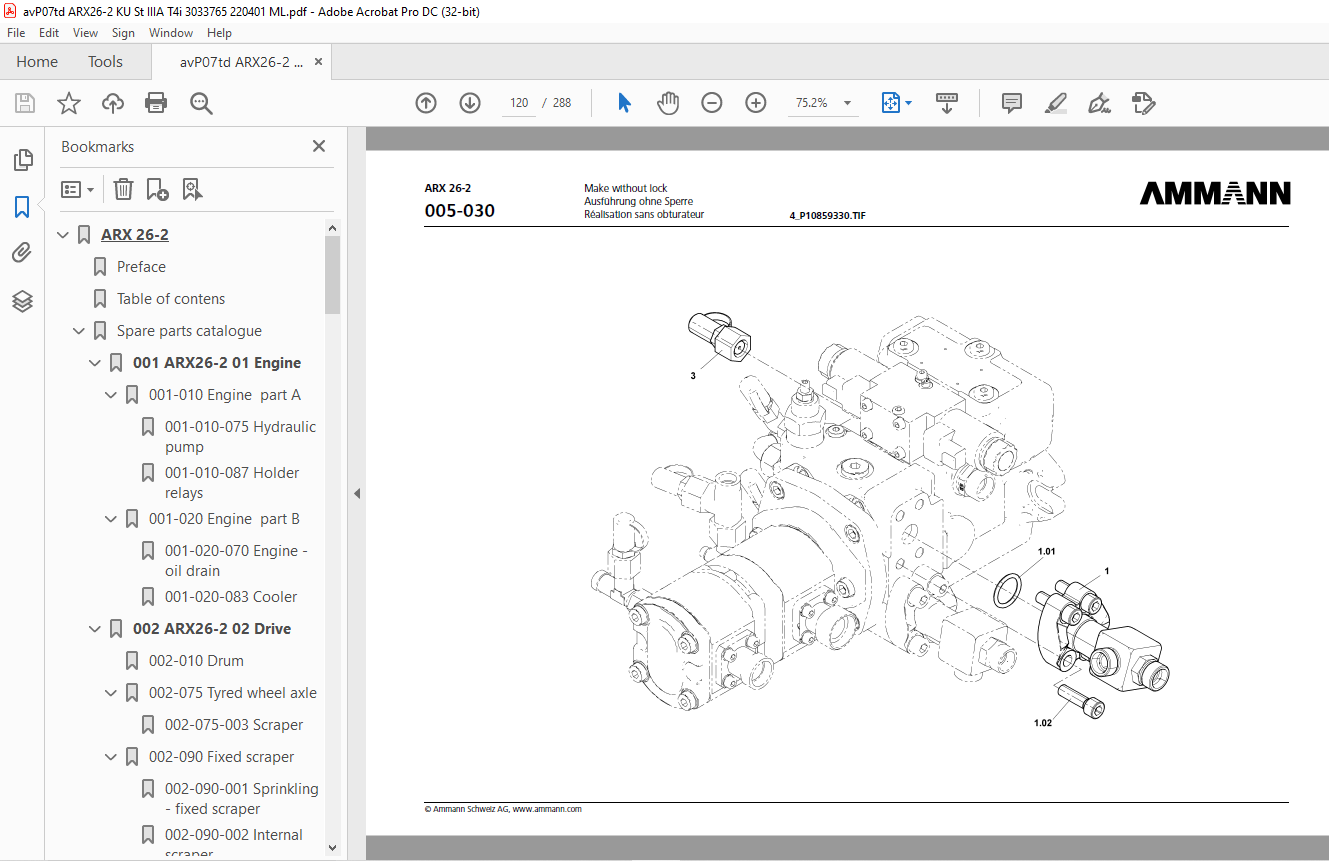

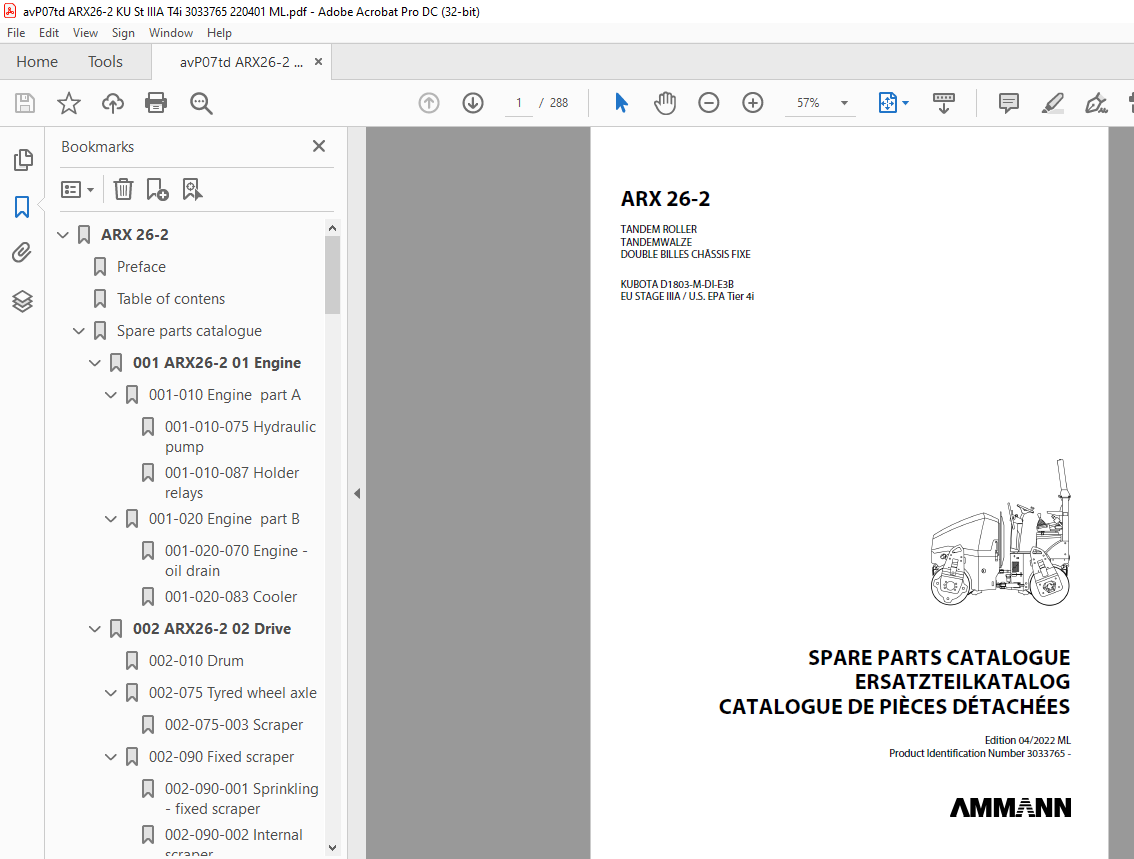

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Ammann ARX 26-2 Tandem Roller Kubota D1803-M-DI-E3B EU Stage IIIA / U.S. EPA Tier 4i Parts Catalogue Manual SN 3033765 – PDF DOWNLOAD

ARX 26-2 1
Preface 3
Table of contens 7
Spare parts catalogue 13
001 ARX26-2 01 Engine 16
001-010 Engine part A 18
001-010-075 Hydraulic pump 22
001-010-087 Holder relays 24
001-020 Engine part B 26
001-020-070 Engine – oil drain 30
001-020-083 Cooler 32
002 ARX26-2 02 Drive 36
002-010 Drum 38
002-075 Tyred wheel axle 42
002-075-003 Scraper 46
002-090 Fixed scraper 48
002-090-001 Sprinkling – fixed scraper 50
002-090-002 Internal scraper 52
003 ARX26-2 03 Frame 54
003-010 Frame front 56
003-014 Fuel tank 60
003-015 Fuel Tank Filter 62
003-020 Frame rear 64
003-020 Chassis rear COMBI 66
003-021 Water tank 68
003-022 Step tread 70
003-023 Pressurized Sprinkling System 72
003-024 Pressure spray system COMBI 74
003-025 Holder steering cylinder 78
003-030 Hood green 80
003-030-001 Cover hood 82
003-032 Customer hood 84
003-032-001 Cover hood 86
003-035 Execution without lighting 88
003-040 Operator stand 90
003-040-001 Operator stand 94
003-060 Driver’s seat Ammann 98
003-110 Folding ROPS 100
004 ARX26-2 04 Joint 102
004-010 Pendulum joint 104
004-010-001 Pendulum joint 106
004-010-002 Pendulum support 108
004-020 Steering cylinder 110
005 ARX26-2 05 Hydraulic 112
005-010 Hydraulic oil tank 114
005-010-001 Hydraulic oil tank 116
005-020 Hydraulic oil cooler 118
005-030 Make without lock 120
005-040 Differential lock 122
005-050 Valve block 124
005-060 Vibration control valve 126
005-065 Vibration control valve COMBI 128
005-070 Hose set 130
005-080 Hose set – Drum front 132
005-090 Hose set – Drum rear 134
005-110 Hose set – TIRE 136
006 ARX26-2 06 Electrical installation 138
006-010 Instrument panel 140
006-020 Switch cabinet 142
006-020-001 Switch cabinet 144
006-030 Battery 146
006-040 Operating lever 148
006-050 Signal horn 150
006-060 Looms of wires 152
006-060-001 Looms of wires 154
006-060-002 Looms of wires 156
007 ARX26-2 07 Basic equipment 158
007-010 Signs 160
007-020 Type plate – AMMANN 162
007-030 Plate 164
008 ARX26-2 08 Option 166
008-010 Road lights 170
008-015 Road lights and turn signal 172
008-015-005 Front headlamps 174
008-015-006 Rear lamps 176
008-030 Auxiliary headlamps 178
008-040 Warning light ROPS 180
008-042 Warning beacon green 182
008-045 Warning light constantly shining 184
008-046 Cable Harness ROPS 186
008-050 Reversing alarm 188
008-065 Retainer license number plate 190
008-075 Rear mirror 192
008-080 Left control lever 194
008-090 Seat heating 196
008-100 Armrests 198
008-110 Roof 200
008-110-001 Canopy frame 202
008-120 Lockable ROPS 204
008-130 Wire anti-loose 206
008-140 Brake buzzer 208
008-150 Tank cap option 210
008-155 Infrared thermometer 212
008-160 Edge cutter part A 214
008-160 Edge cutter part B 218
008-160-028 Spraying 220
008-160-030 Hoses for edge cutter KSG 222
008-190 Scraper collapsible 224
008-190-001 Scraper sprinkling foldable 226
008-190-002 Scraper internal folding 228
008-200 Filter set 250 h 230
008-210 Filter set 500 h 232
008-220 Filter set 1000 h 234
008-240 Point contacted suspension 236
008-260 Roof FOPS 238
008-265 Front headlamps FOPS 240
008-270 Warning light FOPS 242
008-271 Warning Beacon Green ROPS/FOPS 244
008-275 Cable Harness ROPS/FOPS 246
008-280 ACE Force 248
008-281 Plate 250
008-300 Retractor belt 252
008-310 Telematics – Trackunit 254
008-311 Telematics – Trackunit with immobilizer 256
008-312 Control 258
008-313 Telematic – Proemion 260
008-314 Telematic – Aquis 262
008-315 Telematics – Topcon 0
008-320 Tiltable Roof 264
008-321 Warning light for roof 266
008-322 Auxiliary headlamps 268
008-330 Warning Beacon Green – Roof 270
008-331 Cable Harness for the Tilting Roof 272
Index 275
