Ammann ASC 130 Single Drum Roller Workshop Manual 3001329 - PDF

Ammann ASC 130 Single Drum Roller Cummins QSB 4.5-C160 EU Stage IIIA/U.S. EPA Tier 3 Workshop Manual 3001329 – PDF DOWNLOAD

FILE DETAILS:

Ammann ASC 130 Single Drum Roller Cummins QSB 4.5-C160 EU Stage IIIA/U.S. EPA Tier 3 Workshop Manual 3001329 – PDF DOWNLOAD

Language : English
Pages :314
Downloadable : Yes
File Type : PDF

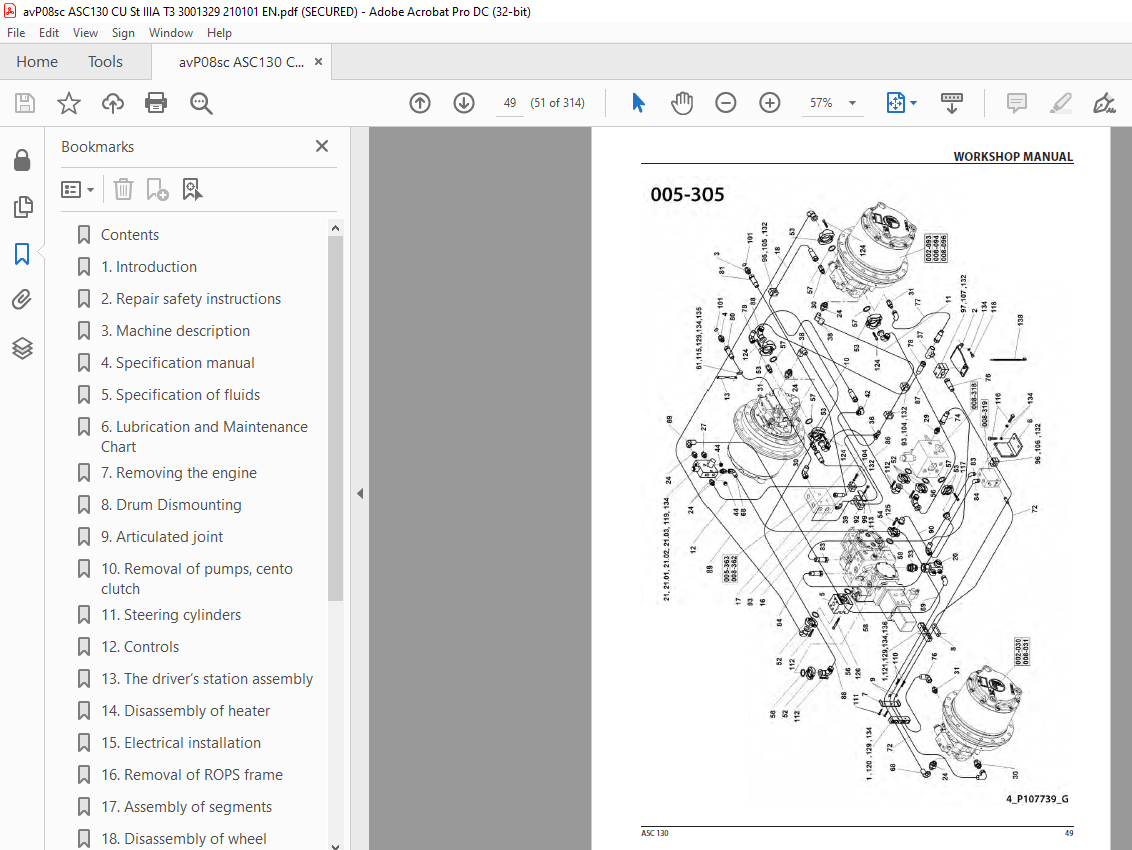

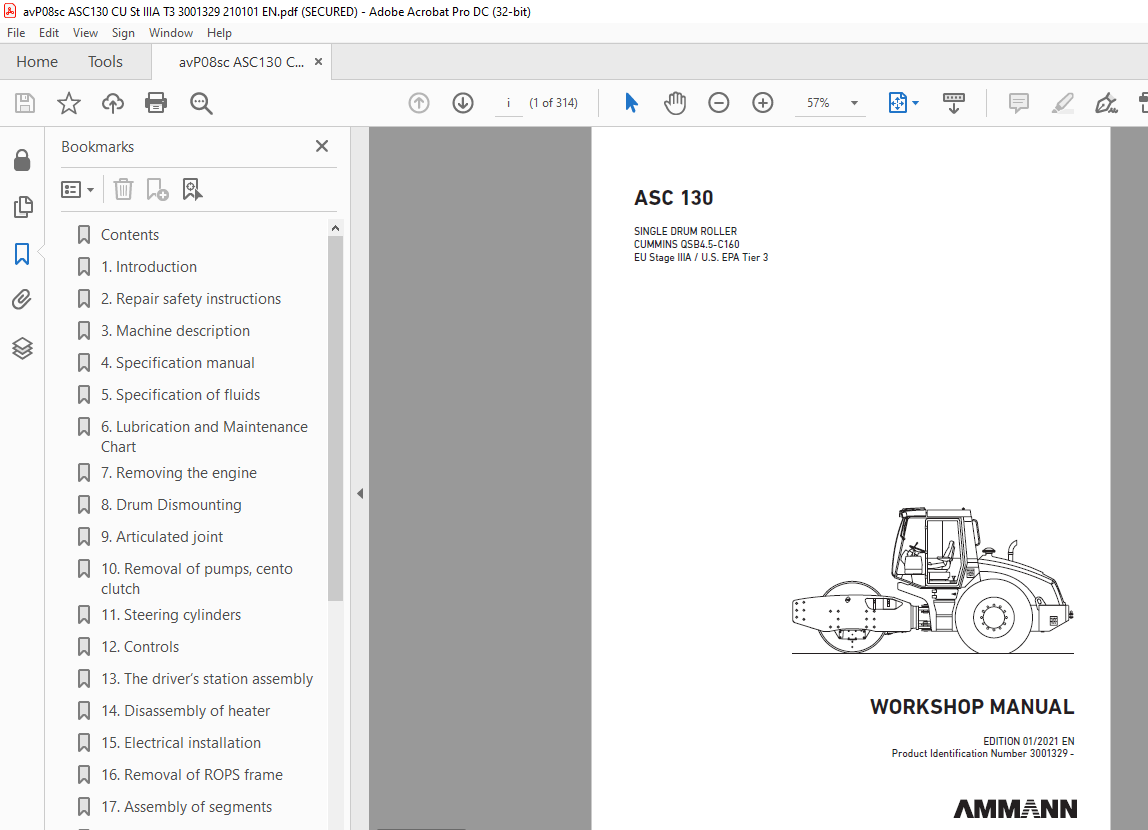

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Ammann ASC 130 Single Drum Roller Cummins QSB 4.5-C160 EU Stage IIIA/U.S. EPA Tier 3 Workshop Manual 3001329 – PDF DOWNLOAD

Contents..........................................  5
1.	Introduction...................................  7
2.	Repair safety instructions..................... 11
3.	Machine description............................ 17
4.	Specification manual........................... 21
5.	Specification of fluids........................ 31
6.	Lubrication and Maintenance Chart.............. 41
7.	Removing the engine............................ 47
8.	Drum Dismounting............................... 69
9.	Articulated joint.............................. 95
10.	Removal of pumps, cento clutch................109
11.	Steering cylinders............................121
12.	Controls......................................127
13.	The driver‘s station assembly.................131
14.	Disassembly of heater.........................141
15.	Electrical installation.......................151
16.	Removal of ROPS frame.........................159
17.	Assembly of segments..........................163
18.	Disassembly of wheel..........................171
19.	Removal of hydraulic motors...................175
20.	Filling hydraulic oil.........................185
21.	Removal of the hydraulic tank.................189
22.	Installation of the hydraulic tank............201
23.	Disassembly of level gauge....................215
24.	How to replace the fuel gauge.................219
25.	Electric installation.........................227
26.	Hydraulic.....................................257
27.	Diagnostics of hydraulic system defects.......265
28.	Check the tightening of bolted connections....271
29.	Harnesses.....................................275
