Ammann AV 130 X Tandem Roller Parts Manual 4022063 PDF

Ammann AV 130 X Articulated Tandem Roller Cummins Tier 3 Parts Catalogue Manual SN 4022063 – PDF DOWNLOAD

FILE DETAILS:

Ammann AV 130 X Articulated Tandem Roller Cummins Tier 3 Parts Catalogue Manual SN 4022063 – PDF DOWNLOAD

Language : English
Pages : 252
Downloadable : Yes
File Type : PDF

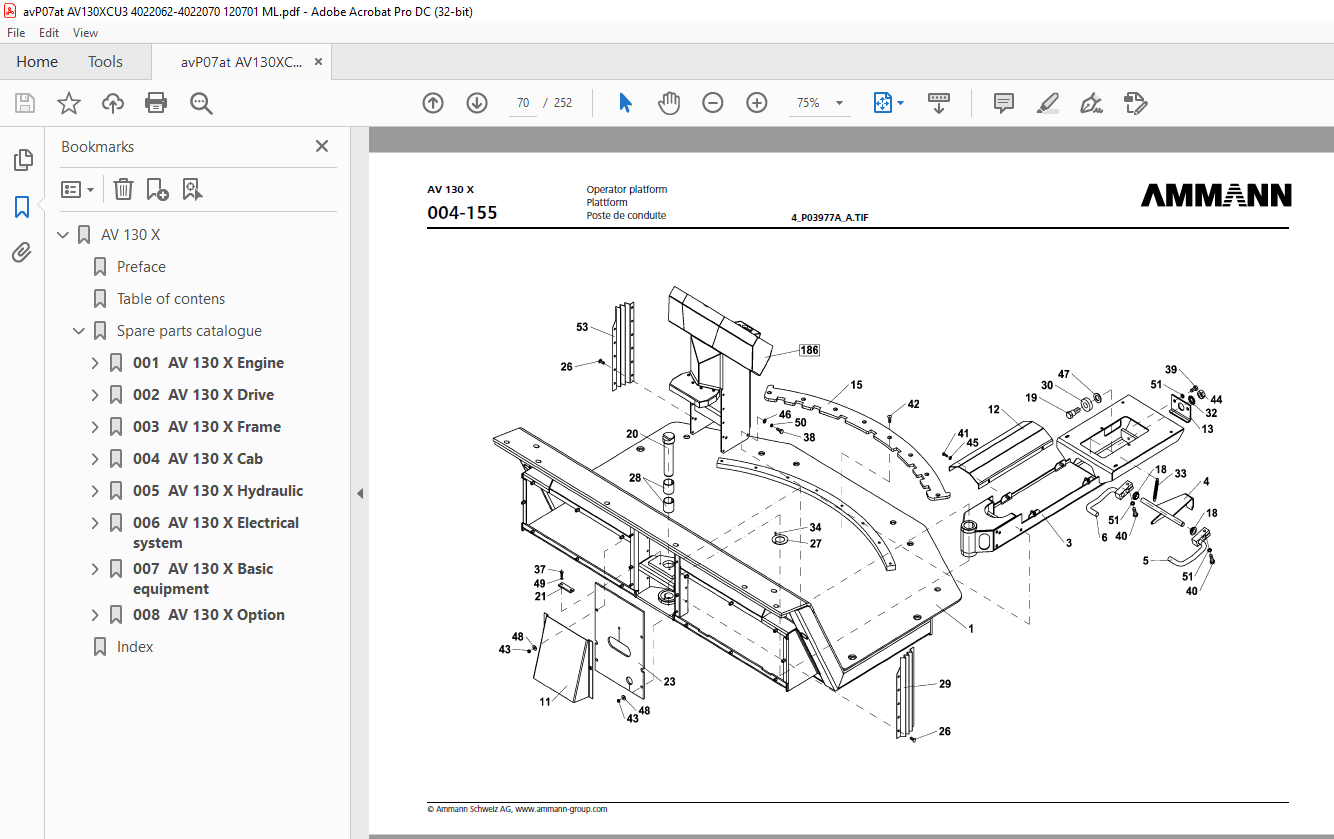

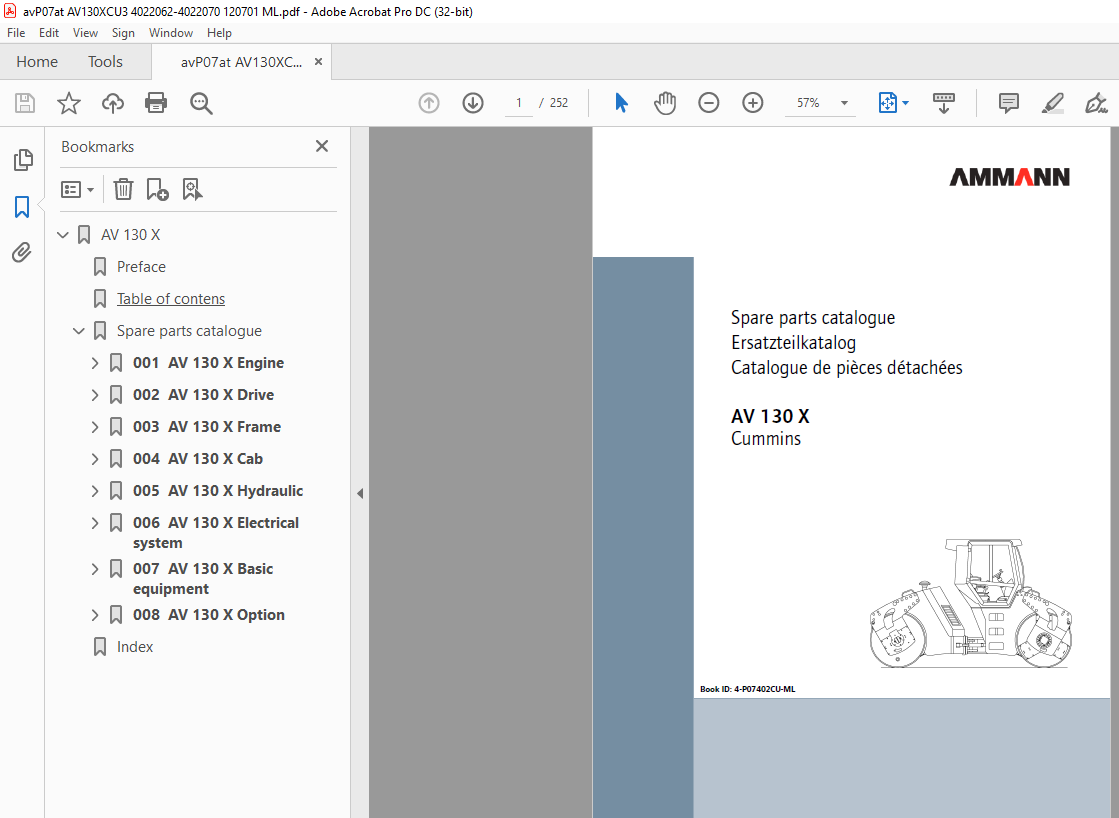

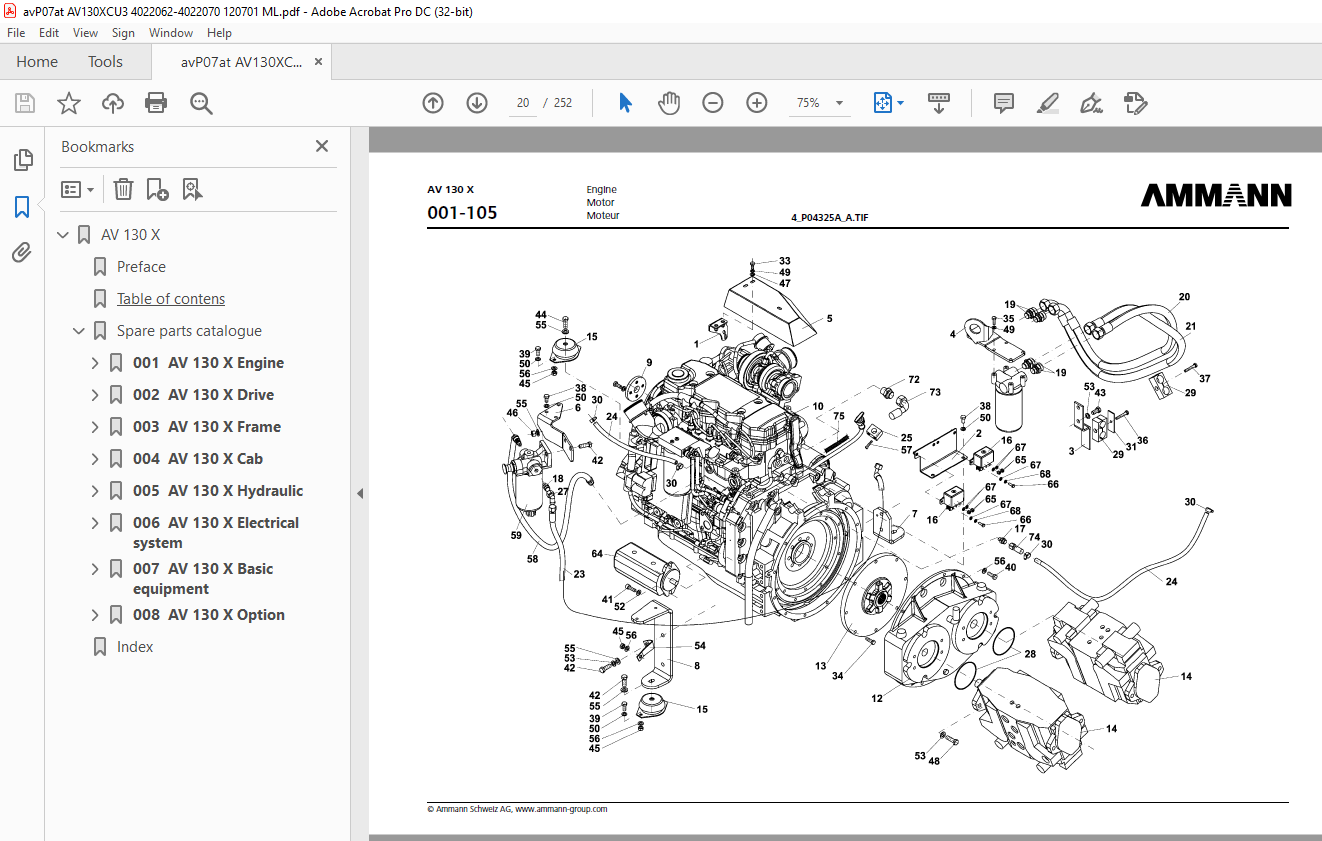

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Ammann AV 130 X Articulated Tandem Roller Cummins Tier 3 Parts Catalogue Manual SN 4022063 – PDF DOWNLOAD

AV 130 X 1
Preface 5
Table of contens 9
Spare parts catalogue 15
001 AV 130 X Engine 18
001-105 Engine 20
001-125 Cooling system 24
001-135 Intake and exhaust pipe 28
002 AV 130 X Drive 30
002-001 Drum 32
002-001-019 Fluid motor 36
003 AV 130 X Frame 38
003-015 Weights 40
003-050 Frame front 42
003-055 Scraper set 44
003-060 Frame rear 46
003-065 Joint 48
003-065-001 Steering suspension 50
003-065-030 Hydraulic cylinder 52
003-070 Steer cylinder 54
003-070-001 Hydraulic cylinder 56
003-080 Frame accessories 58
003-093 Water tank 60
003-094 Spraying 62
003-094-001 Spraydown pipe 64
004 AV 130 X Cab 66
004-155 Operator platform 68
004-156 Rear mirror 72
004-164 Roof 74
004-165 Cab A 76
004-165-011 Ventilator 82
004-165-011-002 Ventilator 84
004-165 Cab B 86
004-165 Cab C 90
004-170 Cab bedding 94
004-185 Control 96
004-185-001 Travel controls 98
004-185-007 Complete seat 102
004-185-007-001 Cab seat 104
004-185-007-002 Platform seat 106
004-186 Steering column 108
004-200 Cover hood 110
004-215 Tread 114
004-600 Heating 116
004-601-001 Housing 118
005 AV 130 X Hydraulic 120
005-300 Front drum hydraulic system 122
005-310 Rear drum hydraulic system 124
005-350 Pump hydraulics 126
005-350-001 Cube 130
005-364 Steering hydraulics 132
005-370 Cooling hydraulics 136
005-385 Lifting hydraulics 138
006 AV 130 X Electrical system 140
006-404 Electrical installation 142
006-404-001 Instrument panel 148
006-404-002 Switch cabinet 152
006-410 Cab wiring 156
007 AV 130 X Basic equipment 158
007-510 Signs 160
007-511 Cover 162
007-515 Plate 164
007-522 Attachment parts 166
008 AV 130 X Option 168
008-056 Tilting scrapers 170
008-164 Roof 172
008-180 Railing 174
008-181 Roof 176
008-183 Cover 178
008-411 Platform wiring 180
008-413 Warning light 182
008-414 Warning light 184
008-415 Reversing alarm 186
008-416 Lamps 188
008-417 Lamps 190
008-424 Registration plate lighting 192
008-440 Car radio 194
008-520 Tool kit 196
008-540 Set of spare parts 198
008-545 Set of spare parts 200
008-550 Edge cutter 45° 202
008-550-001 204
008-550-001-001 Edge cutter hydraulics 208
008-550-001-021 Hydraulic cylinder 210
008-550-002 Roller 212
008-550 Edge cutter 60° 214
008-550-001 Edge cutter 216
008-550-001-001 Edge cutter hydraulics 220
008-550-001-021 Hydraulic cylinder 222
008-550-002 Edge roller 60° 224
008-555 Thermometer 226
008-614 Air conditioning system 228
008-614-003 Electrical installation 232
008-625 Fire extinguisher 234
Index 237
