Ammann AV 70 X Tandem Roller Parts Manual SN 4062010 - PDF

Ammann AV 70 X Articulated Tandem Roller Cummins Tier 3 Parts Catalogue Manual SN 4062010 – PDF DOWNLOAD

FILE DETAILS:

Ammann AV 70 X Articulated Tandem Roller Cummins Tier 3 Parts Catalogue Manual SN 4062010 – PDF DOWNLOAD

Language : English
Pages :254
Downloadable : Yes
File Type : PDF

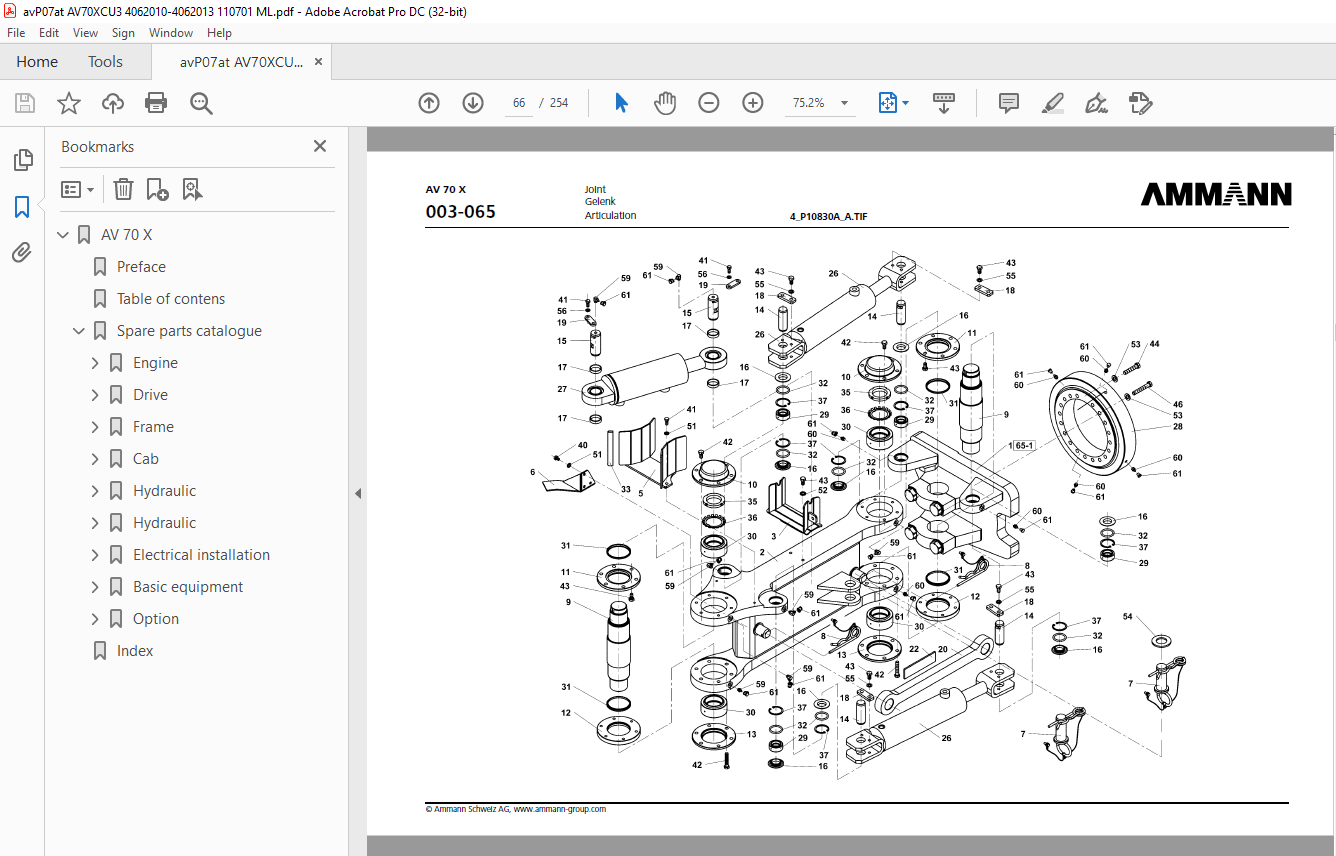

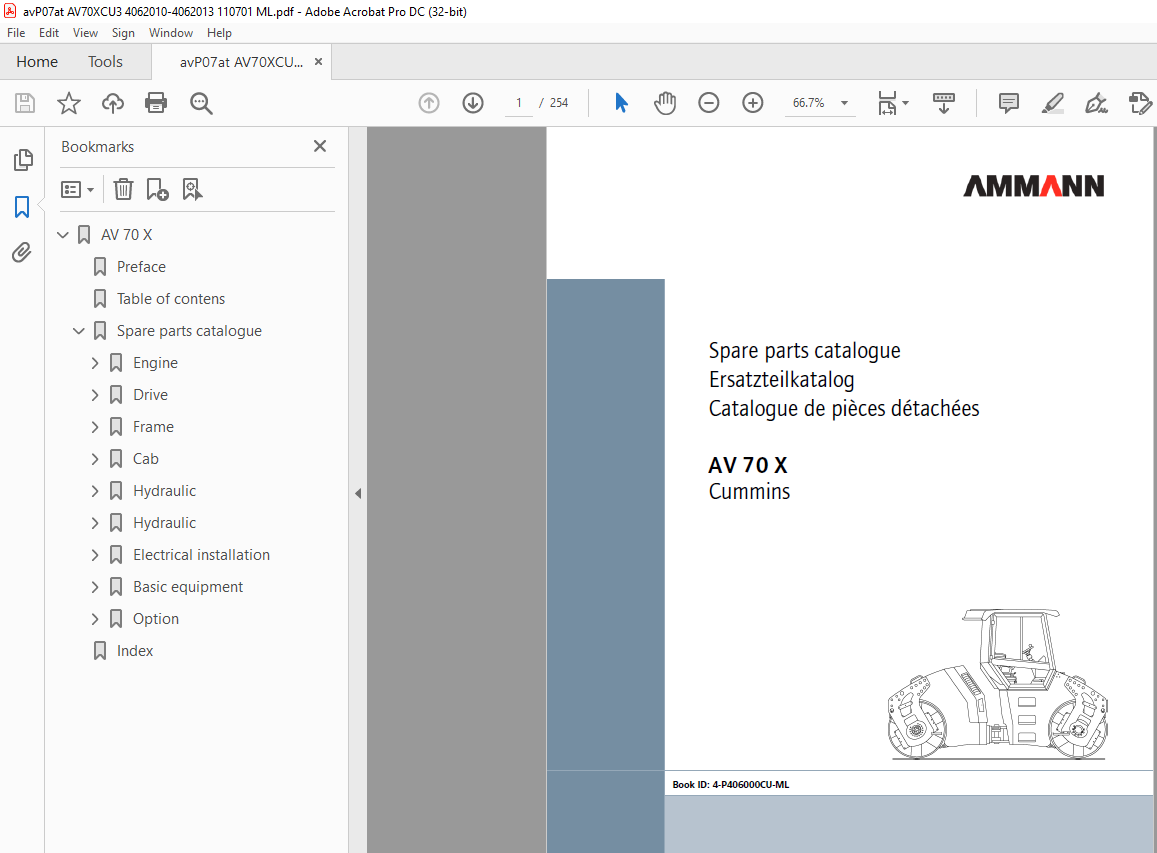

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Ammann AV 70 X Articulated Tandem Roller Cummins Tier 3 Parts Catalogue Manual SN 4062010 – PDF DOWNLOAD

AV 70 X....................................  1
	Preface................................  5
	Table of contens.......................  9
	Spare parts catalogue.................. 15
		Engine............................. 18
			Engine......................... 20
				Contactor.................. 24
			Cooling system................. 26
			Protective grid................ 30
			Intake and exhaust pipe........ 32
			Engine controls................ 34
			Pump group..................... 36
		Drive.............................. 38
			Yoke........................... 40
			Weights........................ 42
			Vibrator....................... 44
			Drum drive..................... 46
			Tread.......................... 48
			Tread.......................... 50
			Speed sensor................... 52
		Frame.............................. 54
			Scraper........................ 56
			Scraper........................ 58
			Frame front.................... 60
			Frame rear..................... 62
			Joint.......................... 64
			Steering suspension............ 68
			Tank cap....................... 70
			Water tank..................... 72
			Spraying....................... 74
			Pipe........................... 76
			Cover.......................... 78
			Insulation..................... 80
			Fuel tank...................... 82
			Storage battery................ 84
			Tread.......................... 86
		Cab................................ 88
			Operator platform.............. 90
			Cab............................ 94
			Cab............................ 98
			Cab............................102
			Cab bedding....................106
			Control........................108
				Travel controls............110
			Cover hood.....................114
			Lever..........................118
			Heating........................120
		Hydraulic..........................122
			Front drum hydraulic system....124
			Front drum hydraulic system....126
			Rear drum hydraulic system.....128
			Rear drum hydraulic system.....130
		Hydraulic..........................132
			Pump hydraulics................134
			Cube...........................138
				Cube.......................140
			Hydraulic oil tank.............142
			Steering hydraulics............144
			Cooling hydraulics.............146
			Lifting hydraulics.............148
		Electrical installation............150
			Electrical installation........152
				Instrument panel...........156
				Instrument panel...........158
				Screed.....................162
			Cab wiring.....................164
		Basic equipment....................166
			Signage........................168
			Plate..........................170
		Option.............................172
			Scraper........................174
			Scraper........................176
			Tank cap.......................178
			Railing........................180
			Roof...........................182
			Equipment cover................184
			Rear mirror....................186
			Pre-filter.....................188
			Front drum hydraulic system....190
			Rear drum hydraulic system.....192
			Blocking hydraulics............194
			Hydraulic......................196
			Warning light..................198
			Rear light.....................200
			Registration plate lighting....202
			Tool kit.......................204
			Attachment parts...............206
			Lever..........................208
			Set of spare parts.............210
			Set of spare parts.............212
			Edge cutter....................214
				Edge cutter................216
					Hub....................220
					Roller.................222
				Edge cutter hydraulics.....224
				Cutter control wiring......226
			Fan cover......................228
			Air conditioning system........230
			Electrical installation........234
			Fire extinguisher..............236
	Index..................................239
