Ammann AV 70 X Tandem Roller Workshop Manual SN 4062066 PDF

Ammann AV 70 X Articulated tandem roller Cummins Tier 3 Workshop Manual SN 4062066 – PDF DOWNLOAD

FILE DETAILS:

Ammann AV 70 X Articulated tandem roller Cummins Tier 3 Workshop Manual SN 4062066 – PDF DOWNLOAD

Language : English
Pages :196
Downloadable : Yes
File Type : PDF

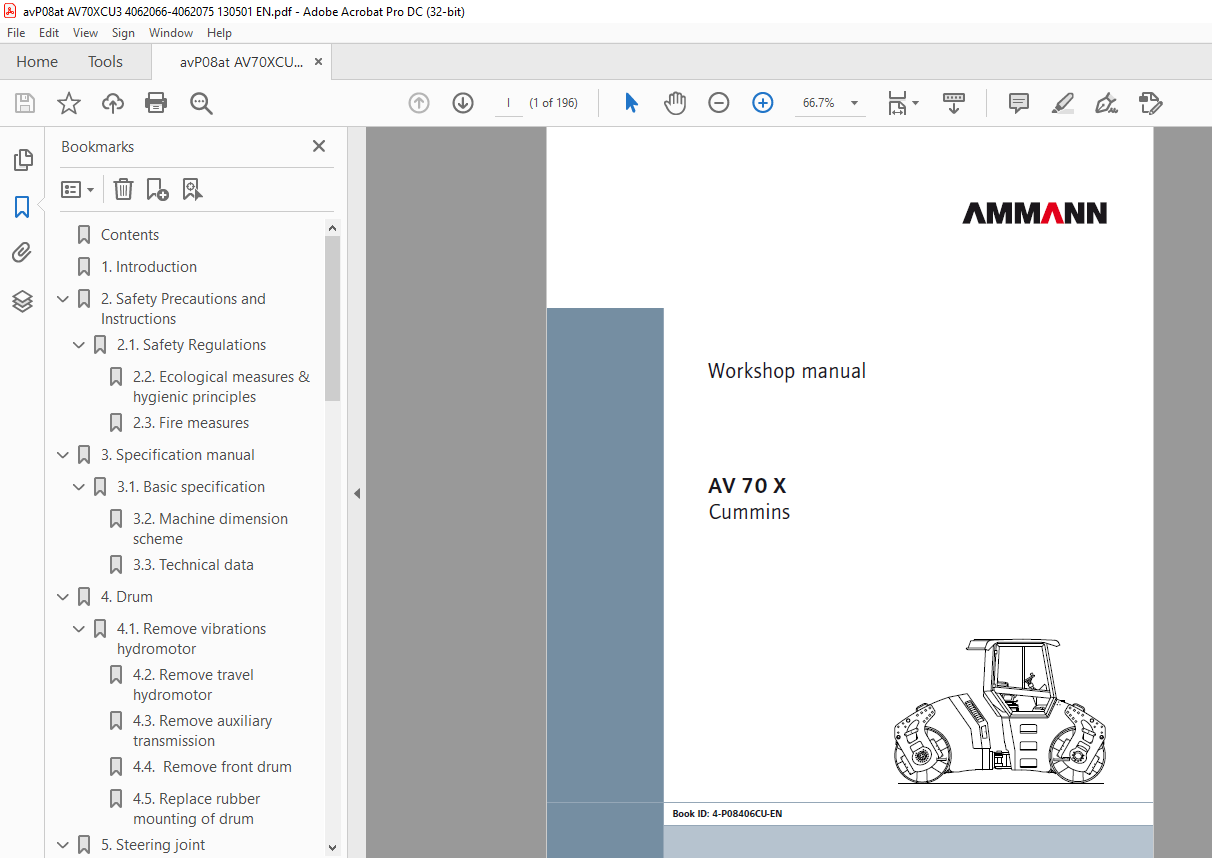

IMAGES PREVIEW OF THE MANUAL:

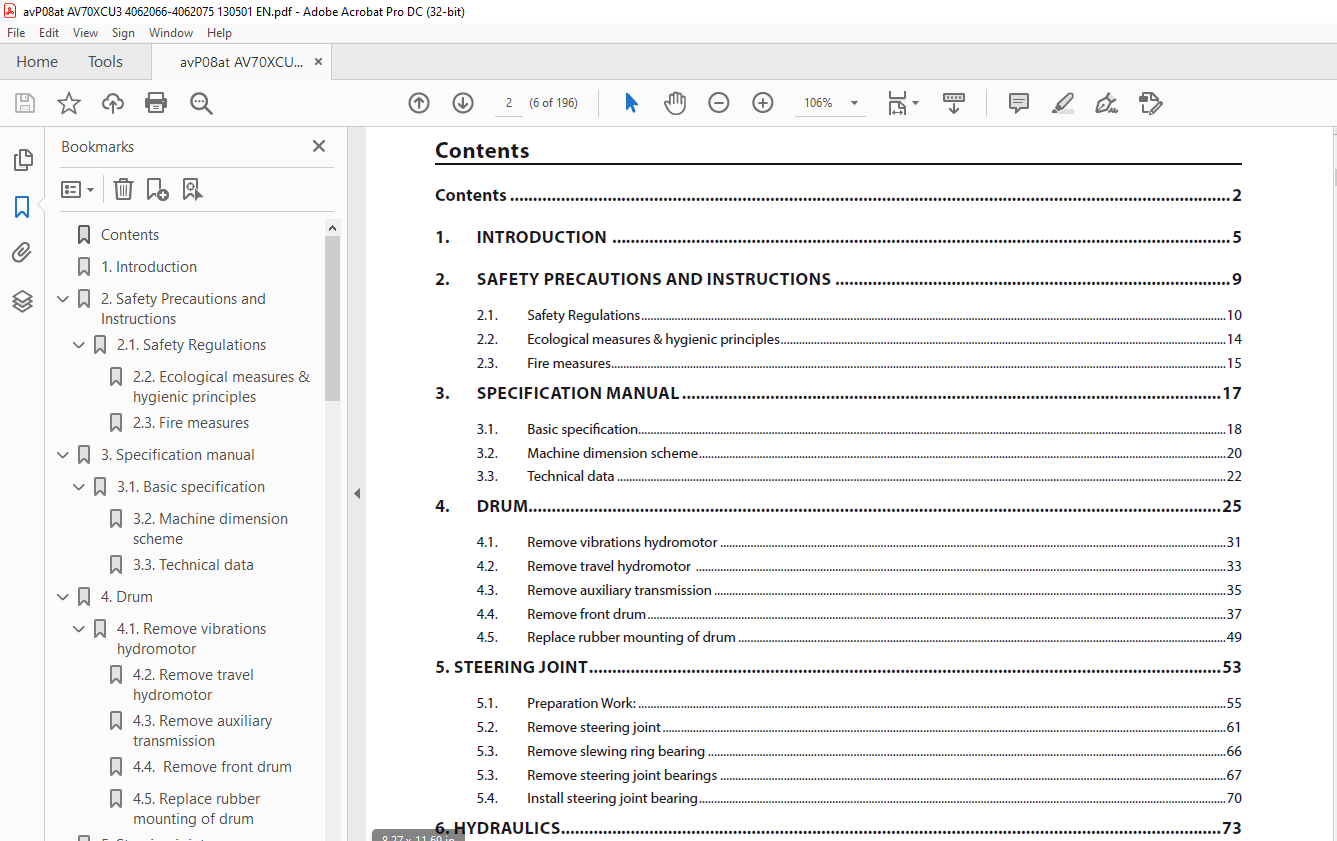

TABLE OF CONTENTS:

Ammann AV 70 X Articulated tandem roller Cummins Tier 3 Workshop Manual SN 4062066 – PDF DOWNLOAD

Contents...........................................................................  6
1.	Introduction ...................................................................  9
2.	Safety Precautions and Instructions............................................. 13
	2.1.	Safety Regulations........................................................ 14
		2.2.	Ecological measures & hygienic principles............................. 18
		2.3.	Fire measures......................................................... 19
3.	Specification manual............................................................ 21
	3.1.	Basic specification....................................................... 22
		3.2.	Machine dimension scheme.............................................. 24
		3.3.	Technical data........................................................ 26
4.	Drum............................................................................ 29
	4.1.	Remove vibrations hydromotor.............................................. 35
		4.2.	Remove travel hydromotor ............................................. 37
		4.3.	Remove auxiliary transmission......................................... 39
		4.4. 	Remove front drum.................................................... 41
		4.5.	Replace rubber mounting of drum....................................... 53
5. Steering joint.................................................................. 57
	5.1.	Preparation Work:......................................................... 59
		5.2.	Remove steering joint................................................. 65
		5.3.	Remove slewing ring bearing........................................... 70
		5.3.	Remove steering joint bearings........................................ 71
		5.4.	Install steering joint bearing........................................ 74
6. Hydraulics...................................................................... 77
	6.1.	Remove cooling hydromotor................................................. 79
		6.2.	Remove gear pump for steering ........................................ 81
		6.3.	Remove tandem pump for travel and vibrations.......................... 84
		6.3.1.	Vibration pump...................................................... 84
		6.3.2.	Pump for travel..................................................... 86
7.	How to remove hydraulic cylinders for steering and CRAB......................... 89
	7.1.	Remove hydraulic cylinders for steering and CRAB.......................... 91
		7.2.	Replace packing material for steering or Crab hydraulic cylinders .... 92
8.	How to remove bonnet............................................................ 97
9.	How to remove engine............................................................103
10.	How to remove cooler...........................................................113
11.	Cabin..........................................................................121
	11.1.	Remove heater............................................................123
		11.2.	Remove cooling air blowers...........................................125
		11.3.	Seat switch..........................................................128
		11.4.	Idle and parking brake positions sensor..............................130
		11.5.	LH control panel, backing horn sensor................................130
		11.6	 Seat platform........................................................133
		11.7.	Servosteering........................................................136
12.	Wiring.........................................................................139
	12.1.	Fuses....................................................................140
		12.2.	Storage battery......................................................142
		12.3.	Alternator...........................................................143
		12.4.	Starter Motor........................................................145
		12.5.	Layout of wiring elements on the Machine.............................148
13.	Annexes........................................................................151
	13.1.	Measure hydraulic circuit safety pressures ..............................152
		13.2.	How to adjust vibration frequency....................................155
		13.3.	How to adjust pulse sensors..........................................156
		13.4.	Adjust zero position of steering joint...............................157
		13.5.	Wiring Diagram.......................................................158
		13.6.	Electric installations cable harnesses...............................163
		13.7.	Hydraulic Diagram ...................................................184
		13.8.	Check the tightening of bolted connections...........................186
		13.9.	List of fixtures.....................................................188
		13.10.	Hand Signals........................................................190
