Ammann STV 5100 E Spare Parts Catalogue Manual 3103775 –  PDF DOWNLOAD

Ammann STV 5100 E Spare Parts Catalogue Manual 3103775 –  PDF DOWNLOAD

FILE DETAILS:

Ammann STV 5100 E Spare Parts Catalogue Manual 3103775 –  PDF DOWNLOAD

Language : English
Pages : 838
Downloadable : Yes
File Type : PDF

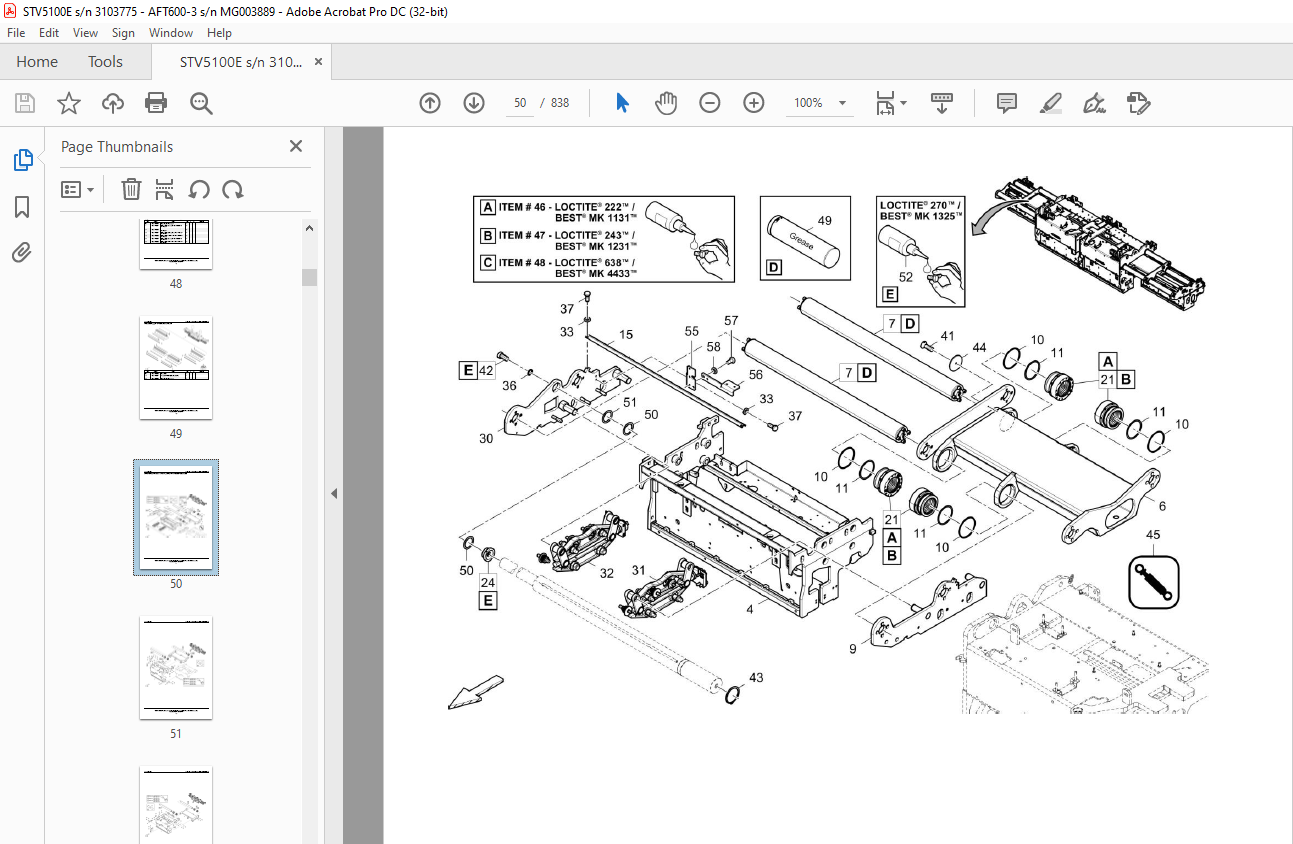

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

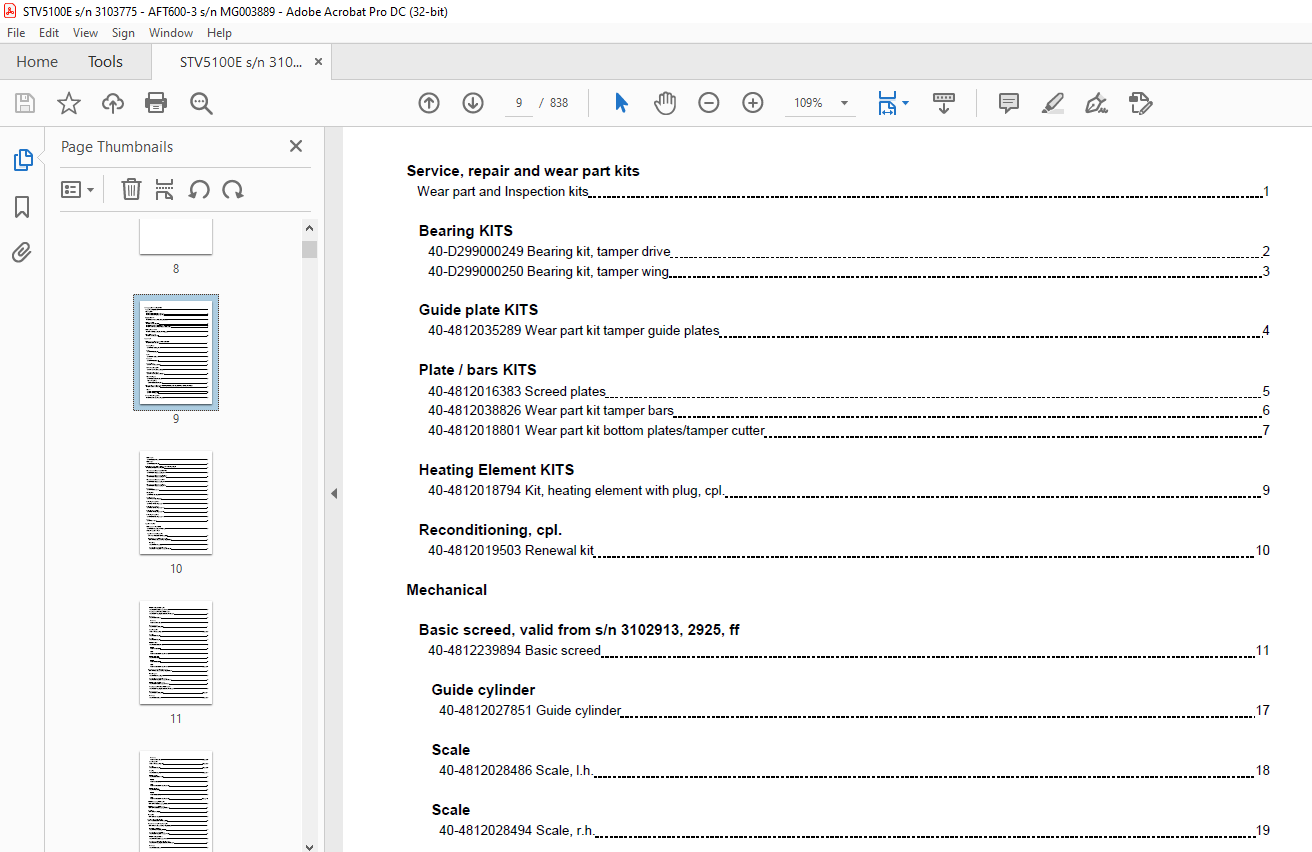

Ammann STV 5100 E Spare Parts Catalogue Manual 3103775 –  PDF DOWNLOAD

Service, repair and wear part kits
Wear part and Inspection kits 1
Bearing KITS
40-D299000249 Bearing kit, tamper drive 2 40-D299000250 Bearing kit, tamper wing 3
Guide plate KITS
40-4812035289 Wear part kit tamper guide plates 4
Plate / bars KITS
40-4812016383 Screed plates 5 40-4812038826 Wear part kit tamper bars 6 40-4812018801 Wear part kit bottom plates/tamper cutter 7
Heating Element KITS
40-4812018794 Kit, heating element with plug, cpl. 9
Reconditioning, cpl.
40-4812019503 Renewal kit 10
Mechanical
Basic screed, valid from s/n 3102913, 2925, ff
40-4812239894 Basic screed 11
Guide cylinder
40-4812027851 Guide cylinder 17
Scale
40-4812028486 Scale, l.h. 18
Scale
40-4812028494 Scale, r.h. 19
Guide unit
40-4812044786 Guide unit 20
Guide cylinder
40-D614012700 Guide cylinder 21
Vertical adjustment, l.h.
40-D614014900 Vertical adjustment, l.h. 22
Vertical adjustment, r.h.
40-D614015000 Vertical adjustment, r.h. 24
Hydraulic diagram
40-4812033315 Hydraulic diagram 26
Hydraulic cylinder
40-D614400300 Hydraulic cylinder 27
Electric heating – Valid from s/n 3102418, 3102420, 3102428, 3102441, 3102445, 3102453, ff
40-4812016370B Electric heating 28
Ascent
40-4812011406 Ascent 33 40-4812217242 Kit, ascent 34
Roof profile setting, mech.
40-4812232659 Roof profile setting, mech. 35
Retainer, r.h.
40-4812072509 Retainer, r.h. 37
Retainer, l.h.
40-4812072508 Retainer, l.h. 38
Protection and trim plates, valid from s/n 3102913, 2925, ff
40-4812239212 Protection and trim plates 39
Tamper guide plate central part, MT l.h.
40-4812028002 Tamper guide plate, MT l.h. 43
Tamper guide plate central part, MT r.h.
40-4812028040 Tamper guide plate, MT r.h. 44
Tamper guide plate ext. part, VT l.h.
40-4812028033 Tamper guide plate, VT l.h. 45
Tamper guide plate ext. part, VT r.h.
40-4812028042 Tamper guide plate, VT r.h. 46
Hose guide
40-4812027950 Hose guide 47
Overlap plate
40-4812028304 Overlap plate 48
Adjusting screw
40-D614134600 Adjusting screw 49
Protecting hood, MT l.h.
40-4812238132 Protecting hood, MT l.h. 50
Protecting hood, MT r.h.
40-4812238133 Protecting hood, MT r.h. 51
Protecting hood, VT l.h.
40-4812239197 Protecting hood, VT l.h. 52
Protecting hood, VT r.h.
40-4812239200 Protecting hood, VT r.h. 53
Cover
40-4812238121 Cover 54
Operation width, E
Basic operation width 5,10m
40-4812033916 Basic operation width 5,10m 55
Available operation width Operation width 5.8m, electric
40-4812232787 Operation width 5.8m, electric 56
Extension mount, AT350, electric, l.h.
40-4812232159 Extension mount, AT350, electric, l.h. 57
El. heating
40-4812232157 El. heating 60
Tamper drive ext. part 350mm, l.h.
40-4812029716 Tamper drive ext. part 350mm, l.h. 63
Vibration ext. part 350mm, l.h.
40-4812029876 Vibration ext. part 350mm, l.h. 66
Tamper guide plate ext. part 350mm, l.h.
40-4812029847 Tamper guide plate ext. part 350mm, l.h. 68
Footboard
40-4812075063 Footboard 69
Footboard
40-4812075064 Footboard 70
Protecting hood
40-4812233007 Protecting hood 71
Adjusting screw
40-D614134600 Adjusting screw See page 49
Coupling
40-4812076801 Coupling 73
Coupling
40-4812035437 Coupling 74
Electric l.h. 350
40-4812033694 Electric l.h. 350 75
Electric
40-4812033698 Electric 76
Cable
40-4812033702 Cable harness W22 AT 350 77
Electric AT l.h. 350
40-4812017894 Electric 78
Electric
40-4812017905 Electric 79
Cable
40-4812033702 Cable harness W22 AT 350 See page 77
Extension mount, AT350, electric, r.h.
40-4812232160 Extension mount, AT350, electric, r.h. 82
El. heating, r.h.
40-4812232158 El. heating, r.h. 85
Tamper drive ext. part 350mm, r.h.
40-4812029768 Tamper drive ext. part 350mm, r.h. 88
Vibration ext. part 350mm, r.h.
40-4812029882 Vibration ext. part 350mm, r.h. 91
Tamper guide plate ext. part 350mm, r.h.
40-4812029852 Tamper guide plate ext. part 350mm, r.h. 93
Protecting hood
40-4812233007 Protecting hood See page 71
Footboard
40-4812075063 Footboard See page 69
Footboard
40-4812075064 Footboard See page 70
Adjusting screw
40-D614134600 Adjusting screw See page 49
Coupling
40-4812076801 Coupling See page 73
Coupling
40-4812035437 Coupling See page 74
Electric r.h. 350
40-4812033696 Electric r.h. 350 99
Electric
40-4812033700 Electric 100
Cable
40-4812033704 Cable harness W23 AT 350 101
Electric AT350 r.h.
40-4812017898 Electric 102
Electric
40-4812017906 Electric 103
Cable
40-4812033704 Cable harness W23 AT 350 See page 101
Material duct, adj., 1000mm, l.h.
40-4812027937 Material duct, adj., 1000mm, l.h. 106
Material duct, adj., 1000mm, r.h.
40-4812027938 Material duct, adj., 1000mm, r.h. 107
Socket pin
40-4812028407 Socket pin 108
Brace pipe
40-4812026950 Brace pipe 109
Operation width 6.6m, electric
40-4812232800 Operation width 6.6m, electric 110
Extension mount, AT750, electric, l.h.
40-4812232801 Extension mount, AT750, electric, l.h. 111
El. Heating, AT750, l.h.
40-4812232788 El. Heating, AT750, l.h. 114
Tamper drive ext. part 750mm
40-4812028555 Tamper drive ext. part 750mm 117
Vibration ext. part 750mm
40-4812218140 Vibration ext. part 750mm 120
Tamper guide plate ext. part 750mm, l.h.
40-4812028745 Tamper guide plate ext. part 750mm, l.h. 122
Footboard
40-4812075065 Footboard 123
Footboard
40-4812075066 Footboard 124
Protecting hood
40-4812232538 Protecting hood 125
Adjusting screw
40-D614134600 Adjusting screw See page 49
Electric AT l.h. 750
40-4812017899 Electric AT l.h. 750 127
Electric
40-4812017907 Electric 128
Cable
40-4812033701 Cable harness W20 AT750 130
Electric l.h. 750
40-4812033693 Electric l.h. 750 131
Electric
40-4812033697 Electric 132
Cable
40-4812033701 Cable harness W20 AT750 See page 130
Extension mount, AT750, electric, r.h.
40-4812232812 Extension mount, AT750, electric, r.h. 134
Vibration ext. part 750mm
40-4812233616 Vibration ext. part 750mm 137
El. Heating, AT750, r.h.
40-4812232813 El. Heating, AT750, r.h. 139
Tamper drive ext. part 750mm
40-4812028555 Tamper drive ext. part 750mm See page 117
Vibration ext. part 750mm
40-4812218140 Vibration ext. part 750mm See page 120
Tamper guide plate ext. part 750mm, r.h.
40-4812028757 Tamper guide plate ext. part 750mm, r.h. 144
Footboard
40-4812075065 Footboard See page 123
Footboard
40-4812075066 Footboard See page 124
Protecting hood
40-4812232538 Protecting hood See page 125
Adjusting screw
40-D614134600 Adjusting screw See page 49
Electric
40-4812017900 Electric 148
Electric
40-4812017908 Electric 149
Cable
40-4812033703 Cable harness W21 AT750 151
Electric r.h. 750
40-4812033695 Electric r.h. 750 152
Electric
40-4812033699 Electric 153
Cable
40-4812033703 Cable harness W21 AT750 See page 151
Material duct, adj., 1000mm, l.h.
40-4812027937 Material duct, adj., 1000mm, l.h. See page 106
Material duct, adj., 1000mm, r.h.
40-4812027938 Material duct, adj., 1000mm, r.h. See page 107
Socket pin
40-4812028407 Socket pin See page 108
Brace pipe
40-4812026950 Brace pipe See page 109
Operation width 7.3m, electric
40-4812233097 Operation width 7.3m, electric 159
Extension mount, AT750, electric, l.h.
40-4812232801 Extension mount, AT750, electric, l.h. See page 111
El. Heating, AT750, l.h.
40-4812232788 El. Heating, AT750, l.h. See page 114
Tamper drive ext. part 750mm
40-4812028555 Tamper drive ext. part 750mm See page 117
Vibration ext. part 750mm
40-4812218140 Vibration ext. part 750mm See page 120
Tamper guide plate ext. part 750mm, l.h.
40-4812028745 Tamper guide plate ext. part 750mm, l.h. See page 122
Footboard
40-4812075065 Footboard See page 123
Footboard
40-4812075066 Footboard See page 124
Protecting hood
40-4812232538 Protecting hood See page 125
Adjusting screw
40-D614134600 Adjusting screw See page 49
Electric AT l.h. 750
40-4812017899 Electric AT l.h. 750 See page 127
Electric
40-4812017907 Electric See page 128
Cable
40-4812033701 Cable harness W20 AT750 See page 130
Electric l.h. 750
40-4812033693 Electric l.h. 750 See page 131
Electric
40-4812033697 Electric See page 132
Cable
40-4812033701 Cable harness W20 AT750 See page 130
Extension mount, AT750, electric, r.h.
40-4812232812 Extension mount, AT750, electric, r.h. See page 134
Vibration ext. part 750mm
40-4812233616 Vibration ext. part 750mm See page 137
El. Heating, AT750, r.h.
40-4812232813 El. Heating, AT750, r.h. See page 139
Tamper drive ext. part 750mm
40-4812028555 Tamper drive ext. part 750mm See page 117
Vibration ext. part 750mm
40-4812218140 Vibration ext. part 750mm See page 120
Tamper guide plate ext. part 750mm, r.h.
40-4812028757 Tamper guide plate ext. part 750mm, r.h. See page 144
Footboard
40-4812075065 Footboard See page 123
Footboard
40-4812075066 Footboard See page 124
Protecting hood
40-4812232538 Protecting hood See page 125
Adjusting screw
40-D614134600 Adjusting screw See page 49
Electric
40-4812017900 Electric See page 148
Electric
40-4812017908 Electric See page 149
Cable
40-4812033703 Cable harness W21 AT750 See page 151
Electric r.h. 750
40-4812033695 Electric r.h. 750 See page 152
Electric
40-4812033699 Electric See page 153
Cable
40-4812033703 Cable harness W21 AT750 See page 151
Extension mount, AT350, electric, l.h.
40-4812232159 Extension mount, AT350, electric, l.h. See page 57
El. heating
40-4812232157 El. heating See page 60
Tamper drive ext. part 350mm, l.h.
40-4812029716 Tamper drive ext. part 350mm, l.h. See page 63
Vibration ext. part 350mm, l.h.
40-4812029876 Vibration ext. part 350mm, l.h. See page 66
Tamper guide plate ext. part 350mm, l.h.
40-4812029847 Tamper guide plate ext. part 350mm, l.h. See page 68
Footboard
40-4812075063 Footboard See page 69
Footboard
40-4812075064 Footboard See page 70
Protecting hood
40-4812233007 Protecting hood See page 71
Adjusting screw
40-D614134600 Adjusting screw See page 49
Coupling
40-4812076801 Coupling See page 73
Coupling
40-4812035437 Coupling See page 74
Electric l.h. 350
40-4812033694 Electric l.h. 350 See page 75
Electric
40-4812033698 Electric See page 76
Cable
40-4812033702 Cable harness W22 AT 350 See page 77
Electric AT l.h. 350
40-4812017894 Electric See page 78
Electric
40-4812017905 Electric See page 79
Cable
40-4812033702 Cable harness W22 AT 350 See page 77
Extension mount, AT350, electric, r.h.
40-4812232160 Extension mount, AT350, electric, r.h. See page 82
El. heating, r.h.
40-4812232158 El. heating, r.h. See page 85
Tamper drive ext. part 350mm, r.h.
40-4812029768 Tamper drive ext. part 350mm, r.h. See page 88
Vibration ext. part 350mm, r.h.
40-4812029882 Vibration ext. part 350mm, r.h. See page 91
Tamper guide plate ext. part 350mm, r.h.
40-4812029852 Tamper guide plate ext. part 350mm, r.h. See page 93
Protecting hood
40-4812233007 Protecting hood See page 71
Footboard
40-4812075063 Footboard See page 69
Footboard
40-4812075064 Footboard See page 70
Adjusting screw
40-D614134600 Adjusting screw See page 49
Coupling
40-4812076801 Coupling See page 73
Coupling
40-4812035437 Coupling See page 74
Electric r.h. 350
40-4812033696 Electric r.h. 350 See page 99
Electric
40-4812033698 Electric See page 76
Cable
40-4812033702 Cable harness W22 AT 350 See page 77
Electric AT r.h. 350
40-4812017898 Electric See page 102
Electric
40-4812017906 Electric See page 103
Cable
40-4812033704 Cable harness W23 AT 350 See page 101
Material duct, adj., 1000mm, l.h.
40-4812027937 Material duct, adj., 1000mm, l.h. See page 106
Material duct, adj., 1000mm, r.h.
40-4812027938 Material duct, adj., 1000mm, r.h. See page 107
Socket pin
40-4812028407 Socket pin See page 108
Brace pipe
40-4812026950 Brace pipe See page 109
Operation width 8.1m, electric
40-4812233101 Operation width 8.1m, electric 220
Extension mount, AT750, electric, l.h.
40-4812232801 Extension mount, AT750, electric, l.h. See page 111
El. Heating, AT750, l.h.
40-4812232788 El. Heating, AT750, l.h. See page 114
Tamper drive ext. part 750mm
40-4812028555 Tamper drive ext. part 750mm See page 117
Vibration ext. part 750mm
40-4812218140 Vibration ext. part 750mm See page 120
Tamper guide plate ext. part 750mm, l.h.
40-4812028745 Tamper guide plate ext. part 750mm, l.h. See page 122
Electric
40-4812017900 Electric See page 148
Footboard
40-4812075065 Footboard See page 123
Footboard
40-4812075066 Footboard See page 124
Protecting hood
40-4812232538 Protecting hood See page 125
Adjusting screw
40-D614134600 Adjusting screw See page 49
Electric AT l.h. 750
40-4812017899 Electric AT l.h. 750 See page 127
Electric
40-4812017907 Electric See page 128
Cable
40-4812033701 Cable harness W20 AT750 See page 130
Electric l.h. 750
40-4812033693 Electric l.h. 750 See page 131
Electric
40-4812033697 Electric See page 132
Cable
40-4812033701 Cable harness W20 AT750 See page 130
Extension mount, AT750, electric, r.h.
40-4812232812 Extension mount, AT750, electric, r.h. See page 134
Vibration ext. part 750mm
40-4812233616 Vibration ext. part 750mm See page 137
El. Heating, AT750, r.h.
40-4812232813 El. Heating, AT750, r.h. See page 139
Tamper drive ext. part 750mm
40-4812028555 Tamper drive ext. part 750mm See page 117
Vibration ext. part 750mm
40-4812218140 Vibration ext. part 750mm See page 120
Tamper guide plate ext. part 750mm, r.h.
40-4812028757 Tamper guide plate ext. part 750mm, r.h. See page 144
Footboard
40-4812075065 Footboard See page 123
Footboard
40-4812075066 Footboard See page 124
Protecting hood
40-4812232538 Protecting hood See page 125
Adjusting screw
40-D614134600 Adjusting screw See page 49
Electric
40-4812017907 Electric See page 128
Electric
40-4812017908 Electric See page 149
Cable
40-4812033703 Cable harness W21 AT750 See page 151
Electric r.h. 750
40-4812033695 Electric r.h. 750 See page 152
Electric
40-4812033699 Electric See page 153
Cable
40-4812033703 Cable harness W21 AT750 See page 151
Material duct, adj., 1000mm, l.h.
40-4812027937 Material duct, adj., 1000mm, l.h. See page 106
Material duct, adj., 1000mm, r.h.
40-4812027938 Material duct, adj., 1000mm, r.h. See page 107
Socket pin
40-4812028407 Socket pin See page 108
Brace pipe
40-4812026950 Brace pipe See page 109
Operation width 8.8m, electric
40-4812233102 Operation width 8.8m, electric 251
Extension mount, AT750, electric, l.h.
40-4812232801 Extension mount, AT750, electric, l.h. See page 111
El. Heating, AT750, l.h.
40-4812232788 El. Heating, AT750, l.h. See page 114
Tamper drive ext. part 750mm
40-4812028555 Tamper drive ext. part 750mm See page 117
Vibration ext. part 750mm
40-4812218140 Vibration ext. part 750mm See page 120
Tamper guide plate ext. part 750mm, l.h.
40-4812028745 Tamper guide plate ext. part 750mm, l.h. See page 122
Footboard
40-4812075065 Footboard See page 123
Footboard
40-4812075066 Footboard See page 124
Protecting hood
40-4812232538 Protecting hood See page 125
Adjusting screw
40-D614134600 Adjusting screw See page 49
Electric AT l.h. 750
40-4812017899 Electric AT l.h. 750 See page 127
Cable
40-4812033701 Cable harness W20 AT750 See page 130
Electric l.h. 750
40-4812033693 Electric l.h. 750 See page 131
Electric
40-4812033697 Electric See page 132
Cable
40-4812033701 Cable harness W20 AT750 See page 130
Extension mount, AT750, electric, r.h.
40-4812232812 Extension mount, AT750, electric, r.h. See page 134
Vibration ext. part 750mm
40-4812233616 Vibration ext. part 750mm See page 137
El. Heating, AT750, r.h.
40-4812232813 El. Heating, AT750, r.h. See page 139
Tamper drive ext. part 750mm
40-4812028555 Tamper drive ext. part 750mm See page 117
Vibration ext. part 750mm
40-4812218140 Vibration ext. part 750mm See page 120
Tamper guide plate ext. part 750mm, r.h.
40-4812028757 Tamper guide plate ext. part 750mm, r.h. See page 144
Footboard
40-4812075065 Footboard See page 123
Footboard
40-4812075066 Footboard See page 124
Protecting hood
40-4812232538 Protecting hood See page 125
Adjusting screw
40-D614134600 Adjusting screw See page 49
Electric
40-4812017900 Electric See page 148
Electric
40-4812017908 Electric See page 149
Cable
40-4812033703 Cable harness W21 AT750 See page 151
Electric r.h. 750
40-4812033695 Electric r.h. 750 See page 152
Electric
40-4812033699 Electric See page 153
Cable
40-4812033703 Cable harness W21 AT750 See page 151
Extension mount, AT350, electric, l.h.
40-4812232159 Extension mount, AT350, electric, l.h. See page 57
El. heating
40-4812232157 El. heating See page 60
Tamper drive ext. part 350mm, l.h.
40-4812029716 Tamper drive ext. part 350mm, l.h. See page 63
Vibration ext. part 350mm, l.h.
40-4812029876 Vibration ext. part 350mm, l.h. See page 66
Tamper guide plate ext. part 350mm, l.h.
40-4812029847 Tamper guide plate ext. part 350mm, l.h. See page 68
Footboard
40-4812075063 Footboard See page 69
Footboard
40-4812075064 Footboard See page 70
Protecting hood
40-4812233007 Protecting hood See page 71
Adjusting screw
40-D614134600 Adjusting screw See page 49
Coupling
40-4812076801 Coupling See page 73
Coupling
40-4812035437 Coupling See page 74
Electric l.h. 350
40-4812033694 Electric l.h. 350 See page 75
Electric
40-4812033698 Electric See page 76
Cable
40-4812033702 Cable harness W22 AT 350 See page 77
Electric AT l.h. 350
40-4812017894 Electric See page 78
Electric
40-4812017905 Electric See page 79
Cable
40-4812033702 Cable harness W22 AT 350 See page 77
Extension mount, AT350, electric, r.h.
40-4812232160 Extension mount, AT350, electric, r.h. See page 82
El. heating, r.h.
40-4812232158 El. heating, r.h. See page 85
Tamper drive ext. part 350mm, r.h.
40-4812029768 Tamper drive ext. part 350mm, r.h. See page 88
Vibration ext. part 350mm, r.h.
40-4812029882 Vibration ext. part 350mm, r.h. See page 91
Tamper guide plate ext. part 350mm, r.h.
40-4812029852 Tamper guide plate ext. part 350mm, r.h. See page 93
Protecting hood
40-4812233007 Protecting hood See page 71
Footboard
40-4812075063 Footboard See page 69
Footboard
40-4812075064 Footboard See page 70
Adjusting screw
40-D614134600 Adjusting screw See page 49
Coupling
40-4812076801 Coupling See page 73
Coupling
40-4812035437 Coupling See page 74
Electric r.h. 350
40-4812033696 Electric r.h. 350 See page 99
Electric
40-4812033698 Electric See page 76
Cable
40-4812033702 Cable harness W22 AT 350 See page 77
Electric AT r.h. 350
40-4812017898 Electric See page 102
Electric
40-4812017906 Electric See page 103
Cable
40-4812033704 Cable harness W23 AT 350 See page 101
Material duct, adj., 1000mm, l.h.
40-4812027937 Material duct, adj., 1000mm, l.h. See page 106
Material duct, adj., 1000mm, r.h.
40-4812027938 Material duct, adj., 1000mm, r.h. See page 107
Socket pin
40-4812028407 Socket pin See page 108
Brace pipe
40-4812026950 Brace pipe See page 109
Footboard, cpl.
40-4812074793 Footboard 313
Footboard
40-4812074798 Kit, footboard 314
Footboard, middle screed, l.h.
40-4812074812 Footboard, MT l.h. 315
Footboard, middle screed, r.h.
40-4812074813 Footboard, MT r.h. 317
Footboard, side screed, l.h.
40-4812074814 Footboard, VT l.h. 319
Footboard, side screed, r.h.
40-4812074815 Footboard, VT r.h. 320
Tamper Tamper drive
40-4812227176A Tamper drive 321
Tamper drive centr. part, l.h.
40-4812227160 Tamper drive centr. part, l.h. 322
Hydr. motor
40-4812011890 Hydr. motor 326
Tamper drive centr. part, r.h.
40-4812227159 Tamper drive centr. part, r.h. 327
Tamper drive ext. part, l.h.
40-4812227161 Tamper drive ext. part, l.h. 331
Tamper drive ext. part, r.h.
40-4812227158 Tamper drive ext. part, r.h. 335
Hydraulic tamper
40-4812033313C Hydraulic, Tamper 339
Central lubrication
40-4812033865 Central lubrication 342
Vibration Vibration
40-4812233153 Vibration 344
Vibration VTL
40-4812233158 Vibration VTL 345
Vibration MTL
40-4812233159 Vibration MTL 347
Vibration MTR
40-4812233160 Vibration MTR 349
Vibration VTR
40-4812233157 Vibration VTR 351
Hydr. vibration
40-4812033314A Hydraulic, vibration 353
Central lubrication
40-4812033864 Central lubrication 357
Guard plate for vibration
40-4812234260 Guard plate for vibration 359
Electric system, PLC Electric TV E PLC
40-4812216842 Electric 360
Electric
40-4812217666 Electric 361
Junction box
40-4812076434 Junction box 362
Harness
40-4812217644 Harness W1 365
40-4812217646 Harness W2 367
40-4812217647 Harness W3 369
Control box
40-4812076495 Control box 370
40-4812217669 Electric, side shield
40-4812217669 Electric, side shield 380
El. side shield
40-4812217670 El. Side shield 381
Harness
40-4812072499 Dummy plug 382 40-4812217649 Harness W15 383
40-4812217818 Harness W15.1 384
40-4812217769 Harness W15.2 385
40-4812217661 Harness W15.3 386
40-4812217778 Harness W15.4 387
40-4812072825 Harness W15.5 388
40-4812217811 Harness W15.8 389
40-4812217651 Harness W16 390
40-4812217832 Harness W16.1 391
40-4812217770 Harness W16.2 392
40-4812217663 Harness W16.3 393
40-4812217805 Harness W16.4 394
40-4812072826 Harness W16.5 395
40-4812217851 Harness W16.8 396
40-4812217857 Mounting parts side shield 397
40-4812075193 Electric, foldable side shield
40-4812075193 Electric, foldable side shield 399
Electric, side shield
40-4812075499 Electric, side shield 400
Harness
40-4812217818 Harness W15.1 See page 384
40-4812217769 Harness W15.2 See page 385
40-4812217661 Harness W15.3 See page 386
40-4812217778 Harness W15.4 See page 387
40-4812072825 Harness W15.5 See page 388
40-4812217811 Harness W15.8 See page 389 40-4812075497 Harness W15.20 401
40-4812217832 Harness W16.1 See page 391
40-4812217770 Harness W16.2 See page 392
40-4812217663 Harness W16.3 See page 393
40-4812217805 Harness W16.4 See page 394
40-4812072826 Harness W16.5 See page 395
40-4812217851 Harness W16.8 See page 396 40-4812075498 Harness W16.20 402
40-4812072499 Dummy plug See page 382 40-4812217857 Mounting parts side shield See page 397
Electric, heating
40-4812217229 Electric, heating 404
Housing
40-4812017774 Housing MTL 405
40-4812017755 Housing MTR 406
40-4812017797 Housing VTL 407
40-4812017796 Housing VTR 409
Wiring
40-4812217648 Wiring 411
Cable
40-4812217644 Harness W1 See page 365
40-4812217646 Harness W2 See page 367
40-4812217647 Harness W3 See page 369 40-4812024108 Harness W4 413
40-4812006760 Harness W5 414
40-4812217460 Harness W6 415
40-4812217863 Harness W7 419
40-4812217864 Harness W8 420
40-4812013628 Harness W9 421
40-4812217650 Harness W10 422
40-4812217649 Harness W15 See page 383
40-4812217818 Harness W15.1 See page 384
40-4812217769 Harness W15.2 See page 385
40-4812217661 Harness W15.3 See page 386
40-4812217778 Harness W15.4 See page 387
40-4812072825 Harness W15.5 See page 388
40-4812217811 Harness W15.8 See page 389 40-4812216843 Harness W15.9 423
40-4812072753 Harness W15.10 424
40-4812072755 Harness W15.12 425
40-4812075497 Harness W15.20 See page 401
40-4812217651 Harness W16 See page 390
40-4812217832 Harness W16.1 See page 391
40-4812217770 Harness W16.2 See page 392
40-4812217663 Harness W16.3 See page 393
40-4812217805 Harness W16.4 See page 394
40-4812072826 Harness W16.5 See page 395
40-4812217851 Harness W16.8 See page 396 40-4812216850 Harness W16.9 426
40-4812072756 Harness W16.10 427
40-4812072758 Harness W16.12 428
40-4812075498 Harness W16.20 See page 402 40-4812072949 Harness W25 429
40-4812073059 Harness W25.1 430
40-4812073060 Harness W25.2 431
40-4812073061 Harness W25.3 432
40-4812073062 Harness W25.4 433
40-4812075617 Harness W25.10 434
40-4812075618 Harness W25.30 435
40-4812075495 Harness W7.1 436
40-4812075496 Harness W8.1 437
Control system
40-4812071111 Control system 439
Mounting parts
40-4812036694 Mounting parts 440
Connecting cable, PLC
40-4812071240 Cable W17 441
Options
40-4812239676 End plate unheated, l.h. & r.h.
40-4812239676 End plate unheated, l.h. & r.h. 442
End plate, cpl
40-4812239667 End plate, cpl 443
End plate, l.h.
40-4812216494 End plate, l.h. 444
Spindle, l.h.
40-4812061129 Spindle, l.h. 447
Safety lock
40-4720003740 Safety lock 449
End plate, r.h.
40-4812239626 End plate, r.h. 450
Spindle, r.h.
40-4812061148 Spindle, r.h. 453
Safety lock
40-4720003740 Safety lock See page 449
40-D241519100 Height tracing
40-D241519100 Height tracing 456
Holding device
40-4720003277 Holding device 457
Retainer
40-4720005797 Retainer 458
40-4812043252 Retainer 459
40-4812037530 Leveling
40-4812075697 Levelling bar 460
40-4812076820 Sonic sensor, PLC, auger
40-4812076820 Sonic sensor, PLC, auger 462
Retainer
40-4812228334 Retainer 463
Electric, sonic sensor
40-4812076821 Electric, sonic sensor 464
Cable, sonic sensor
40-4812217230 Cable, sonic sensor 465
Available options
40-4812032137 Central lubrication
40-4812032137 Central lubrication 466
40-4720002020 Cut off shoe for endplate unheated / top heating
40-4720002020 Cut off shoe 360mm 467
40-D614169600 Cut off shoe for endplate
40-D614169600 Cut off shoe 360mm 468
40-4720006020 Level
40-4720006020 Level 469
40-4812239689 El. end plate above heating, l.h. & r.h.
40-4812239689 El. end plate above heating, l.h. & r.h. 470
End plate, cpl
40-4812239667 End plate, cpl See page 443
End plate, l.h.
40-4812216494 End plate, l.h. See page 444
Spindle, l.h.
40-4812061129 Spindle, l.h. See page 447
Safety lock
40-4720003740 Safety lock See page 449
End plate, r.h.
40-4812239626 End plate, r.h. See page 450
Spindle, r.h.
40-4812061148 Spindle, r.h. See page 453
Safety lock
40-4720003740 Safety lock See page 449
E-upper heating
40-4812238750 E-upper heating 476
40-4812239688 El. end plate below heating, l.h. & r.h.
40-4812239688 El. end plate below heating, l.h. & r.h. 477
End plate, cpl
40-4812239667 End plate, cpl See page 443
End plate, l.h.
40-4812216494 End plate, l.h. See page 444
Spindle, l.h.
40-4812061129 Spindle, l.h. See page 447
Safety lock
40-4720003740 Safety lock See page 449
End plate, r.h.
40-4812239626 End plate, r.h. See page 450
Spindle, r.h.
40-4812061148 Spindle, r.h. See page 453
Safety lock
40-4720003740 Safety lock See page 449
E-lower heating
40-4812238749 E-lower heating 483
40-4812239690 El. end plate heating with skid, l.h. & r.h.
40-4812239690 El. end plate heating with skid, l.h. & r.h. 484
End plate, cpl
40-4812239667 End plate, cpl See page 443
End plate, l.h.
40-4812216494 End plate, l.h. See page 444
Spindle, l.h.
40-4812061129 Spindle, l.h. See page 447
Safety lock
40-4720003740 Safety lock See page 449
End plate, r.h.
40-4812239626 End plate, r.h. See page 450
Spindle, r.h.
40-4812061148 Spindle, r.h. See page 453
Safety lock
40-4720003740 Safety lock See page 449
El. heating, end plate with skid l.h. & r.h.
40-4812238857 El. heating, end plate with skid l.h. & r.h. 490 40-4812075621 El. heating, end plate with skid l.h. & r.h. 491
40-4812239693 End plate unheated, l.h. & r.h.
40-4812239693 End plate unheated, l.h. & r.h. 492
End plate, cpl
40-4812239692 End plate, cpl 494
End plate, l.h.
40-4812239684 End plate, l.h. 495
Spindle, l.h.
40-4812061129 Spindle, l.h. See page 447
Safety lock
40-4720003740 Safety lock See page 449
Hinge, l.h.
40-4812234689 Hinge, l.h. 501
End plate, r.h.
40-4812239685 End plate, r.h. 502
Spindle, r.h.
40-4812061148 Spindle, r.h. See page 453
Safety lock
40-4720003740 Safety lock See page 449
Hinge, r.h.
40-4812234680 Hinge, r.h. 508
40-4812239697 End plates, foldable, el. above heating, l.h. & r.h.
40-4812239697 End plates, foldable, el. above heating, l.h. & r.h. 509
End plate, cpl
40-4812239692 End plate, cpl See page 494
End plate, l.h.
40-4812239684 End plate, l.h. See page 495
Spindle, l.h.
40-4812061129 Spindle, l.h. See page 447
Safety lock
40-4720003740 Safety lock See page 449
Hinge, l.h.
40-4812234689 Hinge, l.h. See page 501
End plate, r.h.
40-4812239685 End plate, r.h. See page 502
Spindle, r.h.
40-4812061148 Spindle, r.h. See page 453
Safety lock
40-4720003740 Safety lock See page 449
Hinge, r.h.
40-4812234680 Hinge, r.h. See page 508
El. end plate above heating, l.h. & r.h.
40-4812238825 El. end plate above heating, l.h. & r.h. 518
40-4812239696 End plates, foldable, el. below heating, l.h. & r.h.
40-4812239696 End plates, foldable, el. below heating, l.h. & r.h. 519
End plate, cpl
40-4812239692 End plate, cpl See page 494
End plate, l.h.
40-4812239684 End plate, l.h. See page 495
Spindle, l.h.
40-4812061129 Spindle, l.h. See page 447
Safety lock
40-4720003740 Safety lock See page 449
Hinge, l.h.
40-4812234689 Hinge, l.h. See page 501
End plate, r.h.
40-4812239685 End plate, r.h. See page 502
Spindle, r.h.
40-4812061148 Spindle, r.h. See page 453
Safety lock
40-4720003740 Safety lock See page 449
Hinge, r.h.
40-4812234680 Hinge, r.h. See page 508
El. end plate below heating, l.h. & r.h.
40-4812238824 El. end plate below heating, l.h. & r.h. 528
40-4812239885 Hydr. end plate el. heating, l.h. & r.h.
40-4812239885 Hydr. end plate el. heating, l.h. & r.h. 529
End plate, cpl
40-4812239882 End plate, cpl 531
End plate, l.h.
40-4812239844 End plate, l.h. 532
Safety lock
40-4812234034 Safety lock 535
End plate, r.h.
40-4812239846 End plate, r.h. 536
Safety lock
40-4812234034 Safety lock See page 535
El. heating below heated
40-4812238749 E-lower heating See page 483
Stiffening plate, l.h.
40-4812010358 Plate, l.h. 541
Stiffening plate, r.h.
40-4812010359 Plate, r.h. 542
Hydraulic, pre-assembly
40-4812076664 Hydraulic, pre-assembly 543
Electric
40-4812217865 Electric, side shield 545
Harness W15.10
40-4812072753 Harness W15.10 See page 424
Harness W16.10
40-4812072756 Harness W16.10 See page 427
Harness W6
40-4812217460 Harness W6 See page 415
Harness W7
40-4812217863 Harness W7 See page 419
Harness W8
40-4812217864 Harness W8 See page 420
Hydr. end plate
40-4812019242 Hydraulic, end plate 551
Control block
40-4812076668 Control block 554 40-4812010450 Control block 555
Hose clamp
40-4812010756 Hose clamp 556
Suppression
40-4812010929 Suppression 557
40-4812239883 Hydr. end plate unheated, l.h. & r.h.
40-4812239883 Hydr. end plate unheated, l.h. & r.h. 558
End plate, cpl
40-4812239882 End plate, cpl See page 531
End plate, l.h.
40-4812239844 End plate, l.h. See page 532
End plate, r.h.
40-4812239846 End plate, r.h. See page 536
Stiffening plate, l.h.
40-4812010358 Plate, l.h. See page 541
Stiffening plate, r.h.
40-4812010359 Plate, r.h. See page 542
Hydraulic, pre-assembly
40-4812076664 Hydraulic, pre-assembly See page 543
Electric
40-4812217865 Electric, side shield See page 545
Harness W15.10
40-4812072753 Harness W15.10 See page 424
Harness W16.10
40-4812072756 Harness W16.10 See page 427
Harness W6
40-4812217460 Harness W6 See page 415
Harness W7
40-4812217863 Harness W7 See page 419
Harness W8
40-4812217864 Harness W8 See page 420
Hydr. end plate
40-4812019242 Hydraulic, end plate See page 551
Control block
40-4812076668 Control block See page 554
40-4812010450 Control block See page 555
Hose clamp
40-4812010756 Hose clamp See page 556
Suppression
40-4812010929 Suppression See page 557
40-4812232180 End pl. hydr.., accessories
40-4812232180 End pl. hydr.., accessories 573
Drum
40-4812232055 Drum 574
Loading hose
40-4812010948 Loading hose 575
Hyd. end plate AB 616/617
40-4812010743 Hyd. end plate AB 616/617 576
40-4812012671 Conversion kit ex. operating unit
40-4812012671 Conversion kit ex. operation 577
Conversion kit ex. operation, l.h.
40-4812032140 Conversion kit ex. operation, l.h. 578
Conversion kit ex. operation, r.h.
40-4812032141 Conversion kit ex. operation, r.h. 579
40-4812217446 Conversion kit ex. operation
40-4812217446 Conversion kit ex. operation 580
Conversion kit ex. operation, l.h.
40-4812217440 Conversion kit ex. operation, l.h. 581
Conversion kit ex. operation, r.h.
40-4812217444 Conversion kit ex. operation, r.h. 582
40-4812074772 Lighting side plate
40-4812074772 Electric, lighting side plate 583
Spot light, LED
40-4812074770 Spotlight 584
Harness
40-4812013628 Harness W9 See page 421
40-4812012241 Measuring device
40-4812012241A Measuring Dvice 586
Electric
40-4812007511 Electric, metering element 587
Harness
40-4812006760 Harness W5 See page 414
40-4812018594 Pave TM ready
40-4812018594 Pave TM ready 589
Harness
40-4812019454 Harness W10 590
40-4812076854 Sonic sensor, CON, auger
40-4812076854 Sonic sensor, CON, auger 591
Retainer
40-4812228334 Retainer See page 463
Electric, sonic sensor
40-4812015282 Electric sonic sensor 593
Cable, sonic sensor
40-4812014281 Cable, sonic sensor 594
40-4812076817 Sonic sensor, PLC, auger
40-4812076817 Sonic sensor, PLC, auger 595
Retainer
40-4812228334 Retainer See page 463
Electric, sonic sensor
40-4812015271 Electric sonic sensor 597
Cable, sonic sensor
40-4812217230 Cable, sonic sensor See page 465
40-4812076855 Sonic sensor, CON, auger
40-4812076855 Sonic sensor, CON, auger 599
Retainer
40-4812228334 Retainer See page 463
Electric, sonic sensor
40-4812076856 Electric, sonic sensor 601
Cable, sonic sensor
40-4812014281 Cable, sonic sensor See page 594
40-4812239898 Hydr. end plate el. heating with skid, l.h. & r.h.
40-4812239898 Hydr. end plate el. heating with skid, l.h. & r.h. 603
End plate, cpl
40-4812239882 End plate, cpl See page 531
End plate, l.h.
40-4812239844 End plate, l.h. See page 532
End plate, r.h.
40-4812239846 End plate, r.h. See page 536
El. heating, end plate with skid l.h. & r.h.
40-4812238857 El. heating, end plate with skid l.h. & r.h. See page 490 40-4812075621 El. heating, end plate with skid l.h. & r.h. See page 491
Stiffening plate, l.h.
40-4812010358 Plate, l.h. See page 541
Stiffening plate, r.h.
40-4812010359 Plate, r.h. See page 542
Hydraulic, pre-assembly
40-4812076664 Hydraulic, pre-assembly See page 543
Electric
40-4812217865 Electric, side shield See page 545
Harness W15.10
40-4812072753 Harness W15.10 See page 424
Harness W16.10
40-4812072756 Harness W16.10 See page 427
Harness W6
40-4812217460 Harness W6 See page 415
Harness W7
40-4812217863 Harness W7 See page 419
Harness W8
40-4812217864 Harness W8 See page 420
Hydr. end plate
40-4812019242 Hydraulic, end plate See page 551
Control block
40-4812076668 Control block See page 554
40-4812010450 Control block See page 555
Hose clamp
40-4812010756 Hose clamp See page 556
Suppression
40-4812010929 Suppression See page 557
40-4812231392 End plate, cpl., without heating
40-4812231392 End plate, cpl., without heating 619
End plate
40-4812231391 End plate 620
End plate, l.h.
40-4812231388 End plate, l.h. 621
Safety lock
40-4720003740 Safety lock See page 449
Kit, for the front pin
40-4812201086 Kit, for the front pin 626
End plate, r.h.
40-4812231389 End plate, r.h. 627
Safety lock
40-4720003740 Safety lock See page 449
Kit, for the front pin
40-4812201086 Kit, for the front pin See page 626
40-4812234693 End plate, l.h. & r.h.
40-4812234693 End plate, l.h. & r.h. 633
End plate, l.h. & r.h.
40-4812234692 End plate, l.h. & r.h. 636
End plate, l.h.
40-4812234690 End plate, l.h. 637
Hinge, l.h.
40-4812234689 Hinge, l.h. See page 501
Safety lock
40-4720003740 Safety lock See page 449
End plate, r.h.
40-4812234691 End plate, r.h. 643
Hinge, r.h.
40-4812234680 Hinge, r.h. See page 508
Safety lock
40-4720003740 Safety lock See page 449
40-4812231566 End pl., upper part e-heated
40-4812231566 End pl., upper part e-heated 649
End plate
40-4812231565 End plate 650
End plate, l.h.
40-4812231540 End plate, l.h. 651
Safety lock
40-4720003740 Safety lock See page 449
Kit, for the front pin
40-4812201086 Kit, for the front pin See page 626
End plate, r.h.
40-4812231541 End plate, r.h. 657
Safety lock
40-4720003740 Safety lock See page 449
Kit, for the front pin
40-4812201086 Kit, for the front pin See page 626
El. heating
40-4812232196 El. heating 663
40-4812231385 End pl., lower part e-heated
40-4812231385 End pl., lower part e-heated 664
End plate
40-4812231383 End plate 665
End plate, l.h.
40-4812231381 End plate, l.h. 666
Safety lock
40-4720003740 Safety lock See page 449
Kit, for the front pin
40-4812201086 Kit, for the front pin See page 626
End plate, r.h.
40-4812231382 End plate, r.h. 672
Safety lock
40-4720003740 Safety lock See page 449
Kit, for the front pin
40-4812201086 Kit, for the front pin See page 626
El. heating
40-4812232196 El. heating See page 663
40-4812231662 End pl., with base, lower e-heated
40-4812231662 End pl. with base, lower e-heated 679
End plate
40-4812231655 End plate, l.h. / r.h. 680
End plate, l.h.
40-4812231652 End plate, l.h. 681
Safety lock
40-4720003740 Safety lock See page 449
Kit, for the front pin
40-4812201086 Kit, for the front pin See page 626
End plate, r.h.
40-4812231653 End plate, r.h. 687
Safety lock
40-4720003740 Safety lock See page 449
Kit, for the front pin
40-4812201086 Kit, for the front pin See page 626
El. heating
40-4812232196 El. heating See page 663
40-4812235447 End plate, l.h. & r.h. heated, lower part e-heated
40-4812235447 End plate, l.h. & r.h. heated 694
End plate, l.h. & r.h. heated
40-4812235452 End plate, l.h. & r.h. heated 696
End plate, l.h.
40-4812235451 End plate, l.h. 697
Hinge, l.h.
40-4812234689 Hinge, l.h. See page 501
Safety lock
40-4720003740 Safety lock See page 449
End plate, r.h.
40-4812235450 End plate, r.h. 703
Hinge, r.h.
40-4812234680 Hinge, r.h.See page 508
Safety lock
40-4720003740 Safety lock See page 449
El. heating
40-4812235445 El. heating 709
40-4812235453 End plate, l.h. & r.h. heated, upper part e heated
40-4812235453 End plate, l.h. & r.h. heated 710
End plate, l.h. & r.h. heated
40-4812235446 End plate, l.h. & r.h. heated 712
End plate, l.h.
40-4812235444 End plate, l.h. 713
Hinge, l.h.
40-4812234689 Hinge, l.h. See page 501
Safety lock
40-4720003740 Safety lock See page 449
End plate, r.h.
40-4812235443 End plate, r.h. 719
Hinge, r.h.
40-4812234680 Hinge, r.h.See page 508
Safety lock
40-4720003740 Safety lock See page 449
El. heating
40-4812235445 El. heating See page 709
40-4812077083 Electric, MatTracker
40-4812077071 Harness, screed
40-4812073067 Harness W25 726
Retainer
40-4812073830 Retainer727
40-4812077109 Harness, side shield
40-4812077073 Harness, side shield728
Harness
40-4812216843 Harness W15.9 See page 423
40-4812216850 Harness W16.9 See page 426
Harness
40-4812073059 Harness W25.1 See page 430
Retainer
40-4812073612 Retainer 729
Harness
40-4812073061 Harness W25.3 See page 432
Retainer
40-4812073612 Retainer See page 729
40-4812077112 Electric, MatTracker
40-4812077071 Harness, screed
40-4812073067 Harness W25 See page 726
Retainer
40-4812073830 Retainer See page 727
40-4812077110 Harness, foldable side shield
40-4812077079 Harness, foldable side shield 734
Harness
40-4812216843 Harness W15.9 See page 423
40-4812216850 Harness W16.9 See page 426
Harness
40-4812075617 Harness W25.10 See page 434
Retainer
40-4812073612 Retainer See page 729
Harness
40-4812075618 Harness W25.30 See page 435
Retainer
40-4812073612 Retainer See page 729
40-4812077502 Connection cable MatTracker
40-4812077502 Connection cable MatTracker 738
40-4812063438 Foldable hydr. end plate, unheated, l.h. & r.h.
40-4812063438 Foldable hydr. end plate, unheated, l.h. & r.h. 739
Foldable hydr. end plate
40-4812063437 Foldable hydr. end plate 741
End plate, l.h.
40-4812063434 End plate, l.h. 742
End plate, r.h.
40-4812063432 End plate, r.h. 746
Stiffening plate, l.h.
40-4812010358 Plate, l.h. See page 541
Stiffening plate, r.h.
40-4812010359 Plate, r.h. See page 542
Hydraulic, pre-assembly
40-4812076664 Hydraulic, pre-assembly See page 543
Electric, foldable hydr. end plate
40-4812075539 Electric, foldable hydr. end plate 753
Harness
40-4812217460 Harness W6 See page 415
40-4812075495 Harness W7.1 See page 436
40-4812075496 Harness W8.1 See page 437
40-4812072753 Harness W15.10 See page 424
40-4812072756 Harness W16.10 See page 427
Hydraulic, side shields
40-4812075858 Hydraulic, side shields 755
Control block
40-4812076668 Control block See page 554
40-4812010450 Control block See page 555
Hose clamp
40-4812010756 Hose clamp See page 556
Suppression
40-4812010929 Suppression See page 557
Hose guide
40-4812075946 Hose guide 761
40-4812063440 Foldable hydr. end plate, el. heating, l.h. & r.h.
40-4812063440 Foldable hydr. end plate, el. heating, l.h. & r.h. 762
Foldable hydr. end plate
40-4812063437 Foldable hydr. end plate See page 741
End plate, l.h.
40-4812063434 End plate, l.h. See page 742
End plate, r.h.
40-4812063432 End plate, r.h. See page 746
Electric, heating lower heated
40-4812063482 Electric, heating lower heated 766
Stiffening plate, l.h.
40-4812010358 Plate, l.h. See page 541
Stiffening plate, r.h.
40-4812010359 Plate, r.h. See page 542
Hydraulic, pre-assembly
40-4812076664 Hydraulic, pre-assembly See page 543
Electric, foldable hydr. end plate
40-4812075539 Electric, foldable hydr. end plate See page 753
Harness
40-4812217460 Harness W6 See page 415
40-4812075495 Harness W7.1 See page 436
40-4812075496 Harness W8.1 See page 437
40-4812072753 Harness W15.10 See page 424
40-4812072756 Harness W16.10 See page 427
Hydraulic, side shields
40-4812075858 Hydraulic, side shields See page 755
Control block
40-4812076668 Control block See page 554
40-4812010450 Control block See page 555
Hose clamp
40-4812010756 Hose clamp See page 556
Suppression
40-4812010929 Suppression See page 557
Hose guide
40-4812075946 Hose guide See page 761
40-4812075925 Heigth tracing
40-4812075925 Heigth tracing 775
Retainer
40-4720005797 RetainerSee page 458
40-4812043252 RetainerSee page 459
40-4812071159 Electric plc, lighting side plate
40-4812071159 Electric plc, lighting side plate 778
Harness
40-4812072755 Harness W15.12 See page 425
40-4812072758 Harness W16.12 See page 428
40-4812071350 Electric, con, lighting side plate
40-4812071350 Electric, con., Lighting side plate 780
Harness
40-4812071225 Harness W2 781
40-4812071333 Harness W16.5 783
Edge compactor
Edge compactor, without heating 784 Edge compactor, electric heating 787 Hydraulic edge compactor, electric heating 790 Hydraulic edge compactor, without heating 793
Accessories Decals (E)
40-4812035402 Decals Screed 796
