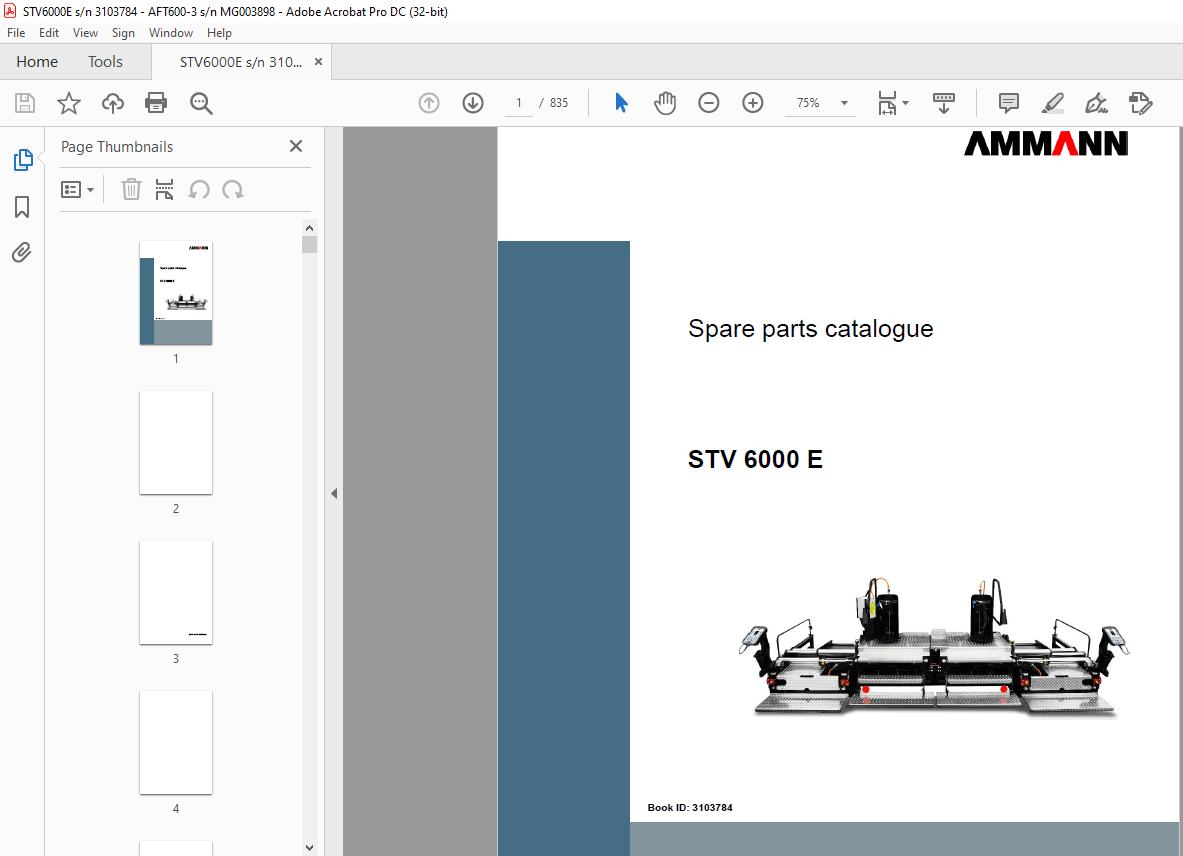

IMAGES PREVIEW OF THE MANUAL:

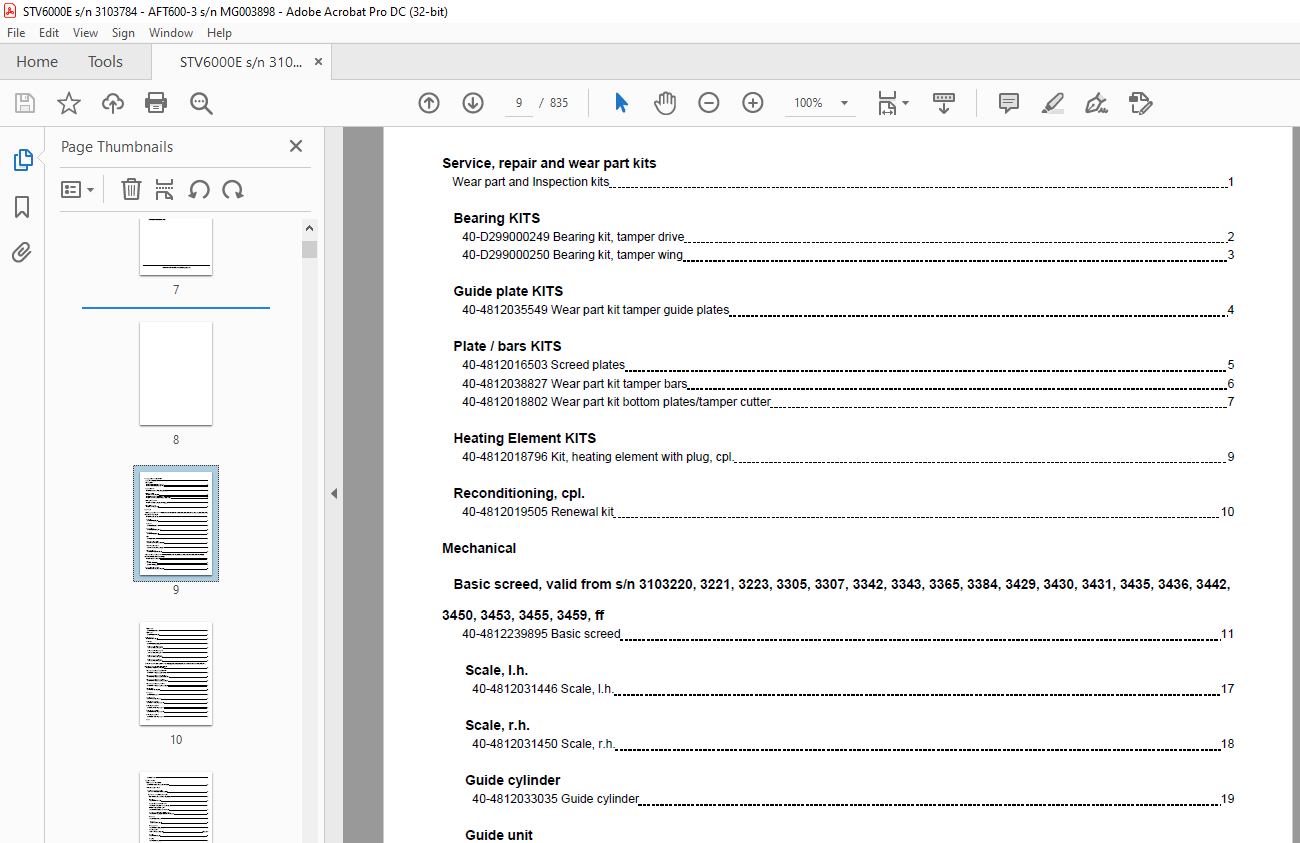

TABLE OF CONTENTS:

Ammann STV 6000 E Cummins Tier3 / Stage III Spare Parts Catalogue Manual 3103784 – PDF DOWNLOAD

ervice, repair and wear part kits
Wear part and Inspection kits 1
Bearing KITS
40-D299000249 Bearing kit, tamper drive 2 40-D299000250 Bearing kit, tamper wing 3
Guide plate KITS
40-4812035549 Wear part kit tamper guide plates 4
Plate / bars KITS

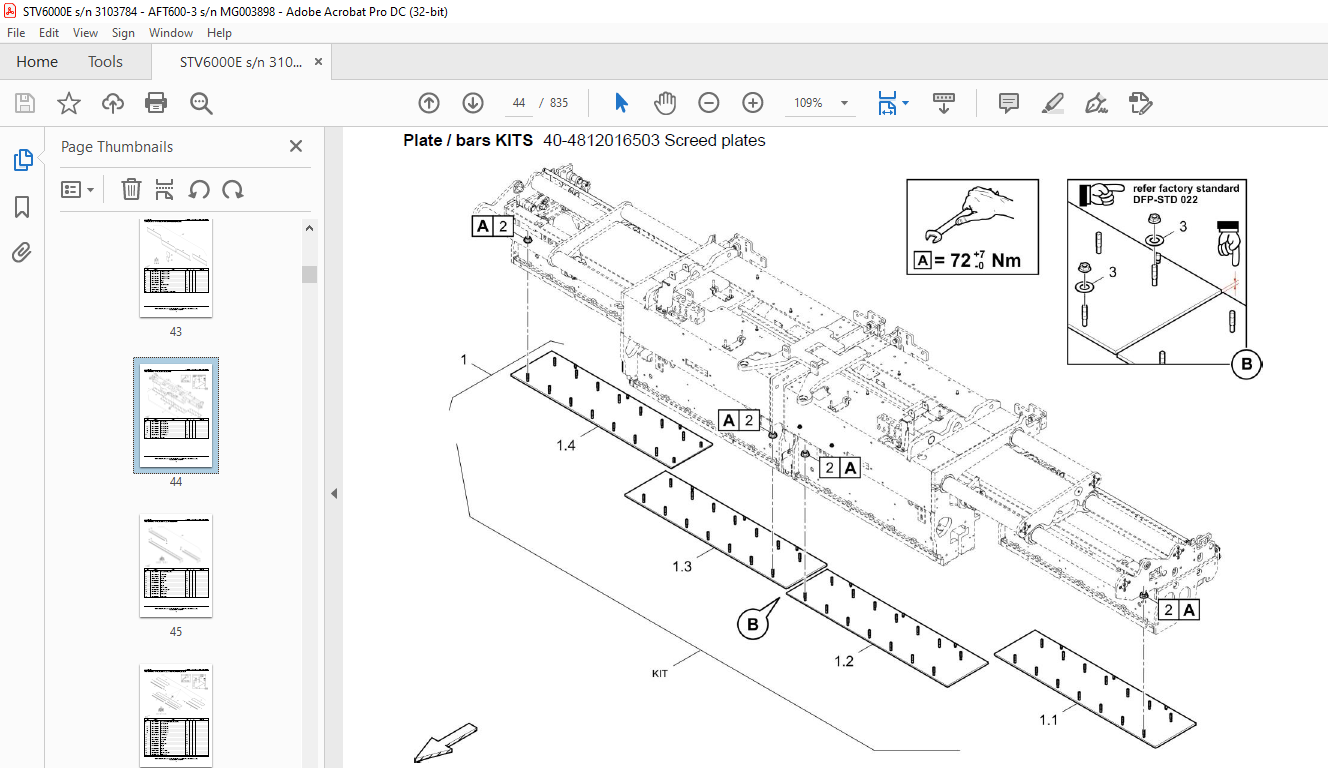

40-4812016503 Screed plates 5 40-4812038827 Wear part kit tamper bars 6 40-4812018802 Wear part kit bottom plates/tamper cutter 7
Heating Element KITS
40-4812018796 Kit, heating element with plug, cpl. 9
Reconditioning, cpl.
40-4812019505 Renewal kit 10
Mechanical
Basic screed, valid from s/n 3103220, 3221, 3223, 3305, 3307, 3342, 3343, 3365, 3384, 3429, 3430, 3431, 3435, 3436, 3442,
3450, 3453, 3455, 3459, ff
40-4812239895 Basic screed 11
Scale, l.h.
40-4812031446 Scale, l.h. 17
Scale, r.h.
40-4812031450 Scale, r.h. 18
Guide cylinder
40-4812033035 Guide cylinder 19
Guide unit
40-4812044786 Guide unit 20
Pipe
40-4720007749 Pipe 21
Vertical adjustment, l.h.
40-D614014900 Vertical adjustment, l.h. 22
Vertical adjustment, r.h.
40-D614015000 Vertical adjustment, r.h. 24
Hydraulic diagram
40-4812033477 Hydraulic diagram 26
Electric heating – Valid from s/n 3102480, 3102492, 3102494, 3102500, 310501, 310505, 310506, 3102511, 3102512,
3102514, 3102515, 3102521, 3102558, ff
40-4812016493B Electric heating 27
Ascent
40-4812011406 Ascent 32 40-4812217242 Kit, ascent 33
Roof profile setting, mech.
40-4812232659 Roof profile setting, mech. 34
Retainer, r.h.
40-4812072509 Retainer, r.h. 36
Retainer, l.h.
40-4812072508 Retainer, l.h. 37
Footboard, cpl.
40-4812074794 Footboard 38
Footboard
40-4812074838 Kit, Footboard 39
Footboard, middle screed, l.h.
40-4812074839 Footboard, MT l.h. 40
Footboard, middle screed, r.h.
40-4812074840 Footboard, MT r.h. 42
Footboard, side screed, l.h.
40-4812074842 Footboard, VT l.h. 44
Footboard, side screed, r.h.
40-4812074843 Footboard, VT r.h. 45
Protection and trim plates, valid from s/n 3103220, 3221, 3223, 3305, 3307, 3342, 3343, 3365, 3384, 3429, 3430, 3431,
3435, 3436, 3442, 3450, 3453, 3455, 3459, ff
40-4812239274 Protection and trim plates 46
Tamper guide plate central part, MT l.h.
40-4812031264 Tamper guide plate central part, l.h. 50
Tamper guide plate central part, MT r.h.
40-4812031265 Tamper guide plate central part, r.h. 51
Tamper guide plate ext. part, VT l.h.
40-4812031275 Tamper guide plate ext. part, l.h. 52
Tamper guide plate ext. part, VT r.h.
40-4812031284 Tamper guide plate ext. part, r.h. 53
Overlap plate
40-4812028304 Overlap plate 54
Hose guide
40-4812027950 Hose guide 55
Adjusting screw
40-D614134600 Adjusting screw 56
Protecting hood, MT l.h.
40-4812238124 Protecting hood, MT l.h. 57
Protecting hood, MT r.h.
40-4812238125 Protecting hood, MT r.h. 58
Protecting hood, VT l.h.
40-4812239275 Protecting hood, VT l.h. 59
Protecting hood, VT r.h.
40-4812239281 Protecting hood, VT r.h. 60
0-4812238121 Cover 61
Operation width, E
Basic operation width 6,00m
40-4812033918 Gr.09 Basic operation width 6,00m 62
Available operation width Operation width 6.7m, electric
40-4812233122 Operation width 6.7m, electric 63
Extension mount, AT350, electric, l.h.
40-4812232159 Extension mount, AT350, electric, l.h. 65
El. heating
40-4812232157 El. heating 68
Tamper drive ext. part 350mm, l.h.
40-4812029716 Tamper drive ext. part 350mm, l.h. 71
Vibration ext. part 350mm, l.h.
40-4812029876 Vibration ext. part 350mm, l.h. 74
Tamper guide plate ext. part 350mm, l.h.
40-4812029847 Tamper guide plate ext. part 350mm, l.h. 76
Footboard
40-4812075063 Footboard 77
Footboard
40-4812075064 Footboard 78
Protecting hood
40-4812233007 Protecting hood 79
Adjusting screw
40-D614134600 Adjusting screw See page 56
Coupling
40-4812076801 Coupling 81
Coupling
40-4812035437 Coupling 82
Electric l.h. 350
40-4812033694 Electric l.h. 350 83
Electric
40-4812033698 Electric 84
Cable
40-4812033702 Cable harness W22 AT 350 85
Electric AT l.h. 350
40-4812017894 Electric 86
Electric
40-4812017905 Electric 87
Cable
40-4812033702 Cable harness W22 AT 350 See page 85
Extension mount, AT350, electric, r.h.
40-4812232160 Extension mount, AT350, electric, r.h. 90
El. heating, r.h.
40-4812232158 El. heating, r.h. 93
Tamper drive ext. part 350mm, r.h.
40-4812029768 Tamper drive ext. part 350mm, r.h. 96
Vibration ext. part 350mm, r.h.
40-4812029882 Vibration ext. part 350mm, r.h. 99
Tamper guide plate ext. part 350mm, r.h.
40-4812029852 Tamper guide plate ext. part 350mm, r.h. 101
Protecting hood
40-4812233007 Protecting hood See page 79
Footboard
40-4812075063 Footboard See page 77
Footboard
40-4812075064 Footboard See page 78
Adjusting screw
40-D614134600 Adjusting screw See page 56
Coupling
40-4812076801 Coupling See page 81
Coupling
40-4812035437 Coupling See page 82
Electric r.h. 350
40-4812033696 Electric r.h. 350 107
Electric
40-4812033698 Electric See page 84
Cable
40-4812033702 Cable harness W22 AT 350 See page 85
Electric AT r.h. 350
40-4812017898 Electric 110
Electric
40-4812017906 Electric 111
Cable
40-4812033704 Cable harness W23 AT 350 113
Material duct, adj., 1000mm, l.h.
40-4812027937 Material duct, adj., 1000mm, l.h. 114
Material duct, adj., 1000mm, r.h.
40-4812027938 Material duct, adj., 1000mm, r.h. 115
Socket pin
40-4812028407 Socket pin 116
Brace pipe
40-4812026950 Brace pipe 117
Operation width 7.5m, electric
40-4812233123 Operation width 7.5m, electric 118
Extension mount, AT750, electric, l.h.
40-4812232801 Extension mount, AT750, electric, l.h. 120
El. Heating, AT750, l.h.
40-4812232788 El. Heating, AT750, l.h. 123
Tamper drive ext. part 750mm
40-4812028555 Tamper drive ext. part 750mm 126
Vibration ext. part 750mm
40-4812218140 Vibration ext. part 750mm 129
Tamper guide plate ext. part 750mm, l.h.
40-4812028745 Tamper guide plate ext. part 750mm, l.h. 131
Footboard
40-4812075065 Footboard 132
Footboard
40-4812075066 Footboard 133
Protecting hood
40-4812232538 Protecting hood 134
Adjusting screw
40-D614134600 Adjusting screw See page 56
Electric AT l.h. 750
40-4812017899 Electric AT l.h. 750 136
Electric
40-4812017907 Electric 137
Cable
40-4812033701 Cable harness W20 AT750 139
Electric l.h. 750
40-4812033693 Electric l.h. 750 140
Electric
40-4812033697 Electric 141
Cable
40-4812033701 Cable harness W20 AT750 See page 139
Extension mount, AT750, electric, r.h.
40-4812232812 Extension mount, AT750, electric, r.h. 143
Vibration ext. part 750mm
40-4812233616 Vibration ext. part 750mm 146
El. Heating, AT750, r.h.
40-4812232813 El. Heating, AT750, r.h. 148
Tamper drive ext. part 750mm
40-4812028555 Tamper drive ext. part 750mm See page 126
Vibration ext. part 750mm
40-4812218140 Vibration ext. part 750mm See page 129
Tamper guide plate ext. part 750mm, r.h.
40-4812028757 Tamper guide plate ext. part 750mm, r.h. 153
Footboard
40-4812075065 Footboard See page 132
Footboard
40-4812075066 Footboard See page 133
Protecting hood
40-4812232538 Protecting hood See page 134
Adjusting screw
40-D614134600 Adjusting screw See page 56
Electric
40-4812017900 Electric 157
Electric
40-4812017908 Electric 158
Cable
40-4812033703 Cable harness W21 AT750 160
Electric r.h. 750
40-4812033695 Electric r.h. 750 161
Electric
40-4812033699 Electric 162
Cable
40-4812033703 Cable harness W21 AT750 See page 160
Material duct, adj., 1000mm, l.h.
40-4812027937 Material duct, adj., 1000mm, l.h. See page 114
Material duct, adj., 1000mm, r.h.
40-4812027938 Material duct, adj., 1000mm, r.h. See page 115
Socket pin
40-4812028407 Socket pin See page 116
Brace pipe
40-4812026950 Brace pipe See page 117
Operation width 8.2m, electric
40-4812233124 Operation width 8.2m, electric 168
Extension mount, AT750, electric, l.h.
40-4812232801 Extension mount, AT750, electric, l.h. See page 120
El. Heating, AT750, l.h.
40-4812232788 El. Heating, AT750, l.h. See page 123
Tamper drive ext. part 750mm
40-4812028555 Tamper drive ext. part 750mm See page 126
Vibration ext. part 750mm
40-4812218140 Vibration ext. part 750mm See page 129
Tamper guide plate ext. part 750mm, l.h.
40-4812028745 Tamper guide plate ext. part 750mm, l.h. See page 131
Footboard
40-4812075065 Footboard See page 132
Footboard
40-4812075065 Footboard See page 133
Protecting hood
40-4812232538 Protecting hood See page 134
Adjusting screw
40-D614134600 Adjusting screw See page 56
Electric AT l.h. 750
40-4812017899 Electric AT l.h. 750 See page 136
Electric
40-4812017907 Electric See page 137
Cable
40-4812033701 Cable harness W20 AT750 See page 139
Electric l.h. 750
40-4812033693 Electric l.h. 750 See page 140
Electric
40-4812033697 Electric See page 141
Cable
40-4812033701 Cable harness W20 AT750 See page 139
Extension mount, AT750, electric, r.h.
40-4812232812 Extension mount, AT750, electric, r.h. See page 143
Vibration ext. part 750mm
40-4812233616 Vibration ext. part 750mm See page 146
El. Heating, AT750, r.h.
40-4812232813 El. Heating, AT750, r.h. See page 148
Tamper drive ext. part 750mm
40-4812028555 Tamper drive ext. part 750mm See page 126
Vibration ext. part 750mm
40-4812218140 Vibration ext. part 750mm See page 129
Tamper guide plate ext. part 750mm, r.h.
40-4812028757 Tamper guide plate ext. part 750mm, r.h. See page 153
Footboard
40-4812075065 Footboard See page 132
Footboard
40-4812075066 Footboard See page 133
Protecting hood
40-4812232538 Protecting hood See page 134
Adjusting screw
40-D614134600 Adjusting screw See page 56
Electric
40-4812017900 Electric See page 157
Electric
40-4812017908 Electric See page 158
Cable
40-4812033703 Cable harness W21 AT750 See page 160
Electric r.h. 750
40-4812033695 Electric r.h. 750 See page 161
Electric
40-4812033699 Electric See page 162
Cable
40-4812033703 Cable harness W21 AT750 See page 160
Extension mount, AT350, electric, l.h.
40-4812232159 Extension mount, AT350, electric, l.h. See page 65
El. heating
40-4812232157 El. heating See page 68
Tamper drive ext. part 350mm, l.h.
40-4812029716 Tamper drive ext. part 350mm, l.h. See page 71
Vibration ext. part 350mm, l.h.
40-4812029876 Vibration ext. part 350mm, l.h. See page 74
Tamper guide plate ext. part 350mm, l.h.
40-4812029847 Tamper guide plate ext. part 350mm, l.h. See page 76
Footboard
40-4812075063 Footboard See page 77
Footboard
40-4812075064 Footboard See page 78
Protecting hood
40-4812233007 Protecting hood See page 79
Adjusting screw
40-D614134600 Adjusting screw See page 56
Coupling
40-4812076801 Coupling See page 81
Coupling
40-4812035437 Coupling See page 82
Electric l.h. 350
40-4812033694 Electric l.h. 350 See page 83
Electric
40-4812033698 Electric See page 84
Cable
40-4812033702 Cable harness W22 AT 350 See page 85
Electric AT l.h. 350
40-4812017894 Electric See page 86
Electric
40-4812017905 Electric See page 87
Cable
40-4812033702 Cable harness W22 AT 350 See page 85
Extension mount, AT350, electric, r.h.
40-4812232160 Extension mount, AT350, electric, r.h. See page 90
El. heating, r.h.
40-4812232158 El. heating, r.h. See page 93
Tamper drive ext. part 350mm, r.h.
40-4812029768 Tamper drive ext. part 350mm, r.h. See page 96
Vibration ext. part 350mm, r.h.
40-4812029882 Vibration ext. part 350mm, r.h. See page 99
Tamper guide plate ext. part 350mm, r.h.
40-4812029852 Tamper guide plate ext. part 350mm, r.h. See page 101
Protecting hood
40-4812233007 Protecting hood See page 79
Footboard
40-4812075063 Footboard See page 77
Footboard
40-4812075064 Footboard See page 78
Adjusting screw
40-D614134600 Adjusting screw See page 56
Coupling
40-4812076801 Coupling See page 81
Coupling
40-4812035437 Coupling See page 82
Electric r.h. 350
40-4812033696 Electric r.h. 350 See page 107
Electric
40-4812033698 Electric See page 84
Cable
40-4812033702 Cable harness W22 AT 350 See page 85
Electric AT r.h. 350
40-4812017898 Electric See page 110
Electric
40-4812017906 Electric See page 111
Cable
40-4812033704 Cable harness W23 AT 350 See page 113
Material duct, adj., 1000mm, l.h.
40-4812027937 Material duct, adj., 1000mm, l.h. See page 114
Material duct, adj., 1000mm, r.h.
40-4812027938 Material duct, adj., 1000mm, r.h. See page 115
Socket pin
40-4812028407 Socket pin See page 116
Brace pipe
40-4812026950 Brace pipe See page 117
Operation width 9.0m, electric
40-4812233125 Operation width 9.0m, electric 229
Extension mount, AT750, electric, l.h.
40-4812232801 Extension mount, AT750, electric, l.h. See page 120
El. Heating, AT750, l.h.
40-4812232788 El. Heating, AT750, l.h. See page 123
Tamper drive ext. part 750mm
40-4812028555 Tamper drive ext. part 750mm See page 126
Vibration ext. part 750mm
40-4812218140 Vibration ext. part 750mm See page 129
Tamper guide plate ext. part 750mm, l.h.
40-4812028745 Tamper guide plate ext. part 750mm, l.h. See page 131
Footboard
40-4812075065 Footboard See page 132
Footboard
40-4812075066 Footboard See page 133
Protecting hood
40-4812232538 Protecting hood See page 134
Adjusting screw
40-D614134600 Adjusting screw See page 56
Electric AT l.h. 750
40-4812017899 Electric AT l.h. 750 See page 136
Electric
40-4812017907 Electric See page 137
Cable
40-4812033701 Cable harness W20 AT750 See page 139
Electric l.h. 750
40-4812033693 Electric l.h. 750 See page 140
Electric
40-4812033697 Electric See page 141
Cable
40-4812033701 Cable harness W20 AT750 See page 139
Extension mount, AT750, electric, r.h.
40-4812232812 Extension mount, AT750, electric, r.h. See page 143
Vibration ext. part 750mm
40-4812233616 Vibration ext. part 750mm See page 146
El. Heating, AT750, r.h.
40-4812232813 El. Heating, AT750, r.h. See page 148
Tamper drive ext. part 750mm
40-4812028555 Tamper drive ext. part 750mm See page 126
Vibration ext. part 750mm
40-4812218140 Vibration ext. part 750mm See page 129
Tamper guide plate ext. part 750mm, r.h.
40-4812028757 Tamper guide plate ext. part 750mm, r.h. See page 153
Footboard
40-4812075065 Footboard See page 132
Footboard
40-4812075066 Footboard See page 133
Protecting hood
40-4812232538 Protecting hood See page 134
Adjusting screw
40-D614134600 Adjusting screw See page 56
Electric
40-4812017900 Electric See page 157
Electric
40-4812017908 Electric See page 158
Cable
40-4812033703 Cable harness W21 AT750 See page 160
Electric r.h. 750
40-4812033695 Electric r.h. 750 See page 161
Electric
40-4812033699 Electric See page 162
Cable
40-4812033703 Cable harness W21 AT750 See page 160
Material duct, adj., 1000mm, l.h.
40-4812027937 Material duct, adj., 1000mm, l.h. See page 114
Material duct, adj., 1000mm, r.h.
40-4812027938 Material duct, adj., 1000mm, r.h. See page 115
Socket pin
40-4812028407 Socket pin See page 116
Brace pipe
40-4812026950 Brace pipe See page 117
Operation width 9.7m, electric
40-4812233126 Operation width 9.7m, electric 261
Extension mount, AT750, electric, l.h.
40-4812232801 Extension mount, AT750, electric, l.h. See page 120
El. Heating, AT750, l.h.
40-4812232788 El. Heating, AT750, l.h. See page 123
Tamper drive ext. part 750mm
40-4812028555 Tamper drive ext. part 750mm See page 126
Vibration ext. part 750mm
40-4812218140 Vibration ext. part 750mm See page 129
Tamper guide plate ext. part 750mm, l.h.
40-4812028745 Tamper guide plate ext. part 750mm, l.h. See page 131
Electric
40-4812017900 Electric See page 157
Footboard
40-4812075065 Footboard See page 132
Footboard
40-4812075066 Footboard See page 133
Protecting hood
40-4812232538 Protecting hood See page 134
Adjusting screw
40-D614134600 Adjusting screw See page 56
Electric AT l.h. 750
40-4812017899 Electric AT l.h. 750 See page 136
Electric
40-4812017907 Electric See page 137
Cable
40-4812033701 Cable harness W20 AT750 See page 139
Electric l.h. 750
40-4812033693 Electric l.h. 750 See page 140
Electric
40-4812033697 Electric See page 141
Cable
40-4812033701 Cable harness W20 AT750 See page 139
Extension mount, AT750, electric, r.h.
40-4812232812 Extension mount, AT750, electric, r.h. See page 143
Vibration ext. part 750mm
40-4812233616 Vibration ext. part 750mm See page 146
El. Heating, AT750, r.h.
40-4812232813 El. Heating, AT750, r.h. See page 148
Tamper drive ext. part 750mm
40-4812028555 Tamper drive ext. part 750mm See page 126
Vibration ext. part 750mm
40-4812218140 Vibration ext. part 750mm See page 129
Tamper guide plate ext. part 750mm, r.h.
40-4812028757 Tamper guide plate ext. part 750mm, r.h. See page 153
Footboard
40-4812075065 Footboard See page 132
Footboard
40-4812075066 Footboard See page 133
Protecting hood
40-4812232538 Protecting hood See page 134
Adjusting screw
40-D614134600 Adjusting screw See page 56
Electric
40-4812017905 Electric See page 87
Electric
40-4812017908 Electric See page 158
Cable
40-4812033703 Cable harness W21 AT750 See page 160
Electric r.h. 750
40-4812033695 Electric r.h. 750 See page 161
Electric
40-4812033699 Electric See page 162
Cable
40-4812033703 Cable harness W21 AT750 See page 160
Extension mount, AT350, electric, l.h.
40-4812232159 Extension mount, AT350, electric, l.h. See page 65
El. heating
40-4812232157 El. heating See page 68
Tamper drive ext. part 350mm, l.h.
40-4812029716 Tamper drive ext. part 350mm, l.h. See page 71
Vibration ext. part 350mm, l.h.
40-4812029876 Vibration ext. part 350mm, l.h. See page 74
Tamper guide plate ext. part 350mm, l.h.
40-4812029847 Tamper guide plate ext. part 350mm, l.h. See page 76
Footboard
40-4812075063 Footboard See page 77
Footboard
40-4812075064 Footboard See page 78
Protecting hood
40-4812233007 Protecting hood See page 79
Adjusting screw
40-D614134600 Adjusting screw See page 56
Coupling
40-4812076801 Coupling See page 81
Coupling
40-4812035437 Coupling See page 82
Electric l.h. 350
40-4812033694 Electric l.h. 350 See page 83
Electric
40-4812033698 Electric See page 84
Cable
40-4812033702 Cable harness W22 AT 350 See page 85
Electric AT l.h. 350
40-4812017894 Electric See page 86
Cable
40-4812033702 Cable harness W22 AT 350 See page 85
Extension mount, AT350, electric, r.h.
40-4812232160 Extension mount, AT350, electric, r.h. See page 90
El. heating, r.h.
40-4812232158 El. heating, r.h. See page 93
Tamper drive ext. part 350mm, r.h.
40-4812029768 Tamper drive ext. part 350mm, r.h. See page 96
Vibration ext. part 350mm, r.h.
40-4812029882 Vibration ext. part 350mm, r.h. See page 99
Tamper guide plate ext. part 350mm, r.h.
40-4812029852 Tamper guide plate ext. part 350mm, r.h. See page 101
Protecting hood
40-4812233007 Protecting hood See page 79
Footboard
40-4812075063 Footboard See page 77
Footboard
40-4812075064 Footboard See page 78
Adjusting screw
40-D614134600 Adjusting screw See page 56
Coupling
40-4812076801 Coupling See page 81
Coupling
40-4812035437 Coupling See page 82
Electric r.h. 350
40-4812033696 Electric r.h. 350 See page 107
Electric
40-4812033698 Electric See page 84
Cable
40-4812033702 Cable harness W22 AT 350 See page 85
Electric AT r.h. 350
40-4812017898 Electric See page 110
Electric
40-4812017906 Electric See page 111
Cable
40-4812033704 Cable harness W23 AT 350 See page 113
Material duct, adj., 1000mm, l.h.
40-4812027937 Material duct, adj., 1000mm, l.h. See page 114
Material duct, adj., 1000mm, r.h.
40-4812027938 Material duct, adj., 1000mm, r.h. See page 115
Socket pin
40-4812028407 Socket pin See page 116
Brace pipe
40-4812026950 Brace pipe See page 117
Tamper Tamper drive
40-4812227177A Tamper drive 323
Stampferantrieb
Tamper drive centr. part, l. h.
40-4812227174 Tamper drive centr. part, l.h. 324
Tamper drive centr. part, r. h.
40-4812227173 Tamper drive centr. part, r.h. 328
Tamper drive ext. part, l. h.
40-4812227175 Tamper drive ext. part, l.h. 332
Tamper drive ext. part, r. h.
40-4812227172 Tamper drive ext. part, r.h. 336
Hydraulic tamper
40-4812033475C Hydraulic, Tamper 340
Central lubrication
40-4812037311 Central lubrication 343
Vibration Vibration
40-4812233154 Vibration 345
Vibration Vibration MTR
40-4812233163 Vibration MTR 346
Vibration MTL
40-4812233162 Vibration MTL 348
Vibration VTR
40-4812233164 Vibration VTR 350
Vibration VTL
40-4812233161 Vibration VTL 352
Hydr. vibration
40-4812033476A Hydraulic, vibration 354
Central lubrication
40-4812037312 Central lubrication 358
Guard plate for vibration
40-4812234261 Guard plate for vibration 360
Electric system, PLC Electric TV E PLC
40-4812216849 Electric 361
Electric
40-4812071155 Electric 362
Junction box
40-4812076437 Junction box 363
Harness
40-4812071224 Harness W1 366
40-4812071225 Harness W2 368
40-4812217647 Harness W3 370
Control box
40-4812076495 Control box 371
40-4812217669 Electric, side shield
40-4812217669 Electric, side shield 381
El. side shield
40-4812217670 El. Side shield 382
Harness
40-4812072499 Dummy plug 383 40-4812217649 Harness W15 384
40-4812217818 Harness W15.1 385
40-4812217769 Harness W15.2 386
40-4812217661 Harness W15.3 387
40-4812217778 Harness W15.4 388
40-4812072825 Harness W15.5 389
40-4812217811 Harness W15.8 390
40-4812217651 Harness W16 391
40-4812217832 Harness W16.1 392
40-4812217770 Harness W16.2 393
40-4812217663 Harness W16.3 394
40-4812217805 Harness W16.4 395
40-4812072826 Harness W16.5 396
40-4812217851 Harness W16.8 397
40-4812217857 Mounting parts side shield 398
40-4812075193 Electric, foldable side shield
40-4812075193 Electric, foldable side shield 400
Electric, side shield
40-4812075499 Electric, side shield 401
Harness
40-4812217818 Harness W15.1 See page 385
40-4812217769 Harness W15.2 See page 386
40-4812217661 Harness W15.3 See page 387
40-4812217778 Harness W15.4 See page 388
40-4812072825 Harness W15.5 See page 389
40-4812217811 Harness W15.8 See page 390 40-4812075497 Harness W15.20 402
40-4812217832 Harness W16.1 See page 392
40-4812217770 Harness W16.2 See page 393
40-4812217663 Harness W16.3 See page 394
40-4812217805 Harness W16.4 See page 395
40-4812072826 Harness W16.5 See page 396
40-4812217851 Harness W16.8 See page 397 40-4812075498 Harness W16.20 403
40-4812072499 Dummy plug See page 383 40-4812217857 Mounting parts side shield See page 398
Electric, heating
40-4812217229 Electric, heating 405
Housing
40-4812017774 Housing MTL 406
40-4812017755 Housing MTR 407
40-4812017797 Housing VTL 408
40-4812017796 Housing VTR 410
Wiring
40-4812071213 Wiring 412
Cable
40-4812071224 Harness W1 See page 366
40-4812071225 Harness W2 See page 368
40-4812217647 Harness W3 See page 370 40-4812024108 Harness W4 414
40-4812006760 Harness W5 415
40-4812217461 Harness W6 416
40-4812217863 Harness W7 420
40-4812217864 Harness W8 421
40-4812013628 Harness W9 422
40-4812217650 Harness W10 423
40-4812217649 Harness W15 See page 384
40-4812217818 Harness W15.1 See page 385
40-4812217769 Harness W15.2 See page 386
40-4812217661 Harness W15.3 See page 387
40-4812217778 Harness W15.4 See page 388
40-4812072825 Harness W15.5 See page 389
40-4812217811 Harness W15.8 See page 390 40-4812216843 Harness W15.9 424
40-4812072753 Harness W15.10 425
40-4812072755 Harness W15.12 426
40-4812075497 Harness W15.20 See page 402
40-4812217651 Harness W16 See page 391
40-4812217832 Harness W16.1 See page 392
40-4812217770 Harness W16.2 See page 393
40-4812217663 Harness W16.3 See page 394
40-4812217805 Harness W16.4 See page 395
40-4812072826 Harness W16.5 See page 396
40-4812217851 Harness W16.8 See page 397 40-4812216850 Harness W16.9 427
40-4812072756 Harness W16.10 428
40-4812072758 Harness W16.12 429
40-4812075498 Harness W16.20 See page 403 40-4812073067 Harness W25 430
40-4812073059 Harness W25.1 431
40-4812073060 Harness W25.2 432
40-4812073061 Harness W25.3 433
40-4812073062 Harness W25.4 434
40-4812075495 Harness W7.1 435
40-4812075496 Harness W8.1 436
40-4812075617 Harness W25.10 437
40-4812075618 Harness W25.30 438
Control system
40-4812071111 Control system 440
Mounting parts
40-4812036694 Mounting parts 441
Connecting cable, PLC
40-4812071240 Cable W17 442
Options
40-4812239676 End plate unheated, l.h. & r.h.
40-4812239676 End plate unheated, l.h. & r.h. 443
End plate, cpl
40-4812239667 End plate, cpl 444
End plate, l.h.
40-4812216494 End plate, l.h. 445
Spindle, l.h.
40-4812061129 Spindle, l.h. 448
Safety lock
40-4720003740 Safety lock 450
End plate, r.h.
40-4812239626 End plate, r.h. 451
Spindle, r.h.
40-4812061148 Spindle, r.h. 454
Safety lock
40-4720003740 Safety lock See page 450
40-D241519100 Height tracing
40-D241519100 Height tracing 457
Holding device
40-4720003277 Holding device 458
Retainer
40-4720005797 Retainer 459
40-4812043252 Retainer 460
40-4812037530 Leveling
40-4812075697 Levelling bar 461
40-4812041544 Central lubrication
40-4812041544 Central lubrication 463
40-4812076820 Sonic sensor, PLC, auger
40-4812076820 Sonic sensor, PLC, auger 464
Retainer
40-4812228334 Retainer 465
Electric, sonic sensor
40-4812076821 Electric, sonic sensor 466
Cable, sonic sensor
40-4812217230 Cable, sonic sensor 467
Available options
40-4720002020 Cut off shoe for endplate unheated / top heating
40-4720002020 Cut off shoe 360mm 468
40-D614169600 Cut off shoe for endplate
40-D614169600 Cut off shoe 360mm 469
40-4720006020 Level
40-4720006020 Level 470
40-4812239689 El. end plate above heating, l.h. & r.h.
40-4812239689 El. end plate above heating, l.h. & r.h. 471
End plate, cpl
40-4812239667 End plate, cpl See page 444
End plate, l.h.
40-4812216494 End plate, l.h. See page 445
Spindle, l.h.
40-4812061129 Spindle, l.h. See page 448
Safety lock
40-4720003740 Safety lock See page 450
End plate, r.h.
40-4812239626 End plate, r.h. See page 451
Spindle, r.h.
40-4812061148 Spindle, r.h. See page 454
Safety lock
40-4720003740 Safety lock See page 450
E-upper heating
40-4812238750 E-upper heating 477
40-4812239688 El. end plate below heating, l.h. & r.h.
40-4812239688 El. end plate below heating, l.h. & r.h. 478
End plate, cpl
40-4812239667 End plate, cpl See page 444
End plate, l.h.
40-4812216494 End plate, l.h. See page 445
Spindle, l.h.
40-4812061129 Spindle, l.h. See page 448
Safety lock
40-4720003740 Safety lock See page 450
End plate, r.h.
40-4812239626 End plate, r.h. See page 451
Spindle, r.h.
40-4812061148 Spindle, r.h. See page 454
Safety lock
40-4720003740 Safety lock See page 450
E-lower heating
40-4812238749 E-lower heating 484
40-4812239690 El. end plate heating with skid, l.h. & r.h.
40-4812239690 El. end plate heating with skid, l.h. & r.h. 485
End plate, cpl
40-4812239667 End plate, cpl See page 444
End plate, l.h.
40-4812216494 End plate, l.h. See page 445
Spindle, l.h.
40-4812061129 Spindle, l.h. See page 448
Safety lock
40-4720003740 Safety lock See page 450
End plate, r.h.
40-4812239626 End plate, r.h. See page 451
Spindle, r.h.
40-4812061148 Spindle, r.h. See page 454
Safety lock
40-4720003740 Safety lock See page 450
El. heating, end plate with skid l.h. & r.h.
40-4812238857 El. heating, end plate with skid l.h. & r.h. 491 40-4812075621 El. heating, end plate with skid l.h. & r.h. 492
40-4812239693 End plate unheated, l.h. & r.h.
40-4812239693 End plate unheated, l.h. & r.h. 493
End plate, cpl
40-4812239692 End plate, cpl 495
End plate, l.h.
40-4812239684 End plate, l.h. 496
Spindle, l.h.
40-4812061129 Spindle, l.h. See page 448
Safety lock
40-4720003740 Safety lock See page 450
Hinge, l.h.
40-4812234689 Hinge, l.h. 502
End plate, r.h.
40-4812239685 End plate, r.h. 503
Spindle, r.h.
40-4812061148 Spindle, r.h. See page 454
Safety lock
40-4720003740 Safety lock See page 450
Hinge, r.h.
40-4812234680 Hinge, r.h. 509
40-4812239697 End plates, foldable, el. above heating, l.h. & r.h.
40-4812239697 End plates, foldable, el. above heating, l.h. & r.h. 510
End plate, cpl
40-4812239692 End plate, cpl See page 495
End plate, l.h.
40-4812239684 End plate, l.h. See page 496
Spindle, l.h.
40-4812061129 Spindle, l.h. See page 448
Safety lock
40-4720003740 Safety lock See page 450
Hinge, l.h.
40-4812234689 Hinge, l.h. See page 502
End plate, r.h.
40-4812239685 End plate, r.h. See page 503
Spindle, r.h.
40-4812061148 Spindle, r.h. See page 454
Safety lock
40-4720003740 Safety lock See page 450
Hinge, r.h.
40-4812234680 Hinge, r.h. See page 509
El. end plate above heating, l.h. & r.h.
40-4812238825 El. end plate above heating, l.h. & r.h. 519
40-4812239696 End plates, foldable, el. below heating, l.h. & r.h.
40-4812239696 End plates, foldable, el. below heating, l.h. & r.h. 520
End plate, cpl
40-4812239692 End plate, cpl See page 495
End plate, l.h.
40-4812239684 End plate, l.h. See page 496
Spindle, l.h.
40-4812061129 Spindle, l.h. See page 448
Safety lock
40-4720003740 Safety lock See page 450
Hinge, l.h.
40-4812234689 Hinge, l.h. See page 502
End plate, r.h.
40-4812239685 End plate, r.h. See page 503
Spindle, r.h.
40-4812061148 Spindle, r.h. See page 454
Safety lock
40-4720003740 Safety lock See page 450
Hinge, r.h.
40-4812234680 Hinge, r.h. See page 509
El. end plate below heating, l.h. & r.h.
40-4812238824 El. end plate below heating, l.h. & r.h. 529
40-4812239886 Hydr. end plate el. heating, l.h. & r.h.
40-4812239886 Hydr. end plate el. heating, l.h. & r.h. 530
End plate, cpl
40-4812239882 End plate, cpl 532
End plate, l.h.
40-4812239844 End plate, l.h. 533
End plate, r.h.
40-4812239846 End plate, r.h. 536
El. heating below heated
40-4812238749 E-lower heating See page 484
Stiffening plate, l.h.
40-4812010358 Plate, l.h. 540
Stiffening plate, r.h.
40-4812010359 Plate, r.h. 541
Hydraulic, pre-assembly
40-4812076664 Hydraulic, pre-assembly 542
Electric
40-4812217238 Electric 544
Harness W15.10
40-4812072753 Harness W15.10 See page 425
Harness W16.10
40-4812072756 Harness W16.10 See page 428
Harness W6
40-4812217461 Harness W6 See page 416
Harness W7
40-4812217863 Harness W7 See page 420
Harness W8
40-4812217864 Harness W8 See page 421
Hydraulic, end plate
40-4812019249 Hydraulic, end plate 550
Control block
40-4812010450 Control block 553 40-4812076668 Control block 554
Hose clamp
40-4812010756 Hose clamp 555
Suppression
40-4812010929 Suppression 556
40-4812239884 Hydr. end plate unheated, l.h. & r.h.
40-4812239884 Hydr. end plate unheated, l.h. & r.h. 557
End plate, cpl
40-4812239882 End plate, cpl See page 532
End plate, l.h.
40-4812239844 End plate, l.h. See page 533
End plate, r.h.
40-4812239846 End plate, r.h. See page 536
Stiffening plate, l.h.
40-4812010358 Plate, l.h. See page 540
Stiffening plate, r.h.
40-4812010359 Plate, r.h. See page 541
Hydraulic, pre-assembly
40-4812076664 Hydraulic, pre-assembly See page 542
Electric
40-4812217238 Electric See page 544
Harness W15.10
40-4812072753 Harness W15.10 See page 425
Harness W16.10
40-4812072756 Harness W16.10 See page 428
Harness W6
40-4812217461 Harness W6 See page 416
Harness W7
40-4812217863 Harness W7 See page 420
Harness W8
40-4812217864 Harness W8 See page 421
Hydraulic, end plate
40-4812019249 Hydraulic, end plate See page 550
Control block
40-4812010450 Control block See page 553
40-4812076668 Control block See page 554
Hose clamp
40-4812010756 Hose clamp See page 555
Suppression
40-4812010929 Suppression See page 556
40-4812232180 End pl. hydr.., accessories
40-4812232180 End pl. hydr.., accessories 572
Drum
40-4812232055 Drum 573
Loading hose
40-4812010948 Loading hose 574
Hyd. end plate AB 616/617
40-4812010743 Hyd. end plate AB 616/617 575
40-4812012671 Conversion kit ex. operating unit
40-4812012671 Conversion kit ex. operation 576
Conversion kit ex. operation, l.h.
40-4812032140 Conversion kit ex. operation, l.h. 577
Conversion kit ex. operation, r.h.
40-4812032141 Conversion kit ex. operation, r.h. 578
40-4812217446 Conversion kit ex. operation
40-4812217446 Conversion kit ex. operation 579
Conversion kit ex. operation, l.h.
40-4812217440 Conversion kit ex. operation, l.h. 580
Conversion kit ex. operation, r.h.
40-4812217444 Conversion kit ex. operation, r.h. 581
40-4812074772 Lighting side plate
40-4812074772 Electric, lighting side plate 582
Spot light, LED
40-4812074770 Spotlight 583
Harness
40-4812013628 Harness W9 See page 422
40-4812012050 Measuring device
40-4812012050A Measuring Device 585
Electric
40-4812007511 Electric, metering element 586
Harness
40-4812006760 Harness W5 See page 415
40-4812018594 Pave TM ready
40-4812018594 Pave TM ready 588
Harness
40-4812019454 Harness W10 589
40-4812076817 Sonic sensor, PLC, auger
40-4812076817 Sonic sensor, PLC, auger 590
Retainer
40-4812228334 Retainer See page 465
Electric, sonic sensor
40-4812015271 Electric sonic sensor 592
Cable, sonic sensor
40-4812217230 Cable, sonic sensor See page 467
40-4812076854 Sonic sensor, CON, auger
40-4812076854 Sonic sensor, CON, auger 594
Retainer
40-4812228334 Retainer See page 465
Electric, sonic sensor
40-4812015282 Electric sonic sensor 596
Cable, sonic sensor
40-4812014281 Cable, sonic sensor 597
40-4812076855 Sonic sensor, CON, auger
40-4812076855 Sonic sensor, CON, auger 598
Retainer
40-4812228334 Retainer See page 465
Electric, sonic sensor
40-4812076856 Electric, sonic sensor 600
Cable, sonic sensor
40-4812014281 Cable, sonic sensor See page 597
40-4812071159 Electric plc, lighting side plate
40-4812071159 Electric plc, lighting side plate 602
Harness
40-4812072755 Harness W15.12 See page 426
40-4812072758 Harness W16.12 See page 429
40-4812071350 Electric, con, lighting side plate
40-4812071350 Electric, con., Lighting side plate 604
Harness
40-4812071225 Harness W2 See page 368
40-4812071333 Harness W16.5 605
40-4812239899 Hydr. end plate el. heating with skid, l.h. & r.h.
40-4812239899 Hydr. end plate el. heating with skid, l.h. & r.h. 607
End plate, cpl
40-4812239882 End plate, cpl See page 532
End plate, l.h.
40-4812239844 End plate, l.h. See page 533
End plate, r.h.
40-4812239846 End plate, r.h. See page 536
El. heating, end plate with skid l.h. & r.h.
40-4812238857 El. heating, end plate with skid l.h. & r.h. See page 491 40-4812075621 El. heating, end plate with skid l.h. & r.h. See page 492
Stiffening plate, l.h.
40-4812010358 Plate, l.h. See page 540
Stiffening plate, r.h.
40-4812010359 Plate, r.h. See page 541
Hydraulic, pre-assembly
40-4812076664 Hydraulic, pre-assembly See page 542
Electric
40-4812217238 Electric See page 544
Harness W15.10
40-4812072753 Harness W15.10 See page 425
Harness W16.10
40-4812072756 Harness W16.10 See page 428
Harness W6
40-4812217461 Harness W6 See page 416
Harness W7
40-4812217863 Harness W7 See page 420
Harness W8
40-4812217864 Harness W8 See page 421
Hydraulic, end plate
40-4812019249 Hydraulic, end plate See page 550
Control block
40-4812010450 Control block See page 553
40-4812076668 Control block See page 554
Hose clamp
40-4812010756 Hose clamp See page 555
Suppression
40-4812010929 Suppression See page 556
40-4812231392 End plate, cpl., without heating
40-4812231392 End plate, cpl., without heating 623
End plate
40-4812231391 End plate 624
End plate, l.h.
40-4812231388 End plate, l.h. 625
Safety lock
40-4720003740 Safety lock See page 450
Kit, for the front pin
40-4812201086 Kit, for the front pin 630
End plate, r.h.
40-4812231389 End plate, r.h. 631
Safety lock
40-4720003740 Safety lock See page 450
Kit, for the front pin
40-4812201086 Kit, for the front pin See page 630
40-4812234693 End plate, l.h. & r.h.
40-4812234693 End plate, l.h. & r.h. 637
End plate, l.h. & r.h.
40-4812234692 End plate, l.h. & r.h. 640
End plate, l.h.
40-4812234690 End plate, l.h. 641
Hinge, l.h.
40-4812234689 Hinge, l.h. See page 502
Safety lock
40-4720003740 Safety lock See page 450
End plate, r.h.
40-4812234691 End plate, r.h. 647
Hinge, r.h.
40-4812234680 Hinge, r.h. See page 509
Safety lock
40-4720003740 Safety lock See page 450
40-4812231566 End pl., upper part e-heated
40-4812231566 End pl., upper part e-heated 653
End plate
40-4812231565 End plate 654
End plate, l.h.
40-4812231540 End plate, l.h. 655
Safety lock
40-4720003740 Safety lock See page 450
Kit, for the front pin
40-4812201086 Kit, for the front pin See page 630
End plate, r.h.
40-4812231541 End plate, r.h. 661
Safety lock
40-4720003740 Safety lock See page 450
Kit, for the front pin
40-4812201086 Kit, for the front pin See page 630
El. heating
40-4812232196 El. heating 667
40-4812231385 End pl., lower part e-heated
40-4812231385 End pl., lower part e-heated 668
End plate
40-4812231383 End plate 669
End plate, l.h.
40-4812231381 End plate, l.h. 670
Safety lock
40-4720003740 Safety lock See page 450
Kit, for the front pin
40-4812201086 Kit, for the front pin See page 630
End plate, r.h.
40-4812231382 End plate, r.h. 676
Safety lock
40-4720003740 Safety lock See page 450
Kit, for the front pin
40-4812201086 Kit, for the front pin See page 630
El. heating
40-4812232196 El. heating See page 667
40-4812231662 End pl., with base, lower e-heated
40-4812231662 End pl. with base, lower e-heated 683
End plate
40-4812231655 End plate, l.h. / r.h. 684
End plate, l.h.
40-4812231652 End plate, l.h. 685
Safety lock
40-4720003740 Safety lock See page 450
Kit, for the front pin
40-4812201086 Kit, for the front pin See page 630
End plate, r.h.
40-4812231653 End plate, r.h. 691
Safety lock
40-4720003740 Safety lock See page 450
Kit, for the front pin
40-4812201086 Kit, for the front pin See page 630
El. heating
40-4812232196 El. heating See page 667
40-4812235447 End plate, l.h. & r.h. heated, lower part e-heated
40-4812235447 End plate, l.h. & r.h. heated 698
End plate, l.h. & r.h. heated
40-4812235452 End plate, l.h. & r.h. heated 700
End plate, l.h.
40-4812235451 End plate, l.h. 701
Hinge, l.h.
40-4812234689 Hinge, l.h. See page 502
Safety lock
40-4720003740 Safety lock See page 450
End plate, r.h.
40-4812235450 End plate, r.h. 707
Hinge, r.h.
40-4812234680 Hinge, r.h. See page 509
Safety lock
40-4720003740 Safety lock See page 450
El. heating
40-4812235445 El. heating 713
40-4812235453 End plate, l.h. & r.h. heated, upper part e heated
40-4812235453 End plate, l.h. & r.h. heated 714
End plate, l.h. & r.h. heated
40-4812235446 End plate, l.h. & r.h. heated 716
End plate, l.h.
40-4812235444 End plate, l.h. 717
Hinge, l.h.
40-4812234689 Hinge, l.h. See page 502
Safety lock
40-4720003740 Safety lock See page 450
End plate, r.h.
40-4812235443 End plate, r.h. 723
Hinge, r.h.
40-4812234680 Hinge, r.h. See page 509
Safety lock
40-4720003740 Safety lock See page 450
El. heating
40-4812235445 El. heating See page 713
40-4812077083 Electric, MatTracker
40-4812077071 Harness, screed
40-4812073067 Harness W25 See page 430
Retainer
40-4812073830 Retainer 730
40-4812077109 Harness, side shield
40-4812077073 Harness, side shield 732
Harness
40-4812216843 Harness W15.9 See page 424
40-4812216850 Harness W16.9 See page 427
Harness
40-4812073059 Harness W25.1 See page 431
Retainer
40-4812073612 Retainer 733
Harness
40-4812073061 Harness W25.3 See page 433
Retainer
40-4812073612 Retainer See page 733
40-4812077112 Electric, MatTracker
40-4812077071 Harness, screed
40-4812073067 Harness W25 See page 430
Retainer
40-4812073830 Retainer See page 730
40-4812077110 Harness, foldable side shield
40-4812077079 Harness, foldable side shield 738
Harness
40-4812216843 Harness W15.9 See page 424
40-4812216850 Harness W16.9 See page 427
Harness
40-4812075617 Harness W25.10 See page 437
Retainer
40-4812073612 Retainer See page 733
Harness
40-4812075618 Harness W25.30 See page 438
Retainer
40-4812073612 Retainer See page 733
40-4812077502 Connection cable MatTracker
40-4812077502 Connection cable MatTracker 742
40-4812063557 Foldable hydr. end plate, unheated, l.h. & r.h.
40-4812063557 Foldable hydr. end plate, unheated, l.h. & r.h. 743
Foldable hydr. end plate
40-4812063437 Foldable hydr. end plate 745
End plate, l.h.
40-4812063434 End plate, l.h. 746
End plate, r.h.
40-4812063432 End plate, r.h. 750
Stiffening plate, l.h.
40-4812010358 Plate, l.h. See page 540
Stiffening plate, r.h.
40-4812010359 Plate, r.h. See page 541
Hydraulic, pre-assembly
40-4812076664 Hydraulic, pre-assembly See page 542
Electric, foldable hydr. end plate
40-4812075631 Electric, foldable hydr. end plate 757
Harness
40-4812217461 Harness W6 See page 416
40-4812075495 Harness W7.1 See page 435
40-4812075496 Harness W8.1 See page 436
40-4812072753 Harness W15.10 See page 425
40-4812072756 Harness W16.10 See page 428
Hydraulic, side shields
40-4812075865 Hydraulic, side shields 759
Control block
40-4812076668 Control block See page 554
40-4812010450 Control block See page 553
Hose clamp
40-4812010756 Hose clamp See page 555
Suppression
40-4812010929 Suppression See page 556
40-4812063558 Foldable hydr. end plate, el. heating, l.h. & r.h.
40-4812063558 Foldable hydr. end plate, el. heating, l.h. & r.h. 765
Foldable hydr. end plate
40-4812063437 Foldable hydr. end plate See page 745
End plate, l.h.
40-4812063434 End plate, l.h. See page 746
End plate, r.h.
40-4812063432 End plate, r.h. See page 750
Electric, heating lower heated
40-4812063482 Electric, heating lower heated 769
Stiffening plate, l.h.
40-4812010358 Plate, l.h. See page 540
Stiffening plate, r.h.
40-4812010359 Plate, r.h. See page 541
Hydraulic, pre-assembly
40-4812076664 Hydraulic, pre-assembly See page 542
Electric, foldable hydr. end plate
40-4812075631 Electric, foldable hydr. end plate See page 757
Harness
40-4812217461 Harness W6 See page 416
40-4812075495 Harness W7.1 See page 435
40-4812075496 Harness W8.1 See page 436
40-4812072753 Harness W15.10 See page 425
40-4812072756 Harness W16.10 See page 428
Hydraulic, side shields
40-4812075865 Hydraulic, side shields See page 759
Control block
40-4812076668 Control block See page 554
40-4812010450 Control block See page 553
Hose clamp
40-4812010756 Hose clamp See page 555
Suppression
40-4812010929 Suppression See page 556
Hose guide
40-4812075946 Hose guide 777
40-4812075925 Heigth tracing
40-4812075925 Heigth tracing 778
Retainer
40-4720005797 Retainer See page 459
40-4812043252 Retainer See page 460
Edge compactor
Edge compactor, without heating 781 Edge compactor, electric heating 784 Hydraulic edge compactor, electric heating 787 Hydraulic edge compactor, without heating 790
Accessories Decals (E)
40-4812035402 Decals Screed
