Belarus 1222 1222B 1523 1523B Tractor Parts Catalogue & Assembly Manual 1523-0000010 KDS – PDF

Belarus 1222 1222B 1523 1523B Tractor Parts Catalogue & Assembly Manual 1523-0000010 KDS – PDF DOWNLOAD

FILE DETAILS:

Belarus 1222 1222B 1523 1523B Tractor Parts Catalogue & Assembly Manual 1523-0000010 KDS – PDF DOWNLOAD

Language : English
Pages : 403
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Belarus 1222 1222B 1523 1523B Tractor Parts Catalogue & Assembly Manual 1523-0000010 KDS – PDF DOWNLOAD

INTRODUCTION:

The present catalogue contains the whole range of assembly units and parts for tractors BELARUS 1523/1523В and BELARUS 1222/1222В, equipped with sixcylinder turbocharged diesel engines D-260.1 or D-260.1S (114 kW) and D-260.2 (95,6 kW) respectively.

• Tractors BELARUS 1523.3/1523B.3 and BELARUS 1222.3/1222B.3 are equipped with diesel engines D-260.1S2 (116 kW) and D- 260.2S2 (100 kW), which are certified in accordance with EU Directive 2000/25 and represent modifications of diesel engines D-260.1 and D-260.2.
• The catalogue is meant for organizations and firms that are concerned with tractor sales, operation and repair. It can be used in calculation and preparation of orders for spare parts and serves as a manual during tractor disassembling and assembling.

HOW TO USE THE CATALOGUE:

• Assembly units and parts in the catalogue are divided into groups and subgroups
  according to functional attribute. The catalogue is well illustrated with axonometric
  figures of knocked-down tractor components. All parts in the figures have sequence
  numbers (figure numbers).
  For example, the following record is given in the catalogue:
  “1520-1601085 1 Center plate (6, 36-40)”
• It means that assembly unit “center plate” in the number of 1 piece for clutch
  consists of the following parts: center plate (pos. 6), release lever pin (pos. 36),
  bushing (pos. 37), release lever (pos. 38), spring (pos. 39) and lock washer (pos. 40).
  Conventional seven-digit system of assembly unit and part designation (after
  prefix) is applied for the tractors.
• Prefixes A1, A2 and A3 that follow seven-digit part number mean that the
  design of these parts or assembly units has been changed, but is still interchangeable
  with the previously produced designs. Prefixes Б, Б1, Б2, В, Г, Д, etc. mean that new
  part designs will not be interchangeable with parts of previously produced designs, but
  are interchangeable with each other within the range of one symbol.

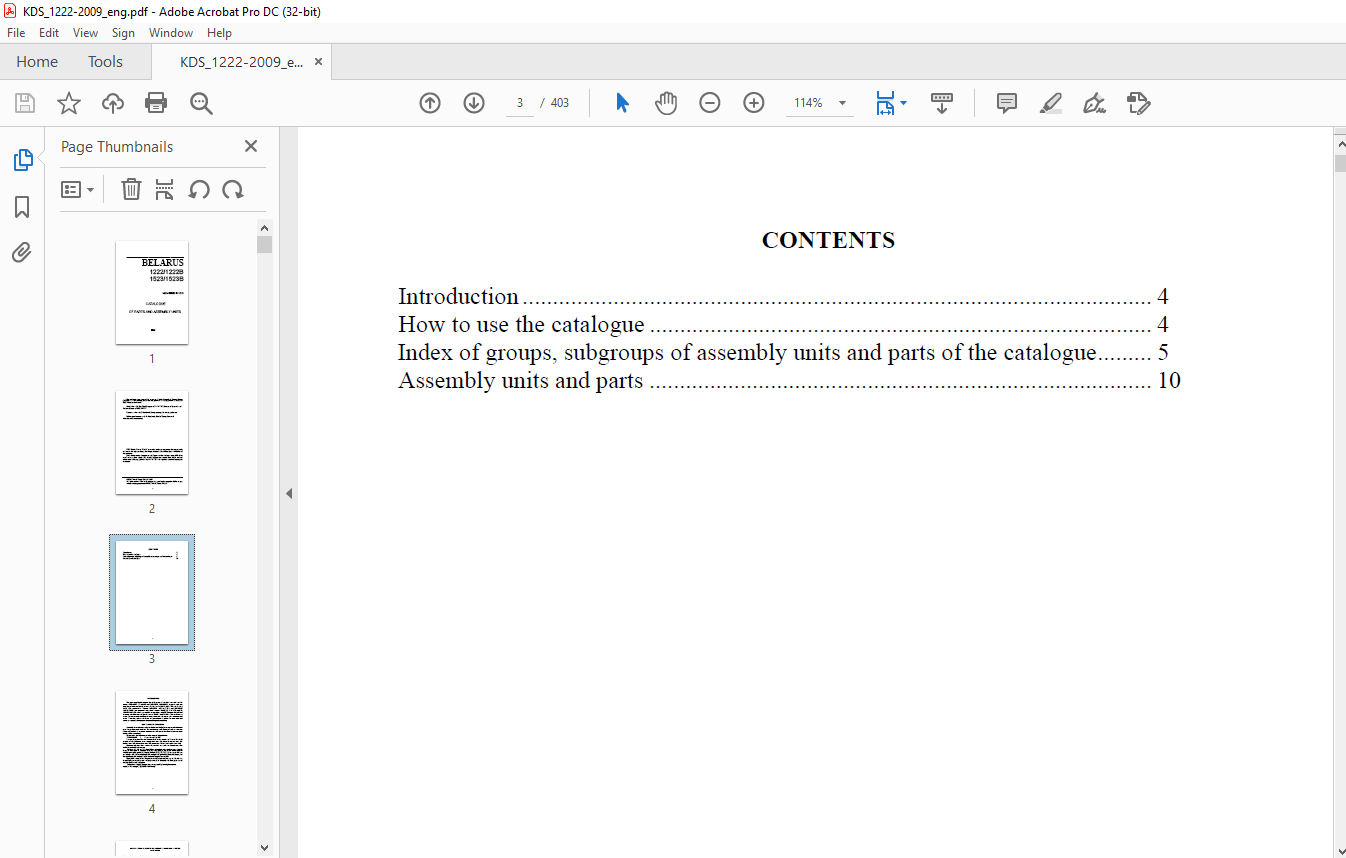

TABLE OF CONTENTS:

Belarus 1222 1222B 1523 1523B Tractor Parts Catalogue & Assembly Manual 1523-0000010 KDS – PDF DOWNLOAD

Introduction 4
How to use the catalogue 4
Index of groups, subgroups of assembly units and parts of the catalogue 5
Assembly units and parts 10

10 Engine mechanisms
1001, 1002 1 Suspension and cylinders block 10
1003,1007 2 Cylinders head. Valves and valves followers 14
1003, 1008,
1014

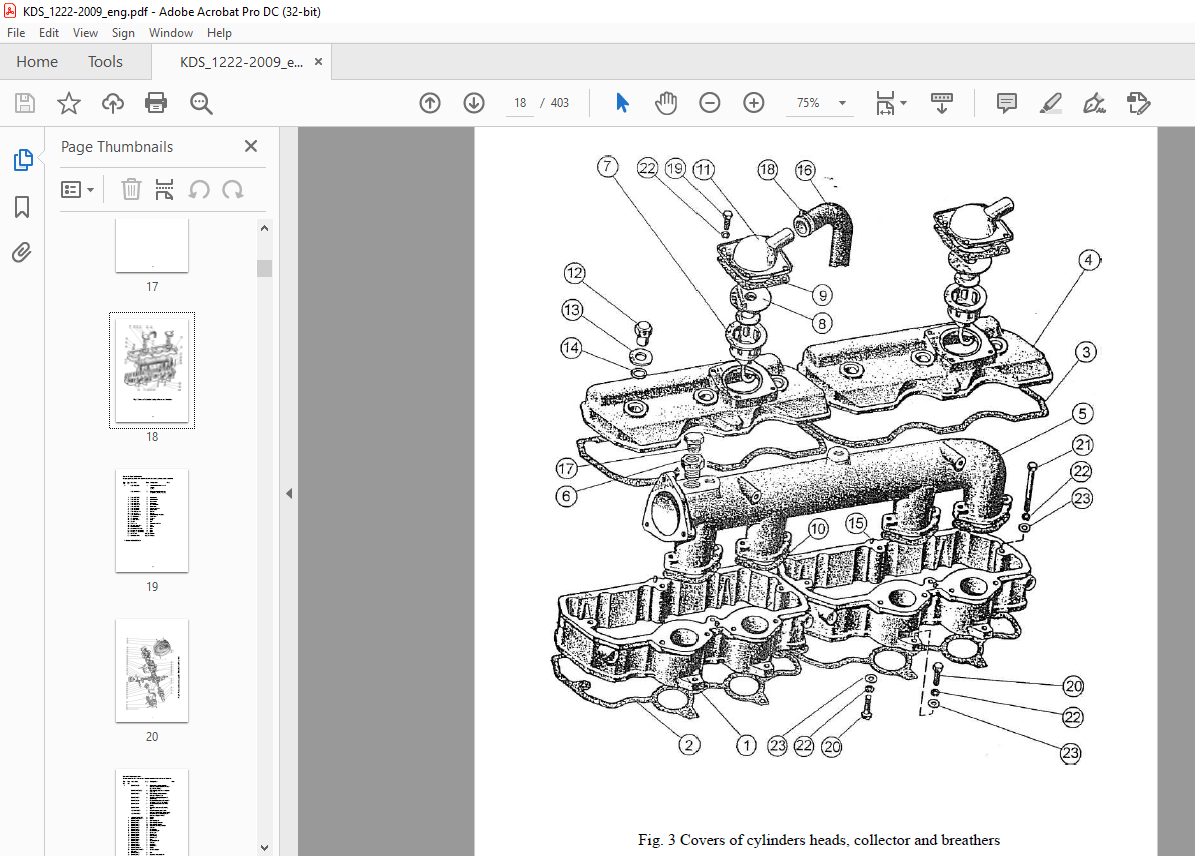

3 Covers of cylinders heads, collector and
breathers
18
1004, 1005 4 Pistons and connecting rods. Crankshaft and
flywheel
20
1006 5 Distributing gear 24
1008 6 Diesel gas pipeline 26
1118 7 Turbocharger oil pipelines 28
3407 8 Gear pump drive 30
11
Feed system
1101 9 Fuel tanks 32
1109 10 Air intake piping 34
1109 11 Air filter installation 36
1104, 1111 12 Fuel pipelines and installation of fuel
equipment
38
1104, 1111 13 Coarse fuel filter 42
1104, 1111 14 Fine fuel filter 44
1108 15 Fuel intake control 46
1108 16 Fuel delivery control in reverse mode 48
12
Exhaust system
1205 17 Muffler 50
13
Cooling system
1301 18, 19 Water radiator 52
1303, 1306 20 Water collecting pipe and thermostats 56
1307, 1310 21 Water pump and drag bar 58
1308 22 Fan clutch installation. Fan installation. 62
1317 23 Cooler installation 64
14
Lubrication system
1009 24 Oil crankcase 66
1010, 1011 25 Oil pump and oil pump receiver 68
1013 26 Heat exchanger installation 72
1017 27 Oil filter installation 74
1028 28 Oil centrifugal filter 76
3509 29 Air compressor installation 78
6
Group Subgroup Fig. No Designation Page
16
Clutch
1601 30 Clutch 80
1601 31,32 Clutch housing 82
1602 33 Clutch control on forward motion
(1523/1523.3/1222/1222.3)
88
1602 34 Clutch control on reverse motion
(1523В/1523.3В/1222В/1222.3В
92
1602 35 Main cylinder 96
1602 36 Main cylinder (on reverse) 98
1602 37 Hydraulic booster 100
1602 38 Operating cylinder 102
1602 39 Tap 104
1602 40 Tank 106
17
Gearbox
1222-1700010 (24F+12R)
1701 41 Gearbox 108
1701 42 Primary shaft 112
1701 43 Lay shaft 116
1701 44 Shaft of low gears and reverse motion 120
1701 45 Gear block shaft 124
1701 46 Main shaft 126
1702 47 Gearbox control mechanism 130
1702 48 Cylinder 136
1704 49 Pumps drive 138
NMSH-25 50 Oil gear pump 140
1716 51 Filter 142
1737 52 Filter-distributor 144
18
Front driving axle drive
1802 53 Front driving axle drive 146
22
Cardan drive
2203 54.1 Cardan drive 150
2203 54.2 Guard 152
23
Front driving axle
2300 55.1 Front driving axle 154
2302 55.2 Main gear of front driving axle (1222-
2300020-05)
158
2303 55.3 Differential 160
2308 56 Final drive reducer of front driving axle
(1222-2300020-05)
154
7
Group Subgroup Fig. No Designation Page
24
Rear axle
2401,2407 57 Rear axle housing. Final drive 168
2403, 2407 58 Differential. Bearings body 174
2401 59 Final drive (lubricant) 178
2401 60 Switch PTO shaft
(independent\synchronized)
180
2409 61 Differential lock mechanism 182
2409 62 Differential lock “wet” coupling 184
27
Towing coupler
2707 63 Towing coupler 186
28
Frame
2800 64 Semi-frame 190
30
Front axle
3003 65 Steering link 192
31
Wheels and hubs
3101 66 Front driving wheels 194
3104, 3107 67 Rear wheels hubs 196
34
Steering control
3401 68 Steering column 198
3401 69 Steering column 200
3401 70 Steering column (reverse) 202
3405 71 Hydraulic cylinder 50×25-200 204
3407 72 Hydrostatic power steering 206
3407 73 Hydrostatic power steering (reverse) 210Brakes
3502 74 Brakes 212
3502 75 “Wet” brakes 214
3503 76 Brakes controls (variant with “dry”
brakes)
216
3503 77 Working cylinder (variant with “dry”
brakes)
220
3503 78 Brake fluid reservoirs 222
3503 79 Brakes control on reverse 224
(variant with “dry” brakes)
3503 80 Brakes control (variant with “wet”
brakes)
226
3503 81 Brakes control on reverse (variant with
“wet” brakes)
230
3507 82 Parking brakes control (dry)
Group Subgroup Fig. No Designation Page
3507 83 “Wet” parking brake control 236
3506 84 Pipelines and air-powered drive fittings of
trailer brakes
3512 85 Pressure regulator 244
3513 86 Ballon 248
3514 87 Brake valve 250
3514 88 Brake valve 254
3521 89 Coupling head 256
3521 90 Coupling head 258
Electrical equipment
3700 91 Electrical equipment 260
3700 92 Road headlights installation 262
3700 93 Electrical equipment of engine 264
3700 94.1 Electric equipment of transmission 268
3700 94.2 Electric equipment of transmission 270
3700 95 Electric equipment of cab I 272
3700 96 Electric equipment of cab II 274
3701 97 Generator installation 278
3712 98 Front lamp 280
3724 99 Accumulator batteries installation 282
Dashboard
3805 100 Dashboard 284
39
Tools and accessories
3901 101 Operator’s tools 288
3912 102 First aid kit 290
3919 103 Tools box 292
42
Power take-off
4202 104 Power take-off shaft 294
4209 105 Front power take-off 300
4209 106 Reducer of front power take-off shaft 302
4218 107 Control of rear power take-off hydraulic
drive
4235 108 Ballast weights 314
Hydraulic system
4605 109 Mounting unit 316
4605 110 Blocks and components of mounting unit 320
4606 111 Front mounting unit 322
4606 112 Bracket 326
4606 113 Top link 328
4606 114 Drop link 330
4607 115.1 Hydraulic units and fittings 332
4607 115.2 Hydraulic units and fittings 333
4607 115.3 Hydraulic units and fittings 334
4608 116 Tank 338
4617 117 Pump drive of hydraulic system
Group Subgroup Fig. No Designation Page
Tractor cab
6700 118 Cab 342
6702 119 Cab 348
6708 120 Cab door 350
68
Driver seat
6800 121 Operator’s seat 354
6800 122 Operator’s seat 358
6807 123 Reverse mechanism 360
81 Heater
8101 124.1 Heater 362
8101 124.2 Heater installation 364
8101 125.1 Heater-cooler installation 366
8101 125.2 Heater-cooler installation 368
8114 126 Compressor installation 370
8112 127 Condenser installation 372
8112 128 Condenser and receiver installation 374
Cab accessories
8201 129 Inner mirror 376
8201 130 Outer mirror 378
8204 131 Sun visor 380
Hood and fenders
8403 132 Front wheels fenders 382
8405 133 Step 384
134.1 Facing 386
134.2 Facing 388
8700 135 Differential lock (DL) control and front
drive axle (FDA) control (with
GB16x8 and FDA 1222-2300020-05)
8700 136 DL, FDA and reducer control (with GB
24×12 and FDA 1525-2300020)
8700 137 Mounting unit control 398
8700 138 DL, FDA and front PTO control 400
