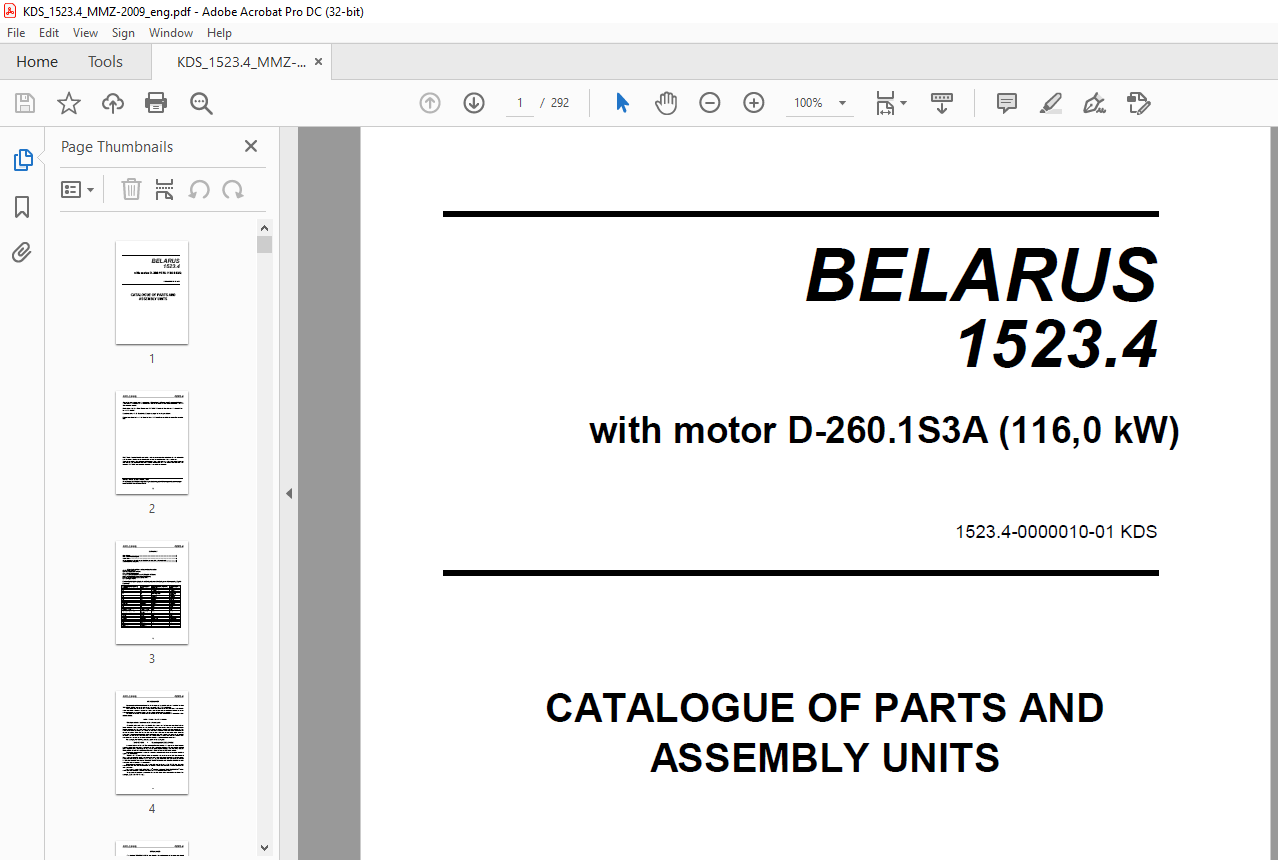

Belarus 1523.4 with motor D-260.1S3A (116,0 kW) Tractor Parts Catalogue & Assembly Manual PDF

Belarus 1523.4 with motor D-260.1S3A (116,0 kW) Tractor Parts Catalogue & Assembly Manual 1523.4-0000010-01 KDS – PDF DOWNLOAD

FILE DETAILS:

Belarus 1523.4 with motor D-260.1S3A (116,0 kW) Tractor Parts Catalogue & Assembly Manual 1523.4-0000010-01 KDS – PDF DOWNLOAD

Language : English
Pages : 292
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Belarus 1523.4 with motor D-260.1S3A (116,0 kW) Tractor Parts Catalogue & Assembly Manual 1523.4-0000010-01 KDS – PDF DOWNLOAD

INTRODUCTION:
The present catalogue contains the whole range of assembly units and parts for tractors
“BELARUS-1523.4“, equipped with diesel engines D-260.1S3􀈺 (116,0 kW).
The catalogue is meant for organizations and firms that are concerned with tractor
sales, operation and repair. It can be used in calculation and preparation of orders for spare
parts and serves as a manual during tractor disassembling and assembling.
All changes related to tractor design development are represented in respective information
sheets.
HOW TO USE THE CATALOGUE:
Catalogue includes tractor assembly units and parts.
Assembly units and parts are divided into groups and subgroups according to functional

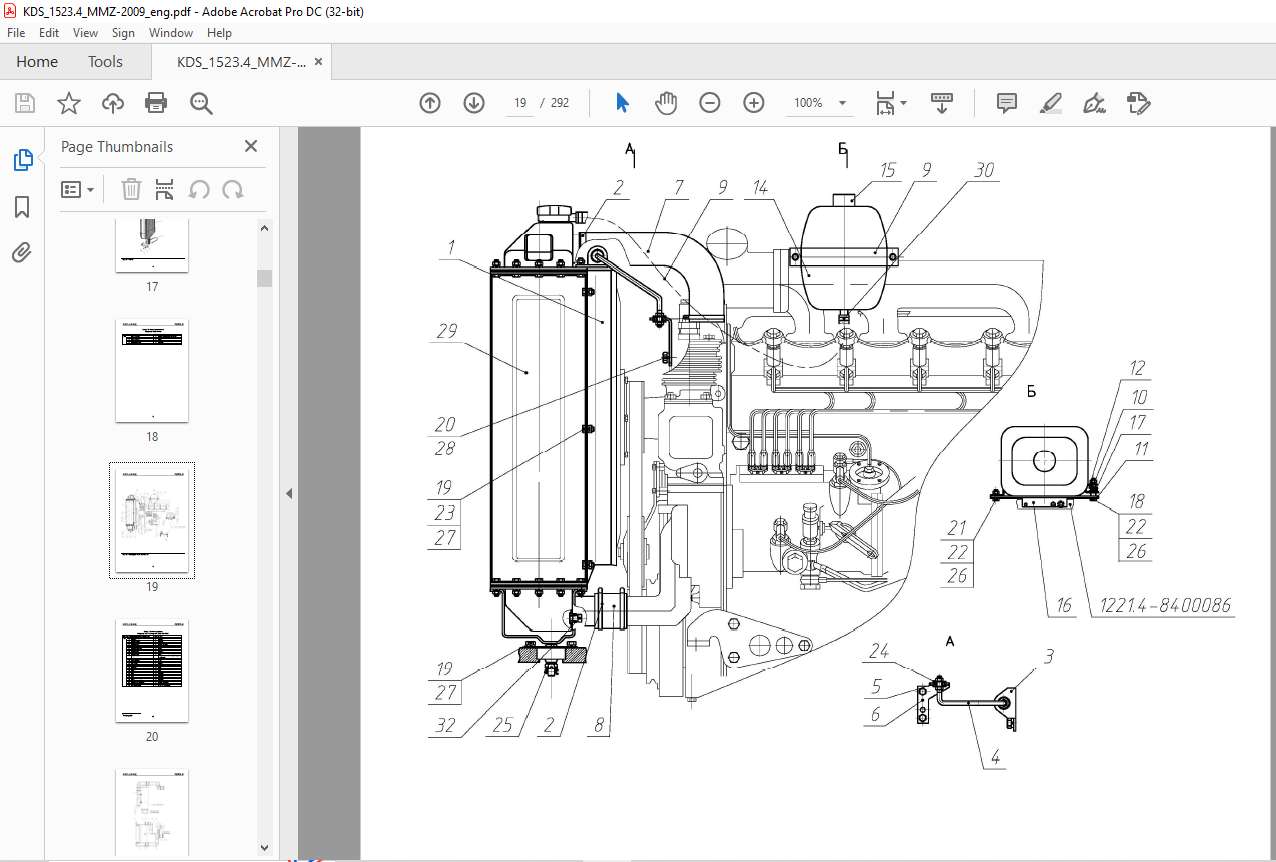

attribute. This directory is well illustrated with axonometric figures of knocked-down
tractor components. All parts in the figures have sequence numbers (figure numbers). For
ease of catalogue reference in search for necessary part the same sequence numbers are
placed in column “Pos. No.” in the text part of the catalogue in ascending order from top
downward. The figures referred to in the catalogue are well-done in the terms of art and let
the user get acquainted with structure and configuration of parts and assembly units. They
can serve as a manual for carrying out disassembling and assembling operations.

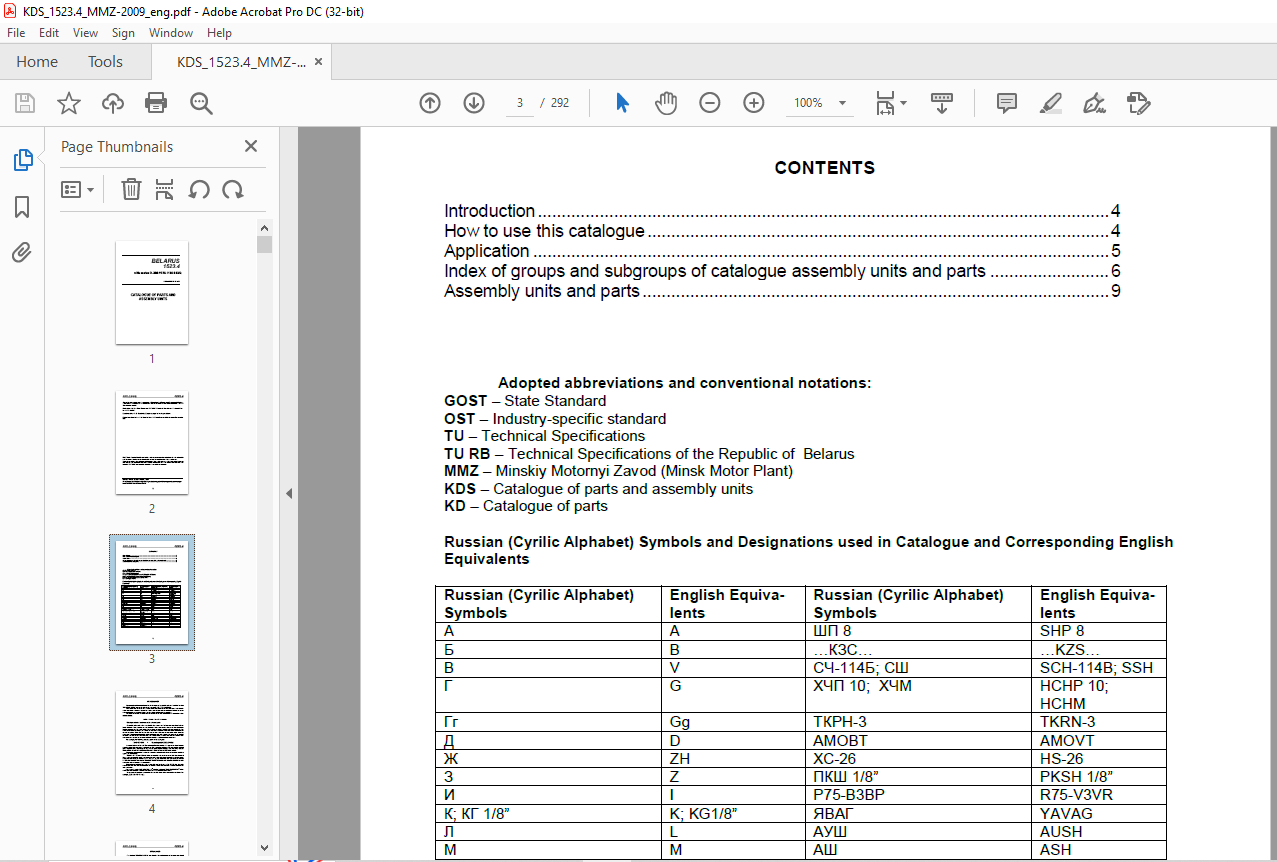

TABLE OF CONTENTS:

Belarus 1523.4 with motor D-260.1S3A (116,0 kW) Tractor Parts Catalogue & Assembly Manual 1523.4-0000010-01 KDS – PDF DOWNLOAD

Fuel system
1101 11 Fuel tanks 9
1109 11.1 Air cleaner installation 11
1108 11.2 Fuel supply control 13
11
1117 11.3 Fuel filter installation 15
12 Gas exhaust system
1205 12.1 Muffler 17
Cooling system
1301 13.1 Cooling unit 1523-1301009-01 19
1317 13.2 Cooler installation 1523.4-1317010 21
1309 13.3 Fan guard 23
13
Clutch
1601 16.1 Clutch installation 260.1-10055009 25
1601 16.2 Clutch housing 27
1601 16.3 Clutch housing (2022-1600010-􀈺-01) (with GB 24􀉯12) 29
1602 16.4 Clutch control 33
1602 16.5 Main cylinder 37
1602 16.6 Hydraulic booster 39
1602 16.7 Working cylinder 41
1602 16.8 Cock 43
16
1602 16.9 Tank 45
Gear box (GB)
1701 17.1 Gear box (GB) 1522-1700010 47
1701 17.2 Primary shaft 49
1701 17.3 Secondary shaft 51
1701 17.4 Intermediate shaft 53
1701 17.5 Low gear shaft 55
1702 17.6 GB control mechanism 59
1701 17.7 Gear box (GB) 1222-1700010 (24F+12R) 63
1701 17.8 Primary shaft 65
1701 17.9 Intermediate shaft 67
1701 17.10 Low gear and back draft shaft 71
1701 17.11 Gear set shaft 75
1701 17.12 Secondary shaft 77
1702 17.13 GB control mechanism 79
1702 17.14 Cylinder 85
1704 17.15 Pump drive 87
1704 17.16 Gear-type oil pump 89
1716 17.17 Filter 91
17
1737 17.18 Distribution filter 93
7
INDEX OF GROUPS AND SUBGROUPS OF CATALOGUE ASSEMBLY UNITS AND
PARTS
Group Subgroup Fig.No Name Page
18 Drive of front driving axle
1802 18.1 Drive of front driving axle 95
Cardan drive
22 2203 22.1 Cardan drive 99
2210 22.2 Guard 101
Front driving axle
2300 23.1 Front driving axle 103
2302 23.2 Main gear of front driving axle
(1222-2300020-05) 107
2303 23.3 Differential 109
23
2308 23.4 Final drive reduction gear unit of front driving axle (1222-
2300020-05) 111
Rear axle
2401, 2407 24.1 Rear axle housing. Final drive. 115
2403, 2407 24.2 Differential. Bearing carrier. 119
2401 24.3 Rear axle lubricating system (variant) 121
2401 24.4 Rear axle lubricating system (variant) 123
2409 24.5 Differential locking mechanism. 125
24
2409 24.6 Differential locking mechanism of wet type 127
27 Drawbar hitch
2707 27.1 Drawbar hitch 129
28 Frame
2801 28.1 Semi-frame 133
30 Front axis
3003 30.1 Steering link 135
Wheels and hubs
3101 31.1 Front driving wheels 137
31
3107 31.2 Rear driving wheels 139
Steering control
3401 34.1 Steering column 141
3401 34.2 Steering column 143
3405 34.3 Hydraulic cylinder 50×25-200 145
34
3407 34.4 Hydrostatic steering control 147
Brakes
3506 35.1 Wet brakes 151
3503 35.2 Brake fluid tanks 153
3503 35.3 Wet brakes control (variant) 155
3503 35.4 Wet brakes control (variant) 159
3503 35.5 Parking brake control (for wet brakes) 163
3506 35.6 Pipelines and fittings of trailer brakes air drive 167
3513 35.7 Ballon 169
35
3514 35.8 Break valve 171
Electrical equipment
3700 37.1 Head lamps installation 173
3700 37.2 Diesel engine electrical equipment 175
3700 37.3 Transmission electrical equipment 177
3700 37.4 Transmission electrical equipment 179
3700 37.5 Cabin electrical equipment I 181
3700 37.6 Cabin electrical equipment II 183
3700 37.7 Front lights installation 187
3701 37.8 Generator installation 189
37
3724 37.9 Storage battery installation 191
8
INDEX OF GROUPS AND SUBGROUPS OF CATALOGUE ASSEMBLY UNITS AND
PARTS
Group Subgroup Fig.No Name Page
38 Dashboard
3805 38.1 Dashboard 193
Tools and accessories
3901 39.1 Operator tool 197
39
3912 39.2 First aid kit 199
Power take-off (PTO)
4202 42.1 PTO shaft 201
4209 42.2 Front PTO shaft 205
4209 42.3 Front PTO shaft reduction unit 207
4218 42.4 Control of rear PTO shaft hydraulic drive 213
42
4235 42.5 Ballast 215
Hydraulic system
4605 46.1 Lift linkage 217
4605 46.2 Lift linkage parts and units 221
4606 46.3 Front lift linkage 223
4606 46.4 Bracket 227
4606 46.5
46.6
Upper link
Lifting rod 229
Hydraulic units and fittings 231
4608 46.10 Tank 237
46
4617 46.11 Hydraulic system pump drive 239
Tractor cabin
6700 67.1 Tractor cabin 241
6700 67.2 Tractor cabin 247
67
6708 67.3 Cabin door 249
Seat
6800 68.1 Operator seat 251
6800 68.2 Operator seat 255
68
6807 68.3 Reverse mechanism 257
Conditioner system
8100 81.1 Air conditioner installation 259
8114 81.2 Compressor installation 261
8101 81.3
81.1􀉚 Heater installation 263
81
8101 81.4
81.5 Heater-cooler installation 266
Cabin accessories
8201 82.1 Inside rear-view mirror 269
8201 82.2 Side rear-view mirror 271
82
8201 82.3 Sun visor 273
Fin assembly
8400 84.1
84.2 Facing 275
8403 84.3 Front wings 279
84
8405 84.4 Foot step 281
Control system
8700 87.1 Control of DL and FDA 1522-8700410-􀈾 283
8700 87.2 Control of DL, FDA and front PTO shaft 1523-8700210-􀈾 285
8700 87.3 Control of DL, FDA and reduction unit (with GB 24􀉯12 and
FDA 1525-2300020) 287
8700 87.4 Control of lift linkage 1522-8700610 289
87
8700 87.5 Control of MMZ engine 2022.4-8700910-􀉆 291
