DESCRIPTION:

Belarus 1523.5 Tractor Parts Catalogue & Assembly Manual 1523.5-0000010 KDS – PDF DOWNLOAD

INTRODUCTION:

• The present catalogue contains the whole range of assembly units and parts for tractors
  “BELARUS-1523.5“, equipped with engine D-260.1S3B. The engine is a 4-stroke piston sixcylinder
  inner combustion engine with in-line vertical arrangement of cylinders, with direct
  injection of diesel fuel and compression ignition, corresponding to environmental requirements
  of Stage 3B.
• The catalogue is meant for organizations and firms that are concerned with tractor
  sales, operation and repair. It can be used in calculation and preparation of orders for spare
  parts and serves as a manual during tractor disassembling and assembling.
  All changes related to tractor design development are represented in respective
  information sheets.

HOW TO USE THIS CATALOGUE:

• Catalogue includes tractor assembly units and parts. Assembly units and parts are
  divided into groups and subgroups according to functional attribute. This directory is well
  illustrated with axonometric figures of knocked-down tractor components.
• All parts in the figures have sequence numbers (figure numbers). For ease of catalogue reference in search
  for necessary part the same sequence numbers are placed in column “Pos. No.” in the text
  part of the catalogue in ascending order from top downward.
• The figures referred to in the catalogue are well-done in the terms of art and let the user get acquainted with structure and configuration of parts and assembly units. They can serve as a manual for carrying out
  disassembling and assembling operations.

For example, the following record is given in the catalogue
«…240-1004100-􀈺 4 Connecting rod (13,20,21,37-39)».

TABLE OF CONTENTS:

Belarus 1523.5 Tractor Parts Catalogue & Assembly Manual 1523.5-0000010 KDS – PDF DOWNLOAD

Introduction 4
How to use this catalogue 4
Application 5
Index of groups and subgroups of catalogue assembly units and parts 6
Assembly units and parts 10

Diesel engine mechanisms
1001 10.1 Engine assembly 10
Fuel feed system
1101 11.1 Fuel tanks 12
1108 11.2 Fuel feed control 14
1109 11.3 Air supply line 16
11
1109 11.4 Air cleaner assembly 18
Exhaust system
1205 12.1 Muffler assembly 20
1209 12.2 Tank heating system 22
12
1204 12.3 Supply system 24
Cooling system
1301 13.1 Cooling unit 26
1317 13.2 Cooler assembly 28
13
1309 13.3 Fan guard 30
Clutch
1601 16.1 Clutch assembly 32
1601 16.2 Clutch housing 34
1601 16.3 Clutch housing 36
1601 16.4 Clutch housing. Release yoke. 40
1602 16.5 Clutch control when main and working cylinders produced by
RUE GZG are mounted
42
1602 16.6 Clutch control when main and working cylinders produced by
NPOOO Fenox are mounted
44
1602 16.7 Main cylinder 46
1602 16.8 Hydraulic booster 48
1602 16.9 Working cylinder 50
16
1602 16.10 Tank 52
Gearbox
1701 17.1 Gearbox 1522-1700010 54
1701 17.2 Primary shaft 56
1701 17.3 Secondary shaft 58
1701 17.4 Intermediate shaft 60
1701 17.5 Low gears shaft 62
1702 17.6 Gearbox control mechanism 66
1701 17.7 Gearbox 1222-1700010 (24F+12R) 70
1701 17.8 Primary shaft 72
1701 17.9 Intermediate shaft 74
1701 17.10 Low gears and reverse shaft 76
1701 17.11 Gear train shaft 80
1701 17.12 Secondary shaft 82
1702 17.13 Gearbox control mechanism 84
1706 17.14 Creeper assembly 90
1702 17.15 Cylinder 94
1704 17.16 Pumps drive 96
1716 17.17 Filter 98
17
1737 17.18 Distributor-filter 100
18 Front driving axle drive
1802 18.1 Front driving axle drive 102
Cardan drive
2203 22.1 Cardan drive 106
22
2210 22.2 Guard 108
7
INDEX OF GROUPS AND SUBGROUPS OF CATALOGUE ASSEMBLY UNITS AND PARTS
Group Subgroup Fig. Description Page
Front driving axle
2300 23.1 Front driving axle 110
2302 23.2 Main gear of front driving axle
(1222-2300020-05) 114
2303 23.3 Differential 116
23
2308 23.4 Final drive gear box of front driving axle (1222-2300020-05) 118
Rear axle
2401, 2407 24.1 Rear axle housing . Final drive. 122
2403, 2407 24.2 Differential. Bearing body. 126
2401 24.3 Lubrication system of rear axle 128
2409 24.4 Differential lock mechanism 130
24
2409 24.5 Differential lock clutch of “wet” type 132
Drawbar hitch
2707 27.1 Drawbar hitch 134
27
2707 27.2 Drawbar hitch (configuration variants) 136
30 Front axle
3003 30.1 Steering link 138
Wheels and hubs
3101 31.1 Front driving wheels 140
31
3107 31.2 Rear driving wheels 142
Steering
3401 34.1 Steering column 144
Hydrostatic power steering 148
34
3405 34.5 Hydraulic cylinder 50h25-200 153
Brakes
3506 35.1 „Wet“ brakes 155
3503 35.2 Parking brake control 157
3503 35.3 Brake control 161
3503 35.4 Brake fluid tanks 165
3503 35.5 Working cylinder 167
3506 35.6 Pneumatic drive (combined) 169
3513 35.7 Tank 173
3514 35.8 Brake valve 175
35
3506 35.9 Compressor 177
Electrical equipment
3700 37.1 Engine electrical equipment 179
3700 37.2
37.3 Transmission electrical equipment 181
3700 37.4 Cab electrical equipment 184
3700 37.5 Front lamps assembly 186
3723 37.6 Rear lamps assembly 188
3700 37.7 Working lights assembly 190
3700 37.8 Working lights assembly 192
3700 37.9 Headlights assembly 194
3724 37.10 Storage battery assembly 196
37
3722 37.11 Switching unit 200
8
INDEX OF GROUPS AND SUBGROUPS OF CATALOGUE ASSEMBLY UNITS AND PARTS
Group Subgroup Fig. Description Page
Dashboard
Dashboard 202
38
3805 38.5
38.6 Dashboard assembly 206
Tools and acessories
3901 39.1 Operator’s tool 209
39
3912 39.2 First-aid kit 211
Power take-off
4202 42.1 Power take-off shaft 213
4218 42.2 Rear PTO hydraulic drive control 219
4209 42.3 Front power take-off shaft 223
4209 42.4 Front PTO gear unit 225
42
4235 42.5 Ballast 231
Hydraulic system
4605 46.1 Lift linkage 233
4605 46.2 Units and elements of lift linkage 237
4605 46.3 Walterscheid hook 239
4605 46.4 MTZ hook 241
4606 46.5 Pivot joints and transition elements 243
4606 46.6 Front lift linkage 245
4606 46.7 Bracket assembly of front lift linkage 249
Hydraulic units and fittings 251
Hydraulic units and fittings 257
4608 46.14 Tank 263
46
4617 46.15 Pump drive of hydraulic system 265
Windscreen wipers
5205 52.1 Rear windscreen wiper assembly 267
5205 52.2 Front windscreen wiper assembly 269
5205 52.3 Windscreen washer assembly 271
Tractor cab
6700 67.1 Tractor cab 273
6700 67.2 Roof 277
6708 67.3 Cab door 279
6703,6708 67.4 Cab. Cab glasses 283
67
6702 67.5 Control panel assembly 287
Seat
6800 68.1 Operator’s seat 289
6800 68.2 Operator’s seat 293
68
6807 68.3 Reverse mechanism 295
Air-conditioning system
8100 81.1
81.2 Heater-cooler assembly 297
8100 81.3 Heating and ventilation system 300
8114 81.4 Condenser assembly 302
8114 81.5 Filter assembly 304
81
8112 81.6 Compressor assembly 306
8112 81.7 Air-conditioner assembly 308
Cab accessories
8201 82.1 Inside mirror 310
8201 82.2 Outside mirror 312
82
8201 82.3 Sun visor 314
Hood and fenders
8400 84.1
84.2 Facing 316
8403 84.3 Front wheels fenders 320
84
8405 84.4 Foot step 322
Control system
8700 87.1 DL and FDA control 1522-8700410-D 324
8700 87.2 DL, FDA and FPTO control 1523-8700210-D 326
8700 87.3 Lift linkage control 330
8700 87.4 DL, FDA and gear unit control (2022-8700450-D-02) 332
8700 87.5 DL, FDA, FPTO and gear unit control (2022-8700250-D-01) 334
87
8700 87.6
87.7 Engine control (1523.5-8700910-􀉆) 336

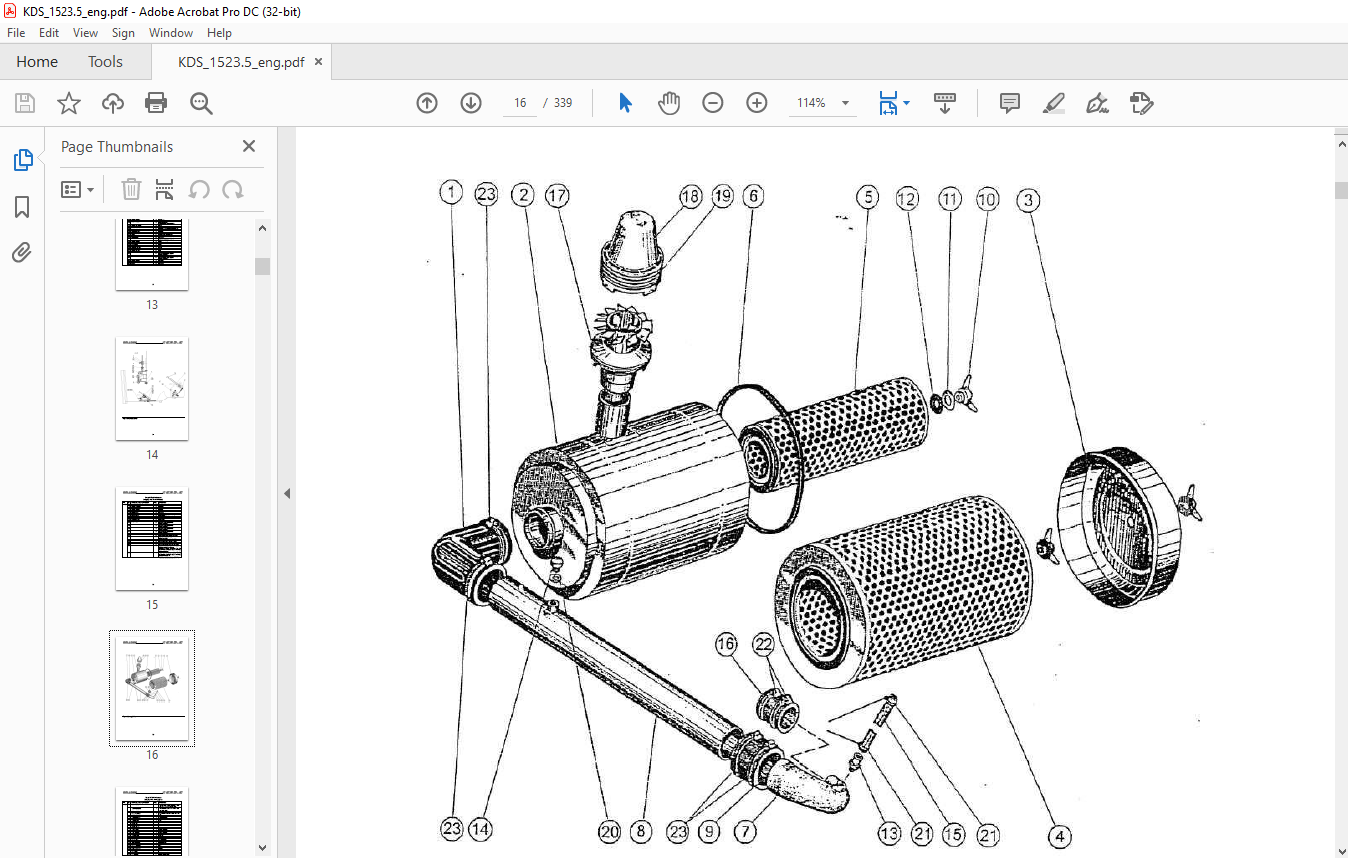

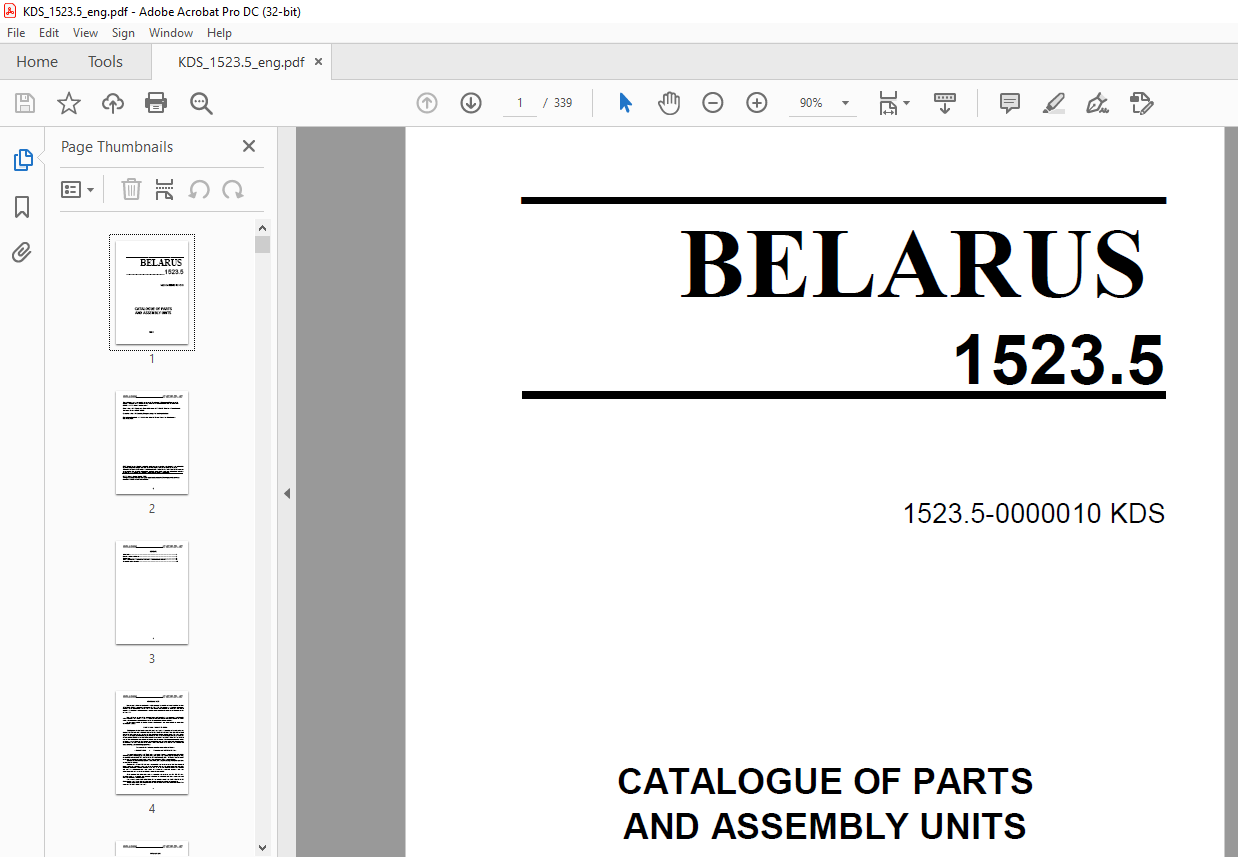

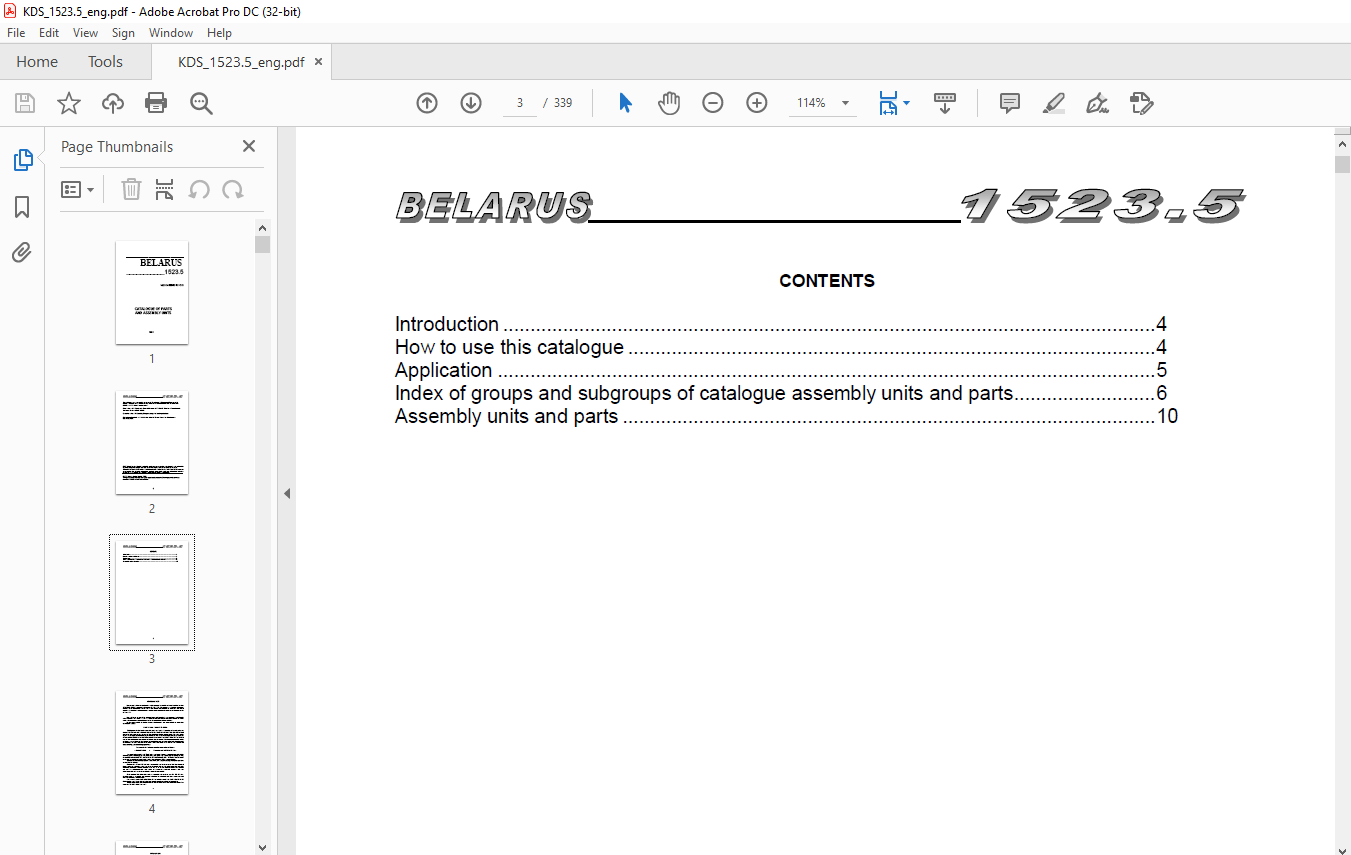

IMAGES PREVIEW OF THE MANUAL:
