DESCRIPTION:

Belarus 800 820 890 892 900 920 950 952 Tractor Parts Catalogue & Assembly Manual – PDF DOWNLOAD

INTRODUCTION :

• The present Catalogue contains the whole nomenclature of the assembly units and parts for BELARUS Series “800” (800/820/890/892) and Series “900” (900/920/950/952) trac- tors in the various versions consisting of the diesel engines D-243, D-245.5 and D-242C, D-245.5C. Diesels with index “C” are approved by Regulations of EPA (USA) and EC Di- rectives. The Catalogue contains information about two types of the front driving axles: w/ bevel reducing gears (72) and w/planetary reducing gears (822); Belarus Hydraulic Lift and the other components as of March, 2003.
• The Catalogue is the reference book for ordering the spare parts and provides the ser- vicemen and dealers with comprehensive information on assembly/disassembly and re- pair the tractor.

HOW TO USE THE CATALOGUE:

The Catalogue consists of the following sections: .

• Brief Technical Data.• Index of Groups And Subgroups/Assembly Units And Parts.• Assembly Units And Parts.• Standartized Parts.• Nomenclature Index.

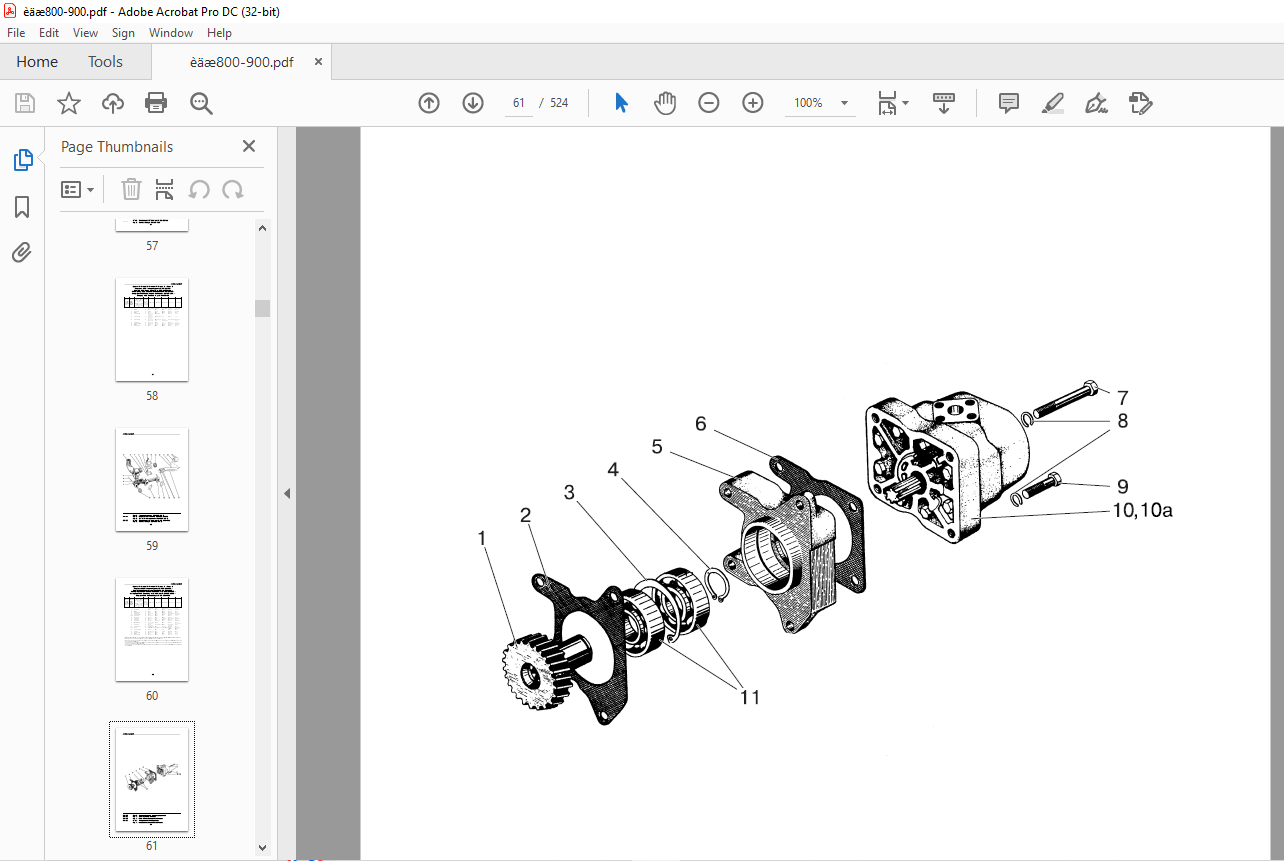

In Section “Assembly Units and Parts” all components of the tractor are divided into the groups and subgroups according to their functions. This Section is furnished with il- lustrations in the exploaded view. All parts in the illustrations (Figures) have the ordinal (consecutive) numbers (Ref. Nos) increased in clockwise direction. To make it easier to find the required assemblies and parts, the same Ref. Nos are given in the text lists as increased from the top of page to down. The illustrations given in Catalogue make it easier for User to study the construction and confuguration of the units and parts and help in dismantling and reassembling the tractor or its components.

For example, we read the following record in the text of the Catalogue: … 240-1004100-A Connecting Rod (14-16, 31-33) 4″

This means that assembly “Connecting Rod” in the quantity of 4 pcs per one diesel en- gine consists of the following parts:  • connecting rod (Ref.No 14);• bushing (Ref. No 15);• bolt (Ref. No 16);• nut (Ref. No 31);• washer (Ref. No 32);• connecting rod cap (Ref. No 33). Column

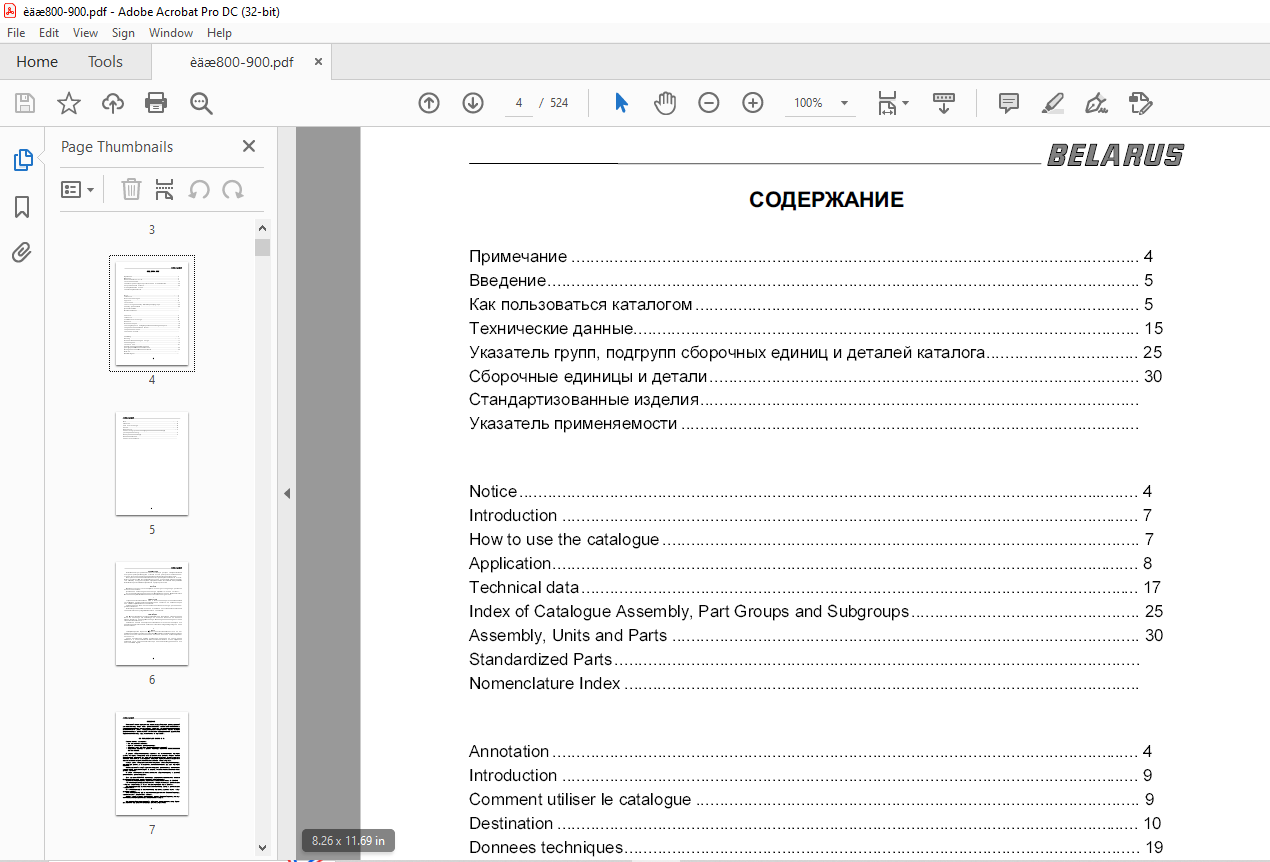

TABLE OF CONTENTS:

Belarus 800 820 890 892 900 920 950 952 Tractor Parts Catalogue & Assembly Manual – PDF DOWNLOAD

Notice
Introduction
How to use the catalogue
Application
Technical data
Index of Catalogue Assembly, Part Groups and Subgroups
Assembly, Units and Parts
Standardized Parts
Nomenclature Index
