INTRODUCTION:

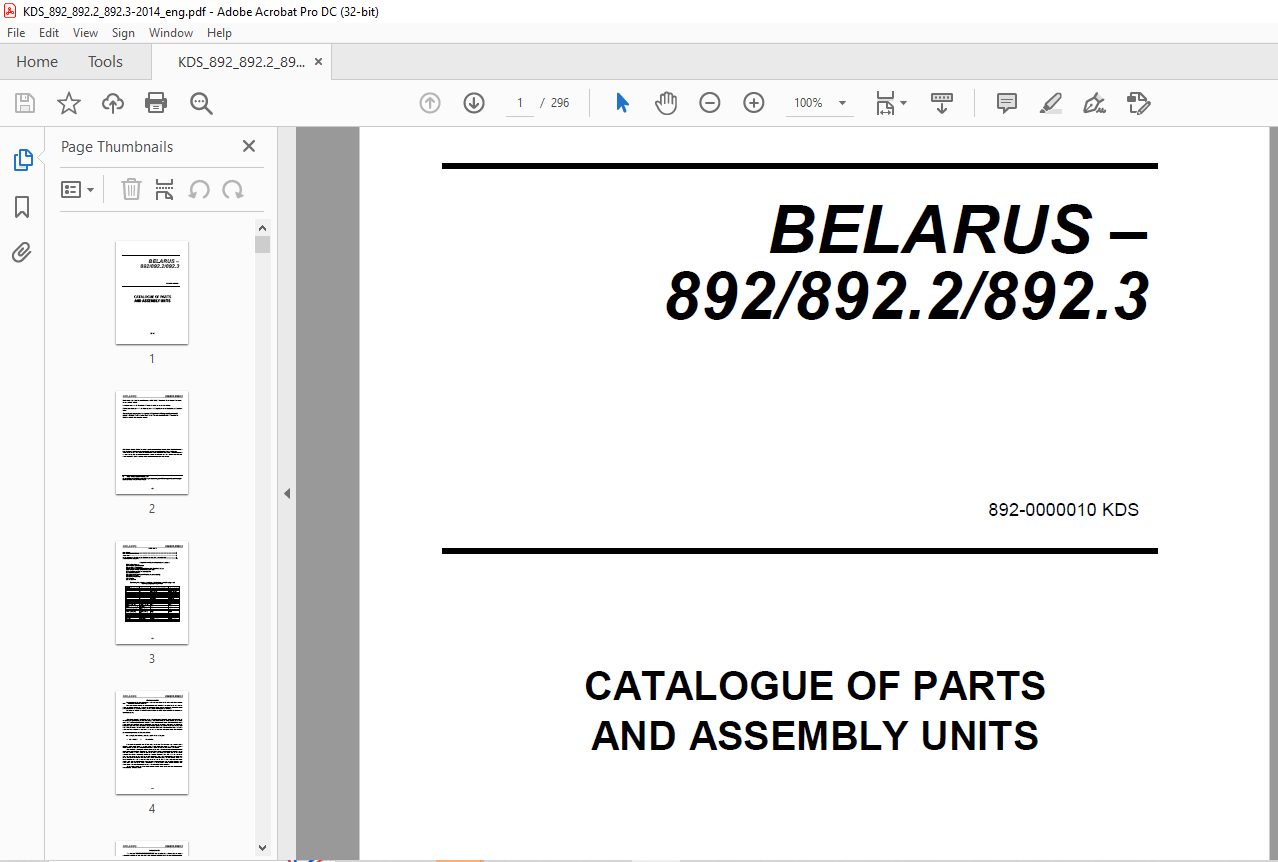

• The present catalogue contains the whole range of assembly units and parts for tractors
  “BELARUS-892/892.2/892.3”.
• The catalogue is meant for organizations and firms that are concerned with tractor
  sales, operation and repair. It can be used in calculation and preparation of orders for spare
  parts and serves as a manual during tractor disassembling and assembling.
• All changes related to tractor design development are represented in respective information
  sheets.

HOW TO USE THE CATALOGUE:

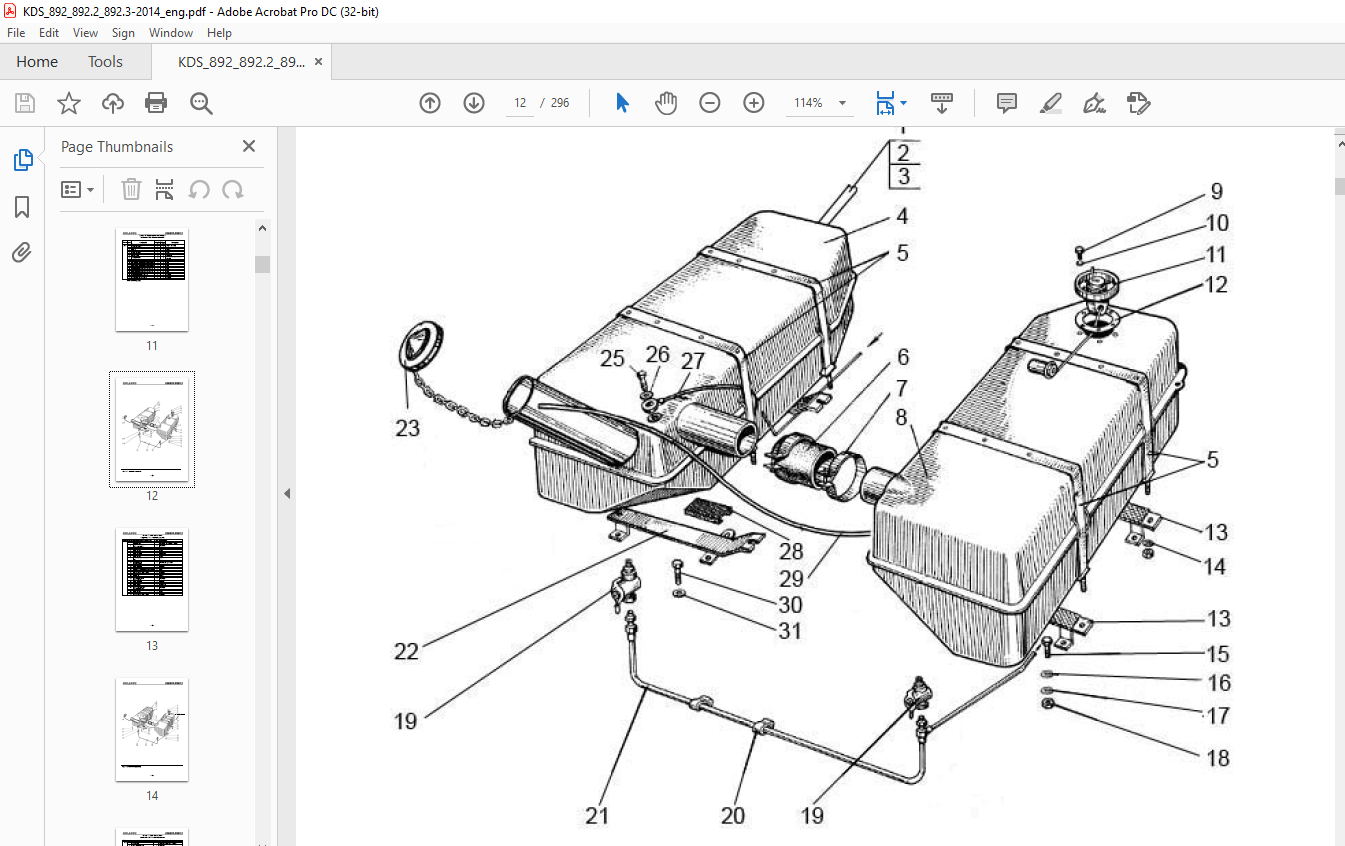

• Catalogue includes tractor assembly units and parts. Assembly units and parts are divided into groups and subgroups according to functional attribute. This directory is well illustrated with axonometric figures of knocked-down tractor components.
• All parts in the figures have sequence numbers (figure numbers). For ease of catalogue reference in search for
  necessary part the same sequence numbers are placed in column “Pos. No.” in the text part of the catalogue in ascending order from top downward.
• The figures referred to in the catalogue are well-done in the terms of art and let the user get acquainted with structure
  and configuration of parts and assembly units. They can serve as a manual for carrying out disassembling and assembling operations.

For example, the following record is given in the catalogue:
«….52-2303030 2 Gear (5-7)».

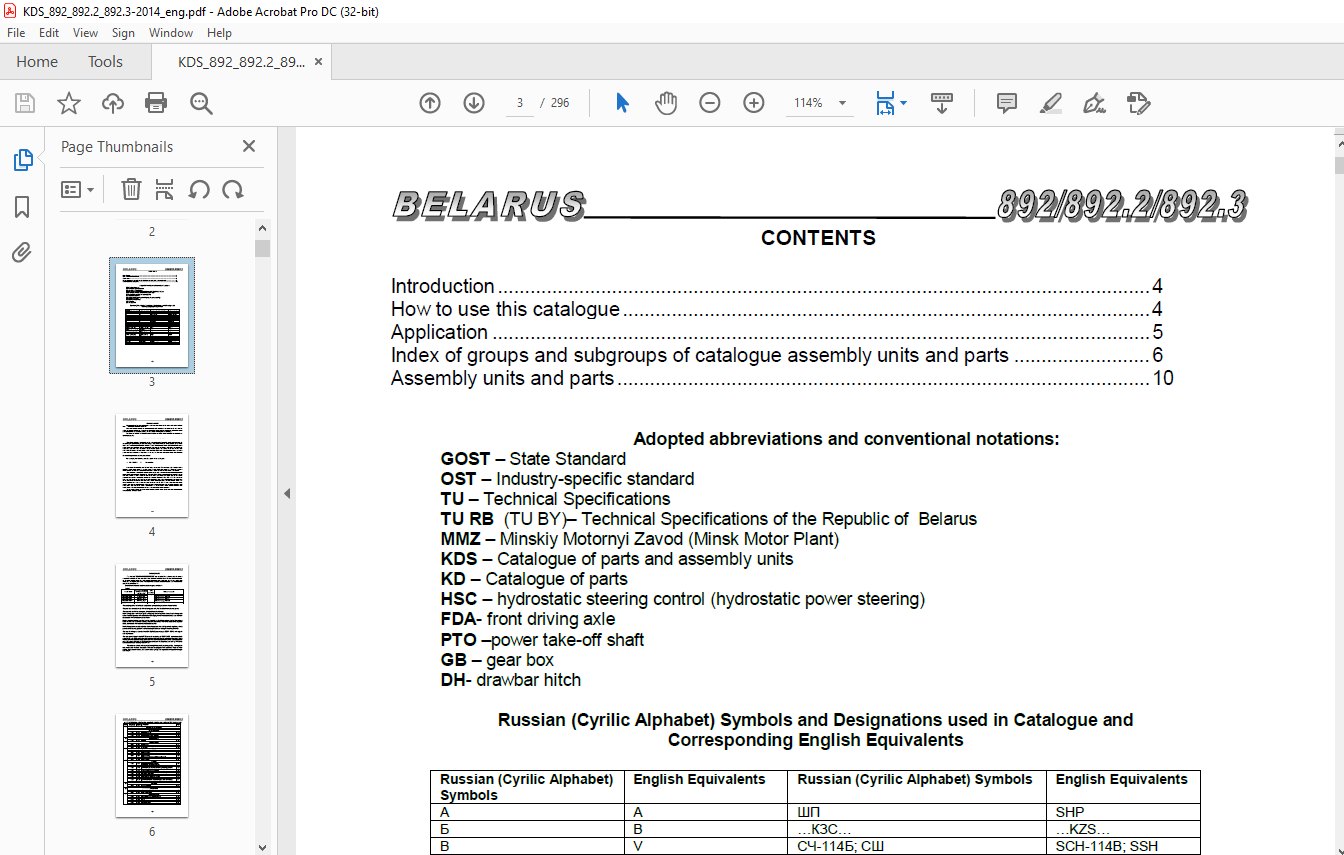

TABLE OF CONTENTS:

Belarus 892 892.2 892.3 Tractor Parts Catalogue & Assembly Manual – PDF DOWNLOAD

Introduction 4
How to use this catalogue 4
Application 5
Index of groups and subgroups of catalogue assembly units and parts 6
Assembly units and parts 10

Group Subgroup Fig.No Description Page
Diesel engine mechanisms
1001 10.1 Engine assembly 10
Fuel feed system
1101 11.1 Fuel tanks (metal) 12
1101 11.2 Fuel tanks (plastic) 14
1108 11.3 Fuel feed control 800-1108500 16
1108 11.4 Fuel feed control 1221-1108005 20
12 Exhaust system
1205 12.1 Muffler 22
Cooling system
1301 13.1 Cooling unit 24
1310 13.2 Shutter 28
1309 13.3 Fan guard 30
Clutch
1601 16.1 Clutch assembly 32
1601 16.2 Clutch housing 34
1601 16.3 Clutch housing. Release yoke 38
1601 16.4 Clutch housing
(PTO drive, pump drive of hitch hydraulic system)
1601 16.5 Clutch housing. PTO drive 42
1602 16.6 Clutch control 44
Gearbox
1721 17.1 Mechanical reducing gear unit/
mechanical speed-increase unit
1721 17.2 Synchronized reducing gear unit 48
1723 17.3 Control of mechanical (synchronized) reducing gear unit/
speed-increase unit
1721 17.4 Synchronized reverse gear unit 52
1723 17.5 Control of synchronized reverse gear unit 54
1701 17.6 GB casing. FDA drive 56
1701 17.7 Primary and secondary shaft of mechanical GB 58
1701 17.8 First gear and reverse gear shaft 60
1701 17.9 Intermediate shaft. Inner shaft. 62
1702 17.10 Control mechanism of mechanical GB. Shift fork housing 64
1703 17.11 Mechanism of right single-lever GB control 66
FDA drive
1802 18.1 Transfer gearbox 68
1802 18.2 Transfer gearbox control 70
Cardan drive
2203, 2209 22.1 Cardan drive. Propeller shaft centre bearing 72
2210 22.2 Cardan drive boot 74
Front driving axle
2300 23.1 Front driving axle 72-2300020-􀈺-04 76
2300 23.2 Front driving axle 822-2300020 78
2302 23.3 Gear 80
2303 23.4 Differential 82
2308 23.5 Wheel hub drive 84
2308 23.6 FDA final drive reducing gear 88
Group Subgroup Fig.No Description Page
Rear axle
2401, 2407 24.1 Rear axle housing. Final drive 92
2403 24.2 Differential. Bearings body 94
2409 24.3 Differential lock mechanism 96
Hitch
2707 27.1 Drawbar hitch. Hook 98
2707 27.2 Drawbar hitch. Floating drawbar and trailer 100
Frame
2801 28.1 Semi-frame 104
2805 28.2 Towing device 105
2807 28.3 Hydraulic trailer hook 106
30 Steering link
3003 30.1 Steering link 108
Wheels and hubs
3101 31.1, 31.2,
31.3 Front drive wheels 110
3104, 3107 31.4 Front rear wheels. Rear wheels hubs 114
31
3104 31.5 Wheel hub 116
Steering
3401 34.1 Steering column 118
3407 34.2 Steering feetings 900-3400010-02 120
3405,
3407 34.3 Hydraulic cylinder and HSC fittings
900-3400010-02 (variant with FDA 72-2300020-A) 122
3407 34.4 Steering with pedal control of rear axle differential lock 124
3405,3407 34.5 Hydraulic cylinder TS63 and HSC fittings 128
3405 34.6 Hydraulic cylinder TS63 130
3405 34.7 Hydraulic cylinder 50􀉯25-200 132
Brakes
3502,3503 35.1 Brakes. Brakes control 134
3504, 3507 35.2 Parking brake. Parking brake control 136
Pneumatic drive
3506 35.3 Pipeline and fittings of brakes single-line pneumatic drive 138
3513 35.4 Tank 140
3514 35.5 Brake valve 141
3509 35.6 Compressor 142
Electrical equipment
3700 37.1 Engine electrical equipment 144
3700 37.2 Transmission electrical equipment 146
3700 37.3 Cab electrical equipment 148
3711 37.4 Headlights assembly (921-3700020-01) 150
3711 37.5 Headlights assembly (950-3700020) 151
3711 37.6 Working lights assembly 152
3712 37.7 Front lamps assembly 80-3700525-B/-01 154
3712 37.8 Front lamps assembly N80-3712010-01 155
3716 37.9 Rear lamps assembly 156
3703 37.10 Storage battery assembly (starting system 12V) 158
3703 37.11 Storage battery assembly (starting system 24V) 158
3730 37.12 Heater electrical equipment 160
3738 37.13 Beacon assembly 162
Group Subgroup Fig.No Description Page
Instruments
3805 38.1 Basement, instruments 164
3805 38.2 Wall, cover 168
Tools and accessories
3901 39.1 Operator’s tool 170
3912 39.2 First-aid kit 171
3919 39.3 Tool box assembly 172
Power take-off
4202 42.1 Rear power take-off shaft 174
4204 42.2 Side power take-off shaft 178
4216 42.3 Rear power take-off control 180
42.5 Ballast 182
Hydraulic system
4605 46.1 Rear lift linkage mechanism (for tractors with draft control unit) 184
4605 46.2 Outer locking of lower links 190
4605 46.3 Rear lift linkage mechanism (variant) 192
4605 46.4 Telescopic turnbuckle 198
4607 46.5 Hydraulic system 952-4600010 200
4607 46.6 Hydraulic system housing 952-4600015-01 204
4607 46.7􀉚,
46.7B Hydraulic system R90-4600010 206
4607 46.8 Hydraulic system housing R85-4600015-01 210
4607 46.9 Hydraulic system housing and filter 214
RP70 46.10 Hydrailic distributor RP70 216
4607 46.11 Hydrailic distributor RP70 control 220
4604 46.12 Pump drive 222
􀉆036.50B 46.13 Quick coupling 223
4614 46.14 Regulator 224
4616 46.15 Regulator control 228
4616 46.16 Regulator control (HLL with mixed control) 230
4616 46.17 Shifter (HLL with mixed control) 232
4619 46.18 Lock mechanism 234
48 Control of rear axle differential lock
4801 48.1 Differential lock control 236
Windscreen wipers
5205 52.1 Windscreen wiper assembly 238
5208 52.2 Windscreen washer assembly 240
Cab
6700 67.1 Tractor cab. Rear fenders 242
6700 67.2 Tractor cab. Rear fenders (variant) 246
6700 67.3,
67.4 Roof 250
6700 67.5 Canopy. Basement 252
6702 67.6 Cab floor 254
6708 67.7 Cab doors 256
INDEX OF GROUPS, SUBGROUPS, ASSEMBLY UNITS AND PARTS OF THE CATALOGUE
Group Subgroup Fig.No Description Page
Seat
68.2 Operator’s seat 258
6801 68.3 Seat suspension 264
6809 68.4 Additional seat 268
Heater
8101 81.1 Heater 270
8101 81.2 Heater (variant) 272
Cab accessories
8201 82.1 Inside rear-view mirror 276
8201 82.2 Lateral rear-view mirror 276
8204 82.3 Sun visor 276
Hood and fenders
8400 84.1􀉚,
84.1B Facing 92P-8400005 278
8400 84.2 Facing 950.1-8400005 282
8400 84.3 Facing 90-8400005 286
8403 84.4 Front fenders (for FDA 72-2300020-􀈺) 290
8403 84.5 Front fenders (for FDA 72-2300020-􀈺, variant) 292
8403 84.6 Front fenders (for FDA 822-2300020-02 with long axle tubes) 293
8403 84.7 Front fenders (for FDA 822-2300020-04 with short axle tubes) 294
8405 84.8 Foot step 295
