DESCRIPTION:

Belarus 920.4 952.4 with motor D-245.43S3A D-245.5S3A Tractor Parts Catalogue & Assembly Manual – PDF DOWNLOAD

INTRODUCTION:

• The present catalogue contains the whole range of assembly units and parts for tractors
  BELARUS 920.4/952.4, equipped with diesel engines D-245.43S3A/D-245.5S3A.
• The catalogue is meant for organizations and firms that are concerned with tractor
  sales, operation and repair. It can be used in calculation and preparation of orders for spare
  parts and serves as a manual during tractor disassembling and assembling.
• All changes related to tractor design development are represented in respective information
  sheets.

HOW TO USE THE CATALOGUE:

• Catalogue includes tractor assembly units and parts.
  Assembly units and parts are divided into groups and subgroups according to functional

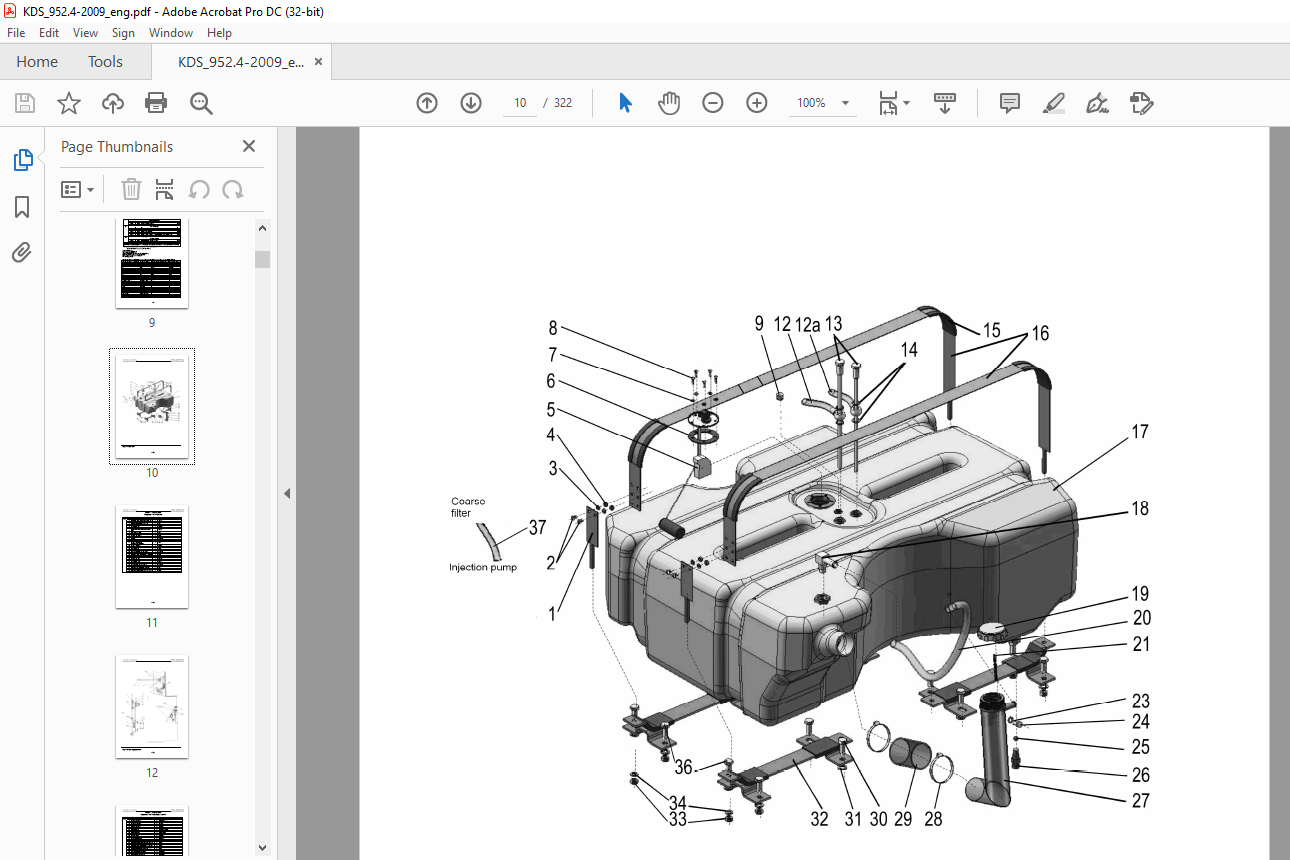

  attribute. This directory is well illustrated with axonometric figures of knocked-down
  tractor components.
• All parts in the figures have sequence numbers (figure numbers). For
  ease of catalogue reference in search for necessary part the same sequence numbers are
  placed in column “Pos. No.” in the text part of the catalogue in ascending order from top
  downward.
• The figures referred to in the catalogue are well-done in the terms of art and let
  the user get acquainted with structure and configuration of parts and assembly units. They
  can serve as a manual for carrying out disassembling and assembling operations.

For example, the following record is given in the catalogue:
“…240-1004100-􀈺 4 Connecting rod (13,20,21,37-39)”.

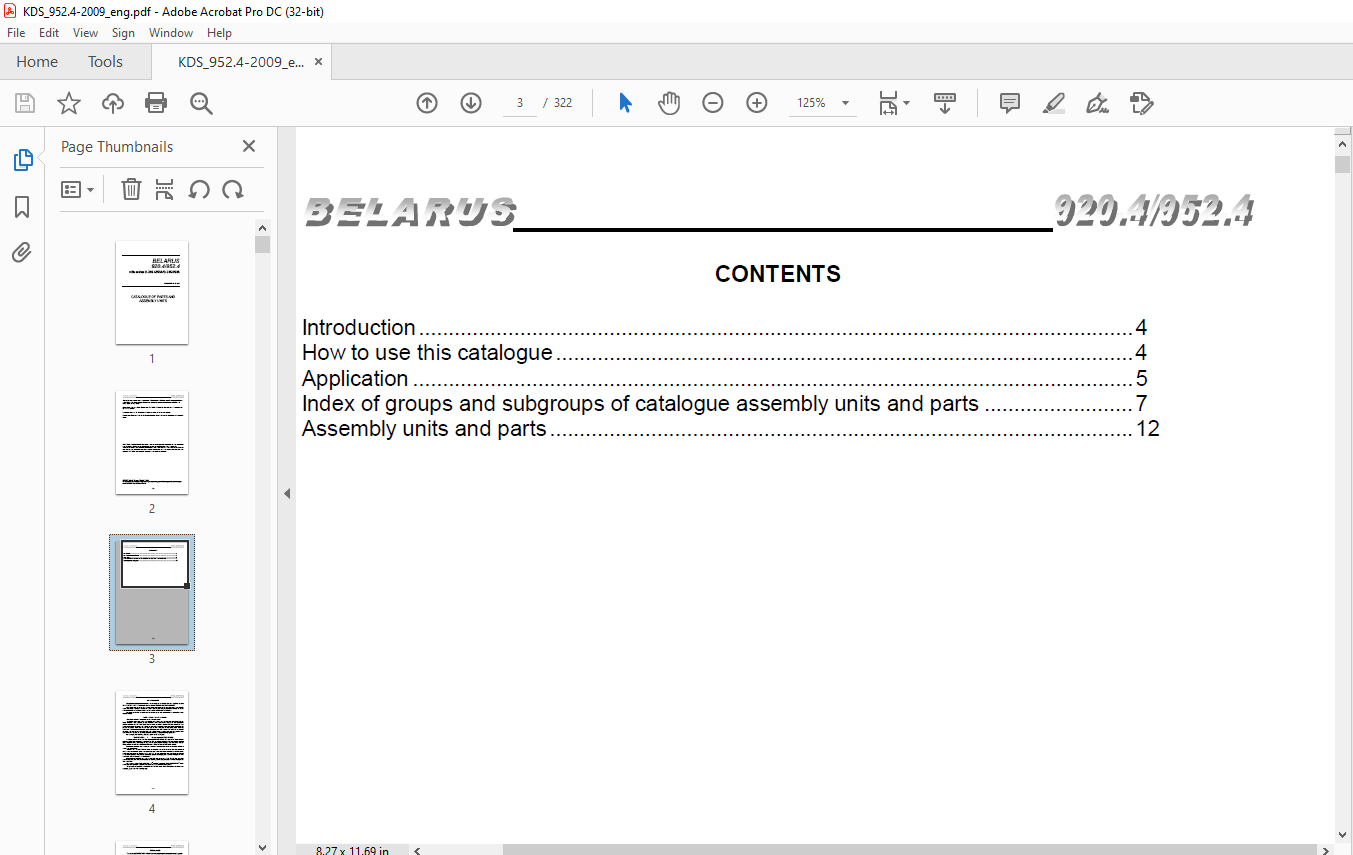

TABLE OF CONTENTS:

Belarus 920.4 952.4 with motor D-245.43S3A D-245.5S3A Tractor Parts Catalogue & Assembly Manual – PDF DOWNLOAD

Introduction 4
How to use this catalogue 4
Application 5
Index of groups and subgroups of catalogue assembly units and parts 7
Assembly units and parts 12

1101 11.1 Fuel tanks 10
1108 11.2 Fuel supply control 12
11
1108 11.3 Air cleaner installation 14
12 Gas exhaust system
1205 12.1 Muffler installation 16
Cooling system
1301 13.1 Cooling unit 18
1309 13.2 Fan guard 20
13
1317 13.3 Cooler installation 22
Clutch
1601 16.1 Clutch installation 240-1005009-03 24
1601 16.1􀉚 Clutch installation 240-1005009-06 26
1601 16.2 Clutch housing 28,30
1601 16.3 Clutch housing. Shifter 32
1601 16.4 Clutch housing (PTO shaft drive, linkage hydraulic system
pump drive)
34
1601 16.5 Clutch housing. PTO shaft drive. (neng=1800 min-1) 36
16
1602 16.6 Clutch control 38
Gear box (GB)
1721 17.1 Mechanical step-down reduction gear unit 40
1721 17.2 Synchronized step-down reduction gear unit 42
1723 17.3 Control of mechanical (synchronized) reduction gear unit 44
1701 17.4 Gear box. Versions 46
1701 17.5 GB housing. FDA drive. 48
1701 17.6 Primary shaft and secondary shaft of mechanical GB 50
1701 17.7 Primary shaft of synchronized GB 52
1701 17.8 Secondary shaft of synchronized GB 54
1701 17.9 1st gear and reverse gear shaft 56
1701 17.10 Intermediate shaft. Inner shaft. 58
1702 17.11 Mechanical GB control mechanism. Fork housing. 60
1702 17.12 Synchronized GB control mechanism. Fork housing. 62
1703 17.13 Mechanism of right singe-lever gearbox control. 64
17
1703 17.14 Mechanism of double-lever gearbox control 66
Transfer gearbox
1802 18.1 Transfer gearbox 68
18
1802 18.2 Transfer gearbox control 70
Cardan drive
2203 22.1 Cardan shaft. Cardan shaft intermediate support. 72
22
2210 22.2 Cardan drive guard. 74
Front driving axle (FDA)
2300 23.1 Front driving axle 822-2300020 76
2302 23.2 Gear 78
2303 23.3 Differential unit 80
2308 23.4 Final drive reduction gear unit of front driving axle 82
Group Subgroup Fig. No Name Page
Rear axle
2401,2407 24.1 Rear axle housing. Final drive 86
2403 24.2 Differential unit. Bearing carrier 88
2409 24.3 Differential locking mechanism 90
2409 24.4 Differential locking mechanism of wet type 92
Drawbar hitch
2707 27.1 Drawbar hitch 94
27
2707 27.2 Drawbar hitch (configuration variants) 96
Frame
2801 28.1 Semi-frame 98
2805 28.2 Trailing appliance 100
28.4 Trailer hook 􀉄1220-2807010-􀈺 102,
30 Steering link
3003 30.1 Steering link 106
Wheels and hubs
Front driving wheels 108
3104,3107 31.3 Rear driving wheels. Rear wheels hubs 110
3104 31.4 Wheel hub 112
Steering control
3401 34.1 Steering column 114
3407 34.2 Steering control 1025-3400010-01 116
3405 34.3 Hydraulic cylinder 􀉐63 (63×30-200) 120
34
3407 34.4 Tank 122
Brakes
3502, 3503 35.1 Brakes. Dry brakes control 124
3502 35.2 Brakes (version) 126
3502 35.3 Wet brakes (left/right) 128
3503 35.4 Brakes. Wet brakes control 130
3504, 3507 35.5 Parking brake. Parking brake control 132
3504, 3507 35.6 Parking brake. Parking brake control (for wet brakes) 136
3506 35.7 Air drive 140
3513 35.8 Ballon 142
3514 35.9 Valve brake 142
3521 35.10 Coupling head 144
3521 35.11 Coupling head 144
Electrical equipment
3711 37.1 Head lamps installation 146
3700 37.2 Engine electrical equipment 148
3700 37.3 Transmission electrical equipment 150
3700 37.4 Cabin electrical equipment 152
3738 37.5 Signalling beacon installation 154
3716 37.6 Rear lights installation 156
3703 37.7 Storage battery installation 158
3730 37.8 Heater electrical equipment 160
3700 37.9 Conditioner installation 162
3711 37.10 Working lights installation 164
3712 37.11 Front lights installation 166
5205 37.12 Windscreen washer installation 168
37
5205 37.13 Windscreen wiper installation 170
– 8 –
INDEX OF GROUPS AND SUBGROUPS OF CATALOGUE ASSEMBLY UNITS AND PARTS
Group Subgroup 􀊋 Fig. Name Page
Instruments
3805 38.1 Dashboard 172
3805 38.2 Dashboard 174
3805 38.3 Dashboard 176
Tools and accessories
3901 39.1 Operator tool 178
3912 39.2 First aid kit 178
3919 39.3 Tool box installation 180
Power take-off (PTO)
4202 42.1 Rear PTO shaft 182
4202 42.2 Rear PTO shaft 186
4204 42.3 Side PTO shaft 190
4216 42.4 Control of rear PTO shaft 192
4235 42.5 Ballast 194
Hydraulic system
4604 46.1 Pump drive 196
4605 46.2 Mechanism of rear lift linkage 198
4605 46.3 Telescopic stabilizer 204
4607 46.4 Hydraulic system 􀉊1221-4600010-02 206
4607 46.5 Hydraulic system housing 􀉊1221-4600015-02 208
4607 46.6 Hydraulic system 1021-4600010 212
4607 46.7 Hydraulic system housing 1021-4600015 214
4607 46.8 Control of hydraulic distributor valve RS213 Mita, RS 213
Belarus, 􀉊􀉉 70 216
4607 46.9 Hydraulic system housing and filter 218
􀉆036.50􀈻 46.10 Fast coupling 222
􀉊􀉉70 46.11 Hydraulic distributor valve 􀉊􀉉70 224
4625 46.12 Hydraulic lift cylinder 228
4634 46.13 Distributor valve of hydraulic lift 230
4635 46.14 Control of hydraulic lift 232
46
4635 46.15 Hydraulic lift 234
Tractor cabin
6700 67.1 Tractor cabin. Rear wings 236
6700 67.2,
67.3 Roof 240
6702 67.4 Cabin floor 242
6708 67.5 Cabin doors 244
Seat
6800 68.1 Operator seat 246
6804 68.2 Operator seat 250
6801 68.3 Seat suspension 252
6809 68.4 Additional seat 256
Conditioner system
8100 81.1 Air conditioner installation 258
8114 81.2 Air conditioner installation 260
8101 81.3 Heater (upon request) 262
8201 82.1 Inside rear-view mirror 266
8201 82.2 Side rear-view mirror 266
8204 82.3 Sun visor 266
Fin assembly
8400 84.1 Facing (right view) 268
8400 84.2 Facing (top view) 270
8400 84.3 Facing (front view) 272
8403 84.4 Front wings (for FDA 822-2300020-02 with expanded hoses) 274
8403 84.5 Front wings (for FDA 822-2300020-04 with short hoses) 276
8405 84.6 Foot step 278
Control system
8700 87.1 Control of DL and PTO shaft 280
8700 87.2 Control of MMZ engines 282
