Belarus MT3-50 MT3-50A MT3-52 MT3-52A Tractor Parts Manual – PDF DOWNLOAD

Belarus MT3-50 MT3-50A MT3-52 MT3-52A Tractor Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Belarus MT3-50 MT3-50A MT3-52 MT3-52A Tractor Parts Manual – PDF DOWNLOAD

Language : English
Pages : 224
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Belarus MT3-50 MT3-50A MT3-52 MT3-52A Tractor Parts Manual – PDF DOWNLOAD

HOW TO USE THIS CATALOGUE:

The present cata logue contains a complete list of units and parts of tractors “Belarus” MT3-50 MT3-50JI, MT3-52 and MT3-52JI “Super” as of April 1971.

• The catalogue main section “Tractor Units and Parts”. is divided in groups and subgroups including parts IIsted according to their function.
• The arrangement of parts within almost each group and subgroup corresponds to the sequence of assembling. · This section is il lustrated with figures to fac ilitate find ing of any required part, and- enables the user to get acquainted with the design of the tractor units and components.

The data referring to units and parts are arranged within each group and subgroup as fo llows:
1. Units ane assemblies which can be furnished as spares.
2. Parts.
3. Parts taken from other groups of tractor “Belarus” or other types of t ractors manufactu red earlier by the Tractor-Buil ding Works, or produced by other manufactured.
4. Standard Parts.

Numbers of parts and units in each grou.p or sub, group are listed in the increasing order: ·unns· and · assemblies which can be furn ished as spare ones have no reference numbers in the figures.

• To find numbers of the parts which compose a certain unit (assembly), use the reference numbers to Figures indicated in the column (“Description”) .the rekrence ~o. in the figure the user can f1jt(i No. of the part m column “Unit or Part No.” The column “Quantity per Group” indicates_ the quantity of units and parts i)1 a given group or subgroup.
• Th~ section “Standard Parts” contains fasteners and o.ther standard parts (oilers, cups, etc.) and indicates recommen~ed anticorrosive coatings. · All standard parts are grouped into types, and each type is shown in a drawing having No. of the state standard GOST, or specification according to which a standard part is manufactured.

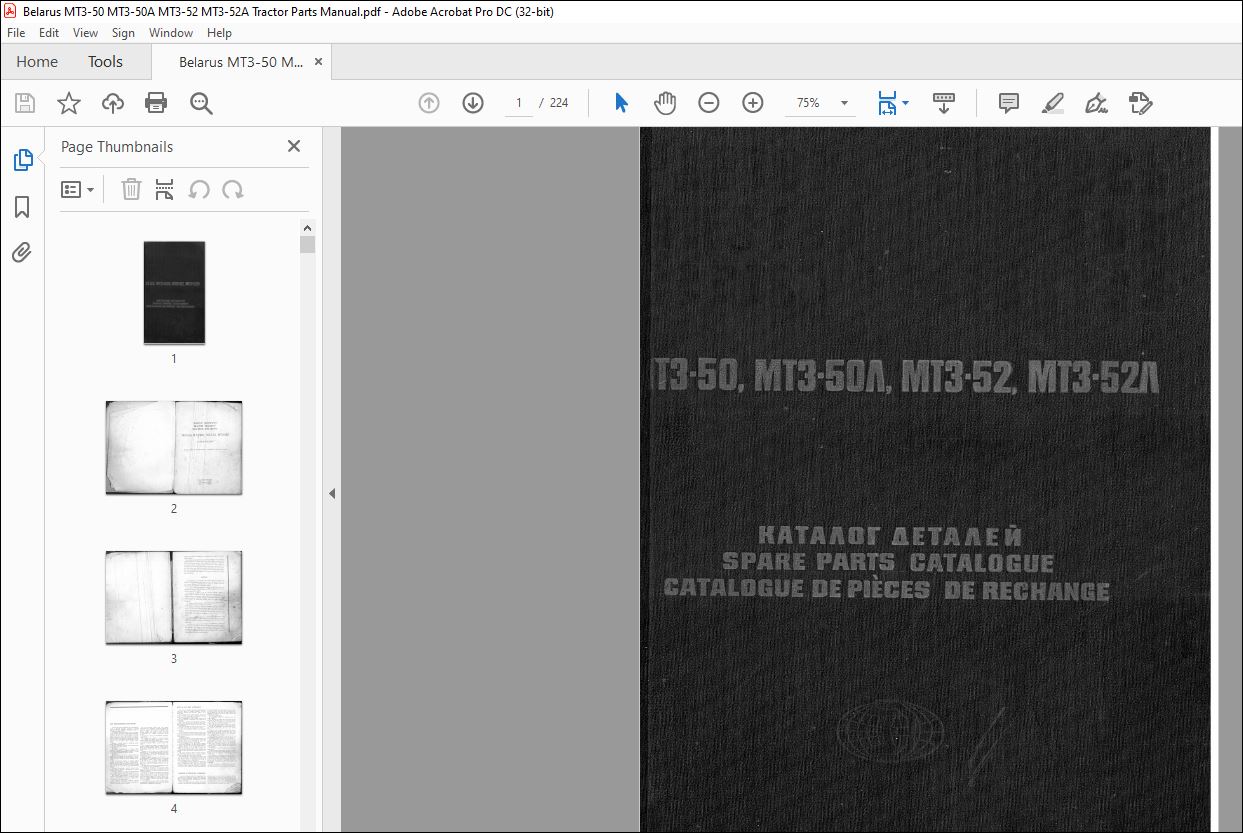

IMAGES PREVIEW OF THE MANUAL:
