Bendi Forklift B40i3 Narrow Aisle Forklift Parts Manual F-501-0510  – PDF DOWNLOAD

Bendi Forklift B40i3 Narrow Aisle Forklift Parts Manual F-501-0510  – PDF DOWNLOAD

The Bendi Forklift B40i3 Narrow Aisle Forklift Parts Manual (F-501-0510) provides detailed component information. Download for comprehensive reference on maintenance and parts replacement.

FILE DETAILS:

Bendi Forklift B40i3 Narrow Aisle Forklift Parts Manual F-501-0510  – PDF DOWNLOAD

Language : English
Pages : 86
Downloadable : Yes
File Type : PDF

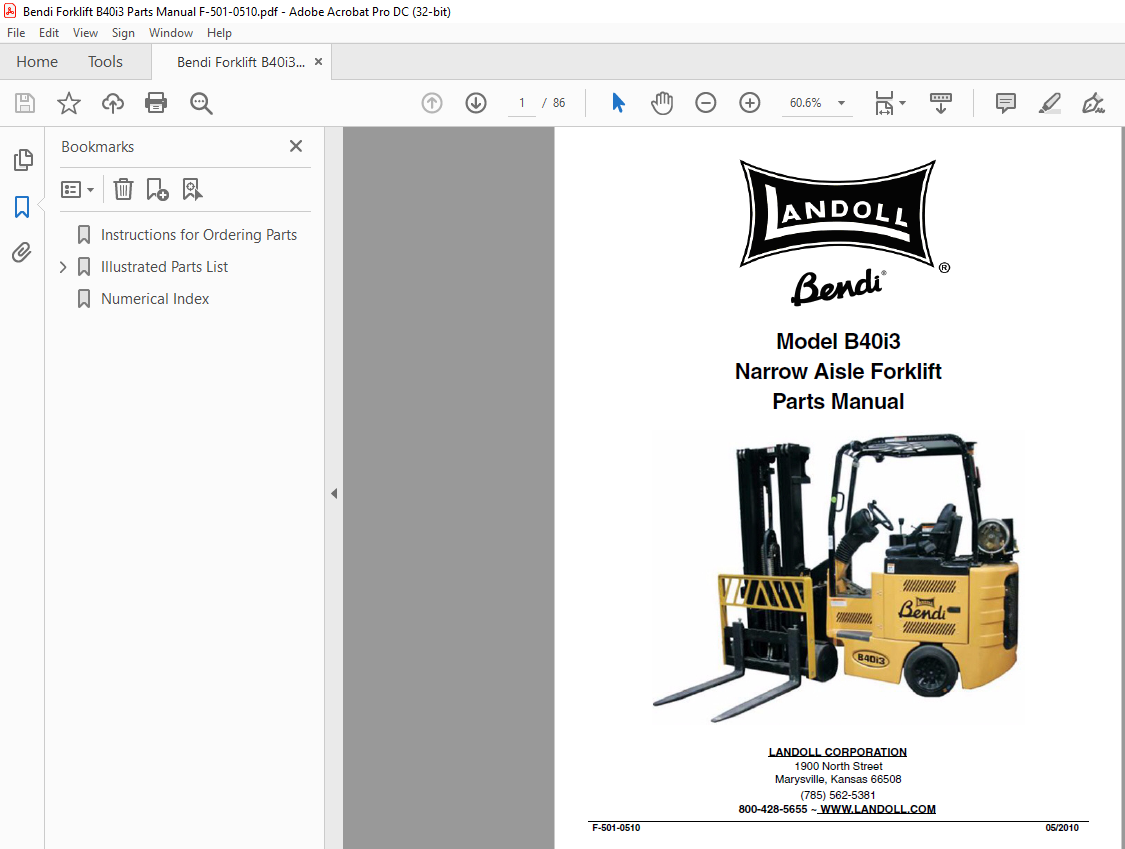

IMAGES PREVIEW OF THE MANUAL:

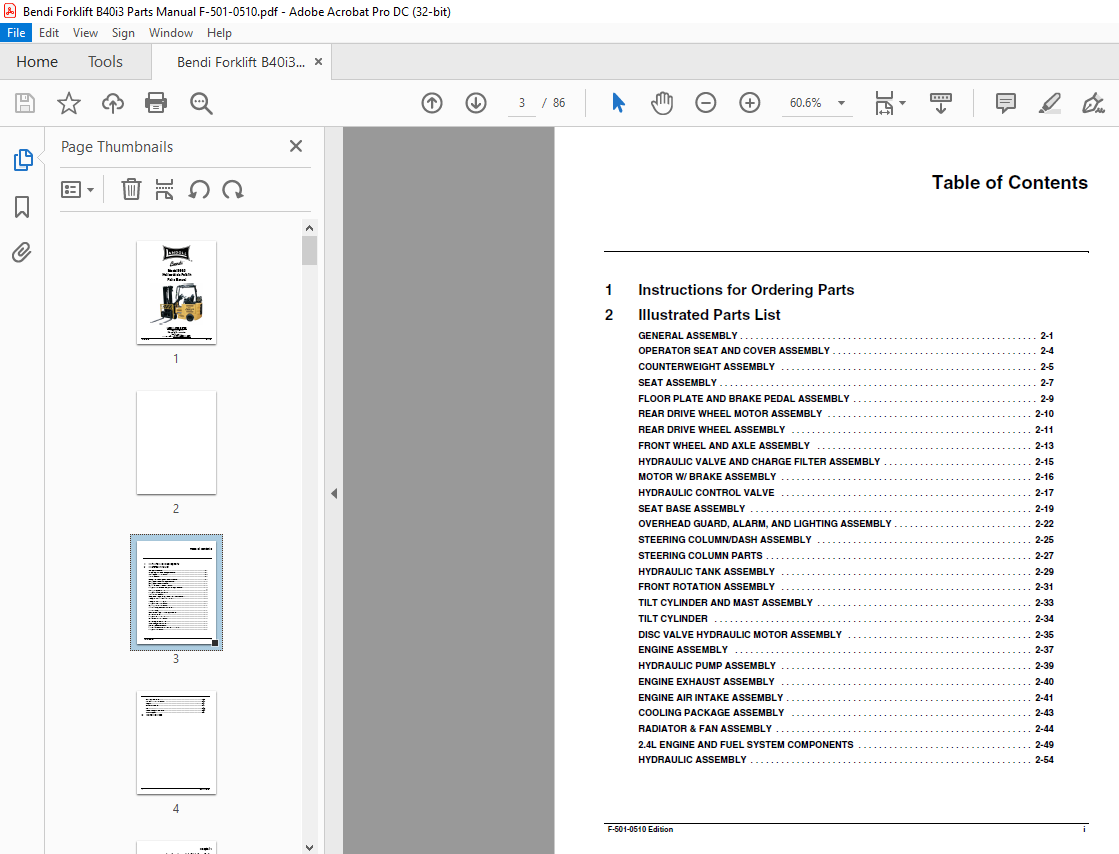

TABLE OF CONTENTS:

Bendi Forklift B40i3 Narrow Aisle Forklift Parts Manual F-501-0510  – PDF DOWNLOAD

Instructions for Ordering Parts
2 Illustrated Parts List
GENERAL ASSEMBLY 2-1
OPERATOR SEAT AND COVER ASSEMBLY 2-4
COUNTERWEIGHT ASSEMBLY 2-5
SEAT ASSEMBLY 2-7
FLOOR PLATE AND BRAKE PEDAL ASSEMBLY 2-9
REAR DRIVE WHEEL MOTOR ASSEMBLY 2-10
REAR DRIVE WHEEL ASSEMBLY 2-11
FRONT WHEEL AND AXLE ASSEMBLY 2-13
HYDRAULIC VALVE AND CHARGE FILTER ASSEMBLY 2-15
MOTOR W/ BRAKE ASSEMBLY 2-16
HYDRAULIC CONTROL VALVE 2-17
SEAT BASE ASSEMBLY 2-19
OVERHEAD GUARD, ALARM, AND LIGHTING ASSEMBLY 2-22
STEERING COLUMN/DASH ASSEMBLY 2-25
STEERING COLUMN PARTS 2-27
HYDRAULIC TANK ASSEMBLY 2-29
FRONT ROTATION ASSEMBLY 2-31
TILT CYLINDER AND MAST ASSEMBLY 2-33
TILT CYLINDER 2-34
DISC VALVE HYDRAULIC MOTOR ASSEMBLY 2-35
ENGINE ASSEMBLY 2-37
HYDRAULIC PUMP ASSEMBLY 2-39
ENGINE EXHAUST ASSEMBLY 2-40
ENGINE AIR INTAKE ASSEMBLY 2-41
COOLING PACKAGE ASSEMBLY 2-43
RADIATOR & FAN ASSEMBLY 2-44
24L ENGINE AND FUEL SYSTEM COMPONENTS 2-49
HYDRAULIC ASSEMBLY 2-54
ii F-501-0510 Edition
BATTERY INSTALLATION 2-58
LP GAS HOOKUP ASSEMBLY 2-60
FORKS 2-61
DECAL PLACEMENT 2-64
MAST OPTIONS 2-65
LOAD BACKREST OPTIONS 2-66
ACCESSORIES 2-67
3 Numerical Index
