Bendi Landoll B3/30 AC Electric Narrow Aisle Forklift Parts Manual F-549-0311 – PDF DOWNLOAD

Bendi Landoll B3/30 AC Electric Narrow Aisle Forklift Parts Manual F-549-0311 – PDF DOWNLOAD

The Bendi Landoll B3/30 AC Electric Narrow Aisle Forklift Parts Manual (F-549-0311) offers detailed information on components. Download for comprehensive reference on maintenance and replacement parts.

FILE DETAILS:

Bendi Landoll B3/30 AC Electric Narrow Aisle Forklift Parts Manual F-549-0311 – PDF DOWNLOAD

Language : English
Pages : 108
Downloadable : Yes
File Type : PDF

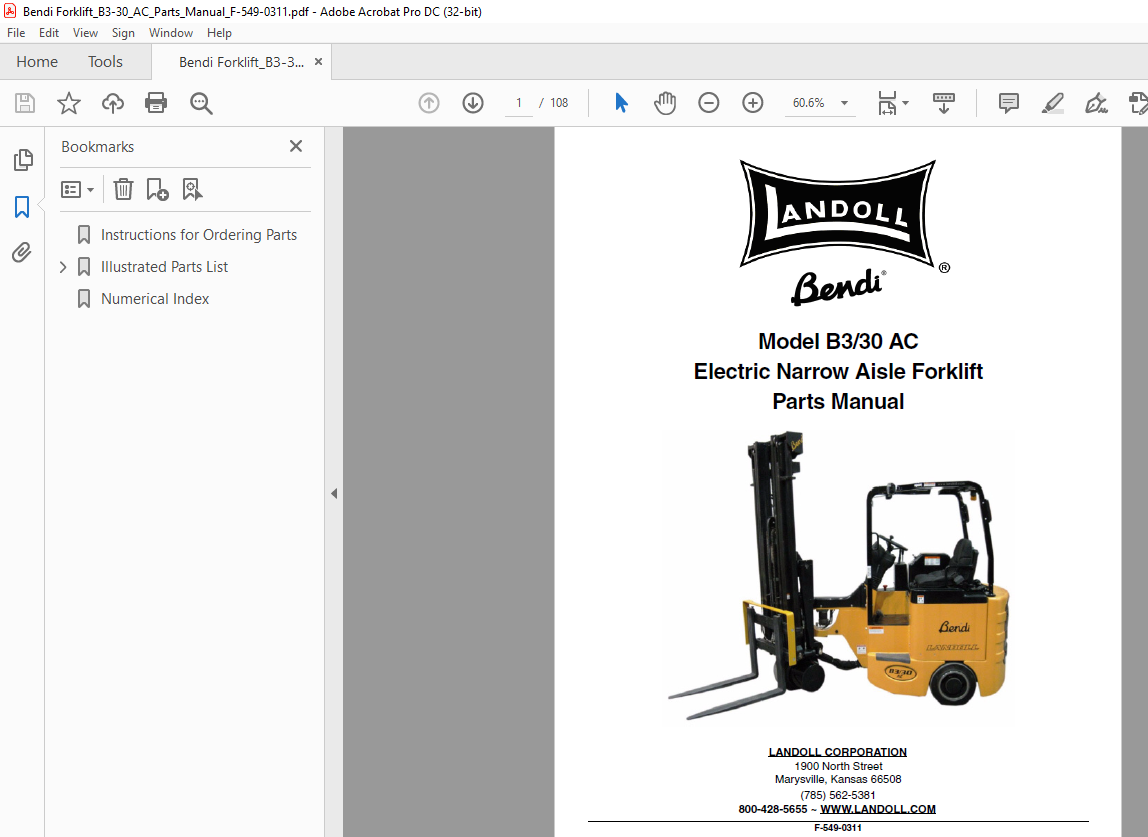

IMAGES PREVIEW OF THE MANUAL:

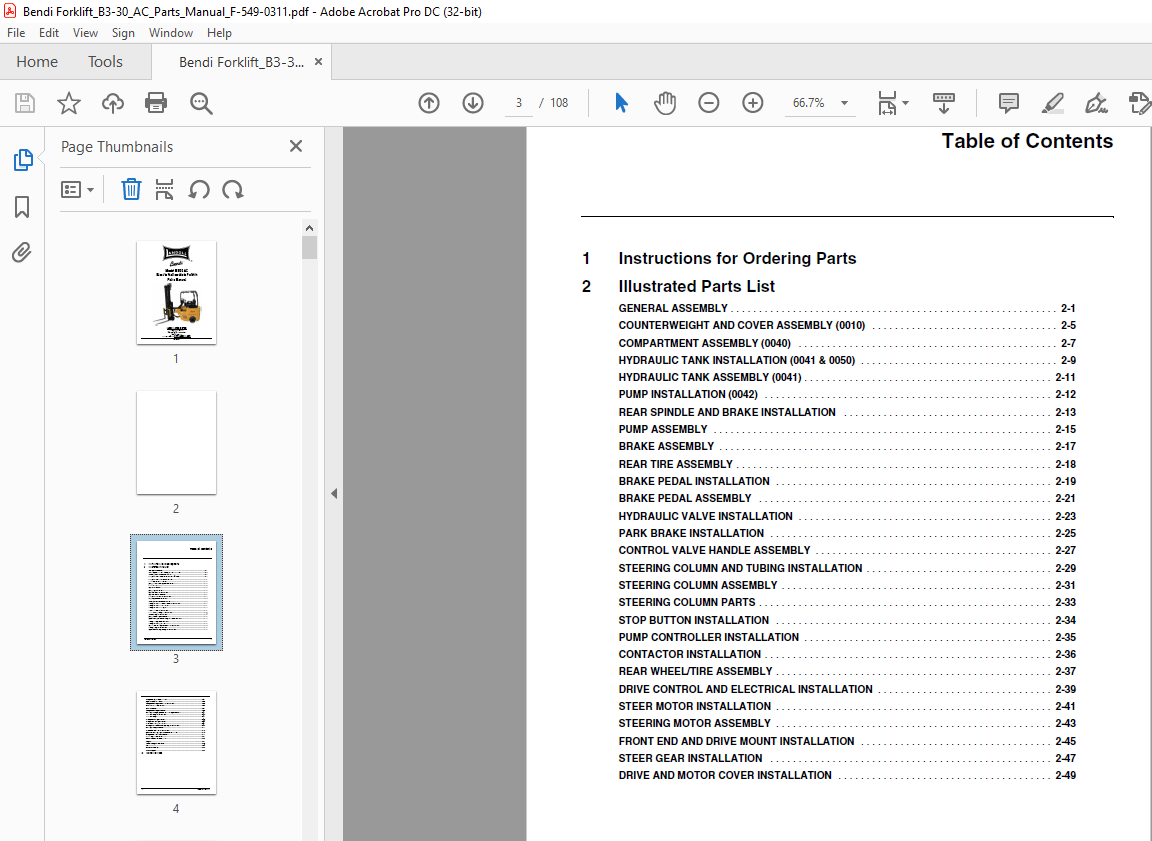

TABLE OF CONTENTS:

Bendi Landoll B3/30 AC Electric Narrow Aisle Forklift Parts Manual F-549-0311 – PDF DOWNLOAD

1 Instructions for Ordering Parts
2 Illustrated Parts List
GENERAL ASSEMBLY 2-1
COUNTERWEIGHT AND COVER ASSEMBLY (0010) 2-5
COMPARTMENT ASSEMBLY (0040) 2-7
HYDRAULIC TANK INSTALLATION (0041 & 0050) 2-9
HYDRAULIC TANK ASSEMBLY (0041) 2-11
PUMP INSTALLATION (0042) 2-12
REAR SPINDLE AND BRAKE INSTALLATION 2-13
PUMP ASSEMBLY 2-15
BRAKE ASSEMBLY 2-17
REAR TIRE ASSEMBLY 2-18
BRAKE PEDAL INSTALLATION 2-19
BRAKE PEDAL ASSEMBLY 2-21
HYDRAULIC VALVE INSTALLATION 2-23
PARK BRAKE INSTALLATION 2-25
CONTROL VALVE HANDLE ASSEMBLY 2-27
STEERING COLUMN AND TUBING INSTALLATION 2-29
STEERING COLUMN ASSEMBLY 2-31
STEERING COLUMN PARTS 2-33
STOP BUTTON INSTALLATION 2-34
PUMP CONTROLLER INSTALLATION 2-35
CONTACTOR INSTALLATION 2-36
REAR WHEEL/TIRE ASSEMBLY 2-37
DRIVE CONTROL AND ELECTRICAL INSTALLATION 2-39
STEER MOTOR INSTALLATION 2-41
STEERING MOTOR ASSEMBLY 2-43
FRONT END AND DRIVE MOUNT INSTALLATION 2-45
STEER GEAR INSTALLATION 2-47
DRIVE AND MOTOR COVER INSTALLATION 2-49
ii F-549-0311 Edition
GEARBOX, BREVINI 29:1 INLINE 2-51
DRIVE WHEEL ASSEMBLY 2-52
OVERHEAD GUARD MOUNT INSTALLATION 2-53
SEATBASE INSTALLATION 2-55
SEAT ASSEMBLY 2-57
OVERHEAD GUARD ASSEMBLY 2-59
BATTERY WEAR STRIP AND CONNECTOR ASSEMBLY 2-61
TILT CYLINDER INSTALLATION 2-63
TILT CYLINDER 2-64
STEERING CONTROL VALVE 2-65
HYDRAULIC CONTROL VALVE 2-66
LIFT PUMP MOTOR ASSEMBLY 2-67
FLOOR PLATE AND ACCELERATOR INSTALLATION 2-69
BATTERY DOOR ASSEMBLY 2-71
STOP AND TOW PIN INSTALLATION 2-73
ROLLOUT BATTERY TRAY ASSEMBLY (OPTION) 2-75
ALARM AND LIGHTING ASSEMBLY 2-77
LIGHT WIRING INSTALLATION 2-81
HEAVY CABLE INSTALLATION 2-83
FORKS 2-84
LOAD BACKREST OPTIONS 2-85
MAST OPTIONS 2-86
DECAL PLACEMENT 2-89
ACCESSORIES 2-90
3 Numerical Index
