Bendi Landoll B330 AC Electric Narrow Aisle Forklift Parts Manual F-549-0211 – PDF DOWNLOAD

Bendi Landoll B330 AC Electric Narrow Aisle Forklift Parts Manual F-549-0211 – PDF DOWNLOAD

The Bendi Landoll B330 AC Electric Narrow Aisle Forklift Parts Manual (F-549-0211) offers detailed component information. Download for comprehensive reference on maintenance and parts replacement.

FILE DETAILS:

Bendi Landoll B330 AC Electric Narrow Aisle Forklift Parts Manual F-549-0211 – PDF DOWNLOAD

Language : English
Pages :115
Downloadable : Yes
File Type : PDF

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Bendi Landoll B330 AC Electric Narrow Aisle Forklift Parts Manual F-549-0211 – PDF DOWNLOAD

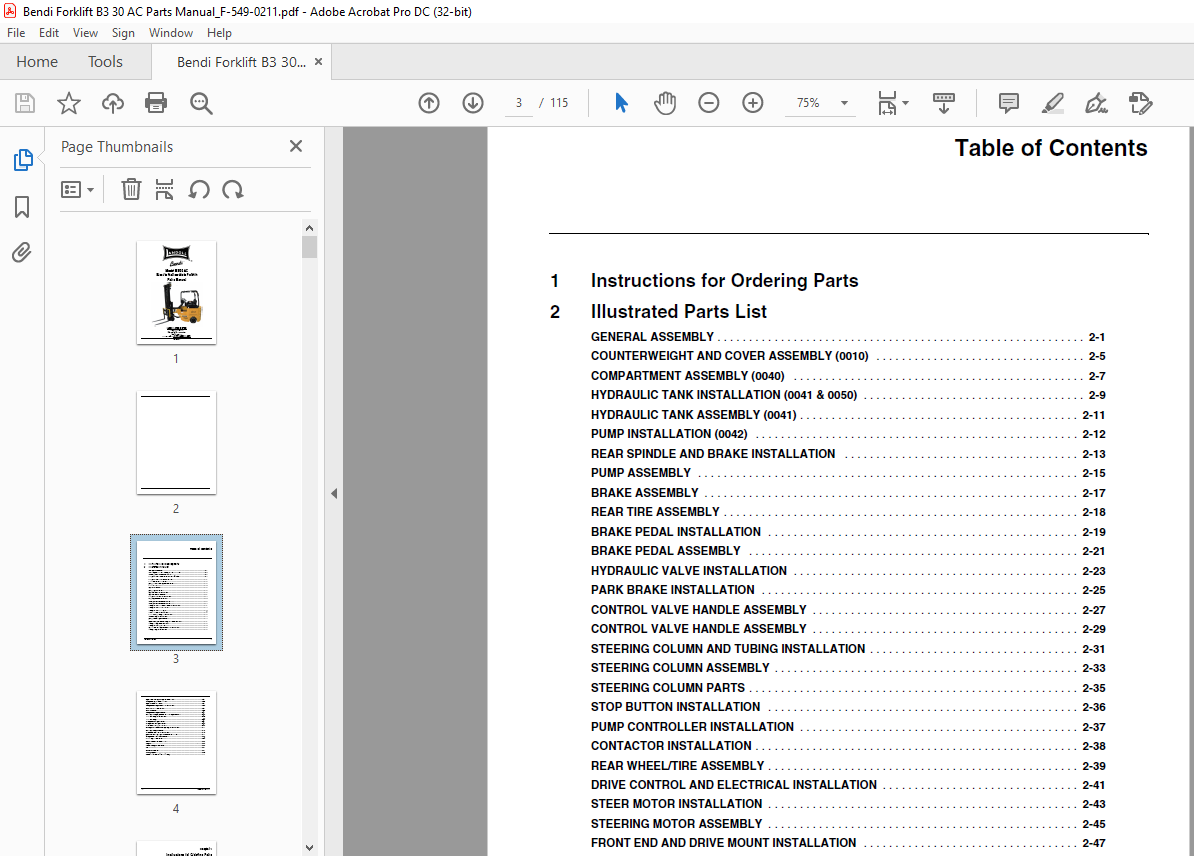

1 Instructions for Ordering Parts
2 Illustrated Parts List
GENERAL ASSEMBLY 2-1
COUNTERWEIGHT AND COVER ASSEMBLY (0010) 2-5
COMPARTMENT ASSEMBLY (0040) 2-7
HYDRAULIC TANK INSTALLATION (0041 & 0050) 2-9
HYDRAULIC TANK ASSEMBLY (0041) 2-11
PUMP INSTALLATION (0042) 2-12
REAR SPINDLE AND BRAKE INSTALLATION 2-13
PUMP ASSEMBLY 2-15
BRAKE ASSEMBLY 2-17
REAR TIRE ASSEMBLY 2-18
BRAKE PEDAL INSTALLATION 2-19
BRAKE PEDAL ASSEMBLY 2-21
HYDRAULIC VALVE INSTALLATION 2-23
PARK BRAKE INSTALLATION 2-25
CONTROL VALVE HANDLE ASSEMBLY 2-27
CONTROL VALVE HANDLE ASSEMBLY 2-29
STEERING COLUMN AND TUBING INSTALLATION 2-31
STEERING COLUMN ASSEMBLY 2-33
STEERING COLUMN PARTS 2-35
STOP BUTTON INSTALLATION 2-36
PUMP CONTROLLER INSTALLATION 2-37
CONTACTOR INSTALLATION 2-38
REAR WHEEL/TIRE ASSEMBLY 2-39
DRIVE CONTROL AND ELECTRICAL INSTALLATION 2-41
STEER MOTOR INSTALLATION 2-43
STEERING MOTOR ASSEMBLY 2-45
FRONT END AND DRIVE MOUNT INSTALLATION 2-47
STEER GEAR INSTALLATION 2-49
ii F-549-0211 Edition
DRIVE AND MOTOR COVER INSTALLATION 2-51
GEARBOX, BREVINI 29:1 INLINE 2-53
DRIVE WHEEL ASSEMBLY 2-54
OVERHEAD GUARD MOUNT INSTALLATION 2-55
SEATBASE INSTALLATION 2-57
SEAT ASSEMBLY 2-59
OVERHEAD GUARD ASSEMBLY 2-61
BATTERY WEAR STRIP AND CONNECTOR ASSEMBLY 2-63
TILT CYLINDER INSTALLATION 2-65
TILT CYLINDER 2-66
STEERING CONTROL VALVE 2-67
HYDRAULIC CONTROL VALVE 2-68
LIFT PUMP MOTOR ASSEMBLY 2-69
FLOOR PLATE AND ACCELERATOR INSTALLATION 2-71
BATTERY DOOR ASSEMBLY 2-73
STOP AND TOW PIN INSTALLATION 2-75
ROLLOUT BATTERY TRAY ASSEMBLY (OPTION) 2-77
ALARM AND LIGHTING ASSEMBLY 2-80
LIGHT WIRING INSTALLATION 2-86
HEAVY CABLE INSTALLATION 2-88
FORKS 2-89
LOAD BACKREST OPTIONS 2-90
MAST OPTIONS 2-91
DECAL PLACEMENT 2-94
ACCESSORIES 2-95
Numerical Landoll Part Number Index 1-1
