Bendi Landoll B40/50AC Series 6 High Lift and Deep Reach Forklifts Parts Manual – PDF DOWNLOAD

Bendi Landoll B40/50AC Series 6 High Lift and Deep Reach Forklifts Parts Manual – PDF DOWNLOAD

The Bendi Landoll B40/50AC Series 6 High Lift and Deep Reach Forklifts Parts Manual is a detailed resource for technicians. It provides essential information for identifying and ordering replacement parts, ensuring efficient maintenance of the forklift models.

FILE DETAILS:

Bendi Landoll B40/50AC Series 6 High Lift and Deep Reach Forklifts Parts Manual – PDF DOWNLOAD

Language : English
Pages : 182
Downloadable : Yes
File Type : PDF

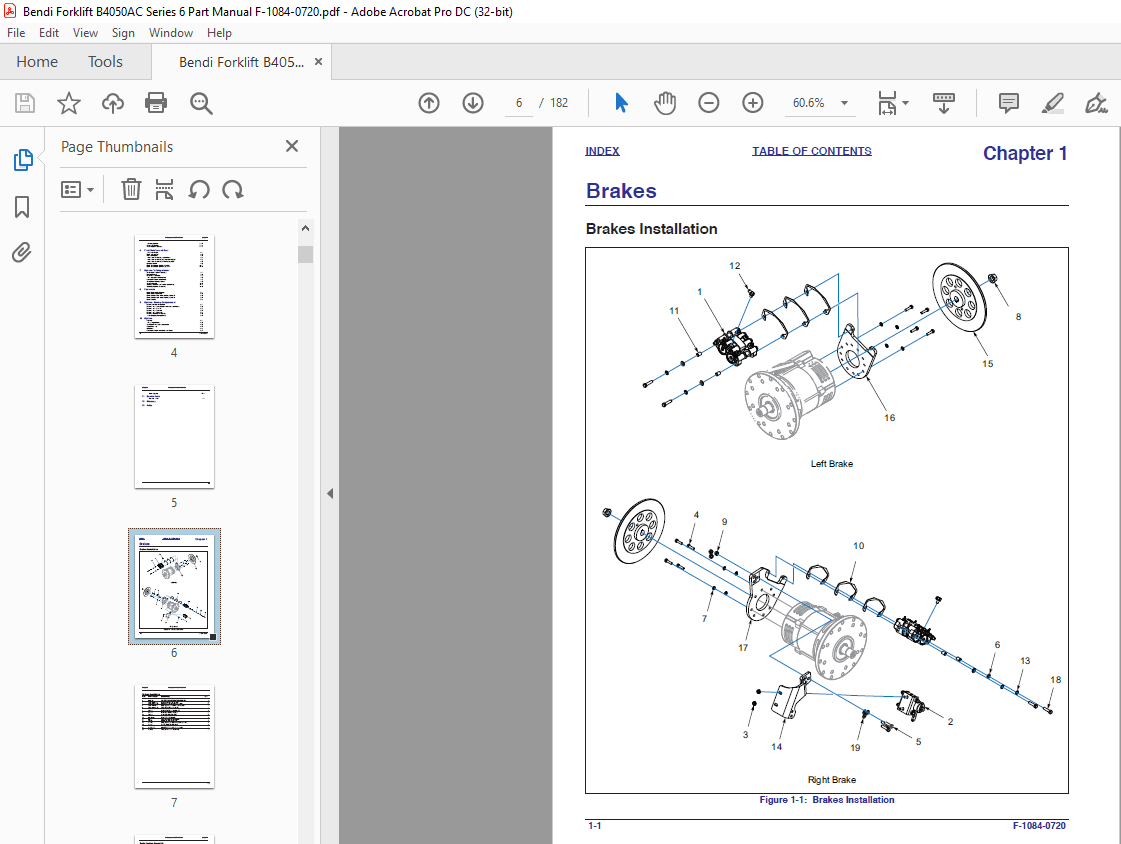

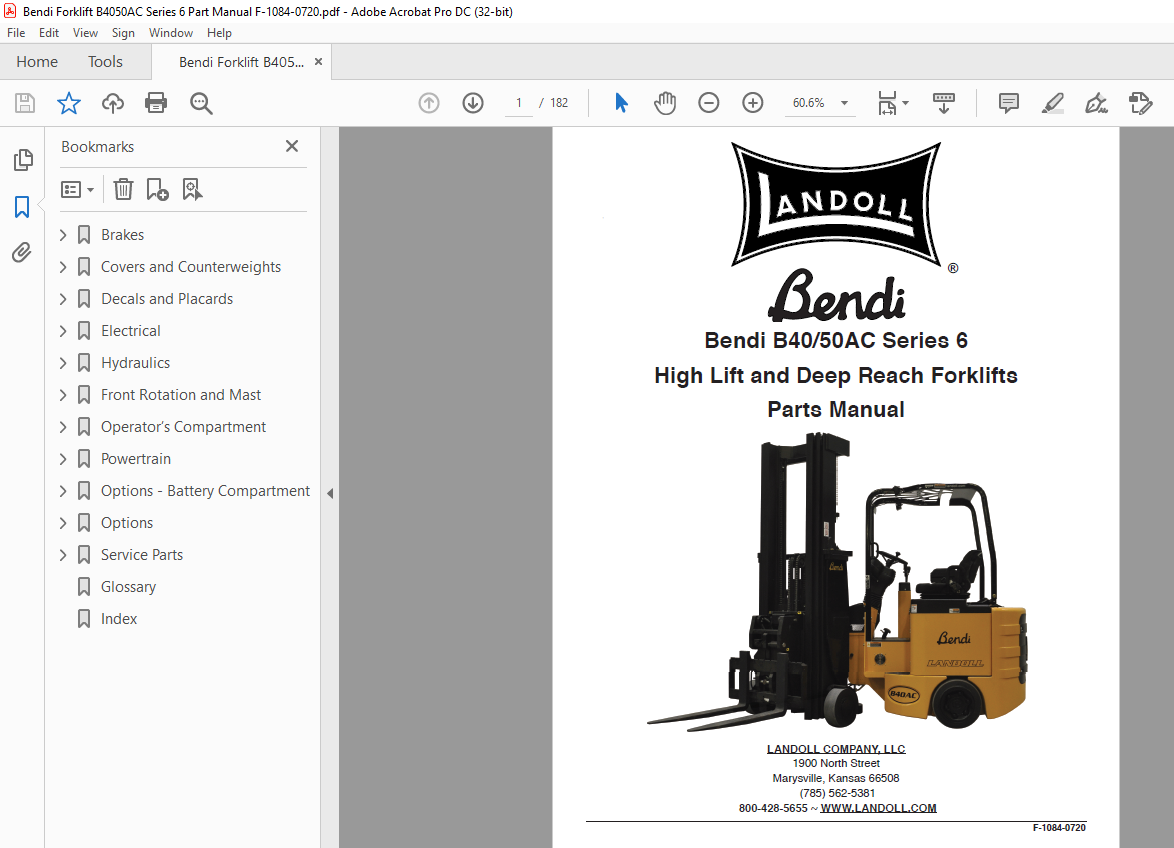

IMAGES PREVIEW OF THE MANUAL:

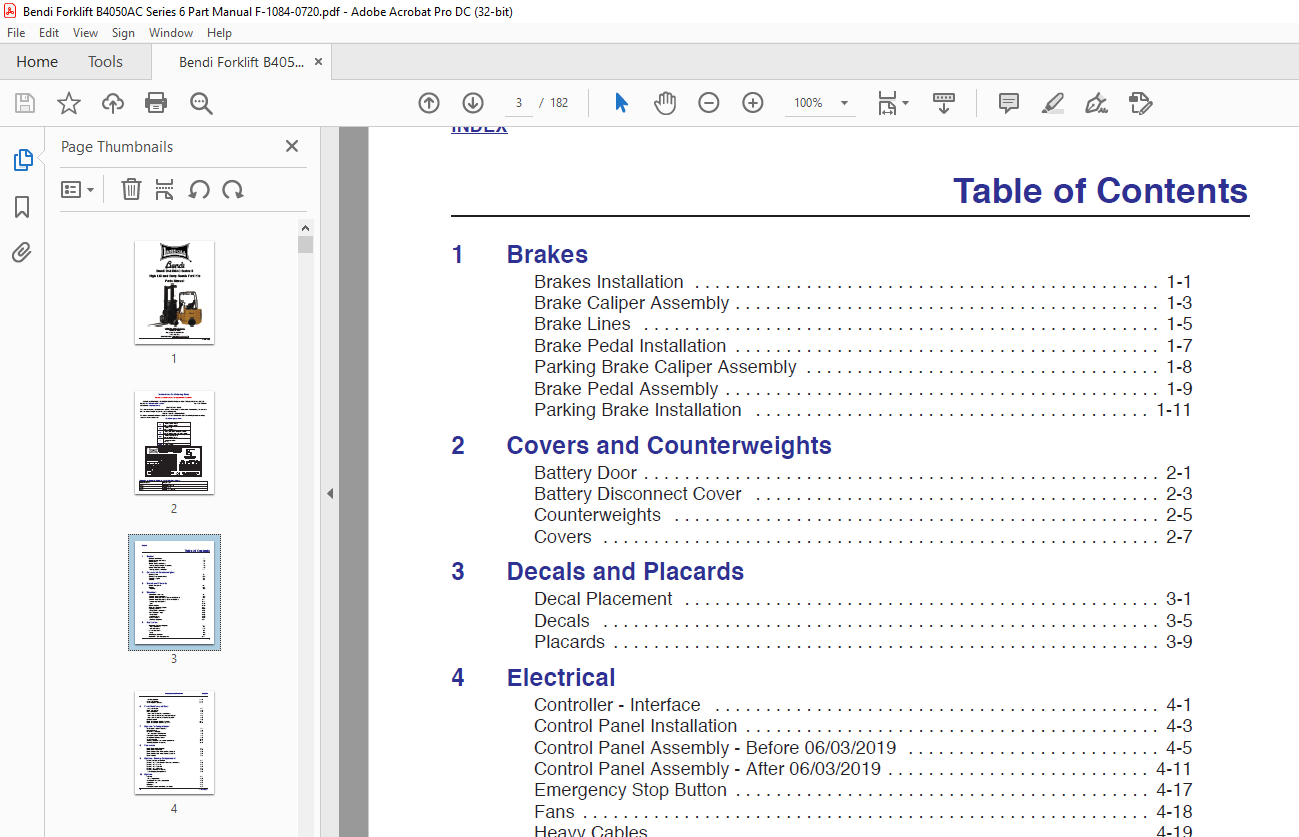

TABLE OF CONTENTS:

Bendi Landoll B40/50AC Series 6 High Lift and Deep Reach Forklifts Parts Manual – PDF DOWNLOAD

1 Brakes
Brakes Installation 1-1
Brake Caliper Assembly 1-3
Brake Lines 1-5
Brake Pedal Installation 1-7
Parking Brake Caliper Assembly 1-8
Brake Pedal Assembly 1-9
Parking Brake Installation 1-11
2 Covers and Counterweights
Battery Door 2-1
Battery Disconnect Cover 2-3
Counterweights 2-5
Covers 2-7
3 Decals and Placards
Decal Placement 3-1
Decals 3-5
Placards 3-9
4 Electrical
Controller – Interface 4-1
Control Panel Installation 4-3
Control Panel Assembly – Before 06/03/2019 4-5
Control Panel Assembly – After 06/03/2019 4-11
Emergency Stop Button 4-17
Fans 4-18
Heavy Cables 4-19
Horn and Steering Sensor 4-21
Lighting Options 4-23
Pump Motor Installation 4-25
Wire Harness Trays 4-27
Pump Motor 4-28
Reverse Alarm 4-29
Valve Harness 4-30
Electrical Diagram 4-31
5 Hydraulics
Hydraulic System Diagram 5-1
Filter Installation 5-5
Filter Assembly 5-6
Lift Components 5-7
Pump 5-8
Steering Hydraulics 5-9
Hydraulic Tank Components 5-11
ii F-1084-0720
TABLE OF CONTENTS INDEX
Tilt Components 5-13
Valve Installation 5-15
Valve Spool Assembly 5-17
6 Front Rotation and Mast
Fork Information 6-1
Mast Information 6-2
Axle Installation 6-3
Front Plate Assembly – Installation 6-5
Front Plate Assembly (Before 02/05/2020) 6-7
Front Plate Assembly (After 02/05/2020) 6-8
Load Backrest 6-9
Mast Installation (B40HL, B50HL) 6-11
Mast Installation (B40DR, B50DR) 6-13
7 Operator’s Compartment
Accelerator Pedal Assembly 7-1
Control Levers 7-3
Lift Lever Assembly 7-5
Two Function Control Lever 7-6
Overhead Guard Installation 7-7
Seat Base / Battery Cover 7-9
Seat Assembly 7-13
Steering Column and Orbital Installation 7-17
Steering Column Assembly 7-19
8 Powertrain
Drive Motor and Gear Box 8-1
Drive Motor Assembly 8-2
Drive Wheels and Tires (B40HL, B40DR) 8-3
Drive Wheels and Tires (B50HL, B50DR) 8-4
Load Wheels 8-5
9 Options – Battery Compartment
Battery Guides Installation 9-1
Battery Tray, Roll Out and Slide Out Installation 9-3
Battery Tray, Lift Out 9-5
Battery Tray, Roll Out 9-6
Battery Tray, Slide Out 9-7
Battery Restraint Assembly 9-8
Fast Charging Components 9-9
10 Options
Options 10-1
Fire Extinguishers 10-2
Windshield and Cab Enclosures 10-3
Operator’s Fan 10-4
Landview 10-5
Overhead Guard with Door and Mesh 10-7
iii
INDEX TABLE OF CONTENTS
Seat Options 10-11
11 Service Parts
Service Parts 11-1
12 Glossary
13 Index
