Bendi Landoll B40i4 Forklift Parts Manual F-909-0219 – PDF DOWNLOAD

Bendi Landoll B40i4 Forklift Parts Manual F-909-0219 – PDF DOWNLOAD

The Bendi Landoll B40i4 Forklift Parts Manual (F-909-0219) is essential for identifying and procuring vital components. Download the PDF for detailed part specifications, facilitating efficient maintenance and smooth operation.

FILE DETAILS:

Bendi Landoll B40i4 Forklift Parts Manual F-909-0219 – PDF DOWNLOAD

Language : English
Pages :114
Downloadable : Yes
File Type : PDF

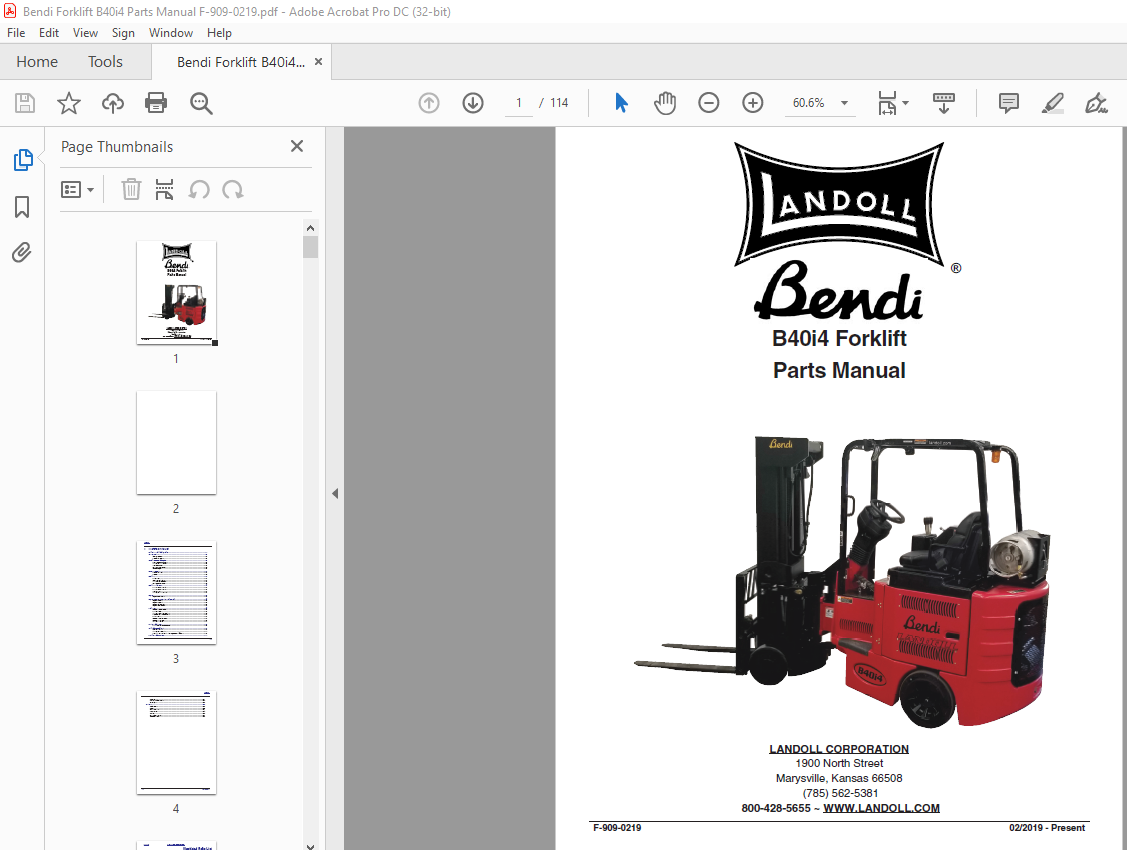

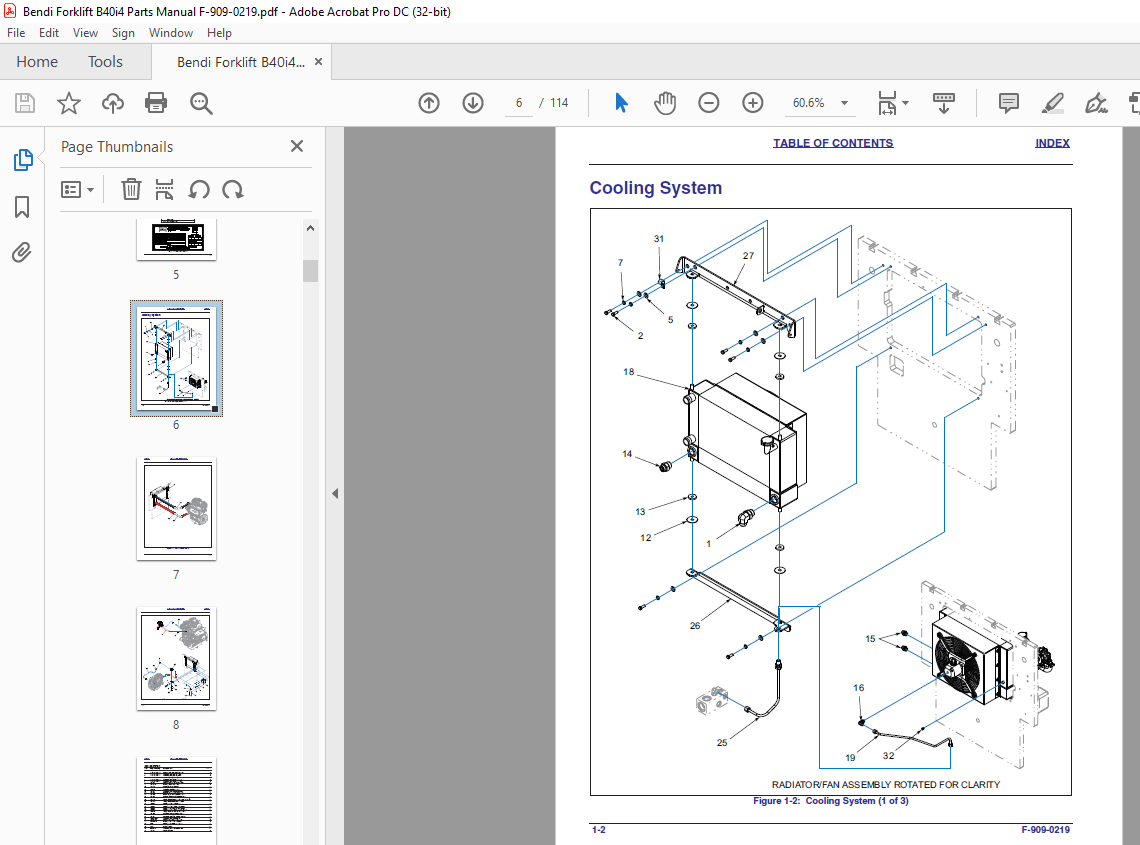

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Bendi Landoll B40i4 Forklift Parts Manual F-909-0219 – PDF DOWNLOAD

1 Illustrated Parts List
Instructions for Ordering Parts 1-1
Cooling System 1-2
Cooling System 1-2
Radiator Assembly 1-6
Covers and Counterweights 1-8
Doors and Frame Covers 1-8
Steering Column Cover 1-10
Seat Base Cover 1-12
Floor and Pedal Cover 1-14
Counterweight 1-18
Decal Placement 1-20
Decal Placement 1-20
Decals 1-24
Electrical 1-28
Battery Tray 1-28
Controller Installation 1-30
Steer Sensor and Horn 1-32
Front Plate Assembly 1-34
Electrical Harnesses 1-36
Main Harness – Side A 1-36
Main Harness – Side B 1-37
Seat Harness 1-38
Steering Column Harness 1-39
Engine 1-42
Engine Components 1-42
Engine – Mounts, Exhaust and Air Cleaner 1-46
Engine – Mounts 1-46
Engine – Exhaust 1-48
Engine – Air Cleaner 1-49
Engine – Fuel System 1-52
Hydraulics 1-56
Hydraulic Components 1-56
Mast Controls 1-62
Steering and Orbital Controls 1-64
Pump and Filter Components 1-66
Tilt Cylinders 1-68
Hydraulic – Control Valve 1-69
Hydraulic Diagrams 1-70
Cylinder – Service 1-77
Mast and Front End 1-78
Mast and Front End Assembly 1-78
Operators Compartment 1-80
Overhead Guard 1-80
Steering Components 1-81
Operators Compartment – Steering Column Switches 1-82
Power and Drive System 1-84
i-ii F-909-0219
INDEX
Main Frame 1-84
Hydraulic Components 1-85
Front Axle 1-88
Options 1-90
Mast Cover 1-90
Forks 1-92
Back-up Alarm 1-94
LPG Tanks 1-95
Seats 1-96
Fire Extinguishers 1-97
Operators Fan 1-98
