Bobcat 440B Loader Operation & Maintenance Manual 6570155 – PDF DOWNLOAD

FOREWORD:

This Operation & Maintenance Manual was written to give the owner/operator instructions on the safe operation and maintenance of the Bobcat loader. READ AND UNDERSTAND THIS OPERATION & MAINTENANCE MANUAL BEFORE OPERATING YOUR LOADER. If you have any questions, see your Bobcat loader dealer.

SAFETY INSTRUCTIONS:
SAFETY IS THE OPERATOR’S RESPONSIBILITY:

• The Skid Steer Loader is a highly maneuverable and compact machine. In operation, it is rugged and useful under a wide variety of conditions. This presents an operator with hazards associated with off highway, rough terrain applications. The loader has an internal combustion engine with resultant heat and exhaust. All exhaust gases can kill or cause illness so the loader must be used with adequate ventilation. The loader has a spark arrestor muffler which is required for operation in certain areas.
• The dealer explains the capabilities and restrictions of the loader and attachments for each application. The dealer
  demonstrates the safe operation of the loader according to Melroe’s instructional materials; which are also available to operators. The dealer can also identify unsafe modifications or use of unapproved attachments. The attachments and buckets are designed for rated capacity and secure fastening to the loader. The user must check with the dealer, or Melroe Company literature, to determine safe loads of materials of specified densities for his loader–attachment combination.

The following publications provide information on the safe use and maintenance of the loader and attachments:
• The Delivery Report is used to assure that complete instructions have been given to the new owner and that the machine
is in safe operating condition.
• The Operation & Maintenance Manual delivered with the loader gives operating information as well as routine
maintenance and service procedures. It is a part of the loader and must stay with the machine when it is sold.
Replacement Operation & Maintenance Manuals can be ordered from your Bobcat loader dealer.
• The loader has machine signs (decals) which instruct on the safe operation and care. The signs and their locations are
shown in the Operation & Maintenance Manual. Replacement signs are available from your Bobcat loader dealer.
• The loader has a plastic Operator’s Handbook fastened to the operator cab. Its brief instructions are convenient to the
operator. The handbook is available from your dealer in English edition or a combination English, French, German,
Italian, Dutch & Spanish edition.
• The EMI Safety Manual (available in Spanish) delivered with the loader gives general safety information.
• The Service Manual and Parts Manual are available from your dealer for use by mechanics to do shop–type service and
repair work.
• The Skid–Steer Loader Operator Training Course is available through your local dealer. This course is intended to
provide rules and practices for correct operation of the Bobcat loader. The course is available in English and Spanish
version.
• The Bobcat Skid–Steer Loader Safety Video is available from your Bobcat Dealer.
The dealer and owner/operator review the recommended uses of the loader and attachments when the loader is delivered.
If the owner/operator will be using the loader for a different application(s) he must ask the dealer for recommendations on
the new use.

TABLE OF CONTENTS:

Bobcat 440B Loader Operation & Maintenance Manual 6570155 – PDF DOWNLOAD

OPERATOR SAFETY WARNINGS 3
CONTENTS 4
REFERENCE INFORMATION 4
FOREWORD 6
SERIAL NUMBER LOCATIONS 8
Loader Serial Number 8
Engine Serial Number 8
DELIVERY REPORT 8
BOBCAT LOADER IDENTIFICATION 9
SAFETY 10
SAFETY INSTRUCTIONS 12
Safety Is The Operator’s Responsibility 12
Before Operating The Bobcat Loader 13
Safe Operation Needs A Qualified Operator 13
Fire Prevention 14
MACHINE SIGNS (DECALS) 15
OPERATING INSTRUCTIONS 18
OPERATING INSTRUCTIONS 20
GETTING ON AND OFF THE LOADER 20
GETTING READY FOR OPERATION 20
SAFETY SIGNS (DECALS) 21
LEARNING THE CONTROLS 22
KEY SWITCH 22
FUSE (IGNITION) 22
CHOKE CONTROL 22
ENGINE SPEED CONTROL 22
PARKING BRAKE 22
STEERING LEVERS 23
HYDRAULIC CONTROLS 24
Foot Pedals 24
Auxiliary Lever (Optional) 24
BEFORE STARTING THE ENGINE 25
STARTING THE ENGINE 26
Cold Temperature Starting 27
Warming The Hydrostatic Transmission 27
ATTACHMENTS & BUCKETS 28
Bucket Or Fork Installation 29
Bucket Or Fork Removal 29
OPERATING PROCEDURES 30
Filling The Bucket 31
Emptying The Bucket 31
Digging Into The Ground 32
Backfilling 32
STOPPING THE ENGINE AND PARKING THE LOADER 33
SINGLE POINT LIFT 33
TRANSPORTING THE BOBCAT LOADER 33
PREVENTIVE MAINTENANCE 34
MAINTENANCE SAFETY 35
SERVICE SCHEDULE 36
LIFT ARM SUPPORT DEVICE 37
OPERATOR CAB (ROPS & FOPS) 37
Raising The Operator Cab 38
Lowering The Operator Cab 38
Seat Bar System 39
Seat Bar Inspection 39
Seat Bar Maintenance 39
REAR DOOR 40
AIR CLEANER SYSTEM 40
FUEL SYSTEM 41
Filling The Fuel System 41
Fuel Filter 41
ENGINE LUBRICATION SYSTEM 42
Engine Oil Replacement 42
ENGINE COOLING SYSTEM 43
ELECTRICAL SYSTEM 44
Battery Replacement 44
Electrical System Service 44
Using An Extra Battery (Jump Starting) 44
Hourmeter 45
HYDRAULIC/HYDROSTATIC SYSTEM 46
Checking / Adding Fluid To Reservoir 46
Replacement Of The Hydraulic Filter 47
Removing The Hydraulic / Hydrostatic Fluid 47
SPARK ARRESTOR MUFFLER 48
Cleaning The Spark Arrestor Muffler 48
FINAL DRIVE TRANSMISSION (CHAINCASE) 49
Chaincase Fluid Level 49
TIRE MAINTENANCE 49
Tire Rotation 49
Tire Installation On Rim 49
Tire Pressure 49
Wheel Nuts 49
LUBRICATION OF THE BOBCAT LOADER 50
PARKING BRAKE ADJUSTMENT 51
PIVOT PINS 51
TROUBLESHOOTING 52
TROUBLESHOOTING 54
Troubleshooting The Engine 54
Troubleshooting The Hydraulic System 55
Troubleshooting The Hydrostatic System 56
MACHINE SIGN TRANSLATIONS 58
IMPORTANT (6560573) 60
WARNING – 6579511 61
SERVICE SCHEDULE – 6567875 62
WARNING – 6579510 64
WARNING – 6579628 65
DANGER – 6579639 65
WARNING – 6577754 65
DANGER – 6579509 65
SPECIFICATIONS 66
LOADER SPECIFICATIONS 68
Loader Dimensions 68
Operation & Performance 68
Engine 68
Hydraulic System 69
Electrical 69
Drive System 69
Capactities 69
Tires 69
MELROE COMPANY APPROVED ATTACHMENTS & ACCESSORIES 70
ADDITIONAL PUBLICATIONS 71
WARRANTY 72

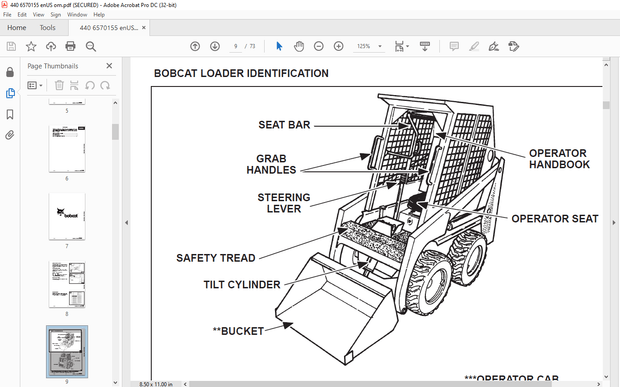

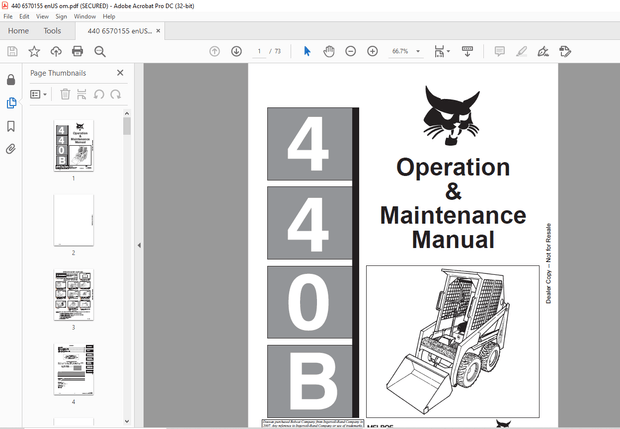

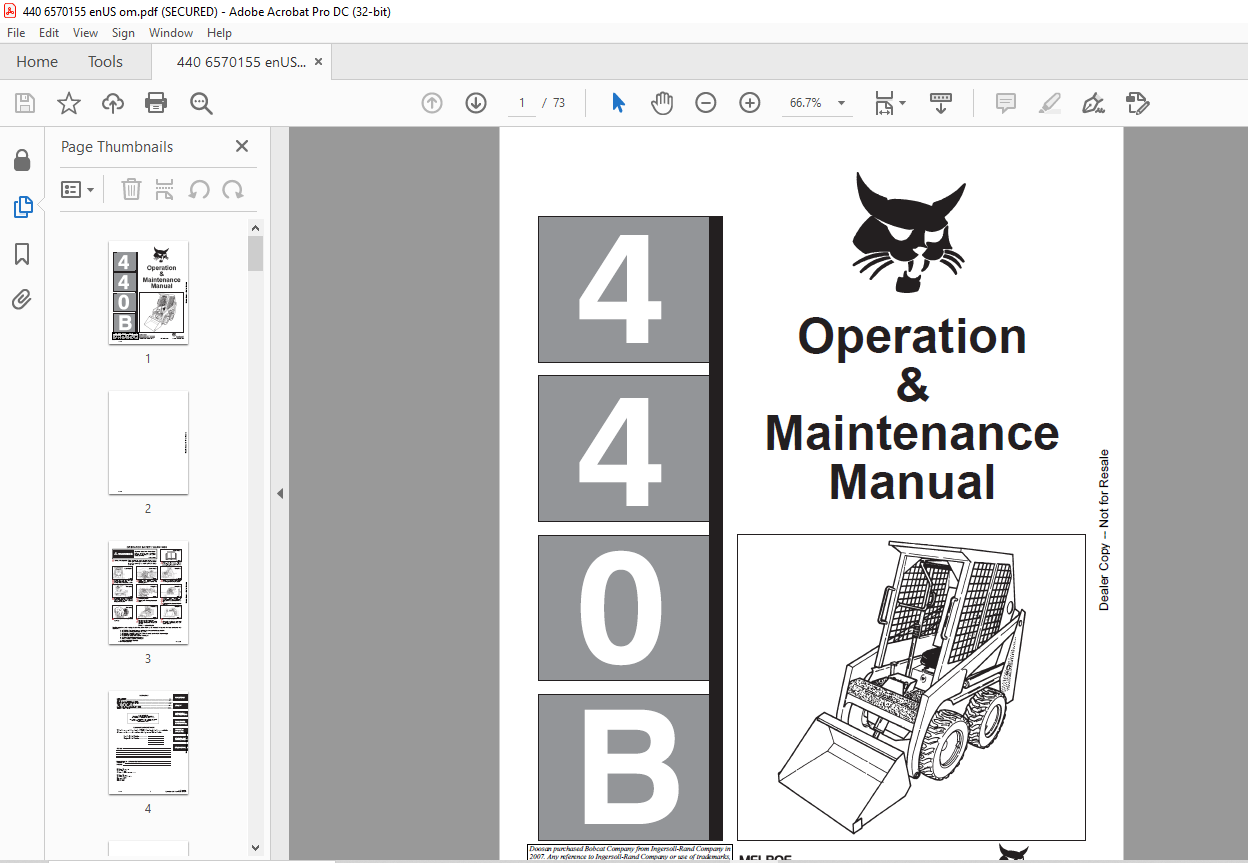

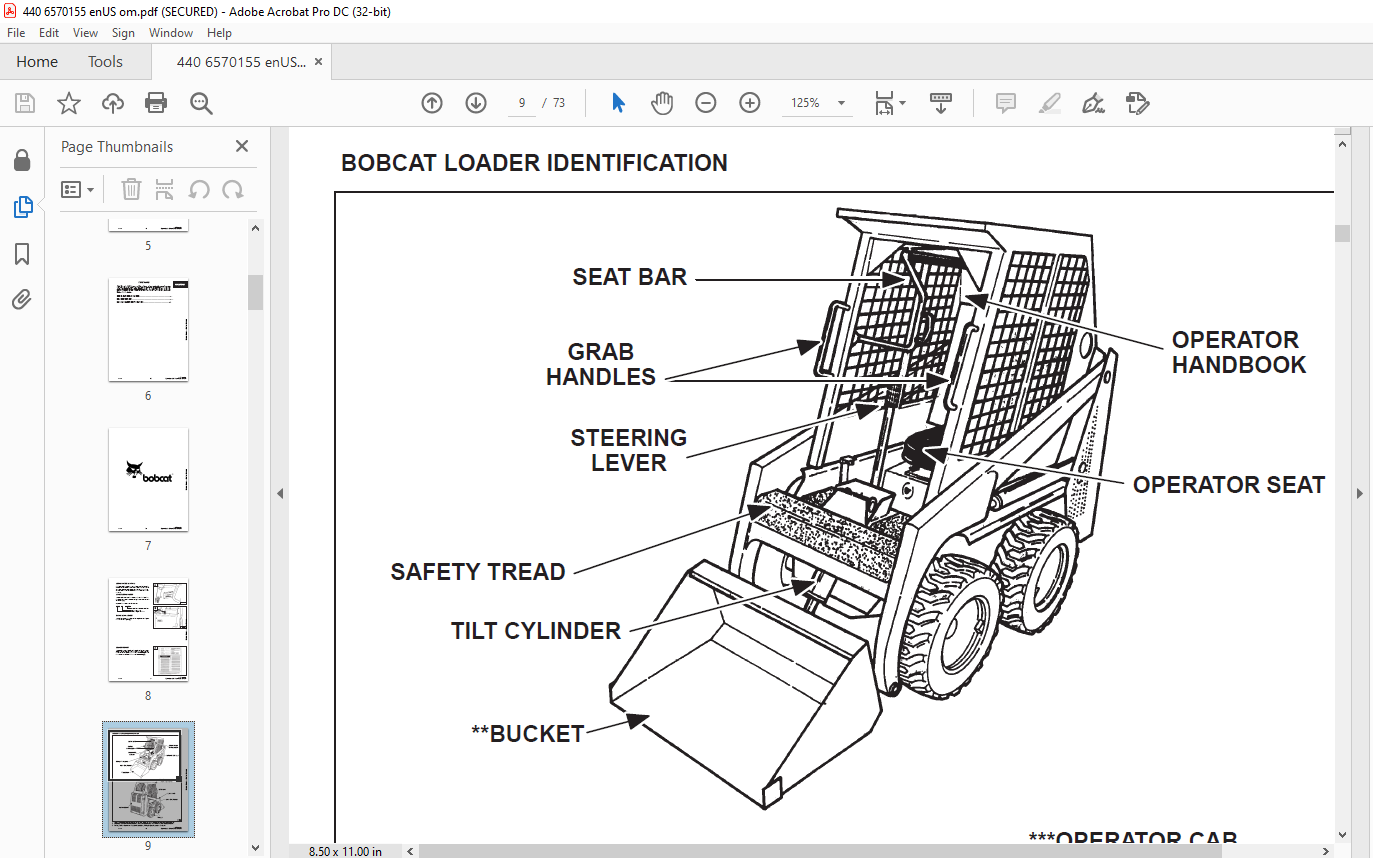

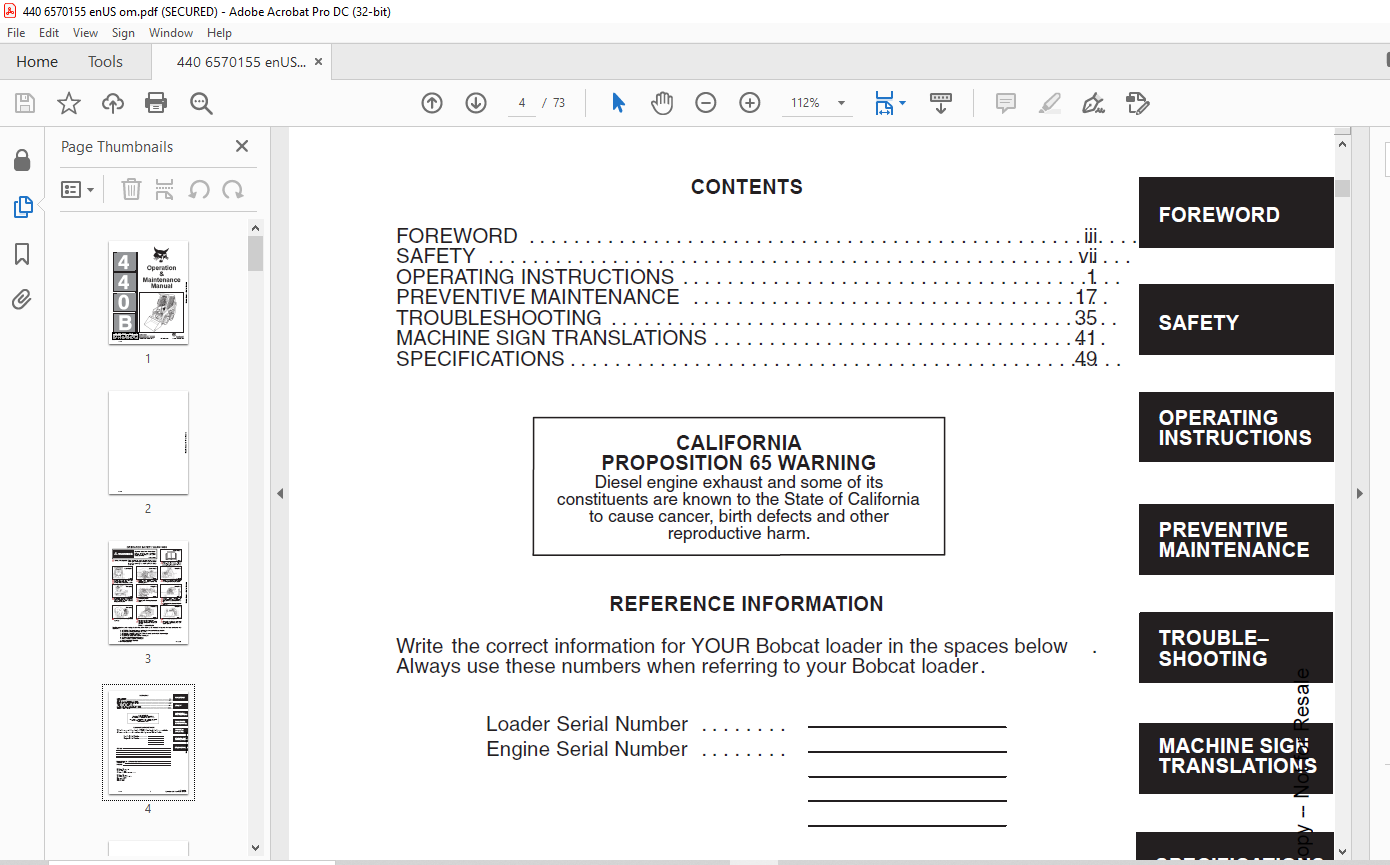

IMAGES PREVIEW OF THE MANUAL:
