Bobcat 443 Loader Operation & Maintenance Manual 6566477 – PDF DOWNLOAD

Bobcat 443 Loader Operation & Maintenance Manual 6566477 – PDF DOWNLOAD

FILE DETAILS:

Bobcat 443 Loader Operation & Maintenance Manual 6566477 – PDF DOWNLOAD

Language : English
Pages : 86
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Bobcat 443 Loader Operation & Maintenance Manual 6566477 – PDF DOWNLOAD

FOREWORD:

This Operation & Maintenance Manual was written to give the owner/operator instructions on the safe operation and maintenance of the Bobcat loader. READ AND UNDERSTAND THIS OPERATION & MAINTENANCE MANUAL BEFORE OPERATING YOUR LOADER.

SAFETY INSTRUCTIONS:
SAFETY IS THE OPERATOR’S RESPONSIBILITY:

• The Skid Steer Loader is a highly maneuverable and compact machine. In operation, it is rugged and useful under a wide variety of conditions. This presents an operator with hazards associated with off highway, rough terrain applications. The loader has an internal combustion engine with resultant heat and exhaust. All exhaust gases can kill or cause illness so the loader must be used with adequate ventilation. The loader has a spark arrestor muffler which is required for operation in certain areas.
• The dealer explains the capabilities and restrictions of the loader and attachments for each application. The dealer
  demonstrates the safe operation of the loader according to Melroe’s instructional materials; which are also available to operators. The dealer can also identify unsafe modifications or use of unapproved attachments. The attachments and buckets are designed for rated capacity and secure fastening to the loader. The user must check with the dealer, or Melroe Company literature, to determine safe loads of materials of specified densities for his loader–attachment combination.

The following publications provide information on the safe use and maintenance of the loader and attachments:
• The Delivery Report is used to assure that complete instructions have been given to the new owner and that the machine
is in safe operating condition.
• The Operation & Maintenance Manual delivered with the loader gives operating information as well as routine
maintenance and service procedures. It is a part of the loader and must stay with the machine when it is sold.
Replacement Operation & Maintenance Manuals can be ordered from your Bobcat loader dealer.
• The loader has machine signs (decals) which instruct on the safe operation and care. The signs and their locations are
shown in the Operation & Maintenance Manual. Replacement signs are available from your Bobcat loader dealer.
• The loader has a plastic Operator’s Handbook fastened to the operator cab. Its brief instructions are convenient to the
operator. The handbook is available from your dealer in English edition or a combination English, French, German,
Italian, Dutch & Spanish edition.
• The EMI Safety Manual (available in Spanish) delivered with the loader gives general safety information.
• The Service Manual and Parts Manual are available from your dealer for use by mechanics to do shop–type service and
repair work.
• The Skid–Steer Loader Operator Training Course is available through your local dealer. This course is intended to
provide rules and practices for correct operation of the Bobcat loader. The course is available in English and Spanish
version.
• The Bobcat Skid–Steer Loader Safety Video is available from your Bobcat Dealer.
The dealer and owner/operator review the recommended uses of the loader and attachments when the loader is delivered.
If the owner/operator will be using the loader for a different application(s) he must ask the dealer for recommendations on
the new use.

TABLE OF CONTENTS:

Bobcat 443 Loader Operation & Maintenance Manual 6566477 – PDF DOWNLOAD

OPERATOR SAFETY WARNINGS 3
CONTENTS 5
REFERENCE INFORMATION 5
FOREWORD 7
SERIAL NUMBER LOCATIONS 9
LOADER SERIAL NUMBER 9
ENGINE SERIAL NUMBER 9
DELIVERY REPORT 9
BOBCAT LOADER IDENTIFICATION 10
SAFETY 11
SAFETY INSTRUCTIONS 13
Safety Is The Operator’s Responsibility 13
Before Operating The Bobcat Loader 14
Safe Operation Needs A Qualified Operator 14
FIRE PREVENTION 15
MACHINE SIGNS (DECALS) 16
OPERATING INSTRUCTIONS 19
INSTRUMENT PANEL 21
ENGINE SPEED CONTROL 21
ENGINE STOP CONTROL 21
PARKING BRAKE 22
STEERING LEVERS 23
HYDRAULIC CONTROLS 24
Foot Pedals (Hydraulics) 24
Lift Arm Operation 24
Tilt (Bucket) Operation 24
Auxiliary Hydraulics Operation (Optional) 25
DAILY INSPECTION 26
SEAT BAR RESTRAINT SYSTEM 27
GETTING READY FOR OPERATION 28
STARTING THE ENGINE 29
Normal Starting Condition 30
Cold Temperature Starting Condition 31
Warming The Hydraulic / Hydrostatic System 31
ATTACHMENTS AND BUCKETS 32
Installation And Removal 33
OPERATING PROCEDURES 34
Filling The Bucket 35
Emptying The Bucket 35
Digging Into The Ground 36
Leveling The Ground (Using Lift Arms In Float Position) 37
Backfilling 37
PARKING THE BOBCAT LOADER 38
TRANSPORTING THE BOBCAT LOADER 38
LIFTING THE BOBCAT LOADER 39
TOWING THE LOADER 39
PREVENTIVE MAINTENANCE 41
MAINTENANCE SAFETY 42
SERVICE SCHEDULE 43
LIFT ARM SUPPORT DEVICE 44
OPERATOR CAB 44
Raising The Operator Cab 44
Lowering The Operator Cab 45
Emergency Exit 46
SEAT BAR SYSTEM 47
Seat Bar Inspection 47
Seat Bar Maintenance 47
REAR DOOR 48
AIR CLEANER SERVICE 48
FUEL SYSTEM 49
Specification 49
Filling The Fuel System 49
Fuel Filter 49
Removing Air From The Fuel System 50
ENGINE LUBRICATION SYSTEM 51
Replacing Oil And Filter 51
COOLANT SYSTEM 52
Checking The Coolant Level 52
Removing The Coolant 52
ALTERNATOR DRIVE BELT 53
Adjustment 53
ELECTRICAL SYSTEM 54
Description 54
Electrical System Service 54
Using A Booster Battery (Jump Starting) 54
Battery Removal And Installation 55
HYDRAULIC / HYDROSTATIC SYSTEM 56
Hydraulic Filter Element Replacement 57
Removing The Hydraulic / Hydrostatic Fluid 57
SPARK ARRESTOR MUFFLER 58
TIRE MAINTENANCE 59
Wheel Nuts 59
Tire Rotation 59
Tire Inflation 59
FINAL DRIVE TRANSMISSION (CHAINCASE) 60
LUBRICATION OF THE BOBCAT LOADER 61
BOB-TACH 62
PIVOT PINS 63
PARKING BRAKE ADJUSTMENT 63
TROUBLESHOOTING 65
TROUBLESHOOTING 67
Troubleshooting The Engine 67
Troubleshooting The Hydraulic System 68
Troubleshooting The Drive System 69
MACHINE SIGN TRANSLATIONS 71
WARNING – 6579511 73
SERVICE SCHEDULE – 6567875 74
WARNING – 6579510 76
IMPORTANT – 6560573 77
WARNING – 6579628 78
DANGER – 6579639 78
WARNING – 6577754 78
DANGER – 6579509 78
SPECIFICATIONS 79
LOADER SPECIFICATIONS 81
Loader Dimensions 81
Operation & Performance 81
Engine 81
Hydraulic System 82
Electrical 82
Drive System 82
Capacities 82
Tires 82
MELROE COMPANY APPROVED ATTACHMENTS & ACCESSORIES 83
ADDITIONAL PUBLICATIONS 84
WARRANTY 85

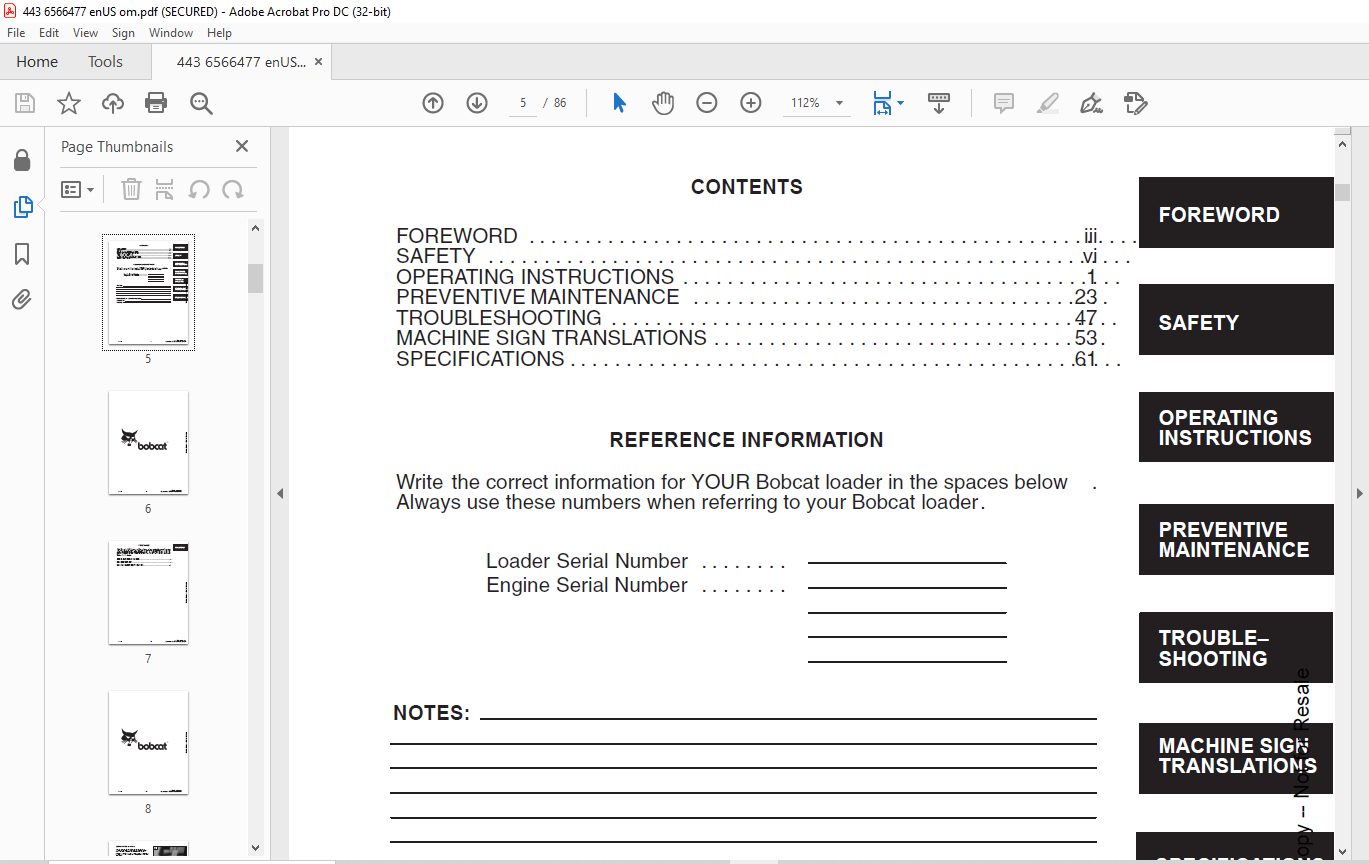

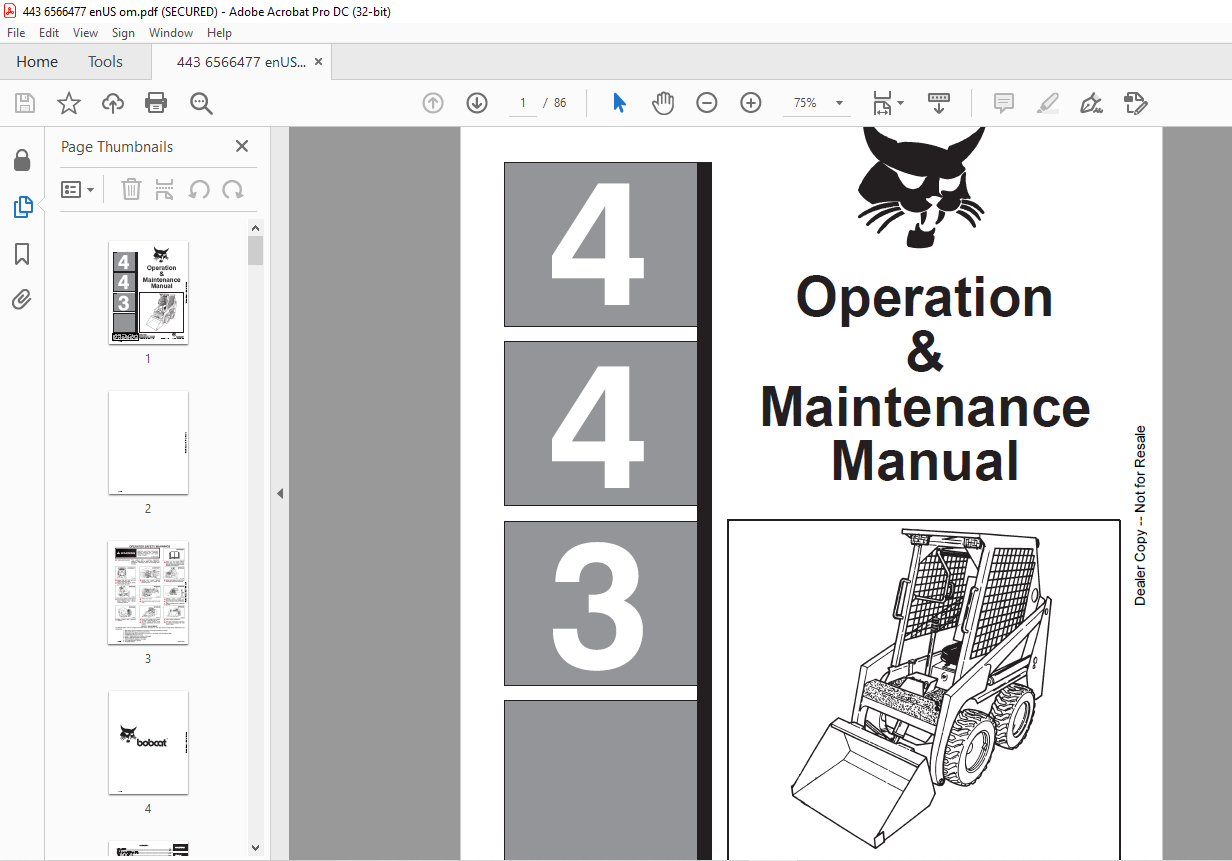

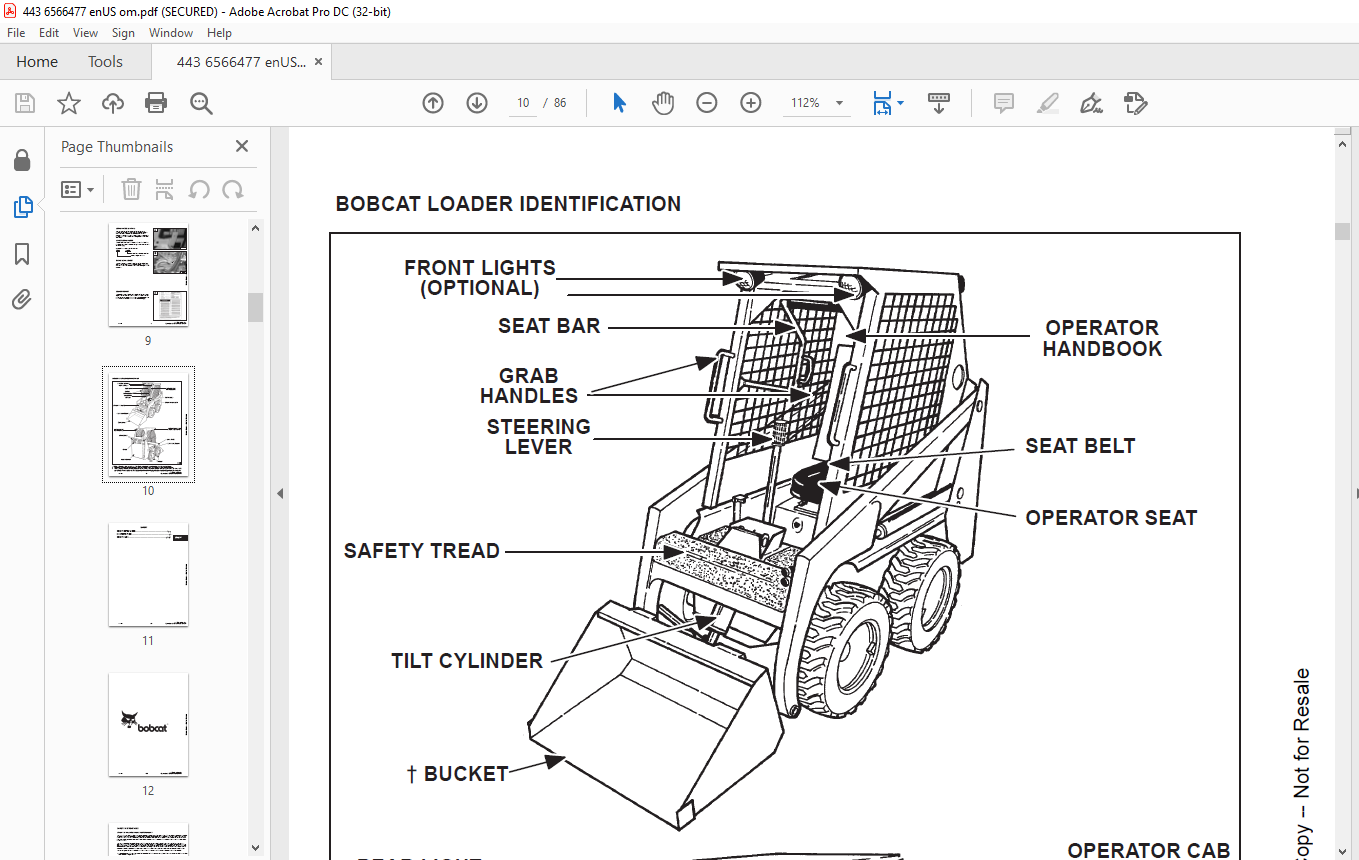

IMAGES PREVIEW OF THE MANUAL:
