DESCRIPTION:

Bobcat 443B Loader Operation & Maintenance Manual 6722481 – PDF DOWNLOAD

SAFETY INSTRUCTIONS:
SAFETY IS THE OPERATOR’S RESPONSIBILITY:

• The Skid Steer Loader is a highly maneuverable and compact machine. In operation, it is rugged and useful under a wide variety of conditions. This presents an operator with hazards associated with off highway, rough terrain applications. The loader has an internal combustion engine with resultant heat and exhaust. All exhaust gases can kill or cause illness so the loader must be used with adequate ventilation. The loader has a spark arrestor muffler which is required for operation in certain areas.
• The dealer explains the capabilities and restrictions of the loader and attachments for each application. The dealer
  demonstrates the safe operation of the loader according to Melroe’s instructional materials; which are also available to operators. The dealer can also identify unsafe modifications or use of unapproved attachments. The attachments and buckets are designed for rated capacity and secure fastening to the loader. The user must check with the dealer, or Melroe Company literature, to determine safe loads of materials of specified densities for his loader–attachment combination.

The following publications provide information on the safe use and maintenance of the loader and attachments:
• The Delivery Report is used to assure that complete instructions have been given to the new owner and that the machine
is in safe operating condition.
• The Operation & Maintenance Manual delivered with the loader gives operating information as well as routine
maintenance and service procedures. It is a part of the loader and must stay with the machine when it is sold.
Replacement Operation & Maintenance Manuals can be ordered from your Bobcat loader dealer.
• The loader has machine signs (decals) which instruct on the safe operation and care. The signs and their locations are
shown in the Operation & Maintenance Manual. Replacement signs are available from your Bobcat loader dealer.
• The loader has a plastic Operator’s Handbook fastened to the operator cab. Its brief instructions are convenient to the
operator. The handbook is available from your dealer in English edition or a combination English, French, German,
Italian, Dutch & Spanish edition.
• The EMI Safety Manual (available in Spanish) delivered with the loader gives general safety information.
• The Service Manual and Parts Manual are available from your dealer for use by mechanics to do shop–type service and
repair work.
• The Skid–Steer Loader Operator Training Course is available through your local dealer. This course is intended to
provide rules and practices for correct operation of the Bobcat loader. The course is available in English and Spanish
version.
• The Bobcat Skid–Steer Loader Safety Video is available from your Bobcat Dealer.
The dealer and owner/operator review the recommended uses of the loader and attachments when the loader is delivered.
If the owner/operator will be using the loader for a different application(s) he must ask the dealer for recommendations on
the new use.

TABLE OF CONTENTS:

Bobcat 443B Loader Operation & Maintenance Manual 6722481 – PDF DOWNLOAD

OPERATOR SAFETY WARNINGS 2
CONTENTS 3
REFERENCE INFORMATION 3
FOREWORD 5
SERIAL NUMBER LOCATIONS 7
LOADER SERIAL NUMBER 7
ENGINE SERIAL NUMBER 7
DELIVERY REPORT 7
BOBCAT LOADER IDENTIFICATION 8
SAFETY 9
SAFETY INSTRUCTIONS 11
SAFETY IS THE OPERATOR’S RESPONSIBILITY 11
BEFORE OPERATING THE BOBCAT LOADER 12
SAFE OPERATION NEEDS A QUALIFIED OPERATOR* 12
FIRE PREVENTION 13
MACHINE SIGNS (DECALS) 14
OPERATING INSTRUCTIONS 17
DASH PANEL 19
ENGINE SPEED CONTROL 19
ENGINE STOP CONTROL 19
PARKING BRAKE 20
STEERING LEVERS 21
HYDRAULIC CONTROLS 22
Foot Pedals (Hydraulic) 22
Lift Arm Operation 22
Tilt Operation (Bucket) 22
Auxiliary Hydraulics Operation (Optional) 23
DAILY INSPECTION 24
SEAT BAR RESTRAINT SYSTEM 25
GETTING READY FOR OPERATION 26
STARTING THE ENGINE 28
Normal Starting Condition 28
Cold Temperature Starting Condition 30
Warming The Hydraulic/Hydrostatic System 30
ATTACHMENTS AND BUCKETS 31
Installation And Removal (Pivot Pin Type) 32
Installation And Removal (Bob–Tach Type) 33
OPERATING PROCEDURES 34
Filling The Bucket 35
Emptying The Bucket 35
Digging Into The Ground 36
Leveling The Ground (Using Lift Arms In Float Position) 37
Backfilling 37
PARKING THE BOBCAT LOADER 38
TRANSPORTING THE BOBCAT LOADER 38
LIFTING THE BOBCAT LOADER 39
TOWING THE LOADER 39
PREVENTIVE MAINTENANCE 41
MAINTENANCE SAFETY 42
SERVICE SCHEDULE 43
LIFT ARM SUPPORT DEVICE 44
OPERATOR CAB (ROPS & FOPS) 44
Raising The Operator Cab 45
Lowering The Operator Cab 45
AIR CLEANER SERVICE 46
FUEL SYSTEM 48
Filling The Fuel Tank 48
Fuel Filter 48
Removing Air From The Fuel System 49
ENGINE LUBRICATION SYSTEM 50
Replacing Oil And Filter 50
COOLANT SYSTEM 51
Checking The Coolant Level 51
Removing The Coolant 51
ALTERNATOR BELT 52
Adjustment 52
ELECTRICAL SYSTEM 53
Description 53
Electrical System Service 53
Using A Booster Battery (Jump Starting) 53
Battery Removal And Installation 54
SPARK ARRESTOR MUFFLER 55
HYDRAULIC/HYDROSTATIC SYSTEM 56
Checking And Adding Fluid 56
Hydraulic Filter Element Replacement 57
Removing The Hydraulic/Hydrostatic Fluid 57
FINAL DRIVE TRANSMISSION (CHAINCASE) 57
TIRE MAINTENANCE 58
Wheel Nuts 58
Tire Rotation 58
Tire Inflation 58
LUBRICATION OF THE BOBCAT LOADER 59
BOB–TACH (Optional) 60
PIVOT PINS 61
BRAKE PEDAL ADJUSTMENT 61
SEAT BAR RESTRAINT SYSTEM 62
Seat Bar Inspection 62
Seat Bar Maintenance 62
TROUBLESHOOTING 63
TROUBLESHOOTING THE ENGINE 65
TROUBLESHOOTING THE HYDRAULIC SYSTEM 66
TROUBLESHOOTING THE DRIVE SYSTEM 67
MAJOR PARTS 69
MAIN FRAME 71
PANELS, SEAT, SEAT BAR & FUEL SYSTEM 72
BRAKES, CHAINCASE & AXLE 73
HYDRAULIC SYSTEM 74
HYDROSTATIC SYSTEM 75
STEERING CONTROLS 76
ROPS ELECTRICAL SYSTEM 77
ENGINE ELECTRICAL SYSTEM 78
ENGINE & ATTACHING PARTS 79
MACHINE SIGN TRANSLATIONS 81
IMPORTANT – 6560573 83
WARNING – 6579511 84
SERVICE SCHEDULE – 6567875 85
WARNING – 6579510 87
WARNING – 6579528 88
DANGER – 6579639 88
DANGER – 6579509 88
SPECIFICATIONS 89
LOADER DIMENSIONS 91
OPERATION & PERFORMANCE 91
ENGINE 91
HYDRAULIC SYSTEM 92
ELECTRICAL 92
DRIVE SYSTEM 92
CAPACITIES 92
TIRES 92
MELROE COMPANY APPROVED ATTACHMENTS & ACCESSORIES 93
ADDITIONAL PUBLICATIONS 94
WARRANTY 95

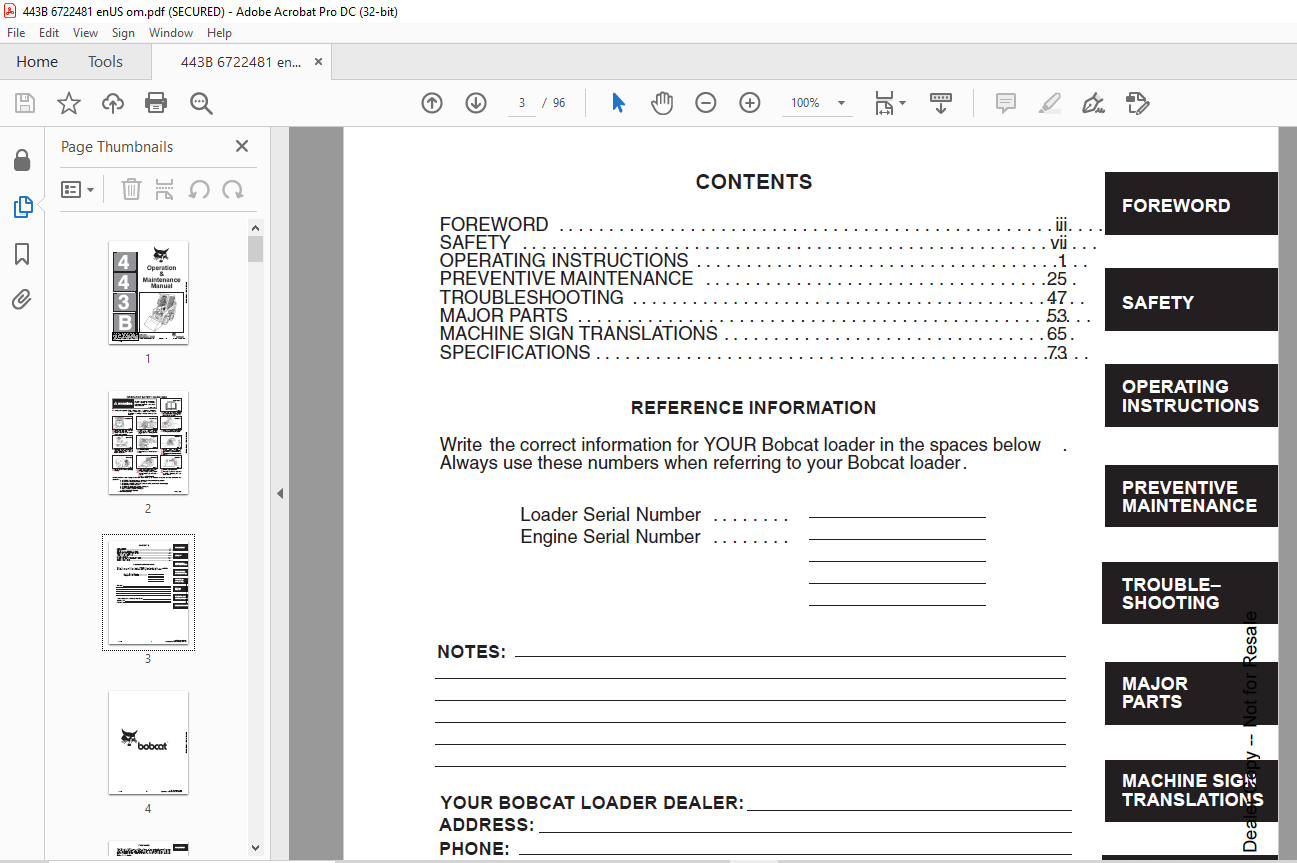

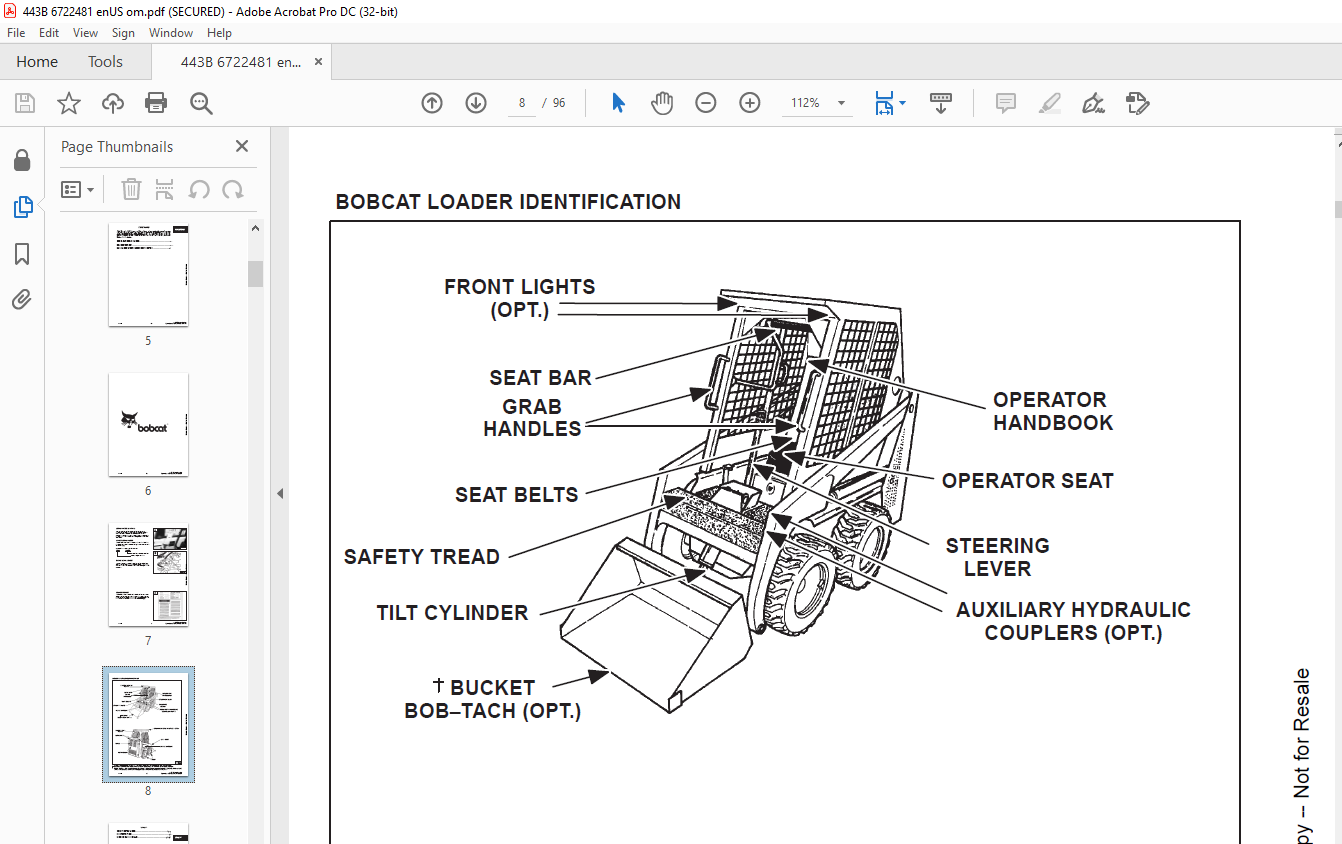

IMAGES PREVIEW OF THE MANUAL:
