Bobcat 653 Operation & Maintenance Manual - PDF DOWNLOAD

Bobcat 653 Operation & Maintenance Manual - PDF DOWNLOAD

FILE DETAILS:

Bobcat 653 Operation & Maintenance Manual - PDF DOWNLOAD

Language : English
Pages : 102
Downloadable : Yes
File Type : PDF

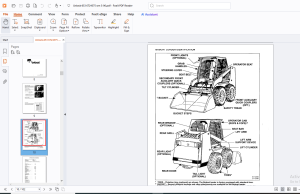

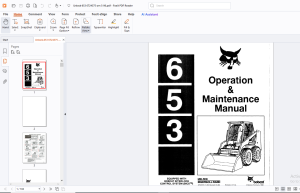

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Bobcat 653 Operation & Maintenance Manual - PDF DOWNLOAD

OPERATOR SAFETY WARNINGS 3
CONTENTS 5
REFERENCE INFORMATION 5
MELROE COMPANY IS ISO 9001 CERTIFIED 6
REGULAR MAINTENANCE ITEMS 6
FOREWORD 7
SERIEAL NUMBER LOCATIONS 9
LOADER SERIAL NUMBER 9
ENGINE SERIAL NUMBER 9
DELIVERY REPORT 9
BOBCAT LOADER IDENTIFICATION 10
OPTION AND ACCESSORIES 11
SAFETY 13
SAFETY INSTRUCTIONS 15
Safety Is The Operator's Responsibility 15
Before Operating The Bobcat Loader 16
Safe Operation Needs A Qualified Operator 16
FIRE PREVENTION 17
MACHINE SIGNS (DECALS) 18
OPERATING INSTRUCTIONS 21
INSTRUMENT PANEL 23
BOBCAT INTERLOCK CONTROL SYSTEM (BICS™) 24
Lift Arm By-Pass Control 25
Traction Lock Override 25
ENGINE SPEED CONTROL 26
PARKING BRAKE 26
STEERING LEVERS 27
STOPPING THE BOBCAT LOADER 27
SEAT BAR RESTRAINT SYSTEM 28
HYDRAULIC CONTROLS 30
Foot Pedals 30
Lift Arm Operation 30
Lift Arm Float Position 30
Tilt Operation (Bucket) 30
Bucket Position Valve Operation (Optional) 30
Auxiliary Hydraulics (Optional) 31
Auxiliary Hydraulics (Momentary Operation) 32
Front Auxiliary Control (Optional) 32
Rear Auxiliary Control (Optional) 32
Front Auxiliary Hydraulics Continuous Operation (Detent) 32
Attachment Functions Control 33
GETTING READY FOR OPERATION 34
STARTING THE ENGINE 35
Normal Starting Condition 36
Cold Temperature Starting Condition 37
Warming The Hydraulic / Hydrostatic System 37
STOPPING THE ENGINE 37
ATTACHMENTS AND BUCKETS 38
Installation And Removal 39
OPERATING PROCEDURE 41
Filling The Bucket 42
Emptying The Bucket 42
Digging Into The Ground 43
Leveling The Ground (Using Lift Arms In Float Positions) 43
Backfilling 44
PARKING THE BOBCAT LOADER 44
TRANSPORTING THE BOBCAT LOADER 45
TOWING THE LOADER 45
STOPPING THE BOBCAT LOADER 45
LIFTING THE LOADER 46
Four Point Lift 46
Single Point Lift 46
PREVENTIVE MAINTENANCE 47
MAINTENANCE SAFETY 48
SERVICE SCHEDULE 49
LIFT ARM SUPPORT DEVICE 50
Engaging The Lift Arm Support Device 50
Disengaging The Lift Arm Support Device 50
OPERATOR CAB 51
Raising The Operator Cab 51
Lowering The Operator Cab 52
Emergency Exit 52
SEAT BAR RESTRAINT SYSTEM 53
Inspecting The Seat Bar 53
Maintaining The Seat Bar 53
BOBCAT INTERLOCK CONTROL SYSTEM (BICS™) 54
Inspecting The BICS™ Controller (Engine STOPPED - Key ON) 54
Inspecting The Seat And Seat Bar Sensors (Engine RUNNING) 54
Inspecting The Traction Lock (Engine RUNNING) 54
Inspecting The Lift Arm By-Pass Control 54
Maintenance 54
Troubleshooting Chart 55
REAR DOOR 56
Adjustment 56
REAR GRILL 56
AIR CLEANER SERVICE 57
Replacing Filter Element 57
FUEL SYSTEM 58
Fuel Specifications 58
Filling The Fuel Tank 58
Fuel Filter 58
Removing Air From The Fuel System 59
ENGINE LUBRICATION SYSTEM 60
Checking Engine Oil 60
Replacing Oil And Filter 60
ENGINE COOLING SYSTEM 62
Cleaning The Cooling System 62
Checking The Coolant Level 62
Removing Coolant From The Cooling System 63
Proplylene Glycol 63
ALTERNATOR BELT 64
Adjusting The Alternator Belt 64
TIMING BELT 64
ELECTRICAL SYSTEM 65
Description 65
Service The Electrical System 65
Fuse Location 65
Using A Booster Battery (Jump Starting) 66
Removing And Installing The Battery 67
HYDRAULIC / HYDROSTATIC SYSTEM 68
Checking And Adding Fluid 68
Replacing The Hydraulic / Hydrostatic Filter 68
Replacing Hydraulic Fluid 69
Hydraulic Reservoir Breather Cap 70
SPARK ARRESTOR MUFFLER 71
TIRE MAINTENANCE 72
Wheel Nuts 72
Tire Rotation 72
Tire Mounting 72
FINAL DRIVE TRANSMISSION (CHAINCASE) 73
Checking And Adding Oil 73
Removing Oil From The Chaincase 73
DRIVE BELT 74
Adjusting The Drive Belt 74
Drive Belt Replacement 76
LUBRICATION OF THE BOBCAT LOADER 77
PIVOT PINS 78
BOB-TACH 79
FAN GEARBOX 79
Checking And Maintenance 79
MACHINE SIGN TRANSLATIONS 81
IMPORTANT - 6560573 83
WARNING - 6579511 84
SERVICE SCHEDULE - 6708212 85
WARNING - 6579510 87
WARNING - 6579528 88
DANGER - 6579639 88
WARNING - 6577754 88
DANGER - 6579509 88
SPECIFICATIONS 89
PERFORMANCE 91
CONTROLS 91
ENGINE 92
HYDRAULIC SYSTEM 92
ELECTRICAL 92
DRIVE SYSTEM 92
CAPACITIES 92
TIRES 93
FLOOR PRESSURE 93
VIBRATION DATA 93
MELROE COMPANY APPROVED ATTACHMENTS & ACCESSORIES 94
ADDITIONAL PUBLICATIONS 97
WARRANTY 101

DESCRIPTION:

Bobcat 653 Operation & Maintenance Manual - PDF DOWNLOAD

FOREWORD:

• This Operation & Maintenance Manual was written to give the owner/operator instructions on the safe operation and maintenance of the Bobcat loader.
• READ AND UNDERSTAND THIS OPERATION & MAINTENANCE MANUAL BEFORE OPERATING YOUR LOADER. If you have any questions, see your Bobcat loader dealer.

SAFETY INSTRUCTIONS:

SAFETY IS THE OPERATOR'S RESPONSIBILITY:

• The Skid Steer Loader is a highly maneuverable and compact machine. In operation, it is rugged and useful under a wide variety of conditions. This presents an operator with hazards associated with off highway, rough terrain applications. The loader has an internal combustion engine with resultant heat and exhaust.
• All exhaust gases can kill or cause illness so the loader must be used with adequate ventilation. The loader has a spark arrestor muffler which is required for operation in certain areas. The dealer explains the capabilities and restrictions of the loader and attachments for each application. The dealer demonstrates the safe operation of the loader according to Melroe's instructional materials; which are also available to operators.
• The dealer can also identify unsafe modifications or use of unapproved attachments. The attachments and buckets are designed for rated capacity and secure fastening to the loader. The user must check with the dealer, or Melroe Company literature, to determine safe loads of materials of specified densities for his loader-attachment combination.

The following publications provide information on the safe use and maintenance of the loader and attachments: The Delivery Report is used to assure that complete instructions have been given to the new owner and that the machine is in safe operating condition.

• The Operation & Maintenance Manual delivered with the loader gives operating information as well as routine maintenance and service procedures. It is a part of the loader and must stay with the machine when it is sold. Replacement Operation & Maintenance Manuals can be ordered from your Bobcat loader dealer.
• The loader has machine signs (decals) which instruct on the safe operation and care. The signs and their locations are shown in the Operation & Maintenance Manual. Replacement signs are available from your Bobcat loader dealer.
• The loader has a plastic Operator's Handbook fastened to the operator cab. Its brief instructions are convenient to the operator. The handbook is available from your dealer in English edition or a combination English, French, German, Italian, Dutch & Spanish edition.
• The EMI Safety Manual (available in Spanish) delivered with the loader gives general safety information.
• The Service Manual and Parts Manual are available from your dealer for use by mechanics to do shop-type service and repair work.
• The Skid Steer Loader Operator Training Course is available through your local dealer. This course is intended to provide rules and practices for correct operation of the Bobcat loader. The course is available in English and Spanish version. The Bobcat Skid-Steer Loader Safety Video is available from your Bobcat Dealer.
• The dealer and owner/operator review the recommended uses of the loader and attachments when the loader is delivered. If the owner/operator will be using the loader for a different application(s) he must ask the dealer for recommendations on the new use.
