Bobcat 751 Operation & Maintenance Manual - PDF DOWLOAD

Bobcat 751 Operation & Maintenance Manual - PDF DOWLOAD

FILE DETAILS:

Bobcat 751 Operation & Maintenance Manual - PDF DOWLOAD

• S/N 515716800 thru 515729999
• S/N 515612800 thru 515619999

Language : English
Pages : 116
Downloadable : Yes
File Type : PDF

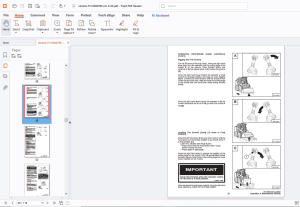

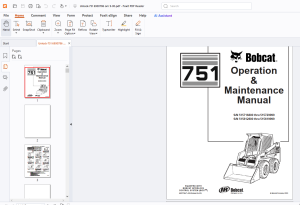

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Bobcat 751 Operation & Maintenance Manual - PDF DOWLOAD

• S/N 515716800 thru 515729999
• S/N 515612800 thru 515619999

OPERATOR SAFETY WARNINGS 3
CONTENTS 5
REFERENCE INFORMATION 5
BOBCAT COMPANY IS ISO 9001 CERTIFIED 6
REGULAR MAINTENANCE ITEMS 6
FOREWORD 7
SERIAL NUMBER LOCATIONS 9
LOADER SERIAL NUMBER 9
ENGINE SERIAL NUMBER 9
DELIVERY REPORT 9
BOBCAT LOADER IDENTIFICATION 10
OPTIONS AND ACCESSORIES 11
SAFETY 13
SAFETY INSTRUCTIONS FOR BOBCAT SKID–STEER LOADERS AND ATTACHMENTS 15
SAFETY IS THE OPERATOR’S RESPONSIBILITY 15
BEFORE OPERATING THE BOBCAT LOADER 16
SAFE OPERATION NEEDS A QUALIFIED OPERATOR * 16
FIRE PREVENTION 17
MACHINE SIGNS (DECALS) 18
OPERATING INSTRUCTIONS 21
INSTRUMENT PANEL 23
Front Panel 23
Side Console* 23
BOBCAT INTERLOCK CONTROL SYSTEM (BICS™) 24
Lift Arm By–Pass Control 25
Traction Lock Override 25
Auxiliary Hydraulic System 25
ENGINE SPEED CONTROL 26
PARKING BRAKE 26
STEERING LEVERS 27
STOPPING THE BOBCAT LOADER 27
SEAT BAR RESTRAINT SYSTEM (FOOT PEDALS) 28
SEAT BAR RESTRAINT SYSTEM (MECHANICAL HAND CONTROLS) 29
SEAT BAR RESTRAINT SYSTEM (ADVANCED HAND CONTROLS) 30
BAR RESTRAINT SYSTEM (A 31
Foot Pedals 31
Lift Arm Operation 31
Lift Arm Float Position 31
Tilt Operation 31
Bucket Position Valve Operation (If Equipped) 31
Hand Controls (Mechanical and Advanced Hand Controls) 32
Lift Arm Operation 32
Lift Arm Float Position 32
Tilt Operation 32
Bucket Position Valve Operation (If Equipped) 32
Auxiliary Hydraulics (If Equipped) 33
Quick Couplers 33
Auxiliary Hydraulics Switch 34
FRONT Auxiliary Hydraulics Operation 34
FRONT Auxiliary Hydraulics Continuous Operation(RIGHT Steering Lever) 34
REAR Auxiliary Hydraulics Operation (LEFT Steering Lever) 34
Attachment Functions Control 35
Relieving Hydraulic Pressure 35
DAILY INSPECTION 36
Daily Inspection and Maintenance 36
GETTING READY FOR OPERATION 37
STARTING THE ENGINE 38
Normal Starting 39
Cold Temperature Starting 40
Warming the Hydraulic/Hydrostatic System 40
STOPPING THE ENGINE 40
ATTACHMENTS AND BUCKETS 41
Installing The Bucket Or Attachment 42
Removing The Bucket Or Attachment 43
OPERATING PROCEDURES 44
OPERATING PROCEDURES (FOOT PEDALS) 45
Filling the Bucket 45
Emptying the Bucket 45
Digging Into the Ground 46
Leveling the Ground (Using Lift Arms in Float Position) 46
Backfilling 47
PARKING THE BOBCAT LOADER 47
OPERATING PROCEDURE (HAND CONTROLS) 48
Filling The Bucket 48
Emptying The Bucket 48
Digging Into The Ground 49
Leveling The Ground (Using Lift Arms In Float Position) 49
Backfilling 50
PARKING THE BOBCAT LOADER 50
TRANSPORTING THE BOBCAT LOADER 51
TOWING THE LOADER 51
LIFTING THE LOADER 52
Four Point Lift 52
Single Point Lift 52
PREVENTIVE MAINTENANCE 53
MAINTENANCE SAFETY 55
SERVICE SCHEDULE 57
LIFT ARM SUPPORT DEVICE 58
Engaging The Lift Arm Support Device 58
Disengaging The Lift Arm Support Device 59
OPERATOR CAB 60
Raising The Operator Cab 60
Lowering The Operator Cab 61
Emergency Exit 62
SEAT BAR RESTRAINT SYSTEM (FOOT PEDALS) 63
Inspecting The Seat Bar 63
Maintaining The Seat Bar 63
SEAT BAR RESTRAINT SYSTEM (MECHANICAL HAND CONTROLS) 64
Inspecting The Seat Bar 64
Maintaining The Seat Bar 64
SEAT BAR RESTRAINT SYSTEM (ADVANCED HAND CONTROLS) 65
Inspecting The Seat Bar 65
Maintaining The Seat Bar 65
BOBCAT INTERLOCK CONTROL SYSTEM (BICS™) 66
Inspecting The BICS™ Controller 66
Inspecting Deactivation Of The Auxiliary HydraulicsSystem (Engine STOPPED – Key ON) 66
Inspecting The Seat Bar Sensor (Engine RUNNING) 66
Inspecting The Traction Lock (Engine RUNNING) 66
Inspecting The Lift Arm By–Pass Control 66
Additional Inspection For Loaders With Advanced Hand Controls 66
REAR DOOR 67
Latch Adjustment 67
AIR CLEANER SERVICE 68
Replacing Filter Element 68
FUEL SYSTEM 70
Fuel Specifications 70
Filling The Fuel Tank 70
Fuel Filter 70
Removing Air From The Fuel System 71
ENGINE LUBRICATION SYSTEM 72
Checking Engine Oil 72
Oil Chart 72
Replacing Oil And Filter 72
ENGINE COOLING SYSTEM 74
Cleaning The Cooling System 74
Checking The Coolant Level 74
Replacing The Coolant 75
ALTERNATOR BELT 76
Adjusting 76
ELECTRICAL SYSTEM 77
Description 77
Cleaning The Battery Terminals 77
Fuse Location 77
Using A Booster Battery (Jump Starting) 78
Removing And Installing The Battery 79
HYDRAULIC/HYDROSTATIC SYSTEM 81
Checking And Adding Fluid 81
Replacing Hydraulic/Hydrostatic Filter 81
Replacing Hydraulic Fluid 82
Breather Cap 83
SPARK ARRESTOR MUFFLER 84
TIRE MAINTENANCE 85
Wheel Nuts 85
Tire Rotation 85
Tire Mounting 85
FINAL DRIVE TRANSMISSION (CHAINCASE) 86
Checking And Adding Oil 86
Removing Oil From The Chaincase 86
FAN GEARBOX 87
Checking And Maintaining 87
DRIVE BELT 88
Adjusting The Drive Belt 88
LUBRICATING THE BOBCAT LOADER 90
PIVOT PINS 91
BOB–TACH 92
Inspection and Maintenance 92
SYSTEMS ANALYSIS 93
BOBCAT INTERLOCK CONTROL SYSTEM (BICS™) 95
Troubleshooting Chart 95
ADVANCED HAND CONTROLS (AHC) 95
Troubleshooting Chart 95
MACHINE SIGN TRANSLATIONS 97
IMPORTANT - 6560573 99
SERVICE SCHEDULE - 6715563 100
WARNING - 6579510 102
WARNING - 6703725 103
WARNING - 6579639 104
WARNING - 6577754 104
DANGER - 6579639 104
DANGER - 6579509 104
DANGER - 6717343 105
WARNING - 6575944 105
SPECIFICATIONS 107
LOADER SPECIFICATIONS 109
Specifications 109
PERFORMANCE 109
CONTROLS 109
ENGINE 109
HYDRAULIC SYSTEM 110
ELECTRICAL 110
DRIVE SYSTEM 110
CAPACITIES 110
TIRES 110
BOBCAT COMPANY APPROVED ATTACHMENTS & ACCESSORIES 111
ADDITIONAL PUBLICATIONS AND TRAINING MATERIALS 113
WARRANTY 115

DESCRIPTION:

Bobcat 751 Operation & Maintenance Manual - PDF DOWLOAD

• S/N 515716800 thru 515729999
• S/N 515612800 thru 515619999

F0REWORD:

• This Operation & Maintenance Manual was written to give the owner/operator instructions on the safe operation and maintenance of the Bobcat loader.
• READ AND UNDERSTAND THIS OPERATION & MAINTENANCE MANUAL BEFORE OPERATING YOUR LOADER. If you have any questions, see your Bobcat loader dealer.
• This manual may illustrate loaders with additional options and accessories not installed on your loader.

SAFETY INSTRUCTIONS FOR BOBCAT SKID–STEER LOADERS AND ATTACHMENTS SAFETY IS THE OPERATOR’S RESPONSIBILITY:

• All Bobcat loaders and attachments are designed to give maximum safety, but no machine design can prevent operator error or carelessness. The Bobcat skid–steer loader is highly maneuverable and compact. It is rugged and useful under a wide variety of conditions.
• This presents an operator with hazards associated with off highway, rough terrain applications, common with Bobcat loader usage. The Bobcat loader has an internal combustion engine with resultant heat and exhaust. All exhaust gases can kill or cause illness so use the loader with adequate ventilation.
• The loader has a spark arrestor exhaust system or muffler which is required for operation in certain areas. The dealer explains the capabilities and restrictions of the Bobcat loader and attachments for each application.
• The dealer demonstrates the safe operation according to Bobcat instructional materials, which are also available to operators. The dealer can also identify unsafe modifications or use of unapproved attachments.
• The attachments and buckets are designed for a Rated Operating Capacity (some have restricted lift heights) and secure fastening to the Bobcat loader.
• The user must check with the dealer, or Bobcat literature, to determine safe loads of materials of specified densities for the loader–attachment combination.
