Bobcat 753 753H Operation & Maintenance Manual - PDF DOWNLOAD

Bobcat 753 753H Operation & Maintenance Manual - PDF DOWNLOAD

FILE DETAILS:

Bobcat 753 753H Operation & Maintenance Manual - PDF DOWNLOAD

Language : English
Pages : 100
Downloadable : Yes
File Type : PDF

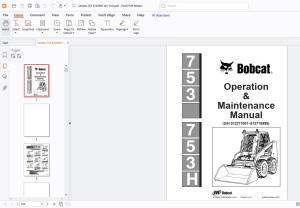

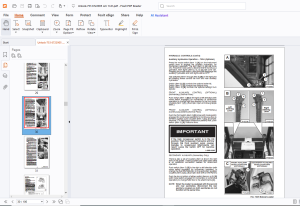

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Bobcat 753 753H Operation & Maintenance Manual - PDF DOWNLOAD

OPERATOR SAFETY WARNINGS 3
CONTENTS 5
REFERENCE INFORMATION 5
BOBCAT COMPANY IS ISO 9001 CERTIFIED 6
REGULAR MAINTENANCE ITEMS 6
FOREWORD 7
SERIAL NUMBER LOCATIONS 9
LOADER SERIAL NUMBER 9
ENGINE SERIAL NUMBER 9
DELIVERY REPORT 9
BOBCAT LOADER IDENTIFICATION 10
OPTIONS AND ACCESSORIES 11
SAFETY 13
SAFETY INSTRUCTIONS 15
SAFETY IS THE OPERATOR’S RESPONSIBILITY 15
BEFORE OPERATING THE BOBCAT LOADER 16
SAFE OPERATION NEEDS A QUALIFIED OPERATOR * 16
FIRE PREVENTION 17
MACHINE SIGNS (DECALS) 18
OPERATING INSTRUCTIONS 21
INSTRUMENT PANEL 23
ENGINE SPEED CONTROL 25
PARKING BRAKE 25
STEERING LEVERS 26
HYDRAULIC CONTROLS 27
Foot Pedals 27
Lift Arm Operation 27
Tilt Operation (Bucket) 27
Bucket Position Valve Operation (Optional) 27
Auxiliary Hydraulics Operation (Optional) 28
Auxiliary Hydraulics Operation – 753H (Optional) 30
DAILY INSPECTION 32
SEAT BAR RESTRAINT SYSTEM 33
GETTING READY FOR OPERATION 34
STARTING THE ENGINE 36
Normal Starting Condition (Standard) 36
Cold Temperature Starting Condition – (Standard) 37
Warning The Hydraulic/Hydrostatic System 37
Normal Starting Condition (Optional) 38
Cold Temperature Starting Condition (Optional) 39
STOPPING THE ENGINE 40
ATTACHMENT AND BUCKETS 41
Installation And Removal 42
OPERATING PROCEDURE 43
Filling The Bucket 44
Emptying The Bucket 44
Digging Into The Ground 45
Leveling The Ground (Using Lift Arms In Float Position) 45
Backfilling 46
PARKING THE BOBCAT LOADER 46
TRANSPORTING THE BOBCAT LOADER 47
LIFTING THE LOADER 48
Four Point Lift 48
Single Point Lift 48
TOWING THE LOADER 48
PREVENTIVE MAINTENANCE 49
MAINTENANCE SAFETY 50
SERVICE SCHEDULE 51
LIFT ARM SUPPORT DEVICE 52
To Engage Lift Arm Support Device 52
To Disengage Lift Arm Support Device 52
OPERATOR CAB 53
Raising The Operator Cab 53
Lowering The Operator Cab 53
Emergency Exit 53
SEAT BAR RESTRAINT SYSTEM 54
Seat Bar Inspection 54
Seat Bar Maintenance 54
REAR DOOR 55
Adjustment 55
REAR GRILL 55
AIR CLEANER SERVICE 56
FUEL SYSTEM 58
Fuel Specifications 58
Filling The Fuel Tank 58
Fuel Filter 58
Removing Air From The Fuel System 59
ENGINE LUBRICATION SYSTEM 60
Check Engine Oil 60
Replacement Of Oil And Filter 60
COOLING SYSTEM 62
Cleaning The Cooling System 62
Checking The Coolant Level 62
Removing Coolant From The Cooling System 63
ALTERNATOR BELT 64
Adjusting The Alternator Belt 64
ELECTRICAL SYSTEM 65
Description 65
Electrical System Service 65
Fuses Location– 753 (Option) & (753H) (Option) 65
Fuses – 753 (Standard) 65
Using A Booster Battery (Jump Starting) 66
Battery Removal And Installation 66
HYDRAULIC/HYDROSTATIC SYSTEM 68
Checking And Adding Fluid 68
Hydraulic/Hydrostatic Filter Replacement 68
Hydraulic Fluid Replacement 69
Hydraulic Reservoir Breather Cap 70
SPARK ARRESTOR MUFFLER 71
TIRE MAINTENANCE 72
Wheel Nuts 72
Tire Rotation 72
Tire Mounting 72
FINAL DRIVE TRANSMISSION (CHAINCASE) 73
Checking And Adding Oil 73
FAN GEARBOX 73
DRIVE BELT 74
Adjustment 74
Drive Belt Replacement 75
LUBRICATION OF THE BOBCAT LOADER 76
PIVOT PINS 77
BOB–TACH 78
PARKING BRAKE PEDAL 78
Adjustment 78
SYSTEMS ANALYSIS 79
SERVICE CODES 81
MACHINE SIGNS TRANSLATIONS 83
IMPORTANT - 6560573 85
WARNING - 6579511 86
SERVICE SCHEDULE - 6578218 87
WARNING - 6579510 89
WARNING - 6579528 90
WARNING - 6577754 90
DANGER - 6579639 90
DANGER -6579509 90
SPECIFICATIONS 91
LOADER DIMENSIONS 93
OPERATIONS & PERFORMANCE 93
ENGINE 93
HYDRAULIC SYSTEM 94
ELECTRICAL 94
DRIVE SYSTEM 94
CAPACITIES 94
TIRES 94
BOBCAT COMPANY APPROVED ATTACHMENTS & ACCESSORIES 95
ADDITIONAL PUBLICATIONS 98
WARRANTY 99

DESCRIPTION:

Bobcat 753 753H Operation & Maintenance Manual - PDF DOWNLOAD

FOREWORD:

• This Operation & Maintenance Manual was written to give the owner/operator instructions on the safe operation and maintenance of the Bobcat loader.
• READ AND UNDERSTAND THIS OPERATION & MAINTENANCE MANUAL BEFORE OPERATING YOUR LOADER. If you have any questions, see your Bobcat loader dealer.

SAFETY INSTRUCTIONS:

 SAFETY IS THE OPERATOR'S RESPONSIBILITY:

• The Skid Steer Loader is a highly maneuverable and compact machine. In operation, it is rugged and useful under a wide variety of conditions. This presents an operator with hazards associated with off highway, rough terrain applications. The loader has an internal combustion engine with resultant heat and exhaust.
• All exhaust gases can kill so the loader must be used with adequate ventilation. The loader has a spark arrestor muffler which is required for operation in certain areas. The dealer explains the capabilities and restrictions of the loader and attachments for each application.
• The dealer demonstrates the safe operation of the loader according to Melroe's instructional materials; which are also available to operators. The dealer can also identify unsafe modifications or use of unapproved attachments.
• The attachments and buckets are designed for rated capacity and secure fastening to the loader. The user must check with the dealer, or Melroe Company literature, to determine safe loads of materials of specified densities for his loader-attachment combination.

The following publications provide information on the safe use and maintenance of the loader and attachments:

•  The Delivery Report is used to assure that complete instructions have been given to the new owner and that the machine is in safe operating condition.
• The Operation & Maintenance Manual delivered with the loader gives operating information as well as routine maintenance and service procedures. It is a part of the loader and must stay with the machine when it is sold. Replacement Operation & Maintenance Manuals can be ordered from your Bobcat dealer.
• The loader has machine signs (decals) which instruct on the safe operation and care. The signs and their locations are shown in the Operation & Maintenance Manual. Replacement signs are available from your Bobcat loader dealer.

G.B 10/03/25
