Bobcat 773 Operation & Maintenance Manual - PDF DOWNLOAD

Bobcat 773 Operation & Maintenance Manual - PDF DOWNLOAD

FILE DETAILS:

Bobcat 773 Operation & Maintenance Manual - PDF DOWNLOAD

Language : English
Pages : 124
Downloadable : Yes
File Type : PDF

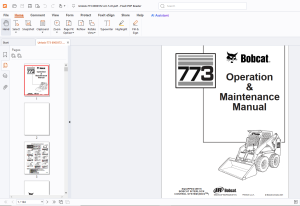

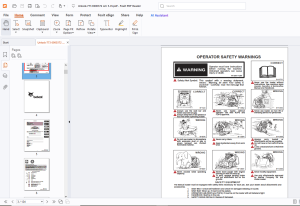

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Bobcat 773 Operation & Maintenance Manual - PDF DOWNLOAD

OPERATOR SAFETY WARNINGS 3
CONTENTS 5
REFERENCE INFORMATION 5
MELROE COMPANY IS ISO 9001 CERTIFIED 6
REGULAR MAINTENANCE ITEMS 6
FOREWORD 7
SERIAL NUMBER INFORMATION 8
SERIAL NUMBER LOCATIONS 9
LOADER SERIAL NUMBER 9
ENGINE SERIAL NUMBER 9
DELIVERY REPORT 9
BOBCAT LOADER IDENTIFICATION 10
OPTIONS AND ACCESSORIES 11
SAFETY 13
SAFETY INSTRUCTIONS 15
SAFETY IS THE OPERATOR’S RESPONSIBILITY 15
BEFORE OPERATING THE BOBCAT LOADER 16
SAFE OPERATION NEEDS A QUALIFIED OPERATOR* 16
FIRE PREVENTION 17
MACHINE SIGNS (DECALS) 18
OPERATING INSTRUCTIONS 21
INSTRUMENT PANEL 23
Without BOSS® (Early Models) 23
With BOSS® (Early Models) 24
Without BOSS® (Later Models) 25
With BOSS® (Later Models) 26
BOSS Option Display Panel 27
BOBCAT INTERLOCK CONTROL SYSTEM (BICS™) 28
Lift Arm By–Pass Control 28
Traction Lock Override 29
Seat Sensor Override (If Equipped) 29
Auxiliary Hydraulic System 29
ENGINE SPEED CONTROL 30
PARKING BRAKE 30
STEERING LEVERS 31
STOPPING THE BOBCAT LOADER 31
SEAT BAR RESTRAINT SYSTEM (FOOT PEDALS) 32
SEAT BAR RESTRAINT SYSTEM (MECHANICAL HAND CONTROLS) 33
Mechanical Hand Controls 33
SEAT BAR RESTRAINT SYSTEM (ADVANCED HAND CONTROLS) 34
HYDRAULIC CONTROLS 35
Foot Pedals 35
Lift Arm Operation 35
Lift Arm Float Position 35
Tilt Operation 35
Bucket Position Valve Operation (If Equipped) 35
Hand Controls (Mechanical and Advanced Hand Controls) 36
Lift Arm Operation 36
Lift Arm Float Position 36
Tilt Operation 36
Bucket Position Valve Operation (If Equipped) 36
Advanced Hand Controls (AHC) (If Equipped) 36
Auxiliary Hydraulics (If Equipped) 37
Quick Couplers (Flush Face) 37
Auxiliary Hydraulics Switch 38
FRONT Auxiliary Hydraulics Operation 38
FRONT Auxiliary Hydraulics Continuous Operation 38
REAR Auxiliary Hydraulics Operation 38
Attachment Functions Control (If Equipped) 39
Relieving Hydraulic Pressure 39
Front Quick Couplers 39
Rear Quick Couplers 39
DAILY INSPECTION 40
Daily Inspection and Maintenance 40
GETTING READY FOR OPERATION 40
STARTING THE ENGINE 42
Normal Starting (Without BOSS®) 42
Cold Temperature Starting (Without BOSS®) 43
Normal Starting (With BOSS®) 44
Cold Temperature Starting (With BOSS®) 45
Warming the Hydraulic/Hydrostatic System 45
STOPPING THE ENGINE 45
ATTACHMENTS AND BUCKETS 46
Installing The Bucket Or Attachment 47
Removing The Bucket Or Attachment 48
OPERATING PROCEDURE 49
Filling the Bucket 50
Emptying the Bucket 50
Digging Into the Ground 51
Leveling the Ground (Using Lift Arms in Float Position) 51
Backfilling 52
PARKING THE BOBCAT LOADER 52
OPERATING PROCEDURE (HAND CONTROLS) 53
Filling The Bucket 53
Emptying The Bucket 53
Digging Into The Ground 54
Leveling The Ground (Using Lift Arms In Float Position) 54
Backfilling 55
PARKING THE BOBCAT LOADER 55
TRANSPORTING THE BOBCAT LOADER 56
TOWING THE LOADER 56
LIFTING THE LOADER 57
Single Point Lift 57
PREVENTIVE MAINTENANCE 59
MAINTENANCE SAFETY 61
SERVICE SCHEDULE 63
LIFT ARM SUPPORT DEVICE 64
Installing Lift Arm Support Device 64
Removing Lift Arm Support Device 64
OPERATOR CAB 65
Raising The Operator Cab 65
Lowering The Operator Cab 66
Emergency Exit 67
SEAT BAR RESTRAINT SYSTEM (FOOT PEDALS) 68
Inspecting the Seat Bar 68
Maintaining the Seat Bar 68
SEAT BAR RESTRAINT SYSTEM (MECHANICAL HAND CONTROLS) 69
Inspecting The Seat Bar 69
Maintaining The Seat Bar 69
SEAT BAR RESTRAINT SYSTEM (ADVANCED HAND CONTROLS) 70
Inspecting The Seat Bar 70
Maintaining The Seat Bar 70
BOBCAT INTERLOCK CONTROL SYSTEM (BICS™) 71
Inspecting The BICS™ Controller 71
Inspecting The Seat And Seat Bar Sensors (Engine RUNNING) 71
Inspecting The Traction Lock (Engine RUNNING) 71
Inspecting The Lift Arm By–Pass Control 71
Inspecting the BICS™ Lock Valve (Advanced HandControl Only) 72
Maintenance 72
REAR DOOR 73
Adjusting The Latch 73
REAR GRILL 73
AIR CLEANER SERVICE 74
Replacing Filter Element 74
FUEL SYSTEM 76
Fuel Specifications 76
Filling the Fuel Tank 76
Fuel Filter 76
Removing Air From The Fuel System 77
ENGINE LUBRICATION SYSTEM 78
Checking Engine Oil 78
Replacing Oil And Filter 78
ENGINE COOLING SYSTEM 80
Cleaning The Cooling System 80
Checking The Coolant Level 80
Replacing the Coolant 81
ALTERNATOR BELT 81
Adjusting The Alternator Belt 81
ELECTRICAL SYSTEM 82
Description 82
Cleaning Battery Terminals 82
Fuse Location 82
Using A Booster Battery (Jump Starting) 83
Removing And Installing The Battery 84
HYDRAULIC/HYDROSTATIC SYSTEM 85
Checking And Adding Fluid 85
Replacing Hydraulic/Hydrostatic Filter 85
Replacing Hydraulic Fluid 86
Breather Cap 87
SPARK ARRESTOR MUFFLER 88
TIRE MAINTENANCE 89
Wheel Nuts 89
Tire Rotation 89
Tire Mounting 89
FINAL DRIVE TRANSMISSION (CHAINCASE) 90
Checking And Adding Oil 90
FAN GEARBOX 90
Checking And Maintaining 90
DRIVE BELT (Spring Loaded Idler) 91
Adjusting The Drive Belt 91
Replacing The Drive Belt 92
Adjusting The Drive Belt 93
Replacing The Drive Belt 94
LUBRICATION OF THE BOBCAT LOADER 95
PIVOT PINS 97
BOB–TACH 98
Inspection and Maintenance 98
SYSTEMS ANALYSIS 99
MONITOR SERVICE CODES 101
SERVICE CODES 102
BOBCAT INTERLOCK CONTROL SYSTEM (BICS™) 104
Troubleshooting Chart 104
MACHINE SIGN TRANSLATIONS 105
IMPORTANT - 6560573 107
WARNING - 6579511 108
SERVICE SCHEDULE - 6708212 109
WARNING - 6579510 111
WARNING - 6703725 112
WARNING - 6579528 113
WARNING - 6577754 113
DANGER - 6579639 113
DANGER - 6579509 113
SPECIFICATIONS 115
PERFORMANCE 117
CONTROLS 117
ENGINE 117
HYDRAULIC SYSTEM 118
ELECTRICAL 118
DRIVE SYSTEM 118
CAPACITIES 118
TIRES 118
FLOOR PRESSURE 118
MELROE COMPANY APPROVED ATTACHMENTS & ACCESSORIES 119
ADDITIONAL PUBLICATIONS 122
WARRANTY 123

DESCRIPTION:

Bobcat 773 Operation & Maintenance Manual - PDF DOWNLOAD

SAFETY INSTRUCTIONS:

SAFETY IS THE OPERATOR’S RESPONSIBILITY:

• The Skid Steer Loader is a highly maneuverable and compact machine. In operation, it is rugged and useful under a wide variety of conditions. This presents an operator with hazards associated with off highway, rough terrain applications. The loader has an internal combustion engine with resultant heat and exhaust.
• All exhaust gases can kill or cause illness so the loader must be used with adequate ventilation. The loader has a spark arrestor muffler which is required for operation in certain areas. The dealer explains the capabilities and restrictions of the loader and attachments for each application.
• The dealer demonstrates the safe operation of the loader according to Melroe’s instructional materials; which are also available to operators. The dealer can also identify unsafe modifications or use of unapproved attachments. The attachments and buckets are designed for rated capacity and secure fastening to the loader.
• The user must check with the dealer, or Melroe Company literature, to determine safe loads of materials of specified densities for his loader–attachment combination.

The following publications provide information on the safe use and maintenance of the loader and attachments:

• The Delivery Report is used to assure that complete instructions have been given to the new owner and that the machine is in safe operating condition.• The Operation and Maintenance Manual delivered with the loader gives operating information as well as routine maintenance and service procedures. It is a part of the loader and can be stored in a container (later models) provided inside the cab. Replacement Operation and Maintenance Manuals can be ordered from your Bobcat loader dealer.• The loader has machine signs (decals) which instruct on the safe operation and care. The signs and their locations are shown in the Operation and Maintenance Manual. Replacement signs are available from your Bobcat loader dealer.• The loader has a plastic Operator’s Handbook fastened to the operator cab. Its brief instructions are convenient to the operator. The Handbook is available from your dealer in an English edition or one of many other languages. See your Bobcat dealer for more information on translated versions.• The EMI Safety Manual (available in Spanish) delivered with the loader gives general safety information.• The Service Manual and Parts Manual are available from your dealer for use by mechanics to do shop–type service and repair work.• The Skid–Steer Loader Operator Training Course is available through your local Bobcat dealer. This course provides information for safe and efficient operation of the Bobcat loader. The course is available in English and Spanish versions.• The Bobcat Skid–Steer Loader Safety Video is available from your Bobcat Dealer.
