FILE DETAILS:

Bobcat 843 Operation & Maintenance Manual - PDF DOWNLOAD

Language : English
Pages : 78
Downloadable : Yes
File Type : PDF

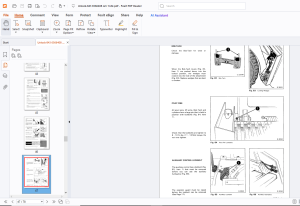

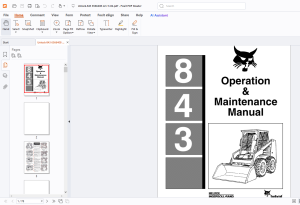

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Bobcat 843 Operation & Maintenance Manual - PDF DOWNLOAD

WARNINGS 3
SAFETY INSTRUCTIONS 5
FOREWORD 7
CONTENTS 7
REFERENCE INFORMATION 7
843 BOBCAT LOADER IDENTIFICATION 8
OPERATING INSTRUCTIONS 9
OPERATING INSTRUCTIONS 11
CONTROLS 12
DECAL LOCATIONS 13
DASH PANEL 14
THROTTLE CONTROL 14
STOPPING THE ENGINE 14
PARKING BRAKE 14
STEERING LEVERS 15
HYDRAULIC CONTROLS 16
Foot Pedals (Hydraulic) 16
Lift Arm Operation 16
Float Position 16
Tilt (Bucket) Operation 16
Auxiliary Lever 17
BEFORE YOU START THE ENGINE 17
STARTING THE ENGINE 18
Normal Starting Condition 19
Making Cold Temperature Starting Easier 19
Cold Weather Starting Condition 20
BOBCAT LOADER OPERATION 20
Bucket Size 20
Installation Of Attachments 21
Removal Of Attachments 21
OPERATING PROCEDURE 22
Filling The Bucket 23
To Empty The Bucket 23
Digging Into The Ground 24
Making The Ground Level 24
Filling A Hole 24
STOPPING THE BOBCAT LOADER 25
TRANSPORTING THE BOBCAT LOADER 25
LIFT ARM STOP 26
LIFTING THE OPERATOR GUARD 27
LOWERING THE OPERATOR GUARD 27
PREVENTIVE MAINTENANCE 29
WARNINGS 30
SERVICE SCHEDULE 31
ENGINE SERVICE 32
ADJUSTING THE DOOR LATCH 32
AIR CLEANER SERVICE 32
FUEL SYSTEM 33
FUEL SYSTEM SERVICE 33
FUEL FILTER 34
REMOVING AIR FROM THE FUEL SYSTEM 34
ENGINE LUBRICATION SYSTEM 35
REPLACEMENT OF ENGINE OIL AND FILTER 35
ENGINE COOLING SYSTEM 36
Coolant Level 36
REMOVING COOLANT FROM THE COOLING SYSTEM 36
ALTERNATOR BELT 37
ELECTRICAL SYSTEM 37
USING AN EXTRA BATTERY (JUMP STARTING) 40
TO INSTALL A NEW BATTERY 41
SPARK ARRESTOR MUFFLER 42
HYDRAULIC SYSTEM 42
REPLACEMENT OF THE HYDRAULIC FILTER 44
HYDRAULIC/HYDROSTATIC FLUID RESERVOIR 44
Removing The Hydraulic/Hydrostatic Fluid 44
FINAL DRIVE TRANSMISSION (CHAINCASE) 45
TIRE MAINTENANCE 45
Tire Rotation 45
Wheel Nuts 45
LUBRICATION OF THE BOBCAT LOADER 46
ROLL OVER PROTECTION STRUCTURE (ROPS & FOPS) 46
BOB-TACH 47
PIVOT PINS 47
AUXILIARY CONTROL LOCKBOLT 47
BRAKE PEDAL ADJUSTMENT 48
SERIAL NUMBER IDENTIFICATION 48
DELIVERY REPORT 48
MAJOR PARTS 49
MAIN FRAME 51
OPERATOR GUARD ELECTRICAL 52
ENGINE ELECTRICAL 53
HYDRAULIC SYSTEM 54
DRIVE SYSTEM 55
CONTROL PEDALS 56
HYDROSTATIC SYSTEM 57
HAND CONTROLS 58
SEAT & FUEL SYSTEM 59
ENGINE & ATTACHING PARTS 60
DECALS 62
DECALS 63
WARNING - 6563484 65
SERVICE SCHEDULE - 6561387 66
WARNING - 6563380 68
WARNING - 6561380 69
IMPORTANT - 6560573 70
GENERAL INFORMATION 71
LOADER SPECIFICATIONS 73
OPERATION & PERFORMANCE 73
ENGINE 73
LOADER HYDRAULICS 74
ELECTRICAL 74
DRIVE SYSTEM 74
CAPACITIES 74
TIRES 74
ADDITIONAL PUBLICATIONS 75
WARRANTY 77

DESCRIPTION:

Bobcat 843 Operation & Maintenance Manual - PDF DOWNLOAD

FOREWORD:

• This book is written to give the owner/operator necessary operating, servicing and preventive maintenance instructions for the Model 825 Bobcat loader. Read this manual completely and know the loader before operating and servicing it. To find a section, put thumb on the tab and turn pages until correct section is reached.
• For any extra information needed, see your Bobcat dealer. Do not do any service procedures that are not in the OPERATOR'S MANUALI Only service personnel that have had training in service of the Bobcat loader can do these service procedures.
• If extra Parts Books, Service Manuals or Operator's Manuals are needed, they are available through the Bobcat dealer in your area for an added cost.

OPERATING INSTRUCTIONS:

• DO NOT operate the Bobcat loader until you have read this operator's manual completely. Instructions for operating the Bobcat loader with safety and efficiency are given on the following pages.
• Carefully follow these instructions to take advantage of the Bobcat loader's design. You must remember operator safety at all times while you operate the loader. Read the safety instructions inside the front cover of the Operator's Manual.

It is important that you use the following procedures when you operate the loader:1. Use the safety tread and grab handles (Fig. 1) when you get on or off the loader.2. Adjust the seat position (Fig. 2) easy operation of the load- Adjust and fasten the seat b (Fig. 31. Lower the seat bar into operating position (Figs. 4, 5 a 61. Check that the parking brake engaged before you start t engine.3. All controls must be in the neutral position before you start the engine (Seat bar lowered and parking brake engaged).4. Keep personnel away from the work area while you are operating the loader.5. Fully lower the lift arms and bucket, stop the engine and engage the parking brake before you leave the seat.
