Bobcat 843 Operation & Maintenance Manual - PDF DOWNLOAD

Bobcat 843 Operation & Maintenance Manual - PDF DOWNLOAD

FILE DETAILS:

Bobcat 843 Operation & Maintenance Manual - PDF DOWNLOAD

SN 503724001 & Above

Language : English
Pages : 100
Downloadable : Yes
File Type : PDF

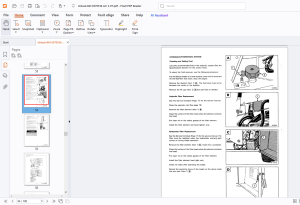

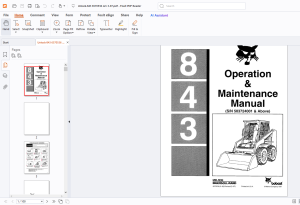

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Bobcat 843 Operation & Maintenance Manual - PDF DOWNLOAD

SN 503724001 & Above

OPERATOR SAFETY WARNINGS 3
FOREWORD 5
CONTENTS 5
REFERENCE INFORMATION 5
SAFETY INSTRUCTIONS 7
SAFETY IS THE OPERATOR'S RESPONSIBILITY 7
BEFORE OPERATING THE BOBCAT LOADER 7
SAFE OPERATION NEEDS A QUALIFIED OPERATOR 8
FIRE PREVENTION 8
SERIAL NUMBER LOCATIONS 9
Loader Serial Number 9
Engine Serial Number 9
DELIVERY REPORT 9
BOBCAT SKID STEER LOADER IDENTIFICATION10
SAFETY SIGNS (DECALS)11
OPERATING INSTRUCTIONS13
INSTRUMENT PANEL15
LEARNING THE CONTROLS16
THROTTLE CONTROL16
STOPPING THE ENGINE16
STEERING LEVERS17
HYDRAULIC CONTROLS18
Foot Pedals18
Lift Arm Operation18
Tilt Operation (Bucket)18
Auxiliary Lever Operation18
High Horse Power Hydraulics (Optional)18
BEFORE STARTING THE ENGINE19
SEAT BAR RESTRAINT SYSTEM20
OPERATING INSTRUCTIONS22
GETTING ON AND OFF THE LOADER22
GETTING READY FOR OPERATION22
STARTING THE ENGINE24
Normal Starting Condition24
Cold Starting Condition25
Warming The Hydrostatic Transmission25
ATTACHMENTS & BUCKETS26
Installation And Removal27
OPERATING PROCEDURE28
Filling The Bucket29
Emptying The Bucket29
Digging Into The Ground29
Leveling The Ground30
Backfilling30
PARKING THE BOBCAT LOADER31
TRANSPORTING THE BOBCAT LOADER31
LIFTING THE LOADER32
TOWING THE LOADER32
PREVENTIVE MAINTENANCE33
MAINTENANCE SAFETY34
SERVICE SCHEDULE35
LIFT ARM SUPPORT DEVICE36
OPERATOR CAB37
Raising The Operator Cab37
Lowering The Operator Cab37
SEAT BAR SYSTEM38
Seat Bar Inspection38
Seat Bar Maintenance38
REAR DOOR39
Adjustment39
AIR CLEANER SERVICE40
FUEL SYSTEM41
Fuel Specifications41
Filling The Fuel Tank41
Fuel Filter41
Removing Air From The Fuel System42
ENGINE LUBRICATION SYSTEM43
Replacing Engine Oil And Filter43
COOLING SYSTEM45
Coolant Removal45
Cleaning45
ALTERNATOR BELT ADJUSTMENT47
ELECTRICAL SYSTEM48
Electrical System Service48
Using An Extra Battery (Jump Starting)48
Battery Replacement49
Operator Cab Wiring Diagram50
Engine Wiring Diagram52
HYDRAULIC / HYDROSTATIC SYSTEM54
Checking And Adding Fluid54
Hydraulic Filter Replacement54
Hydrostatic Filter Replacement54
Hydraulic Fluid Replacement55
Hydraulic / Hydrostatic Flow Chart56
SPARK ARRESTOR MUFFLER60
FINAL DRIVE TRANSMISSION (CHAINCASE)61
TIRE MAINTENANCE61
Tire Rotation61
Tire Installation On Rim61
Tire Pressure61
Wheel Nuts61
LOADER LUBRICATION62
BOB-TACH63
PIVOT PINS63
BRAKE PEDAL ADJUSTMENT63
TROUBLESHOOTING65
TROUBLESHOOTING THE ENGINE67
TROUBLESHOOTING THE DRIVE SYSTEM68
TROUBLESHOOTING THE HYDRAULIC SYSTEM69
MAJOR PARTS71
MAIN FRAME73
PANELS, SEAT, SEAT BAR & FUEL SYSTEM74
DRIVE SYSTEM75
HYDRAULIC SYSTEM76
HYDROSTATIC SYSTEM77
HAND CONTROLS AND CONTROL PEDALS79
OPERATOR CAB ELECTRICAL SYSTEM80
ENGINE ELECTRICAL82
ENGINE & ATTACHING PARTS83
SAFETY SIGNS85
WARNING - 656598087
SERVIC SCHEDULE - 656787588
WARNING - 657585590
WARNING - 657585491
IMPORTANT - 656057392
DANGER - 657569492
SPECIFICATIONS93
84395
OPERATION & PERFORMANCE95
ENGINE95
HYDRAULIC SYSTEM96
ELECTRICAL96
DRIVE SYSTEM96
CAPACITIES96
TIRES96
843 HIGH HORSE POWER HYDRULICS97
OPERATION AND PERFORMANCE97
ENGINE97
HYDRAULIC SYSTEM98
ELECTRICAL98
DRIVE SYSTEM98
CAPACITIES98
TIRES98
WARRANTY99

DESCRIPTION:

Bobcat 843 Operation & Maintenance Manual - PDF DOWNLOAD

SN 503724001 & Above

 SAFETY INSTRUCTIONS:

SAFETY IS THE OPERATOR'S RESPONSIBILITY:

• The Skid Steer Loader is a highly maneuverable and compact machine. In operation, it is rugged and useful under a wide variety of conditions. This presents an operator with hazards associated with off highway, rough terrain applications and are not unique for use of Bobcat loaders. The loader has an internal combustion engine with resultant heat and exhaust.
• All exhaust gases can kill so the loader must be used with adequate ventilation. The loader has a spark arrestor muffler which is required for operation in certain areas.
• The dealer recommends the capabilities and restrictions of the loader and attachments for each application. The dealer demonstrates the safe operation of the loader according to Melroe's instructional materials; which are also available to operators. The dealer can also identify unsafe modifications or use of unapproved attachments.
• The attachments and buckets are designed for rated capacity and secure fastening to the loader. The user must check with the dealer, or Melroe Company literature, to determine safe loads of materials of specified densities for his loader-attachment combination.

The following publications provide information on the safe use and maintenance of the loader and attachments: 1. The Delivery Report is used to assure that complete instructions have been given to the new owner and that the machine is in safe operating condition.2. The Operation & Maintenance Manual delivered with the loader gives operating information as well as routine maintenance and service procedures. It is a part of the loader and must stay with the machine when it is sold. Replacement Operation & Maintenance Manuals can be ordered from your Bobcat Loader dealer.3. The loader has machine signs (decals) which instruct on the safe operation and care. The signs and their location are shown in the Operation & Maintenance Manual. Replacement signs are available from your Bobcat loader dealer.4. The loader has a plastic Operator Handbook fastened to the operator cab. It's brief instructions are convenient to the operator. The handbook is available from your dealer in English edition or a combination English, French, German, Spanish edition.5. The FIEI Manual delivered with the loader gives general safety information.6. The Service Manual and Parts Manual are available from Bobcat dealers for use by mechanics to do shop-type service and repair work.
