Bobcat 843 Operation & Maintenance Manual - PDF DOWNLOAD

Bobcat 843 Operation & Maintenance Manual - PDF DOWNLOAD

FILE DETAILS:

Bobcat 843 Operation & Maintenance Manual - PDF DOWNLOAD

SN 502620001 & Above

Language : English
Pages : 96
Downloadable : Yes
File Type : PDF

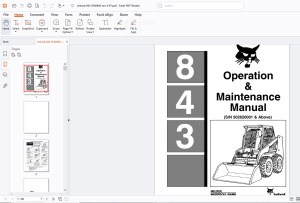

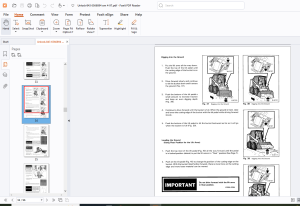

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Bobcat 843 Operation & Maintenance Manual - PDF DOWNLOAD

SN 502620001 & Above

OPERATOR SAFETY WARNINGS 3
CONTENTS 5
FOREWORD 7
SERIAL NUMBER LOCATIONS 9
LOADER SERIAL NUMBER 9
ENGINE SERIAL NUMBER 9
DELIVERY REPORT 9
BOBCAT LOADER IDENTIFICATION10
SAFETY11
SAFETY INSTRUCTIONS13
Safety Is The Operator's Responsibility13
Before Operating The Bobcat Loader14
Safe Operation Needs A Qualified Operator14
FIRE PREVENTION15
OPERATING INSTRUCTIONS17
OPERATING INSTRUCTIONS19
GETTING ON AND OFF THE LOADER19
SAFETY SIGNS (DECALS)20
LEARNING THE CONTROLS20
DASH PANEL23
THROTTLE CONTROL23
PARKING BRAKE23
STEERING LEVERS24
HYDRAULIC CONTROLS25
Left Foot Pedal / Lift Arm Operation25
Left Foot Pedal / Float Position For the Lift Arms25
Right Foot Pedal / Tilt (Bucket) Operation25
Right Lever / Auxiliary Operation26
BEFORE STARTING THE ENGINE26
STARTING THE ENGINE28
Cold Temperature Starting29
ATTACHMENTS & BUCKETS30
Bucket Or Fork Installation31
Bucket Or Fork Removal31
OPERATING PROCEDURES32
Filling The Bucket33
Emptying The Bucket33
Digging Into The Ground34
Leveling The Ground (Using Float Position For The Lift Arms)34
Backfilling35
PARKING THE LOADER35
TOWING THE LOADER35
TRANSPORTING THE LOADER35
LIFTING THE LOADER36
PREVENTIVE MAINTENANCE37
MAINTENANCE SAFETY39
SERVICE SCHEDULE41
LIFT ARM STOP42
OPERATOR CAB42
Raising The Operator Cab43
Lowering The Operator Cab43
SEAT BAR SYSTEM43
Inspection Of The Seat Bar System44
Service Of The Seat Bar System44
REAR DOOR44
Door Latch Adjustment45
AIR CLEANER45
FUEL SYSTEM46
Filling The Fuel Tank46
Fuel Filter47
Removing Air From The Fuel System48
ENGINE LUBRICATION SYSTEM49
Engine Oil And Filter Replacement49
COOLING SYSTEM50
Coolant Level50
Coolant Replacement50
Cooling System Maintenance50
ALTERNATOR BELT ADJUSTMENT51
ELECTRICAL SYSTEM54
Electrical System Service54
Using An Extra Battery (Jump Starting)54
Battery Replacement56
HYDRAULIC / HYDROSTATIC SYSTEM56
Hydraulic / Hydrostatic Fluid Reservoir56
Checking And Adding Fluid56
Hydraulic Fluid Replacement58
Hydraulic (10 Micron) Filter Replacement58
Hydrostatic (#3 Element) Filter Replacement59
SPARK ARRESTOR MUFFLER60
FINAL DRIVE TRANSMISSION (CHAINCASE)60
Chaincase Fluid Level60
TIRE MAINTENANCE61
Tire Rotation61
Wheel Nuts61
LOADER LUBRICATION62
BOB-TACH63
PIVOT PINS63
BRAKE PEDAL ADJUSTMENT63
TROUBLESHOOTING65
TROUBLESHOOTING THE ENGINE67
TROUBLESHOOTING THE DRIVE SYSTEM68
TROUBLESHOOTING THE HYDRAULIC SYSTEM69
MAJOR PARTS71
MAIN FRAME73
PANELS, SEAT, SEAT BAR & FUEL SYSTEM74
DRIVE SYSTEM75
HYDRAULIC SYSTEM76
HYDROSTATIC SYSTEM77
HAND CONTROLS AND CONTROL PEDALS78
OPERATOR CAB ELECTRICAL SYSTEM79
ENGINE ELECTRICAL80
ENGINE & ATTACHING PARTS81
SAFETY SIGNS83
WARNING - 656598085
SERVICE SCHEDULE - 656787586
WARNING - 656869288
WARNING - 656869189
IMPORTANT - 656057390
SPECIFICATIONS91
OPERATION AND PERFORMANCE93
ENGINE93
HYDRAULIC SYSTEM94
ELECTRICAL94
DRIVE SYSTEM94
CAPACITIES94
TIRES94
WARRANTY95

DESCRIPTION:

Bobcat 843 Operation & Maintenance Manual - PDF DOWNLOAD

SN 502620001 & Above

SAFETY INSTRUCTIONS SAFETY IS THE OPERATOR'S RESPONSIBILITY:

• The Skid Steer Loader is a highly maneuverable and compact machine. In operation, it is rugged and useful under a wide variety of conditions. This presents an operator with hazards associated with off highway, rough terrain applications. The loader has an internal combustion engine with resultant heat and exhaust.
• All exhaust gases can kill or cause liness so the loader must be used with adequate ventilation. The loader has a spark arrestor muttler which is required for operation in certain areas. The dealer explains the capabilities and restrictions of the loader and attachments for each application.
• The dealer demonstrates the safe operation of the loader according to Melroe's instructional materials which are also available to operators.
• The dealer can also identity unsafe modifications or use of unapproved attachments. The attachments and buckets are designed for rated capacity and secure fastening to the loader. The user must check with the dealer, or Melroe Company Iterature, to determine safe loads of materials of specified densities for his loader attachment combination.

The following publications provide information on the safe use and maintenance of the loader and attachments:•The Delivery Report is used to assure that complete instructions have been given to the new owner and that the machine is in safe operating condition.• The Operation & Maintenance Manual delivered with the loader gives opening information ses well ses routine maintenance and service procedures. It is a part of the loader and must stay with the machine when it is sold. Replacement Operation & Maintenance Manuals can be ordered from your Bobcat loader dealer.• The loader has machine signs (decals) which instruct on the safe operation and care. The signs and their locations are shown in the Operation & Maintenance Manual. Replacement signs a s are available from your Bobcat loader dealer.•The loader has a plastic Operator's Handbook fastened to the operator cab. Its brief instructions are convenient to the operator. The handbook is available from your dealer in English edition or a combination English, French, German, Italian, Dutch & Spanish editionThe EMI Safety Manual (available in Spanish) delivered with the loader gives general safety information:•The Service Manual and Parts Manual are available from your dealer for use by mechanics to do shop-type service and repair work.• The Skid Steer Loader Operator Training Course is available through your local dealer. This course is intended to provide rules and practices of corect operation of the Bobcat loader. The course is available in English and Spanish The Bobcat Skid Steer Loader Safety Video is available from your Bobcat Dealer.
